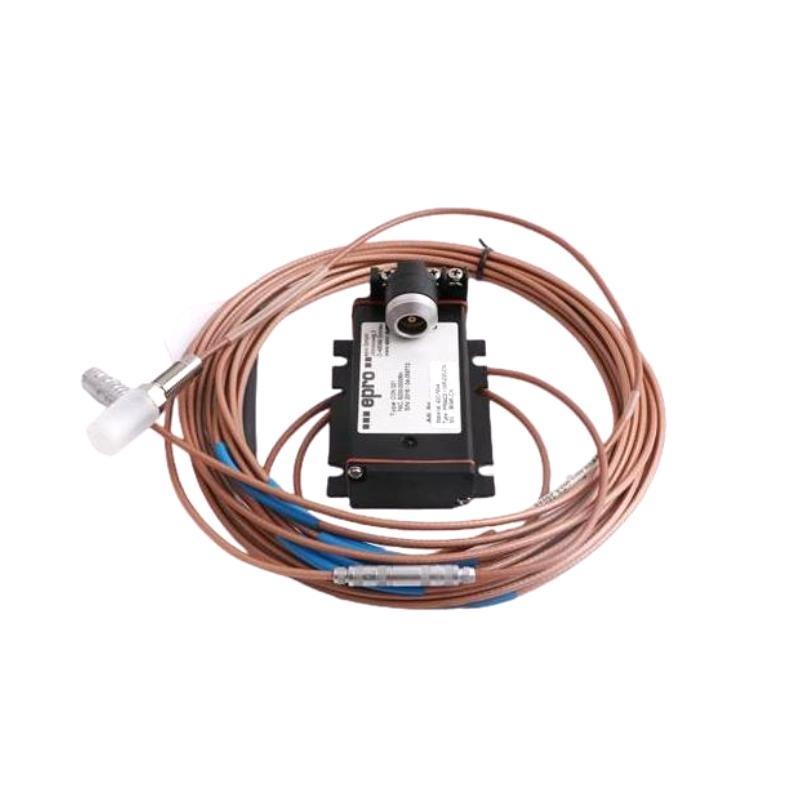

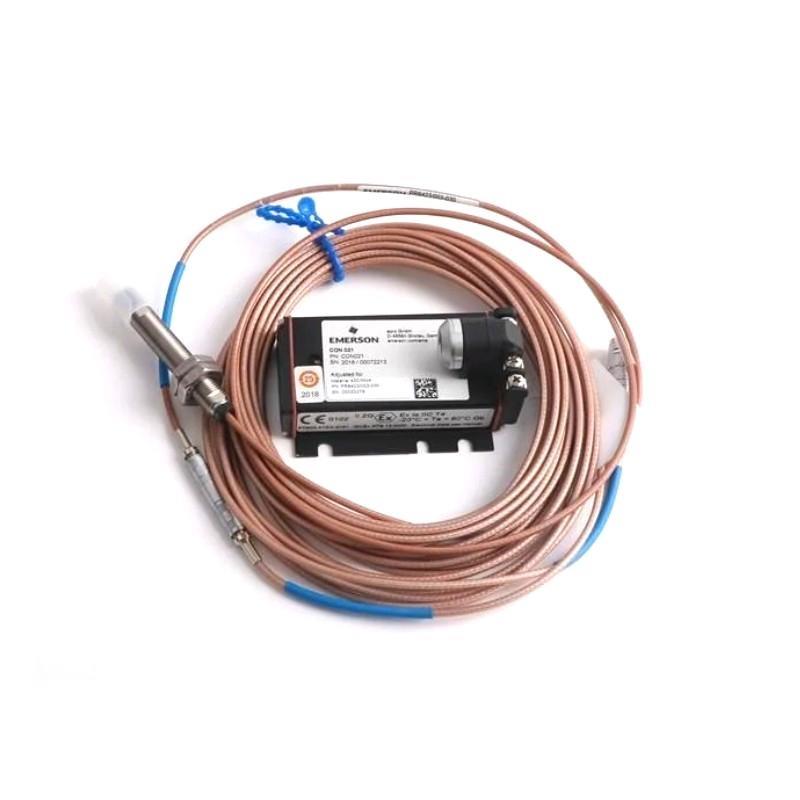

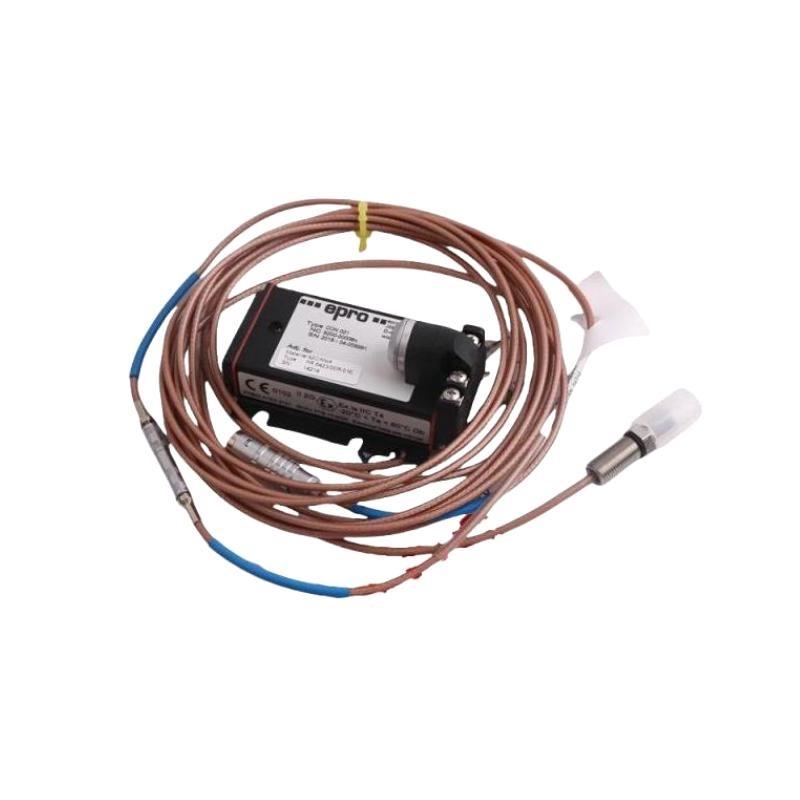

The Epro CON021+PR6423/010-040-CN 8mm Eddy Current Sensor is a high-precision, non-contact displacement and vibration sensor designed for industrial machinery monitoring. Utilizing the eddy current principle, it detects metallic targets’ position and vibration with exceptional accuracy.
This sensor is commonly used in turbines, compressors, pumps, and other critical rotating equipment. Its robust design ensures reliable operation under industrial conditions, including temperature variations, vibration, and electromagnetic interference. The sensor delivers high-resolution real-time data essential for condition monitoring, predictive maintenance, and process optimization.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | CON021+PR6423/010-040-CN |
| Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 8 mm |
| Measurement Range | 0–0.4 mm |
| Output Type | Differential voltage signal (mV) |
| Linearity | ±1% / full scale |
| Frequency Response | 0–10 kHz |
| Temperature Range | –20 °C to 120 °C |
| Operating Voltage | 18–30 V DC |
| Signal 状態ing | Integrated signal conditioning 台 |
| 重量 | 0.22 kg |
| Connector Type | M12 or compatible industrial connector |
| Housing Material | Stainless steel or high-strength alloy |
| Mounting | Threaded or flange mounting options available |
Applications
The CON021+PR6423/010-040-CN sensor is suitable for:
-
Rotating Machinery Monitoring: Measures displacement and vibration in turbines, compressors, and pumps.
-
Predictive Maintenance: Detects early signs / bearing wear, imbalance, or misalignment.
-
Process Control: Provides precise feedback for automation and control systems.
-
Industrial Equipment Testing: Used in laboratory or test bench environments for machinery performance analysis.
-
High-Speed Machinery: Suitable for measuring shaft vibration and radial displacement in high-speed rotating equipment.
Advantages
-
High Accuracy: Eddy current technology ensures precise displacement measurement.
-
Non-お問い合わせ Operation: Reduces wear and maintenance by not physically touching the target.
-
Wide Frequency Response: Captures both low and high-frequency vibration signals.
-
Robust Design: Resistant to vibration, temperature variations, and electromagnetic interference.
-
Integrated Signal 状態ing: Provides high-quality output signals for industrial monitoring equipment.
-
Flexible Mounting: Threaded or flange options for secure installation.
-
Compact and Lightweight: 8 mm sensor head and 0.22 kg weight enable easy integration into machinery.
FAQ
1. What is the primary function / the CON021+PR6423/010-040-CN sensor?
It accurately measures displacement and vibration / metallic targets using the eddy current principle, providing real-time data for industrial monitoring.
2. What is the diameter / the sensor head?
The sensor head has a diameter / 8 mm, allowing installation in tight spaces near rotating machinery.
3. What measurement range does this sensor support?
The sensor measures displacements from 0 to 0.4 mm, suitable for precise monitoring / small movements.
4. What type / output signal does the sensor provide?
It outputs a differential voltage signal in millivolts compatible with industrial monitoring systems.
5. How linear is the sensor?
It has a linearity / ±1% / full scale, ensuring accurate proportional measurement / displacement.
6. What is the frequency response / the sensor?
The sensor responds effectively to frequencies from 0 up to 10 kHz, capturing both slow and rapid vibrations.
7. What temperature range can it operate within?
It operates reliably from –20 °C to 120 °C in industrial environments.
8. What voltage is required for the sensor to function?
The sensor operates on a DC voltage range / 18–30 V.
9. Is it suitable for high-speed rotating machinery applications?
Yes, it is designed to monitor shaft vibration and radial displacement in high-speed turbines, pumps, and compressors.
10. What mounting options are available?
The sensor can be mounted using threaded or flange interfaces for flexible and secure installation.
