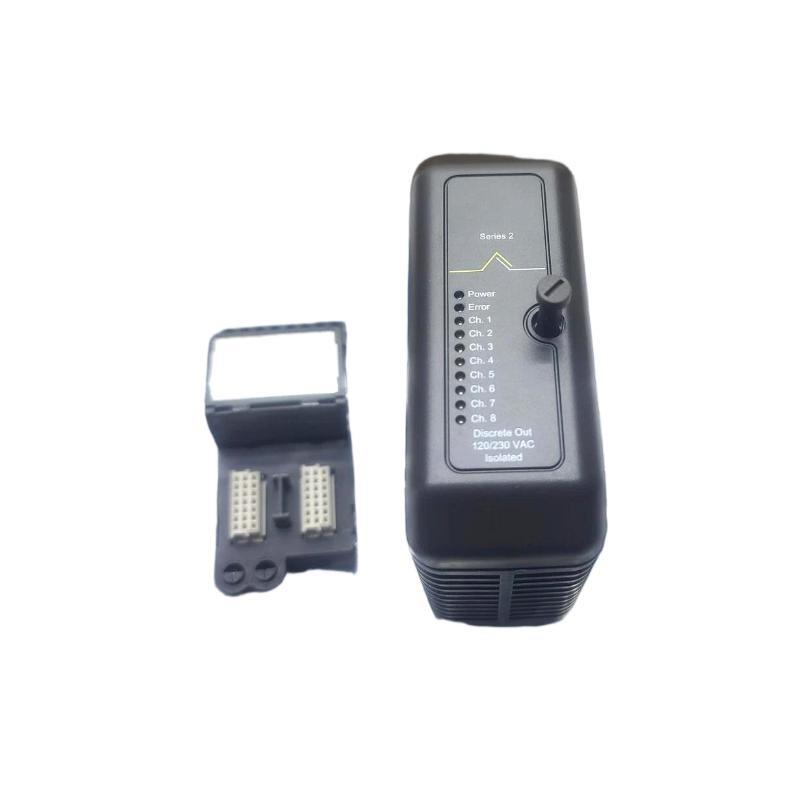

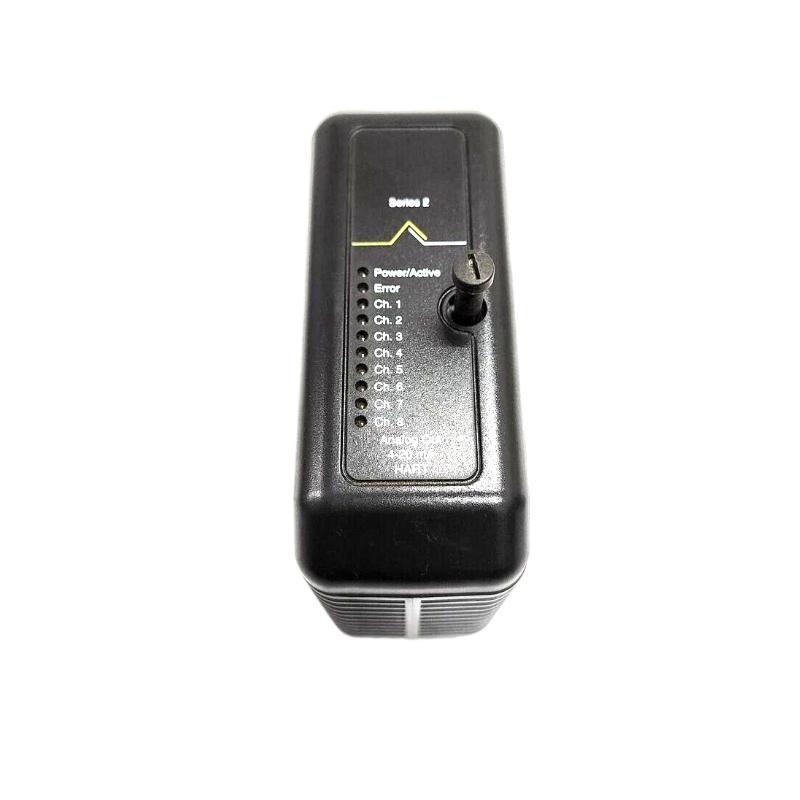

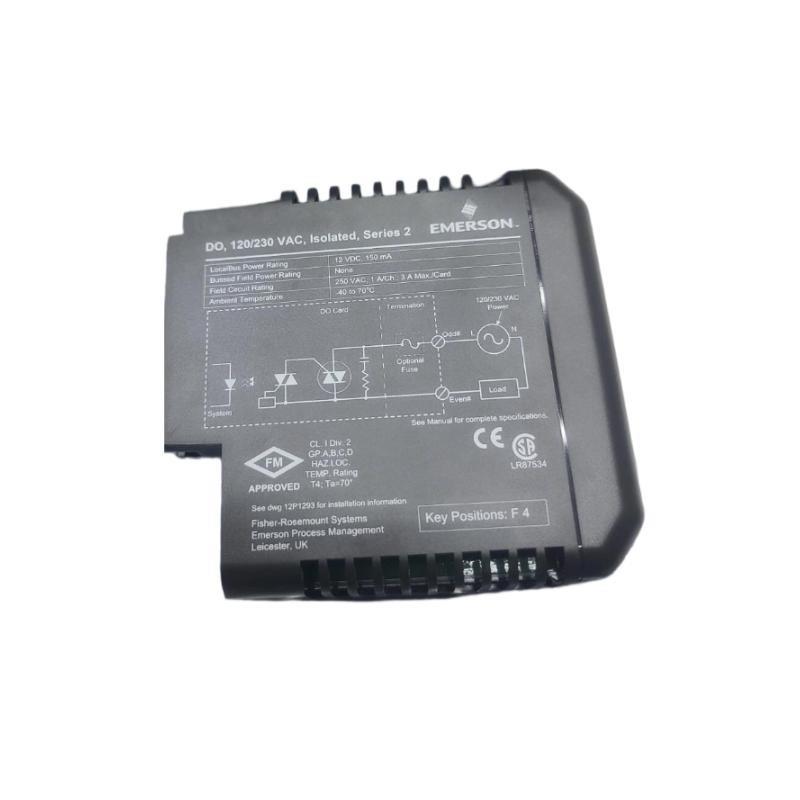

The Emerson VE4002S1T2B5 KJ3204X1-BA1 + KJ4001X1-CJ1 output module with terminal blocks is an advanced control and monitoring component designed for Emerson’s DeltaV control systems. This module is used to convert control signals from the system into physical output signals that can drive various field devices, such as actuators, sensors, and valves. Equipped with terminal blocks, it /fers ease / wiring and ensures secure connections for field installations.
The VE4002S1T2B5 module supports both analog and digital outputs and is capable / handling multiple communication protocols, making it an ideal solution for diverse industrial applications. It helps optimize processes by providing high precision and reliable performance for the efficient control / machinery and systems.
This output module is well-suited for environments where flexibility, scalability, and easy maintenance are key requirements, /fering a cost-effective solution for process automation in industries such as manufacturing, oil and gas, and power generation.
Product Parameters
| Parameter | Value |
|---|---|
| モデル | VE4002S1T2B5 KJ3204X1-BA1 + KJ4001X1-CJ1 |
| Packaging Dimensions | 250 x 150 x 125 mm |
| Packaging 重量 | 2 kg |
| Output Type | Digital and Analog Output |
| Number / Channels | 8 channels |
| Input Voltage Range | 24 VDC |
| Output Signal Range | 0-10 V, 4-20 mA |
| Communication Protocol | HART, Modbus, Foundation Fieldbus |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature Range | -20°C to 60°C |
| Relative Humidity Range | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Compliance | CE, UL, RoHS |
Product Applications
The Emerson VE4002S1T2B5 KJ3204X1-BA1 + KJ4001X1-CJ1 output module is versatile and can be used in a wide range / industrial and process control applications:
-
Process Control Systems: Used in industries like chemicals, petrochemicals, and power plants for monitoring and controlling critical process variables such as flow, temperature, pressure, and level.
-
Manufacturing Automation: Ideal for controlling production equipment, conveyors, and other machinery in manufacturing plants.
-
Energy and Utilities: Helps manage energy distribution, track energy consumption, and control key systems in industrial energy management applications.
-
Water and Wastewater Treatment: Controls pumps, filtration systems, and valves in water treatment plants, ensuring the efficient operation / water distribution and treatment systems.
-
HVAC Systems: Used for controlling heating, ventilation, and air conditioning systems in commercial and industrial buildings.
-
Building Automation Systems: Ensures the smooth operation / environmental systems within large buildings by providing control over lighting, HVAC, and energy management systems.
Product Advantages
-
Wide Compatibility: サポートs HART, Modbus, and Foundation Fieldbus communication protocols, allowing integration with various existing systems.
-
Flexible Output Options: The module supports both analog (0-10 V, 4-20 mA) and digital outputs, providing flexibility in controlling different field devices.
-
Ease / Installation and Maintenance: Equipped with terminal blocks for easy wiring, this output module simplifies installation and maintenance, reducing system downtime.
-
Scalability: The modular design makes it easy to expand control systems by adding more channels as required without disrupting the existing setup.
-
Durability and Protection: With an IP20 rating, the module is protected against dust and environmental factors, ensuring reliable performance in industrial environments.
-
Temperature Resilience: The -20°C to 60°C temperature range ensures the module can perform effectively in a variety / operational environments, from cold storage areas to high-temperature industrial zones.
-
High Precision: Ensures accurate signal output to field devices, which enhances the overall efficiency and reliability / control processes.
FAQ
1. What is the input voltage range for the VE4002S1T2B5 KJ3204X1-BA1 + KJ4001X1-CJ1 output module?
The input voltage range for this module is 24 VDC, which is standard for most industrial control systems.
2. What type / outputs does this module support?
The VE4002S1T2B5 supports both analog (0-10 V, 4-20 mA) and digital outputs, making it suitable for a wide range / field devices.
3. How many channels does this output module support?
The module supports 8 output channels, allowing you to control multiple devices simultaneously.
4. What communication protocols are supported by this module?
This output module supports HART, Modbus, and Foundation Fieldbus communication protocols, which enhances its compatibility with existing control systems.
5. What is the operating temperature range / the VE4002S1T2B5 KJ3204X1-BA1 + KJ4001X1-CJ1 output module?
The module operates within a temperature range / -20°C to 60°C, which is suitable for most industrial environments.
6. What is the protection rating / this output module?
The VE4002S1T2B5 has an IP20 protection rating, meaning it is protected from dust and large objects but is not resistant to water ingress.
7. Can this output module be used in hazardous environments?
The IP20 rating makes it suitable for normal industrial environments, but additional enclosures may be needed for use in more hazardous or extreme conditions.
8. How does the terminal block feature benefit this module?
The terminal block feature allows for easier installation and maintenance by simplifying the wiring process and ensuring secure connections for field devices.
9. Is the VE4002S1T2B5 compatible with other Emerson control systems?
Yes, this module is fully compatible with Emerson’s DeltaV control systems and can be easily integrated into other systems that support HART, Modbus, or Foundation Fieldbus protocols.
10. What types / field devices can this output module control?
This output module can control a variety / field devices, including actuators, valves, sensors, and other equipment that require digital or analog control signals.
Recommended Related モデルs
| モデル | 説明 |
|---|---|
| VE4002S1T2B6 KJ3204X1-BA2 | Enhanced output module with additional signal channels |
| VE4002S1T2B7 KJ3204X1-BA3 | Multi-protocol output module for advanced process control |
| VE4002S1T2B8 KJ3204X1-BA4 | Output module with expanded temperature range for harsh environments |
| VE4002S1T2B9 KJ3204X1-BA5 | Compact output module designed for small-scale systems |
| VE4002S1T2B10 KJ3204X1-BA6 | Digital output module for high-speed process monitoring |
| VE4002S1T2B11 KJ3204X1-BA7 | High-precision module for controlling critical equipment |
Popular モデルs from Emerson
| モデル | 説明 |
|---|---|
| KJ3001X1-BG1 | Basic output module for general control applications |
| KJ3002X1-BG2 | Digital I/O module for control and monitoring systems |
| KJ3003X1-BG3 | Multi-protocol communication output module |
| KJ4001X1-CB1 | Compact digital output module with enhanced connectivity |
| VE4001S1T1A1 | Analog output module for precision control |
| KJ4002X1-CB2 | High-precision output module with advanced protection features |
