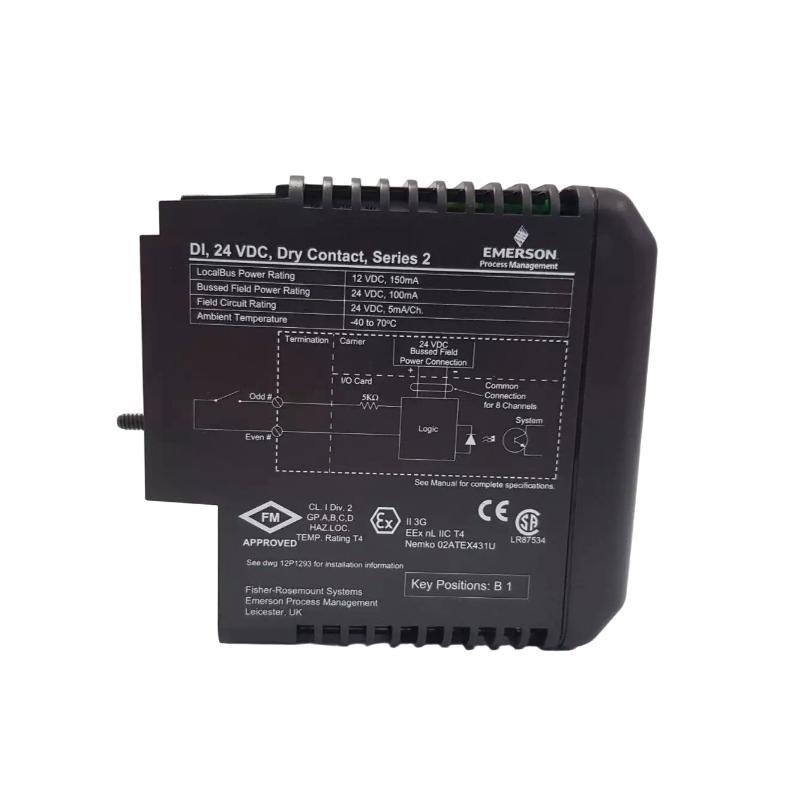

The Emerson VE4001S2T2B1 KJ3201X1-BA1 + KJ4001X1-CA1 Input Module with Terminal Blocks is a high-performance discrete input solution designed for Emerson DeltaV™ and Ovation™ control systems. This module provides reliable data acquisition from field devices such as limit switches, relays, and dry-contact sensors. It combines the VE4001S2T2B1 input card with the KJ3201X1-BA1 carrier and KJ4001X1-CA1 terminal block, /fering a compact and rugged package for industrial automation. Engineered for mission-critical applications, the module ensures accurate status detection, robust electrical isolation, and convenient hot-swappable maintenance.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | VE4001S2T2B1 with KJ3201X1-BA1 + KJ4001X1-CA1 |
| Product Type | Discrete Input Module with Terminal Blocks |
| Input Channels | 16 isolated digital inputs |
| Input Voltage Range | 18–32 VDC |
| Signal Type | Dry contact or DC voltage |
| Channel-to-Bus Isolation | 1500 V RMS |
| Input Response Time | <5 ms typical |
| Power Consumption | 6 W maximum |
| Communication Interface | Redundant DeltaV™ I/O bus |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions | 100 x 150 x 50 mm |
| 重量 | 0.25 kg |
| Certifications | CE, ATEX Zone 2, UL, CSA |
Applications
-
Process Automation – Captures real-time status / pumps, motors, and valves in chemical and pharmaceutical production lines.
-
Power Generation – Monitors turbine trips, boiler safety interlocks, and auxiliary equipment signals.
-
Oil & Gas – Interfaces with pipeline sensors, emergency shutdown devices, and /fshore platform systems.
-
Water & Wastewater – Tracks pump station alarms, filter operations, and treatment plant control signals.
-
Manufacturing – Detects machine state changes, conveyor belt sensors, and robotics safety inputs.
-
Building Automation – Integrates HVAC, lighting, and fire-safety signals for centralized monitoring.
Advantages
-

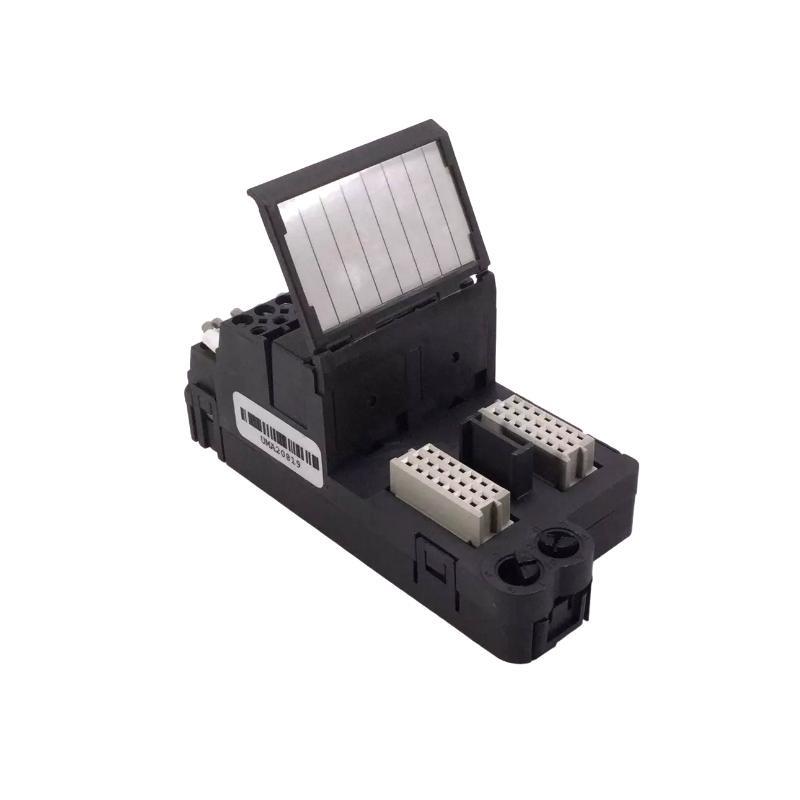

Integrated Terminal Blocks – Preassembled with KJ3201X1-BA1 and KJ4001X1-CA1, simplifying wiring and installation.
-
High Channel Density – Sixteen individually isolated channels reduce cabinet space requirements.
-
Rapid Response – Sub-5 ms input recognition supports time-critical control loops.
-
Robust Isolation – 1500 V RMS isolation protects against electrical noise and ground loops.
-
Redundant Communication – Dual DeltaV™ I/O bus ensures uninterrupted data transfer.
-
Wide Environmental Range – Operates from –20 °C to +60 °C, suited for harsh industrial conditions.
-
Hot-Swappable Design – Allows card replacement without shutting down the control system.
-
Low Power Usage – Consumes only 6 W, minimizing heat and energy costs.
FAQ
-
How many discrete inputs does the module support?
It supports 16 individually isolated digital input channels for flexible field device integration. -
What input voltage range is accepted?
Each channel operates with 18–32 VDC signals or dry-contact inputs. -
How fast is the input response time?
The module detects signal changes within approximately 5 milliseconds for real-time control needs. -
Does the module provide channel-to-bus isolation?
Yes, it /fers 1500 V RMS isolation to prevent ground loops and electrical noise interference. -
Can the module be hot-swapped?
Absolutely, it can be inserted or removed during live operation without disrupting the control system. -
What communication protocol does it use?
It communicates via a redundant DeltaV™ I/O bus for high reliability. -
Are the terminal blocks included?

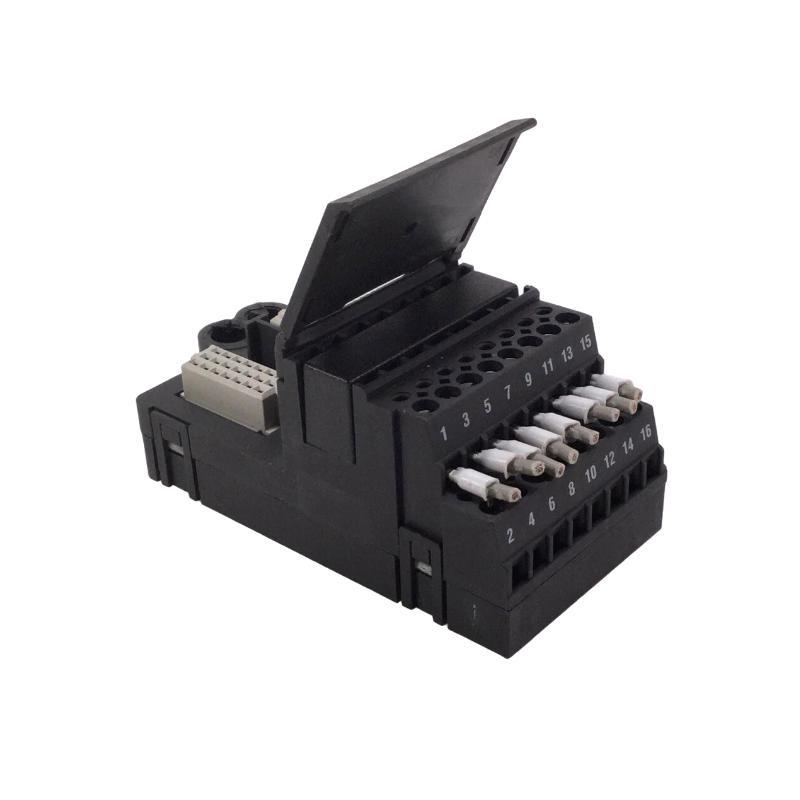

Yes, the KJ4001X1-CA1 terminal block is included for simplified field wiring. -
What environmental conditions can it tolerate?
Operating temperature range is –20 °C to +60 °C, with 5–95% non-condensing humidity. -
Is the module certified for hazardous areas?
It carries CE, ATEX Zone 2, UL, and CSA certifications for industrial and hazardous environments. -
Which control systems are compatible with this module?
It integrates seamlessly with Emerson DeltaV™ and Ovation™ distributed control systems.
