Product Overview

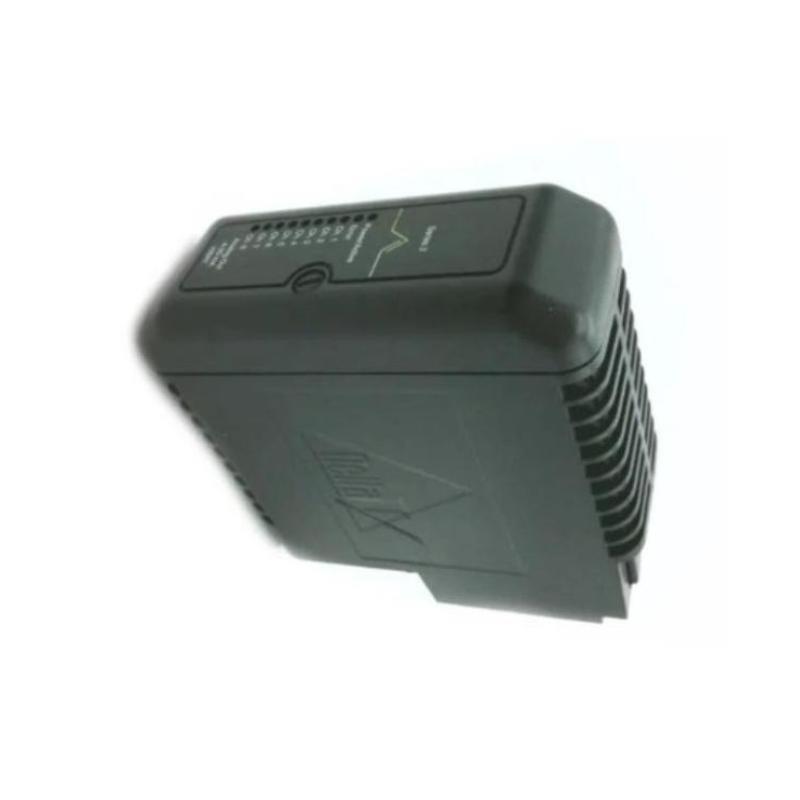

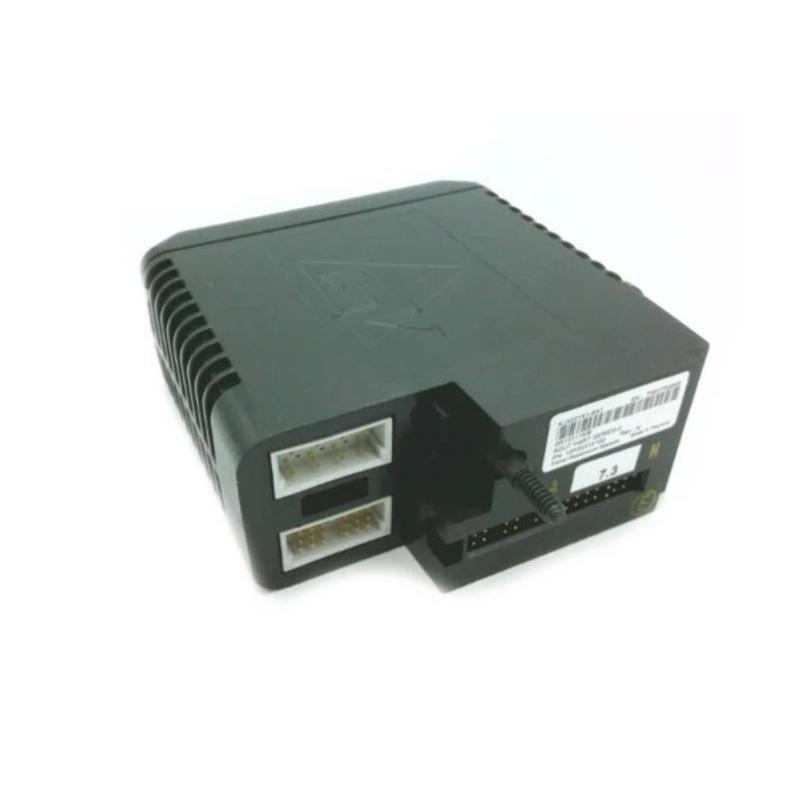

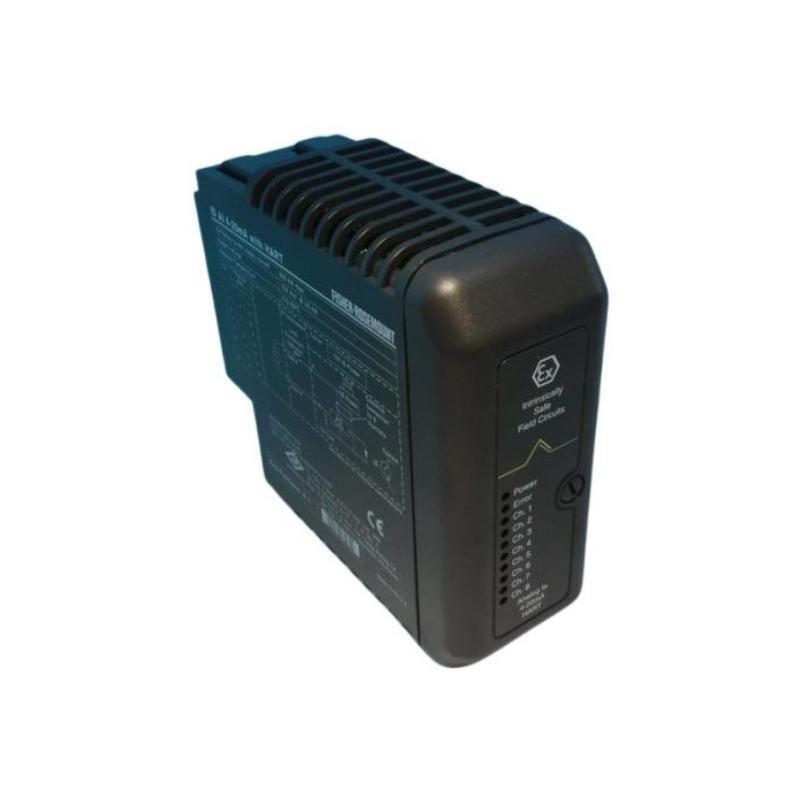

The Emerson VE4001S2B1 KJ3222X1-BA1 Analog Input Card is a high-performance module designed for precise data acquisition in Emerson DeltaV control systems. It provides reliable analog input signal processing, allowing continuous monitoring / process variables such as temperature, pressure, flow, and level. Engineered for industrial environments, the card ensures accurate, stable, and repeatable measurements, supporting high system reliability and operational efficiency.
Key Features
-
High-precision analog input measurement for DeltaV systems
-
サポートs multiple signal types including 4–20 mA and voltage signals
-
Compatible with Emerson VE4000 series input/output modules
-
Hot-swappable design for maintenance without system downtime
-
Compact, DIN-rail compatible form factor for efficient panel integration
-
Built-in diagnostics for fault detection and troubleshooting
-
Designed for continuous operation in industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Emerson |
| モデル | VE4001S2B1 KJ3222X1-BA1 |
| Product Type | Analog Input Card |
| Input Type | Voltage and Current (4–20 mA) |
| Number / Channels | 8 channels |
| Accuracy | ±0.1% / full scale |
| Response Time | < 10 ms |
| Isolation | Channel-to-channel and channel-to-system |
| Supply Voltage | 24 VDC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 107 x 41 x 105 mm |
| 重量 | 0.36 kg |
| Applications | Process variable monitoring and control in industrial automation systems |
Industry Applications
-
Oil & Gas automation systems
-
Power generation plants
-
Chemical and petrochemical processing
-
Pharmaceutical manufacturing
-
Water and wastewater treatment systems
-
Pulp and paper process control
-
General industrial automation
よくある質問 (FAQ)
Q1: What is the function / the VE4001S2B1 Analog Input Card?
It provides precise analog input measurement for process variables like temperature, pressure, flow, and level.
Q2: How many channels does this card support?
It supports 8 input channels.
Q3: Which signal types are compatible?
It supports voltage and 4–20 mA current signals.
Q4: Is it hot-swappable?
Yes, it can be replaced without shutting down the system.
Q5: What is the operating temperature range?
It operates between 0 °C and +60 °C.
Q6: Can it be used in harsh industrial environments?
Yes, it is built for continuous industrial operation.
Q7: Is the card compatible with Emerson DeltaV systems?
Yes, it is designed for use with VE4000 series DeltaV I/O modules.
Q8: What are its dimensions?
Dimensions are 107 x 41 x 105 mm.
Related Emersonモジュールs
| モデル | 説明 |
|---|---|
| VE4002S1T2B6 | Discrete Output Card |
| VE4003S2B1 | Discrete Input Card |
| VE4005S2B1 | Analog Output Card |
| KJ3221X1-BA1 | Analog Input Card variant |
| VE4001S2B2 | Analog Input Card variant |
| VE4004S2T3B6 | High-Density Analog Input Card |
Popular Emersonモジュールs
| モデル | 説明 |
|---|---|
| VE3005 | Controller MD Module |
| VE3006 | MD Controller |
| VE3007 | MX Controller |
| SE4003S6B1 | Analog Input Card |
| VE4003S2B1 | Discrete Input Card |
| VE4006S2T3B6 | High-Density Analog Input Card |
