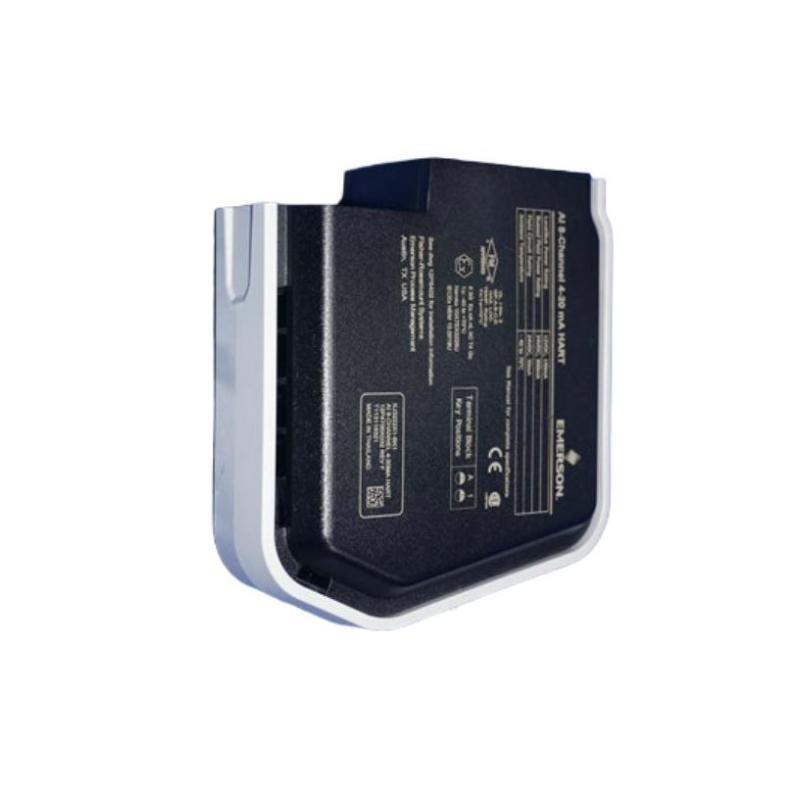

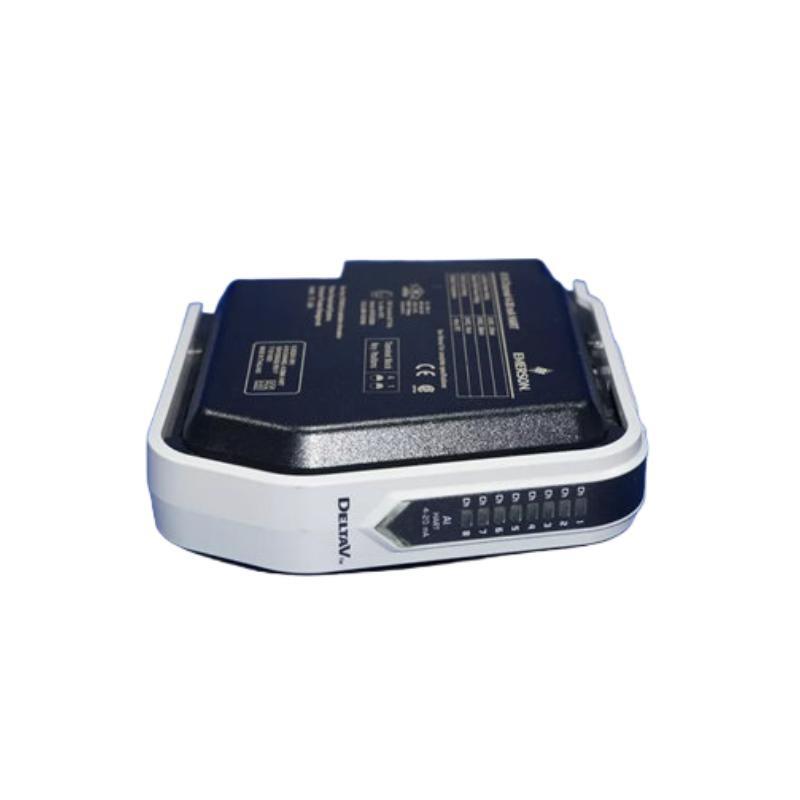

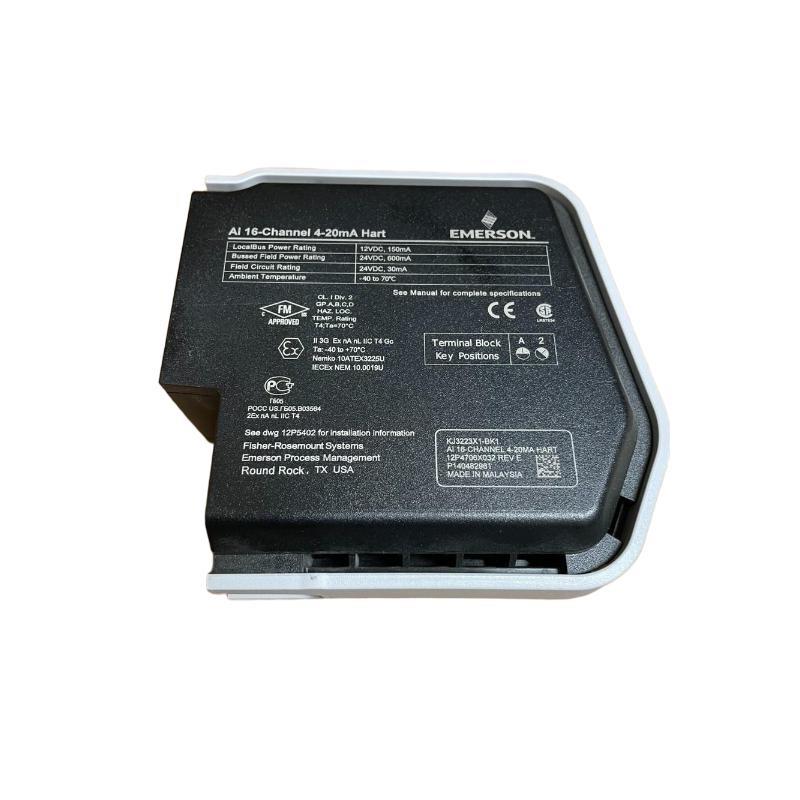

The Emerson SE4033S2B1 Analog Input Card is designed to provide high-precision analog signal acquisition for industrial automation systems. This card enables the integration / various analog sensors and field instruments into the control system, allowing for real-time data monitoring and process control. Its robust design ensures reliable performance in a wide range / industrial applications, making it an essential component for capturing and converting analog signals into a format suitable for processing by controllers.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | SE4033S2B1 |
| Interface Type | Analog Input |
| Dimensions | 162 x 41.8 x 199.3 mm |
| 重量 | 0.29 kg |
| Power Supply | 24V DC |
| Number / Channels | 16 Channels |
| Input Type | Voltage, Current (4-20 mA, 0-10V) |
| Resolution | 16-bit |
| Sampling Rate | 10 ms per channel |
| Input Impedance | > 1 MΩ |
| Temperature Range | -20°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Environmental Rating | IP20 |
| Mounting Type | DIN Rail Mounted |
Product Applications
The Emerson SE4033S2B1 Analog Input Card is used in various industrial environments where real-time monitoring and control / analog signals are essential:
-
Process Monitoring: It is ideal for capturing data from temperature sensors, pressure transducers, flow meters, and other industrial analog devices.
-
Automation Systems: The card is a core component in automation systems where it converts real-world analog signals into data that can be used by the central controller for decision-making.
-
Data Acquisition: Suitable for applications requiring continuous, high-accuracy data acquisition from analog sources.
-
Control Systems: Used in industrial control systems to measure variables like temperature, pressure, level, and flow, and provide feedback to the system for control actions.
-
SCADA Systems: It is a critical part / SCADA systems where real-time data is required from remote sensors for analysis and monitoring.
-
Energy Management Systems: The card is used for reading analog meters or energy monitoring devices to help with efficient energy management.
Product Advantages
-
High-Resolution Input: With a 16-bit resolution, the card ensures accurate and detailed analog signal conversion, making it ideal for precise measurements in industrial processes.
-
Multiple Input Types: The card supports multiple input types, including 4-20 mA and 0-10V, providing flexibility for integration with various sensors and instruments.
-
Wide Temperature Range: Designed to operate within a temperature range / -20°C to +70°C, the card ensures reliable performance even in harsh environments.
-
Fast Sampling Rate: The card /fers a 10 ms per channel sampling rate, allowing for near real-time data acquisition and processing.
-
High Input Impedance: With an input impedance / over 1 MΩ, the card ensures minimal signal loss and preserves the integrity / the input signals.
-
Durability: Built to meet industrial standards, the card features an IP20 rating, /fering protection against dust and other contaminants, making it suitable for industrial environments.
FAQ
Q1: How do I install the SE4033S2B1 Analog Input Card?
To install the card, mount it on a DIN rail, connect the appropriate analog input devices to the terminals, and provide the card with a 24V DC power supply. Make sure the wiring is correctly configured for voltage or current input signals.
Q2: What types / analog inputs are supported by this card?
The card supports 4-20 mA current inputs and 0-10V voltage inputs, allowing it to work with a wide range / industrial sensors and field instruments.
Q3: How many input channels does the SE4033S2B1 have?
The card has 16 input channels, allowing it to handle multiple analog signals simultaneously.
Q4: What is the resolution / the analog inputs on this card?
The card provides 16-bit resolution, ensuring high precision in capturing and converting analog signals.
Q5: What is the sampling rate / the analog inputs?
The card has a 10 ms per channel sampling rate, providing fast data acquisition for real-time process monitoring.
Q6: What is the input impedance / the card?
The input impedance is greater than 1 MΩ, ensuring minimal signal attenuation and high accuracy when measuring analog signals.
Q7: Can this card be used in high-temperature environments?
Yes, the card is designed to operate in environments with temperatures ranging from -20°C to +70°C, making it suitable for a variety / industrial settings.
Q8: Is the SE4033S2B1 Analog Input Card compatible with Emerson controllers?
Yes, the card is fully compatible with Emerson controllers and integrates seamlessly into Emerson-based automation systems.
Q9: What is the environmental protection rating / the card?
The card has an IP20 rating, which provides protection against dust and direct contact, making it suitable for most industrial applications.
Q10: How do I troubleshoot issues with the analog input card?
Ensure all wiring is secure and correctly configured for the appropriate input signal type (4-20 mA or 0-10V). Check the input devices for proper operation and refer to the user manual for additional troubleshooting steps.
