製品紹介

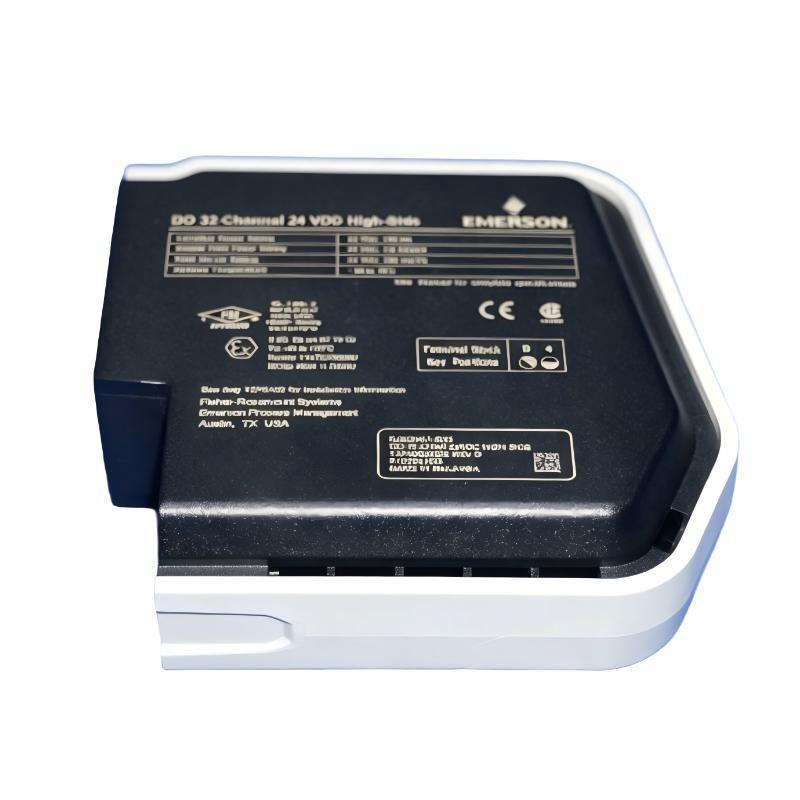

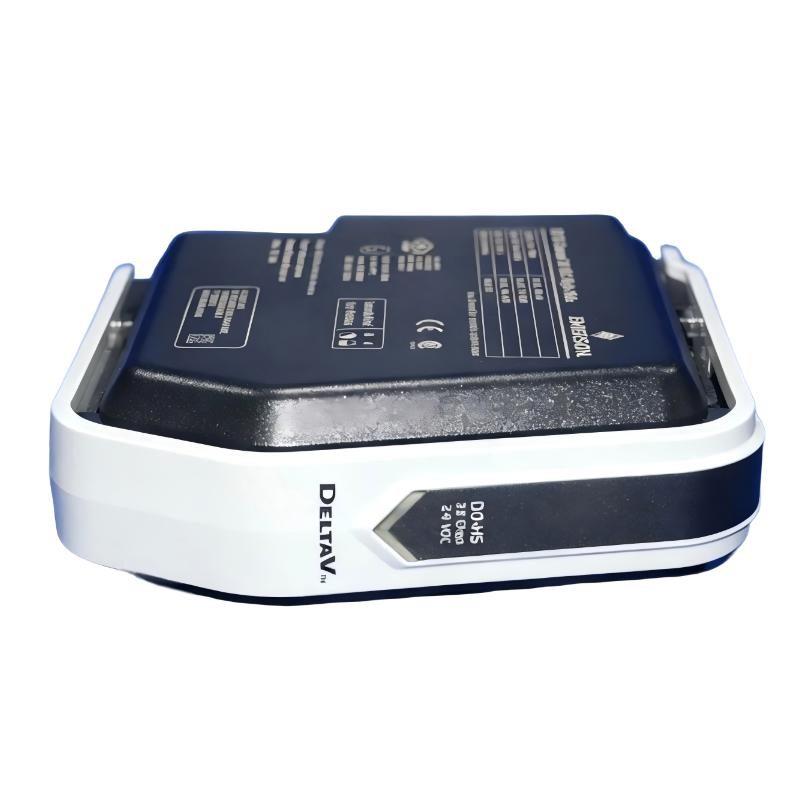

The Emerson SE4002S1T2B6 Discrete Output Card is an industrial automation module designed for high-density digital output control in distributed control systems. It is used to execute control commands and drive multiple field devices in coordinated industrial processes.
This module provides 32 independent output channels and supports 24V DC high-side switching. It is suitable for controlling a large number / field devices such as relays, solenoids, indicators, and actuators within a single module, improving system integration efficiency.
Each channel operates independently, allowing simultaneous output operations without signal interference between channels. This ensures stable and consistent control behavior in complex automation environments.

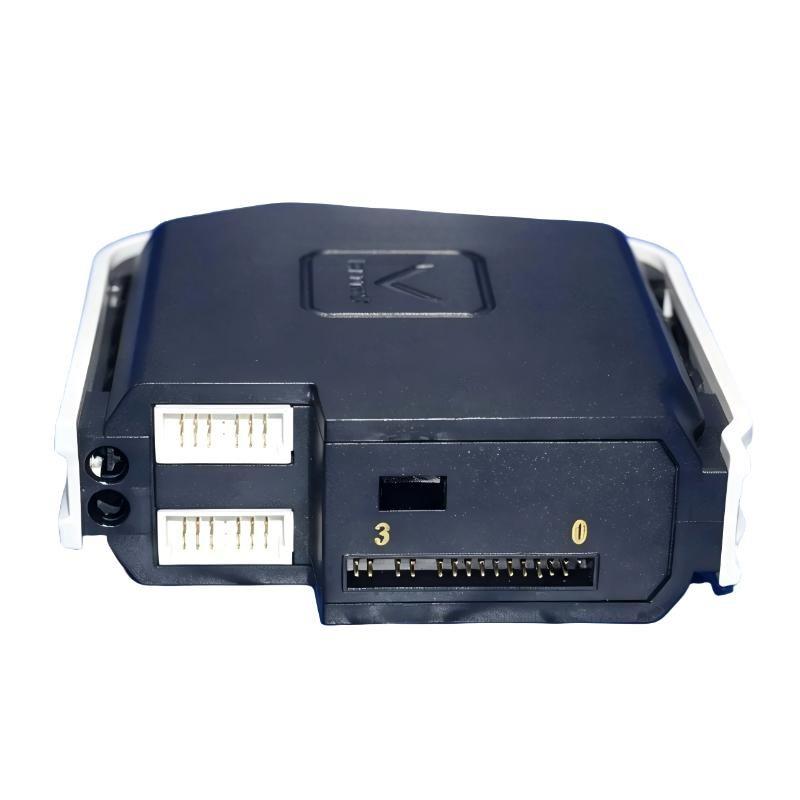

The module uses a 40-pin mass I/O terminal block, providing a high-density and organized wiring interface. This design reduces cabinet wiring complexity and supports efficient installation and maintenance in large-scale control systems.
The SE4002S1T2B6 is widely used in industrial sectors such as power generation, oil and gas, chemical processing, water treatment, and manufacturing systems where large-scale output control is required.
製品仕様
| Parameter | Specification |
|---|---|
| Product モデル | SE4002S1T2B6 |
| Product Type | Discrete Output Card |
| メーカー | Emerson |
| Output Channels | 32 Channels |
| Output Voltage | 24V DC |
| Output Type | High Side |
| Isolation | Channel-to-System Isolation |
| Terminal Type | 40-Pin Mass I/O Terminal Block |
| Signal Processing | Digital Output Control |
| Installation Method | Rack / Panel Mounted |
| Application Environment | Industrial Automation Systems |
| System Function | Output Signal Execution |
| System Compatibility | Emerson Control Systems |
| Diagnostics | Channel Status Indication |
| Operating Stability | Industrial Grade Operation |
| Dimensions | 131 x 41.8 x 130.8 mm |
| 重量 | 0.4 kg |
Applications
● Industrial Automation Systems
Used for large-scale control / multiple field devices through digital output signals.
● Power Generation Systems
Applied in auxiliary system control and multi-device switching operations.
● Oil and Gas Industry
Used for actuating valves, relays, and process control equipment.
● Chemical Processing Plants
サポートs coordinated control / multiple process devices.
● Water Treatment Systems
Used for controlling pumps, valves, and system switching operations.
● Manufacturing Systems
Controls large numbers / machines and production line devices.
Advantages
● High-Density Output Design
サポートs 32 channels within a single module for large-scale control.
● Independent Channel Operation
Each output channel functions separately to ensure stable performance.
● High-Side Switching Structure
Provides reliable control for industrial load applications.
● Reduced Wiring Complexity
40-pin terminal block supports organized and efficient wiring layout.
● Stable Signal Execution
Ensures consistent response under multi-channel operation.
● System Integration Capability
Designed for compatibility with Emerson automation platforms.
