製品紹介

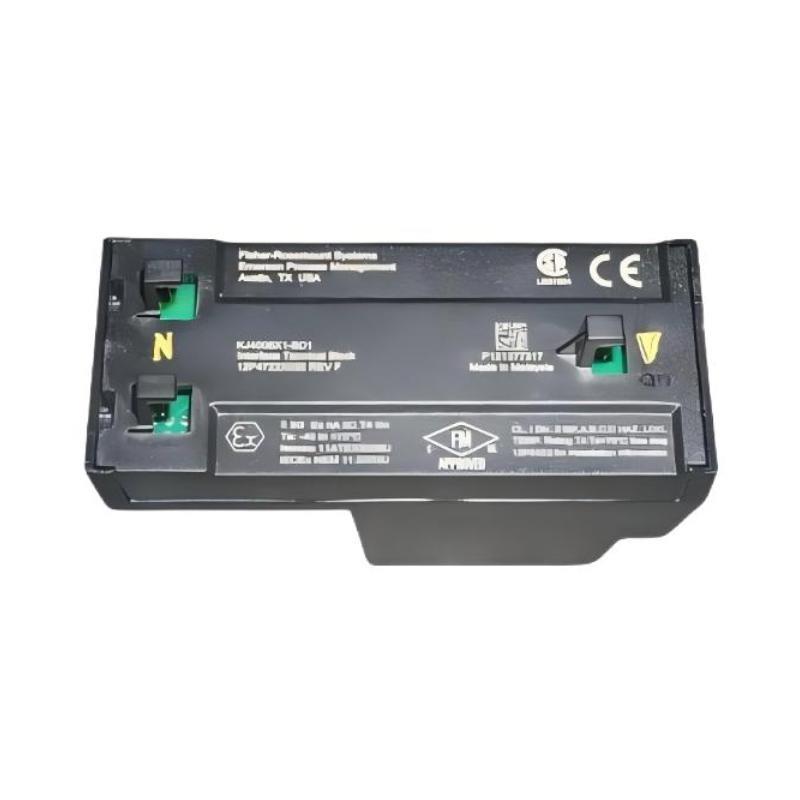

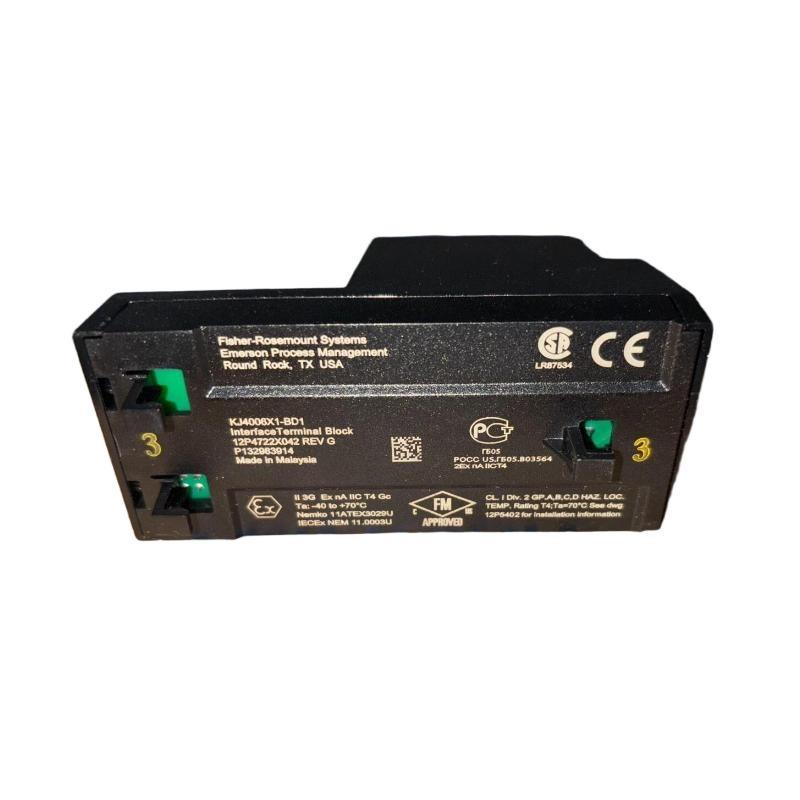

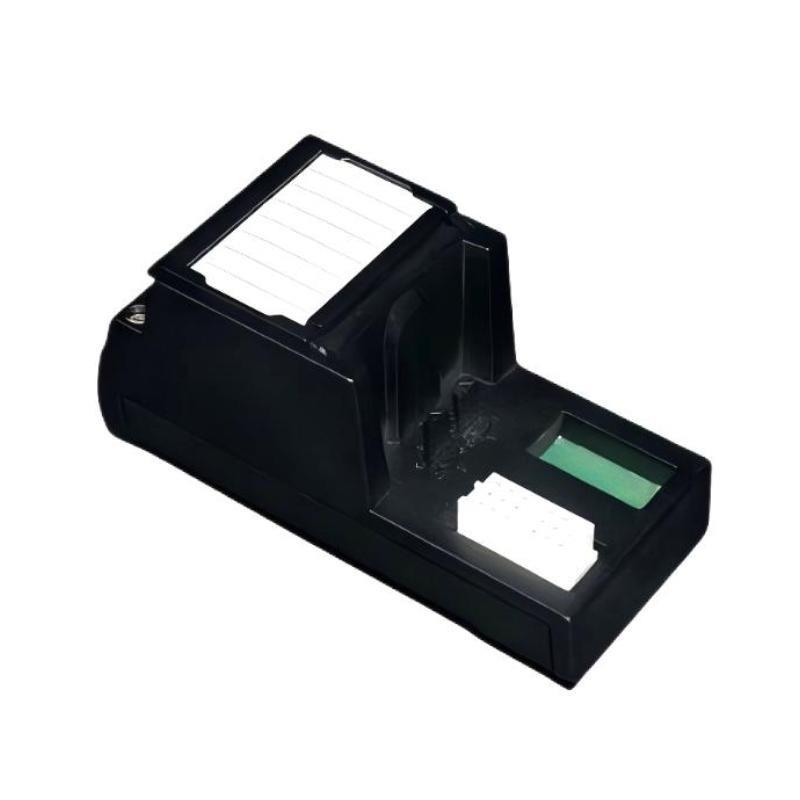

The Emerson KJ4006X1-BD1 Interface Terminal Block is a high-quality wiring terminal designed for reliable connectivity within DeltaV and Ovation control systems. It provides a secure and organized interface for wiring between field devices and control modules, ensuring stable signal transmission and efficient system integration. With its compact structure and high durability, the KJ4006X1-BD1 is ideal for demanding industrial environments that require precision and long-term reliability.
This terminal block is widely used in critical process industries such as power generation, chemical production, oil and gas, and advanced manufacturing automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | KJ4006X1-BD1 |
| Type | Interface Terminal Block |
| Dimensions | 41 × 125 × 105 mm |
| 重量 | 0.0907 kg |
| Material | Industrial-grade thermoplastic housing with copper alloy terminals |
| Connector Type | Multi-channel terminal for easy field wiring |
| Mounting Style | DIN rail or panel mounting |
| Signal サポート | Analog, digital, and low-voltage I/O |
| Operating Voltage | Up to 30 VDC |
| Current Rating | Up to 2 A per channel |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Tolerance | 5%–95% non-condensing |
| Compliance | CE, UL, RoHS certified |
| Maintenance | Plug-and-play design for fast installation and replacement |
Applications
The KJ4006X1-BD1 Interface Terminal Block is versatile and supports a variety / industrial and automation applications, including:
-
Process Control Systems: Provides reliable signal transmission between field instruments and control modules.
-
Power Generation Plants: Ensures precise and stable wiring for turbine and auxiliary equipment monitoring.
-
Oil and Gas Facilities: サポートs critical signal connections in hazardous and high-demand environments.
-
Chemical Processing Plants: Enhances connectivity for sensors, transmitters, and control devices in process automation.
-
Manufacturing Automation: Facilitates efficient wiring in robotics, assembly lines, and machine control systems.
-
Retr/it and Upgrade Projects: Ideal for upgrading existing systems with minimal wiring modifications.
Advantages
-
High Reliability: Built for industrial applications requiring stable and secure connections.
-
Compact Design: Space-saving structure suitable for dense control cabinet layouts.
-
Versatile Connectivity: サポートs both analog and digital signals, providing wide compatibility.
-
Ease / Installation: Plug-and-play setup simplifies wiring and reduces installation time.
-
Durability: Resistant to temperature fluctuations, vibration, and industrial contaminants.
-
Low Maintenance: Requires minimal servicing, reducing overall system downtime.
-
Safety Certified: Complies with international safety and environmental standards.
-
Scalability: Easily integrates with additional I/O channels for system expansions.
-
Enhanced Signal Integrity: Provides clean and noise-free signal transmission.
-
Cost-Effective: Long service life reduces replacement and maintenance costs.
FAQ
Q1: What control systems are compatible with the KJ4006X1-BD1 terminal block?
A1: It is primarily compatible with Emerson DeltaV and Ovation systems but can be integrated into other industrial automation platforms.
Q2: What types / signals can this terminal block handle?
A2: It supports both analog and digital low-voltage signals, making it versatile for various applications.
Q3: How is the KJ4006X1-BD1 mounted in a control cabinet?
A3: It can be mounted on a DIN rail or panel, providing flexibility for different installation setups.
Q4: What is the current rating per channel?
A4: Each channel supports up to 2 A, suitable for standard signal transmission requirements.
Q5: Is this terminal block suitable for high-vibration environments?
A5: Yes, its rugged design ensures stable performance even under vibration and mechanical stress.
Q6: How does it enhance system reliability?
A6: By ensuring secure wiring and low-resistance connections, it reduces the risk / signal loss or intermittent connections.
Q7: Can the KJ4006X1-BD1 be used for expansion projects?
A7: Yes, it integrates seamlessly into existing systems and supports scalable expansions.
Q8: What certifications does the terminal block meet?
A8: It complies with CE, UL, and RoHS standards, ensuring safety and environmental compliance.
Q9: Does it require special maintenance procedures?
A9: No, its robust design minimizes maintenance, requiring only periodic inspections for optimal performance.
Q10: How does it ensure signal integrity in noisy environments?
A10: The design minimizes electrical interference, ensuring accurate and reliable data transmission.
Related モデルs
| モデル | 説明 |
|---|---|
| KJ4006X1-BL1 | Interface terminal block for 8-channel AI wiring. |
| KJ4006X1-BF1 | Terminal block optimized for DI/DO applications. |
| KJ4006X1-BG1 | High-density wiring terminal for mixed signal connections. |
| KJ4006X1-BH1 | Terminal block for redundant system setups. |
| KJ4006X1-BJ1 | Enhanced terminal block for critical process control. |
| KJ4006X1-BK1 | Compact terminal block designed for retr/it installations. |
Popular Emersonモジュールs
| モデル | 説明 |
|---|---|
| KJ3002X1-BB1 | Controller module for reliable process automation. |
| KJ2003X1-BA1 | I/O module for digital signal processing. |
| KJ4001X1-CH1 | Communication interface module for high-speed data transfer. |
| KJ4002X1-BE1 | Redundant power supply module for system stability. |
| KJ3008X1-BG1 | High-performance analog input card. |
| KJ1501X1-BA1 | Field controller for distributed control systems. |
