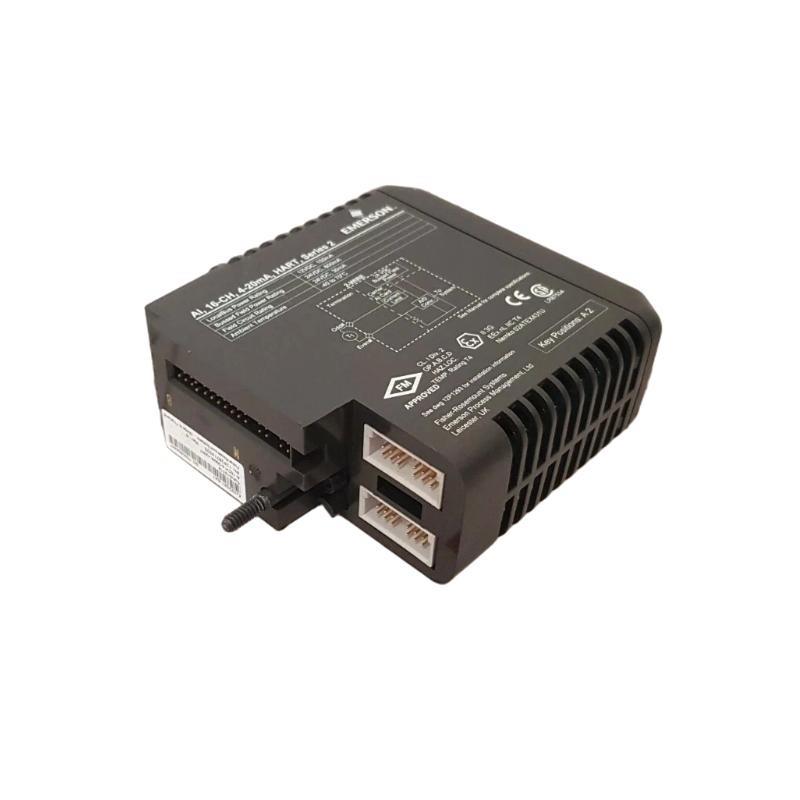

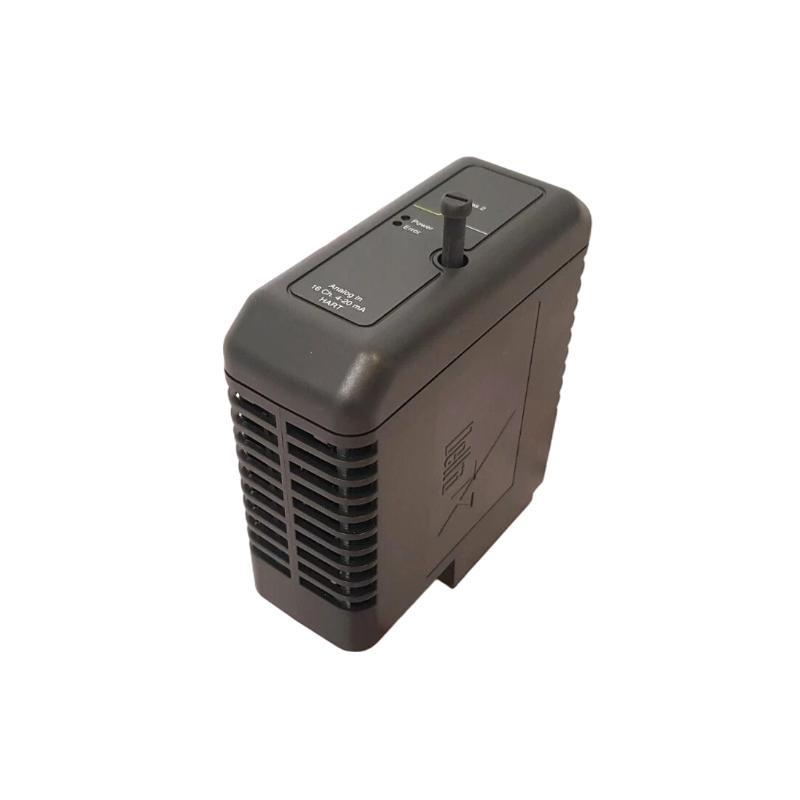

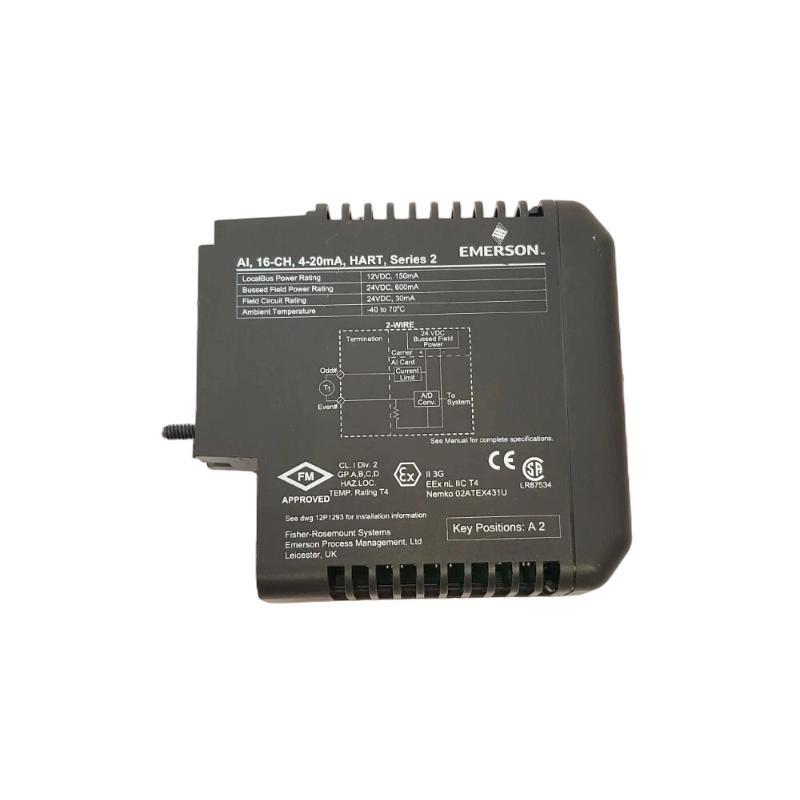

The Emerson KJ3223X1-BA1 12P2871X012 Analog Input Module is a high-precision S-Series module designed for the DeltaV distributed control system (DCS). It is engineered to provide accurate acquisition and conditioning / analog signals from a variety / field instruments such as transmitters, sensors, and measurement devices.
This module converts field analog signals into digital process variables that are transmitted to the DeltaV controller for monitoring, control, and advanced process automation. Its industrial-grade design ensures high signal integrity, low noise, and reliable performance even in demanding process environments. The KJ3223X1-BA1 supports hot-swapping, self-diagnostics, and redundant configurations, making it suitable for critical applications where continuous operation is required.
製品仕様
| Parameter | 説明 |
|---|---|
| メーカー | Emerson |
| モデル | KJ3223X1-BA1 12P2871X012 |
| Product Type | S-Series Analog Input Module |
| System Compatibility | DeltaV Distributed Control System |
| Input Channels | 16 analog input channels |
| Input Signal Types | 4–20 mA, 0–20 mA, 0–10 VDC |
| Input Accuracy | ±0.05% / full scale typical |
| Input Impedance | 250 Ω for current, >10 kΩ for voltage |
| Isolation | Channel-to-channel and channel-to-system galvanic isolation |
| Diagnostics | Channel status monitoring, open/short detection, LED indicators |
| Redundancy | サポートs redundant configuration for critical applications |
| Power Supply | Supplied through DeltaV backplane |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Passive convection within rack |
| Mounting | Plug-in rack installation |
| Dimensions | 118 x 102 x 30 mm |
| 重量 | 1.13 kg |
| Reliability Features | Hot-swappable, fault-tolerant, self-diagnostics |
| Certifications | CE, CSA, IEC industrial standards compliance |
Product Applications
The KJ3223X1-BA1 Analog Input Module is widely deployed in process industries where precise analog measurement is required:
-
Process Measurement: Acquires signals from pressure, temperature, flow, and level transmitters.
-
Control Loops: Provides accurate analog feedback for PID or advanced control loops.
-
Batch and Continuous Processes: サポートs precise analog data acquisition in both batch and continuous operations.
-
Energy and Utility Monitoring: Collects analog signals from power meters, energy analyzers, and utility instruments.
-
Industrial Automation: Interfaces with sensors in chemical, petrochemical, power, and water treatment plants.
-
Redundant Systems: Can be deployed in dual-redundant configurations for high availability applications.
Product Advantages
The Emerson KJ3223X1-BA1 /fers significant operational advantages:
-
High Accuracy and Linearity: Ensures precise measurement / analog signals, minimizing process error.
-
Strong Signal Isolation: Galvanic isolation prevents cross-channel interference and protects system integrity.
-
Hot-Swappable Design: Module can be replaced without stopping the process.
-
Self-Diagnostics: Detects open/short circuits and reports channel health status.
-
Redundancy サポート: Compatible with redundant configurations for mission-critical applications.
-
Industrial Durability: Built to withstand vibration, electrical noise, and temperature variations.
-
Ease / Integration: Fully compatible with DeltaV system, simplifying configuration and commissioning.
-
Versatile Input Range: Accepts 4–20 mA, 0–20 mA, and 0–10 VDC signals from a variety / instruments.
FAQ
-
How many analog input channels does the KJ3223X1-BA1 provide?
It provides 16 isolated analog input channels. -
Which signal types are supported by this module?
It supports 4–20 mA, 0–20 mA, and 0–10 VDC input signals. -
What is the typical accuracy / the module?
±0.05% / full scale typical for standard analog inputs. -
Does the module support channel-to-channel isolation?
Yes, all channels are galvanically isolated from each other and from the system bus. -
Can the module be hot-swapped?
Yes, it supports hot-swapping without shutting down the DeltaV system. -
How are diagnostic issues reported?
Diagnostic errors are reported via DeltaV system status and LED indicators on the module. -
Is the module compatible with redundant configurations?
Yes, it can operate in redundant setups for high-availability applications. -
What types / field instruments can be connected?
Pressure transmitters, temperature sensors, flow meters, level transmitters, and other analog devices. -
Does the module require external power?
No, it receives power through the DeltaV backplane. -
What is the input impedance for current and voltage signals?
250 Ω for current input and greater than 10 kΩ for voltage input.
Recommended Related モデルs (Same Series / Related)
| モデル | 説明 |
|---|---|
| KJ3002X1-BG1 | S-Series Analog Input Card |
| KJ3004X1-BF1 | S-Series Analog Output Card |
| KJ4002X1-BE1 | S-Series Digital Input Module |
| KJ4003X1-BA1 | S-Series Digital Output Module |
| KJ3221X1-BA1 | S-Series Output Module |
| KJ3241X1-BA1 | S-Series Thermocouple Input Module |
Popular Emerson モデルs (Same ブランド, High Demand)
| モデル | 説明 |
|---|---|
| KJ3001X1-BB1 | S-Series Controller Module |
| KJ2005X1-BA1 | DeltaV Power Supply Module |
| KJ4001X1-CH1 | HART Multiplexer Module |
| VE3008 | DeltaV M-Series Controller |
| VE4001S2T2B1 | DeltaV SIS Logic Solver |
| KJ3204X1-BA1 | S-Series RTD Input Module |
