製品紹介

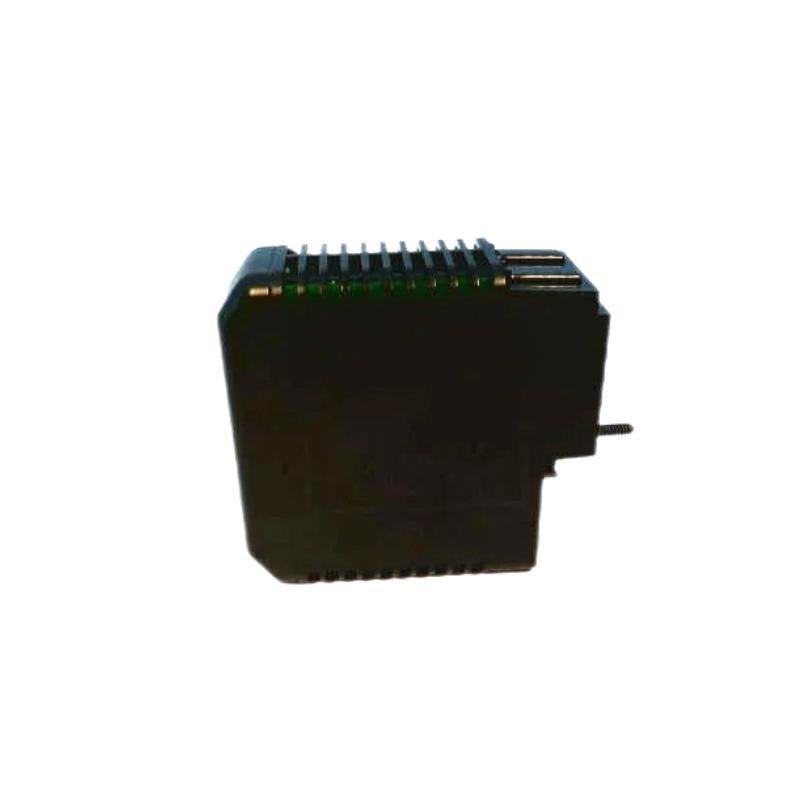

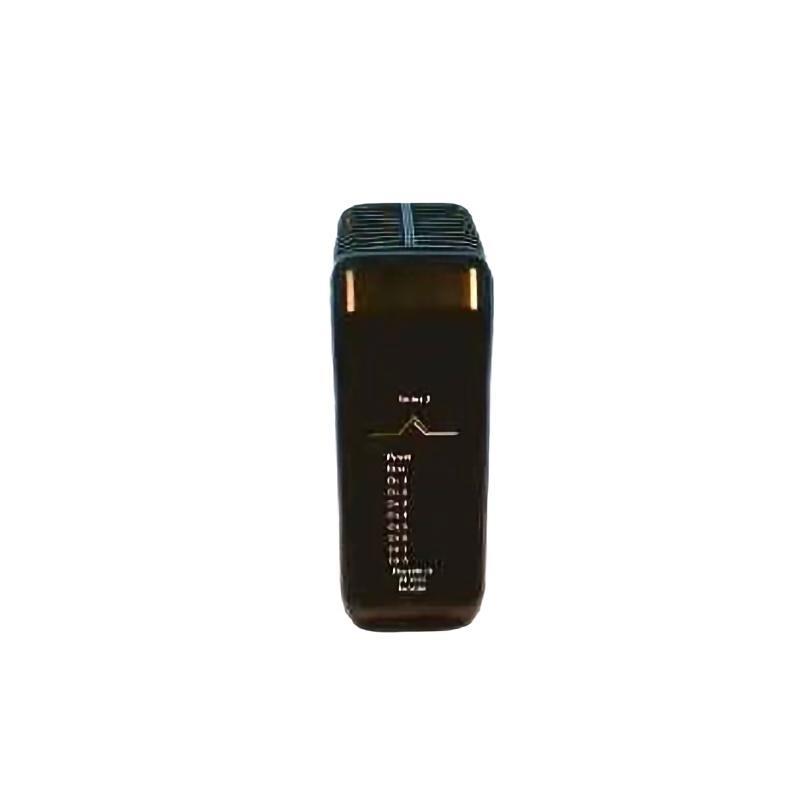

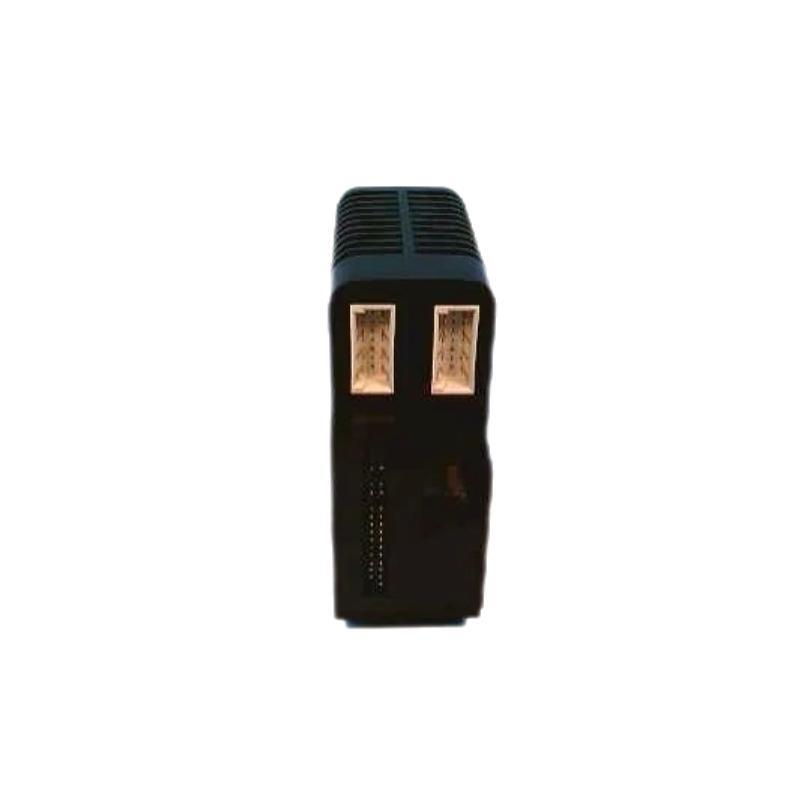

The Emerson KJ3206X1-BA1 Power Supply Module is a high-reliability component engineered for use within Emerson’s DeltaV distributed control systems (DCS). Designed to provide stable and regulated power to the I/O subsystems, this power supply module plays a crucial role in ensuring uninterrupted process automation operations.
Featuring advanced diagnostics, rugged construction, and a compact footprint, the KJ3206X1-BA1 is ideal for mission-critical environments such as oil & gas, power generation, chemical processing, and other industrial automation sectors. Its modular design facilitates quick installation and easy replacement, contributing to reduced maintenance time and enhanced system uptime.
製品仕様
| Parameter | Details |
|---|---|
| モデル | KJ3206X1-BA1 |
| ブランド | Emerson |
| Series | DeltaV |
| Function | System Power Supply Module |
| Input Voltage | 24 VDC (Nominal) |
| Input Voltage Range | 18 – 32 VDC |
| Output Voltage | 24 VDC Regulated |
| Output Power Capacity | Up to 100W |
| Power Supply Type | Redundant capable, hot-swappable |
| Efficiency | >85% |
| Status Indicators | LED indicators for power status and fault diagnosis |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% RH (non-condensing) |
| Mounting Type | Rack/DIN rail mount |
| Certifications | CE, CSA, UL, ATEX |
| Dimensions | 138 x 81 x 43 mm |
| 重量 | 1.21 kg |
Product Applications
The KJ3206X1-BA1 is deployed across various industrial sectors where continuous power availability and system redundancy are vital. Typical applications include:
-
Oil and Gas Facilities: Ensures uninterrupted control system power in /fshore and onshore platforms.
-
Chemical Processing Plants: Powers critical I/O modules for batch and continuous processes.
-
Power Generation Plants: Maintains control operations in both fossil and renewable generation facilities.
-
Pharmaceutical Industry: サポートs validated control environments for GMP compliance.
-
Water Treatment Plants: Powers automation systems for municipal and industrial water systems.
-
Pulp and Paper Mills: Enables smooth operations / process and machine controls.
Product Advantages
-
High Reliability: Built to Emerson’s industrial standards for consistent performance under harsh conditions.
-
Redundancy サポート: Enables dual power module configurations for fault-tolerant systems.
-
Hot-Swappable: Can be replaced without shutting down the system, minimizing operational disruptions.
-
Compact Design: 保存s panel space while delivering high performance.
-
Advanced Diagnostics: On-module LED indicators /fer real-time operational feedback.
-
Robust Environmental Ratings: Operates effectively in extreme temperatures and humidity levels.
-
Integration Ready: Seamlessly integrates into DeltaV systems with native configuration support.
-
Ease / Maintenance: Modular design allows quick access and minimal servicing requirements.
よくある質問 (FAQ)
-
What is the main function / the KJ3206X1-BA1 module?
It provides regulated 24V DC power to DeltaV I/O subsystems and supports system redundancy. -
Is the KJ3206X1-BA1 hot-swappable?
Yes, it can be replaced while the system remains operational, supporting continuous uptime. -
What type / redundancy does this module support?
It allows dual-module redundancy to prevent single-point failures. -
Can this module be used outside / DeltaV systems?
While it is optimized for DeltaV systems, it may be used in compatible applications with similar specifications. -
What certifications does the KJ3206X1-BA1 hold?
CE, CSA, UL, and ATEX for use in hazardous industrial environments. -
What is the weight / the KJ3206X1-BA1?
1.21 kg. -
How is the health status / the module indicated?
Through front-panel LED indicators for power and fault diagnostics. -
What is the recommended operating temperature range?
Between -40°C and +70°C. -
Does the KJ3206X1-BA1 include any over-voltage protection?
Yes, it is designed with standard protection features against over-voltage and over-current conditions. -
Is the module suitable for /fshore installations?
Yes, with certifications such as ATEX and a wide environmental tolerance, it is ideal for /fshore use.
Related Emerson DeltaV Series モデルs
| モデル | 説明 | Power Output | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| KJ3204X1-BA1 | Standard I/O Power Supply Module | 75W | 138 x 81 x 43 | 0.42 |
| KJ3203X1-BA1 | Redundant System Power Supply Module | 100W | 138 x 81 x 43 | 0.44 |
| KJ3202X1-BA1 | DeltaV Compact Power Module | 60W | 120 x 70 x 40 | 0.40 |
| KJ4001X1-NB1 | System I/O Interface with integrated power | 120W | 150 x 85 x 45 | 0.50 |
| KJ4001X1-NA1 | DeltaV Power/Control Module | 100W | 138 x 81 x 43 | 0.46 |
| KJ4001X1-CA1 | Industrial Power Interface Module | 90W | 140 x 80 x 42 | 0.47 |
