製品紹介

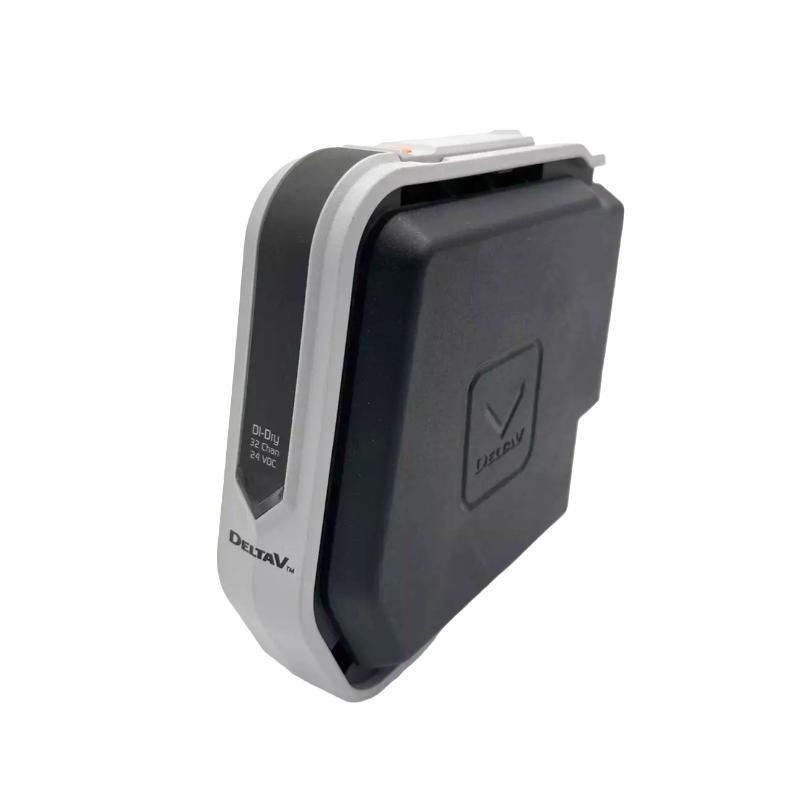

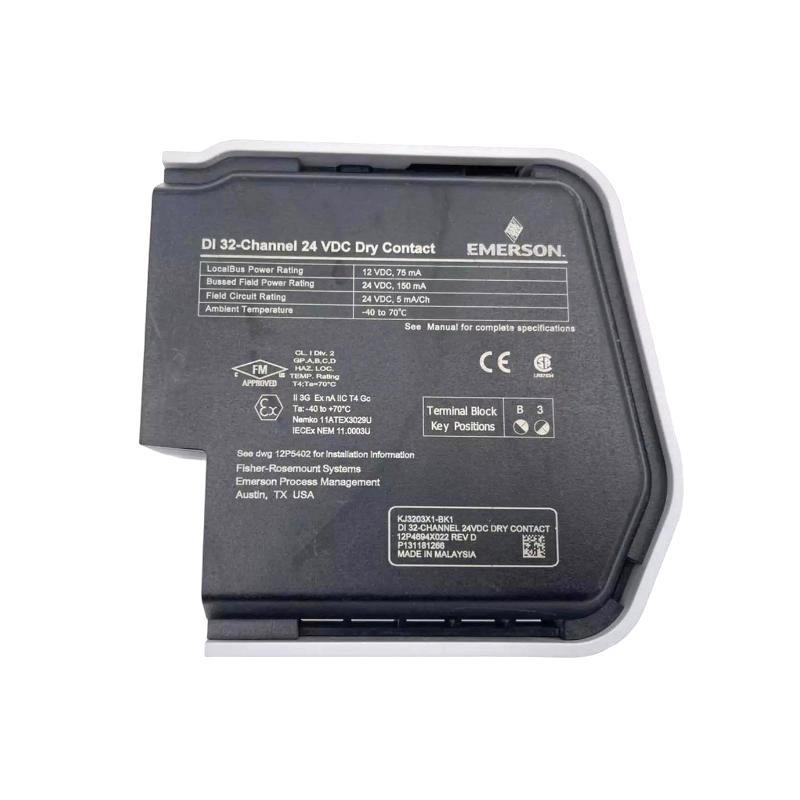

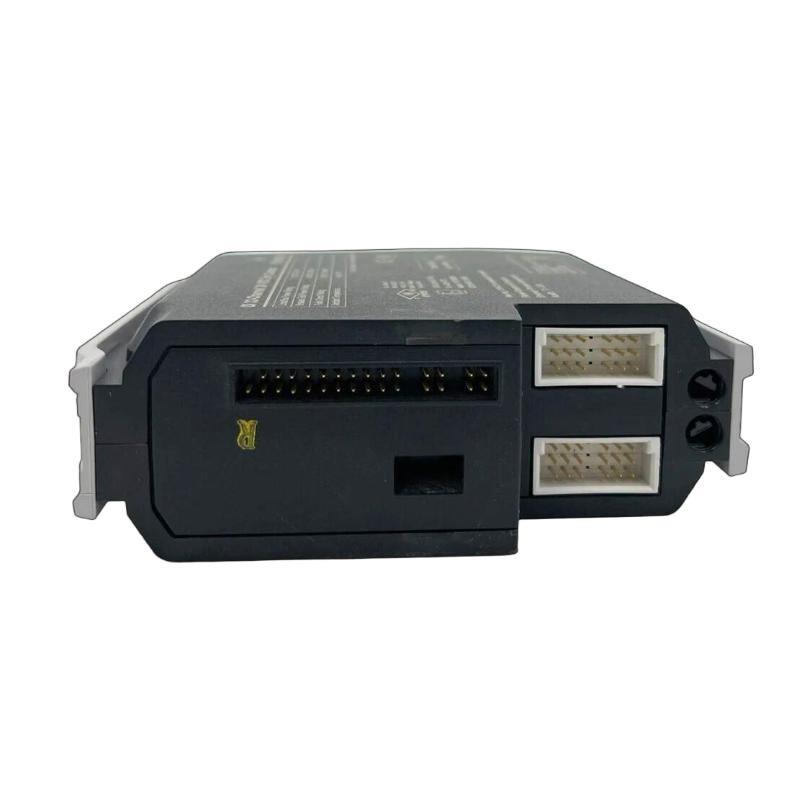

The Emerson KJ3203X1-BK1 Dry お問い合わせ Card is a 32-channel input module designed for use within safety instrumented systems (SIS) and process automation environments. It provides reliable detection / dry contact signals from field devices such as switches, pushbuttons, relays, and mechanical sensors. By /fering isolated channels and robust diagnostics, it ensures accurate signal acquisition while maintaining high levels / system safety and integrity.
This card is typically deployed in DeltaV™ SIS systems, where it acts as an interface between discrete field inputs and the logic solver, enabling deterministic execution / safety-critical applications.
Product Parameters
| Parameter | 説明 |
|---|---|
| モデル | Emerson KJ3203X1-BK1 Dry お問い合わせ Card |
| Input Channels | 32 independent dry contact inputs |
| Input Type | Non-powered (dry contact, voltage-free) |
| Input Signal Detection | お問い合わせ open/close detection with configurable debounce |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Input Voltage Range | Designed for low-voltage sensing typical / dry contact devices |
| Diagnostics | Channel fault detection, open loop monitoring, communication status |
| Communication | Integrated with DeltaV SIS system bus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Consumption | Low-power design, <5 W typical |
| Dimensions (W x H x D) | 130 × 175 × 40 mm |
| 重量 | 0.45 kg |
| Mounting | Baseplate-mounted, hot-swappable |
| Certifications | SIL3 capable (per IEC 61508), ATEX, IECEx (depending on installation) |
Product Applications
The Emerson KJ3203X1-BK1 Dry お問い合わせ Card is widely applied in critical industries where discrete event detection is essential.
-
Oil & Gas – Monitoring valve positions, pump status, and emergency shutdown pushbuttons.
-
Power Generation – Integration / protective relays, turbine trips, and breaker status contacts.
-
Chemical Processing – Detecting limit switches, pressure relief activation, and operator-initiated safety actions.
-
Pharmaceutical Manufacturing – Ensuring compliance by monitoring equipment interlocks and access doors.
-
Metals & Mining – Tracking conveyor interlocks, crusher shutdown switches, and safety gate signals.
Product Advantages
The Emerson KJ3203X1-BK1 card provides several advantages that make it a trusted component in safety systems:
-
High Channel Density – 32 channels per card reduces cabinet footprint and wiring complexity.
-
Robust Signal Integrity – Isolated channels minimize the risk / interference or false triggering.
-
Integrated Diagnostics – Self-testing ensures quick fault identification, reducing downtime.
-
Hot-Swappable Design – Enables replacement without process interruption.
-
SIL3 Certification – Suitable for use in high-demand safety instrumented functions.
-
Seamless DeltaV Integration – Simplifies engineering, configuration, and maintenance.
FAQ
-
How many dry contact inputs can the KJ3203X1-BK1 card handle simultaneously?
It supports 32 independent channels, allowing simultaneous monitoring / multiple signals. -
Does the module provide channel isolation?
Yes, each channel is isolated to prevent cross-talk and ensure reliable operation in noisy environments. -
Can the debounce time for contact detection be configured?
Yes, debounce settings can be configured through the DeltaV SIS s/tware for accurate signal processing. -
What communication protocol does this card use?
It communicates via the DeltaV SIS backplane, ensuring direct integration with the logic solver. -
Is the KJ3203X1-BK1 suitable for safety-critical applications?
Yes, it is SIL3 capable and designed for use in safety instrumented systems. -
How does the module handle diagnostic testing?
It performs built-in self-tests, monitoring for open loops, stuck signals, and communication errors. -
Can this card detect both open and closed contact states?
Yes, it is designed to monitor both states, providing full discrete input detection. -
Is it possible to hot-swap the card during system operation?
Yes, the card can be replaced without shutting down the system, minimizing downtime. -
What types / field devices can connect to this card?
It can connect to dry contact devices such as switches, relays, pushbuttons, and mechanical sensors. -
Does the card support redundant configurations?
Yes, it can be deployed in redundant architectures for higher reliability in safety systems.
Related モデルs from the Same Series
| モデル Number | 説明 |
|---|---|
| KJ3203X1-BK1 | 32-Channel Dry お問い合わせ Card |
| KJ3202X1-BA1 | 16-Channel AI Module |
| KJ3201X1-BE1 | 8-Channel RTD/Thermocouple Input Card |
| KJ3222X1-BA1 | 16-Channel DO Module |
| KJ3221X1-BB1 | 8-Channel Relay Output Module |
| KJ3204X1-BG1 | Pulse Input Card for high-speed counting |
Popular Emerson モデルs
| モデル Number | 説明 |
|---|---|
| SLS1508 KJ2201X1-BA1 | Smart Logic Solver Module |
| SLS1508 KJ2201X1-HA1 | Smart Logic Solver with Base |
| KJ2231X1-EC1 | SIS End / Line Resistance Module |
| VS3202 KJ2201X1-BA1 | Smart Logic Solver Variant |
| KJ4001X1-BB1 | Power Supply Module |
| KJ4002X1-BE1 | High-Speed Controller Module |
