製品紹介

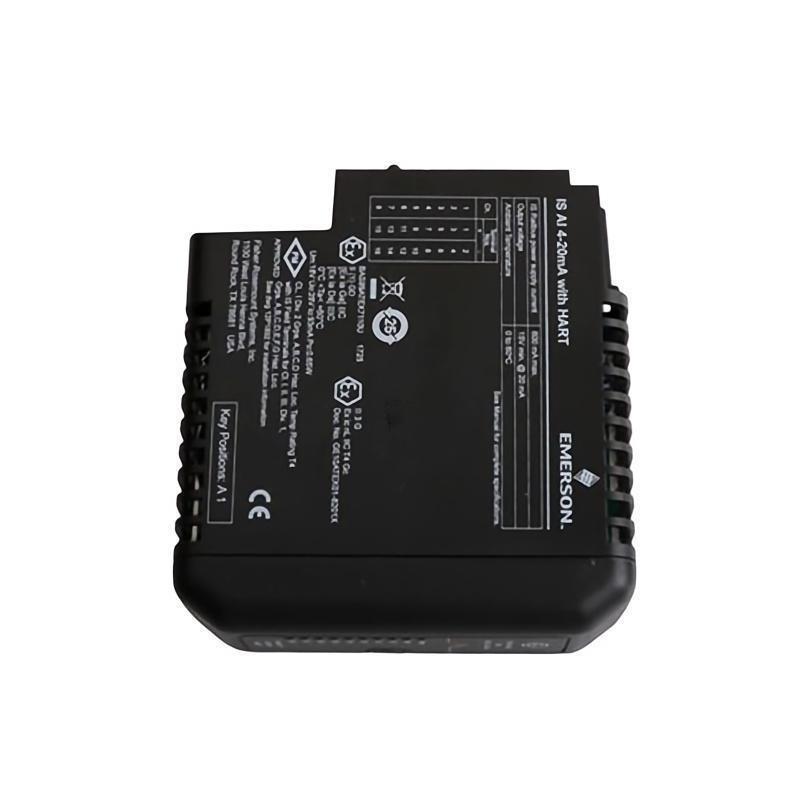

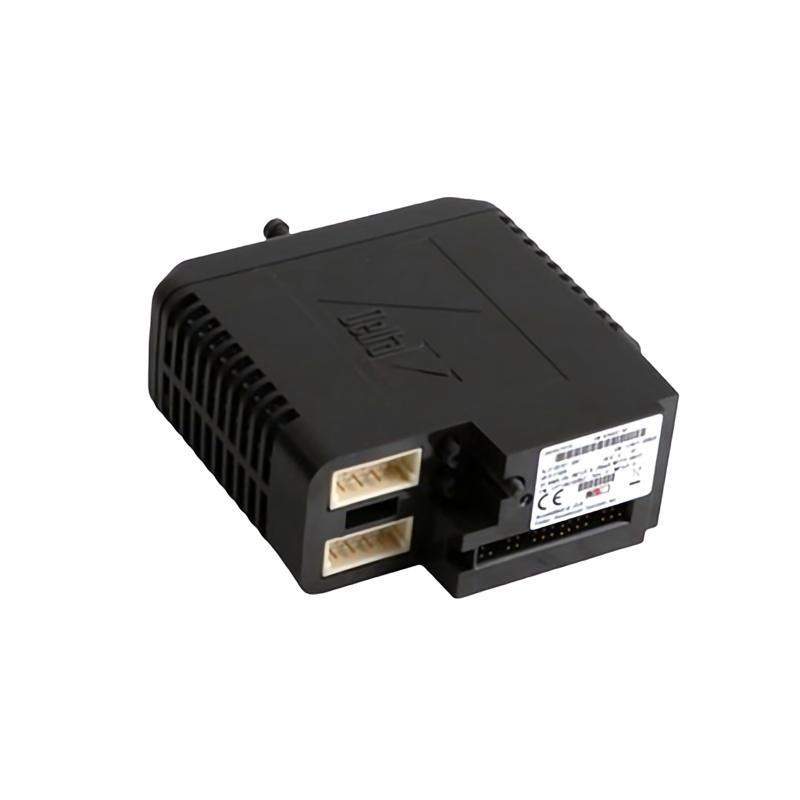

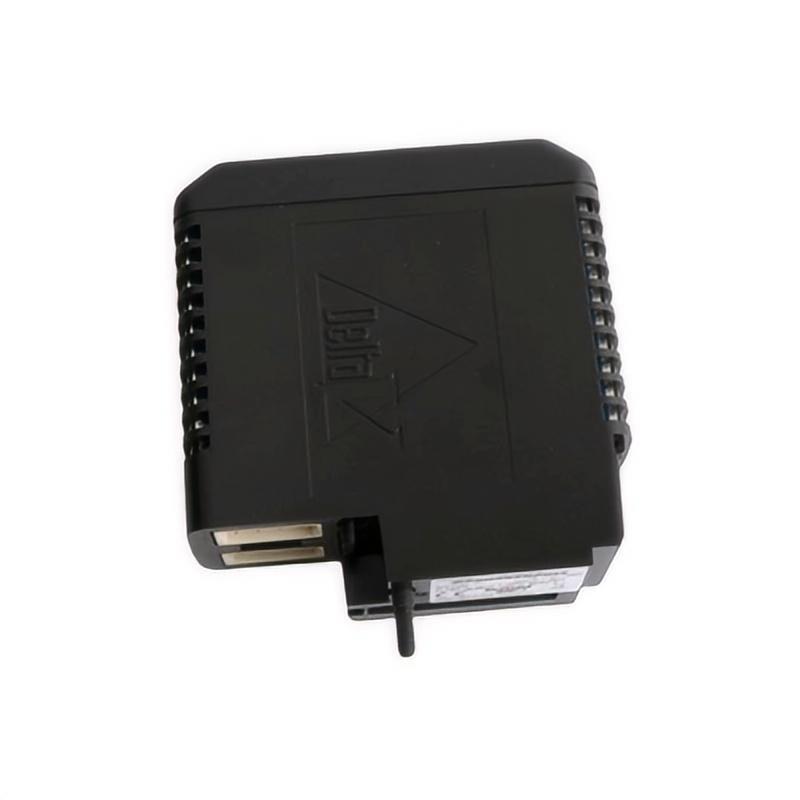

The Emerson KJ3102X032 12P1863X032 Analog Input Module is a high-precision signal acquisition component designed for use in Emerson’s DeltaV and Ovation distributed control systems (DCS). This module plays a critical role in process automation by converting analog signals from field devices such as transmitters, sensors, and measurement instruments into digital values that can be processed by the control system.
Engineered for accuracy and reliability, the KJ3102X032 supports multiple analog channels, enabling seamless integration / field instrumentation into industrial control networks. The module features advanced filtering and noise reduction technology to ensure stable signal processing, even in electrically noisy industrial environments. Its robust design allows it to operate in demanding conditions, making it suitable for applications in power generation, oil and gas, petrochemical, and manufacturing industries.
The compact form factor and modular design / the KJ3102X032 simplify installation and maintenance, while its compatibility with Emerson’s DeltaV and Ovation platforms ensures a high level / integration and system performance.
製品仕様
| Parameter | Value |
|---|---|
| モデル | Analog Input Module |
| 型番 | KJ3102X032 (12P1863X032) |
| ブランド | Emerson |
| System Compatibility | Emerson DeltaV and Ovation DCS |
| Function | Converts analog field signals to digital inputs |
| Signal Type | 4–20 mA, 0–10 V, and other standard analog ranges |
| Channels サポートed | Multiple channels (dependent on configuration) |
| Resolution | High-resolution A/D conversion |
| Accuracy | ±0.1% / span (typical) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Input Impedance | Optimized for industrial sensors and transmitters |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Power Supply | Provided via system backplane |
| Mounting Type | Rack-mounted module |
| Dimensions | 44 × 102 × 108 mm |
| 重量 | 0.22 kg |
| Compliance | CE, UL, RoHS, IEC industrial standards |
Applications
-
Industrial Process Control: Captures analog signals from field devices for precise monitoring and control.
-
Distributed Control Systems (DCS): Integral to Emerson DeltaV and Ovation platforms for analog data acquisition.
-
Power Generation Plants: Interfaces turbine and plant sensors with control systems for safe and efficient operation.
-
Oil & Gas Facilities: Monitors pressure, temperature, and flow signals in upstream and downstream processes.
-
Chemical and Petrochemical Plants: Ensures accurate signal processing in critical process environments.
-
Manufacturing Systems: Provides real-time analog data for automated production lines and quality control.
Product Advantages
-
High Accuracy: Provides precise A/D conversion for critical process measurements.
-
Stable Signal Processing: Advanced filtering reduces noise and maintains signal integrity.
-
Industrial-Grade Design: Built to withstand harsh environmental and electrical conditions.
-
Multiple Channel サポート: Efficiently integrates multiple field devices in one module.
-
Isolation Protection: Prevents ground loops and enhances system reliability.
-
Seamless DCS Integration: Fully compatible with Emerson DeltaV and Ovation systems.
-
Compact Modular Construction: Simplifies installation and maintenance in control cabinets.
FAQ
-
What is the main function / the Emerson KJ3102X032 Analog Input Module?
It converts analog signals from field devices into digital inputs for the Emerson DCS. -
Which signal types does the module support?
It supports standard ranges such as 4–20 mA and 0–10 V analog signals. -
Is the KJ3102X032 compatible with Emerson DeltaV systems?
Yes, it is fully compatible with DeltaV and Ovation distributed control systems. -
How many channels does this module support?
It supports multiple analog channels, depending on the configuration and system requirements. -
Does the module provide electrical isolation?
Yes, it features channel-to-channel and channel-to-ground isolation to enhance safety and reliability. -
What is the typical accuracy / the KJ3102X032?
The module typically achieves ±0.1% / span accuracy for analog measurements. -
Can it be used in high-noise industrial environments?
Yes, it has built-in filtering to reduce electrical noise and maintain signal integrity. -
What type / field devices can it connect to?
It connects to transmitters, sensors, and measurement devices that output standard analog signals. -
Is the module hot-swappable within the DCS system?
Yes, it is designed to support hot-swapping to minimize downtime during maintenance. -
Does the KJ3102X032 meet industrial compliance standards?
Yes, it complies with CE, UL, RoHS, and IEC standards for industrial control systems.
Related モデルs from the Same Series
| モデル | Function | Key Feature |
|---|---|---|
| KJ3102X020 12P1863X020 | Analog Input Module | サポートs fewer channels for smaller systems |
| KJ3102X040 12P1863X040 | Analog Input Module | Extended channel capacity |
| KJ3102X050 12P1863X050 | Analog Input Module | High-accuracy signal processing |
| KJ3102X060 12P1863X060 | Analog Input Module | Ruggedized for harsh environments |
| KJ3102X070 12P1863X070 | Analog Input Module | Optimized for high-speed acquisition |
| KJ3102X080 12P1863X080 | Analog Input Module | Mixed signal range compatibility |
Popular Emerson モデルs
| モデル | Function | Key Feature | Application Focus |
|---|---|---|---|
| KJ4001X1-CB1 12P0625X052 | I/O Terminal Block | Stable analog/digital I/O wiring | DeltaV and Ovation DCS systems |
| KJ3003X1-EA1 12P0921X022 | Serial Interface Terminal Block | RS-232/RS-485 serial communication | Field device and PLC integration |
| KJ3001X1-BB1 | Analog Input Module | High-accuracy analog acquisition | Process control and monitoring |
| KJ2002X1-BA1 | Power Supply Module | Reliable power distribution for DCS | DeltaV and Ovation power management |
| KJ4002X1-BA2 | Digital Output Terminal Block | High-reliability relay output wiring | Industrial automation and safety |
| KJ3222X1-BA1 | Ethernet Communication Module | High-speed network integration | DeltaV control system networking |
