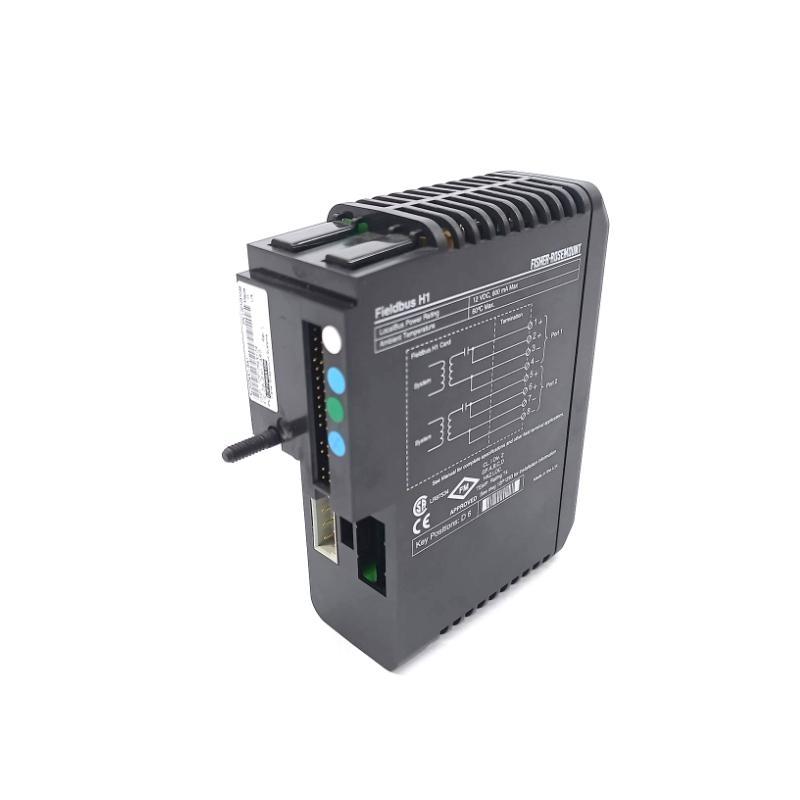

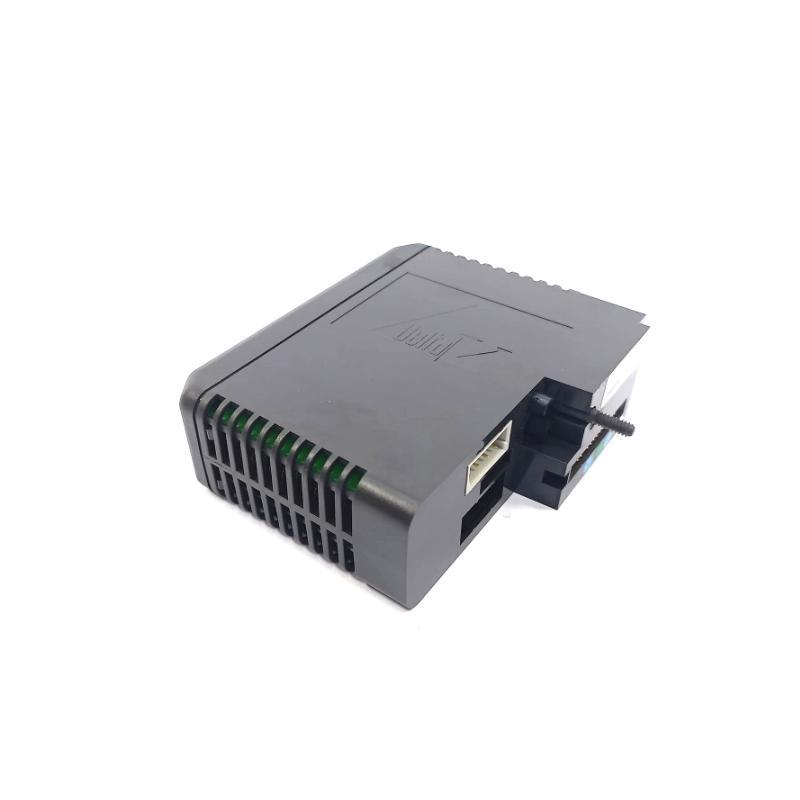

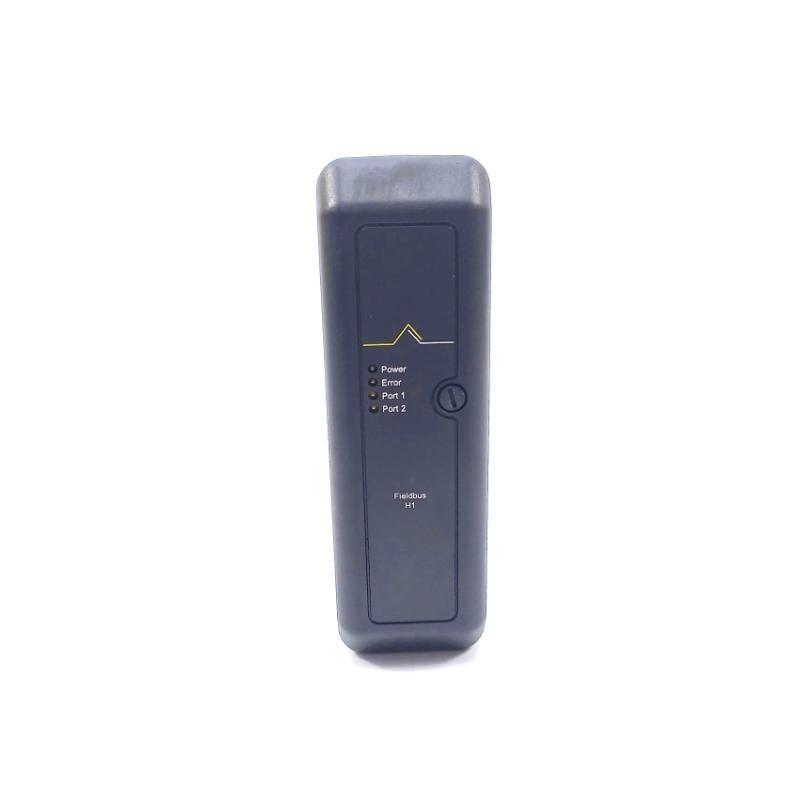

The Emerson KJ3004X1-BA1 is a robust and reliable Fieldbus H1 Card Module designed for integration within Emerson’s DeltaV Distributed Control System (DCS). This module facilitates seamless communication between the DeltaV system and field devices using the Fieldbus H1 protocol, ensuring efficient data exchange and control in complex industrial environments.
Engineered for high-performance and durability, the KJ3004X1-BA1 module supports up to two H1 Fieldbus segments, each capable / handling multiple field devices. Its compact design and rugged construction make it suitable for deployment in harsh industrial settings, including hazardous areas, where reliable communication is critical for process automation and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | KJ3004X1-BA1 |
| メーカー | Emerson |
| Product Type | Fieldbus H1 Card Module |
| System Compatibility | Emerson DeltaV Distributed Control System (DCS) |
| Communication Protocol | Fieldbus H1 |
| Number / H1 Ports | 2 |
| Input Voltage | 12 VDC |
| Maximum Current per Channel | 600 mA |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Dimensions (H x W x D) | 138 x 102 x 25 mm |
| 重量 | 0.272 kg |
| Mounting Type | DIN Rail Mounting |
| Certifications | CE, UL, CSA |
| 保証 | 12 months |
Product Applications
The Emerson KJ3004X1-BA1 Fieldbus H1 Card Module is widely utilized across various industries for its reliable communication capabilities. Typical applications include:
-
Oil and Gas Industry: Facilitates real-time data exchange between control systems and field devices in upstream and downstream operations.
-
Chemical Processing Plants: Ensures precise control and monitoring / chemical reactions and processes.
-
Power Generation Facilities: Enables efficient communication between control systems and field instruments in power plants.
-
Pharmaceutical Manufacturing: サポートs stringent process control requirements for drug production and quality assurance.
-
Water and Wastewater Treatment: Provides reliable communication for monitoring and controlling treatment processes.
-
Food and Beverage Industry: Assists in maintaining consistent product quality through precise process control.
Product Advantages
-
Reliable Communication: サポートs the Fieldbus H1 protocol, ensuring consistent and accurate data exchange between the DeltaV system and field devices.
-
Dual H1 Ports: Offers two H1 ports, allowing connection to multiple field devices, enhancing system scalability.
-
Robust Design: Built to withstand harsh industrial environments, including extreme temperatures, vibrations, and airborne contaminants.
-
Compact Form Factor: Its small size allows for easy integration into existing control cabinets without requiring significant space.
-
Energy Efficient: Operates on a low 12 VDC input voltage, reducing power consumption and operational costs.
-
Easy Installation: Designed for DIN rail mounting, facilitating quick and secure installation.
-
Certified for Safety: Holds CE, UL, and CSA certifications, ensuring compliance with international safety standards.
-
Extended Temperature Range: Capable / operating in a wide temperature range, making it suitable for various industrial settings.
-
High Current Capacity: Each channel supports up to 600 mA, accommodating a range / field devices.
-
Long-Term 保証: Comes with a 12-month warranty, providing assurance / product quality and reliability.
よくある質問 (FAQ)
-
What is the primary function / the KJ3004X1-BA1 module?
-
It facilitates communication between the Emerson DeltaV DCS and field devices using the Fieldbus H1 protocol.
-
-
How many Fieldbus H1 ports does the module have?
-
The module features two H1 ports, allowing connection to multiple field devices.
-
-
What is the input voltage requirement for the module?
-
The module operates on a 12 VDC input voltage.
-
-
What is the maximum current supported per channel?
-
Each channel supports a maximum current / 600 mA.
-
-
Can the module operate in extreme temperatures?
-
Yes, it operates within a temperature range / -40°C to +70°C.
-
-
Is the module suitable for hazardous environments?
-
Yes, its robust design and certifications make it suitable for deployment in hazardous industrial settings.
-
-
What mounting options are available for the module?
-
The module is designed for DIN rail mounting.
-
-
Does the module comply with international safety standards?
-
Yes, it holds CE, UL, and CSA certifications.
-
-
What is the weight / the module?
-
The module weighs 0.272 kg.
-
-
What warranty is provided with the module?
-
We provide one year warranty.
-
Related モデルs from the Same Series / Function Group
| モデル Number | 説明 | Module Type | Key Features |
|---|---|---|---|
| KJ3002X1-BG1 | Analog Input Module | AI Module | 8 channels, 16-bit resolution, HART support |
| KJ3001X1-BB1 | Analog Output Module | AO Module | 8 channels, 12-bit resolution, HART support |
| KJ3005X1-BA1 | Digital Input Module | DI Module | 32-channel, high-density, supports dry/wet contact inputs |
| KJ3006X1-BA1 | Digital Output Module | DO Module | 32-channel, high-speed switching, isolated outputs |
| KJ3221X1-BA1 | Pulse Input Module | PI Module | 8 channels, ideal for turbine and rotating machinery |
| KJ4010X1-BG1 | HART Interface Module | Communication Module | Connects up to 16 HART devices, advanced diagnostics |
Popular Emerson モデルs Across Control Systems
| モデル Number | 説明 | Product Type | Key Applications |
|---|---|---|---|
| KJ2003X1-BB1 | Controller Module | Control Processor | Core control processor for DeltaV DCS |
| VE4001S1T2B2 | Redundant Power Supply | Power Supply | High-reliability power for system redundancy |
| KJ4010X1-BE1 | Fieldbus Power Supply | Fieldbus Power | Supplies and conditions power to Fieldbus segments |
| KJ4001X1-BA2 | I/O Carrier | I/O Backplane | Modular base for installing multiple I/O modules |
| 12P2506X032 | DeltaV SIS Logic Solver | Safety System Module | Safety Instrumented Systems (SIS) applications |
| VE5008 | DeltaV Smart Switch | Network Switch | Ethernet switch with DeltaV smart diagnostics |
