製品紹介

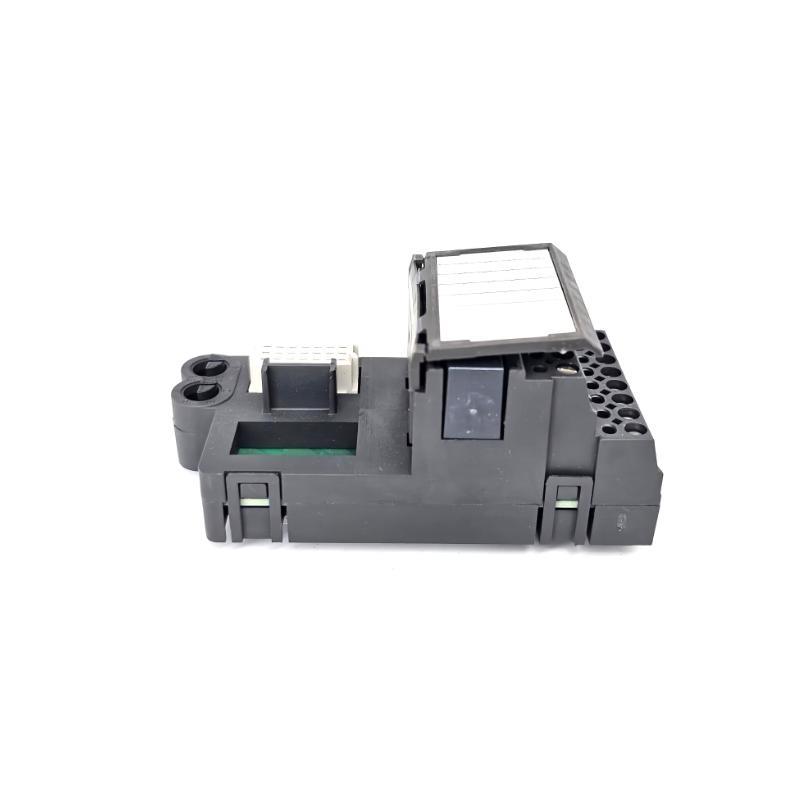

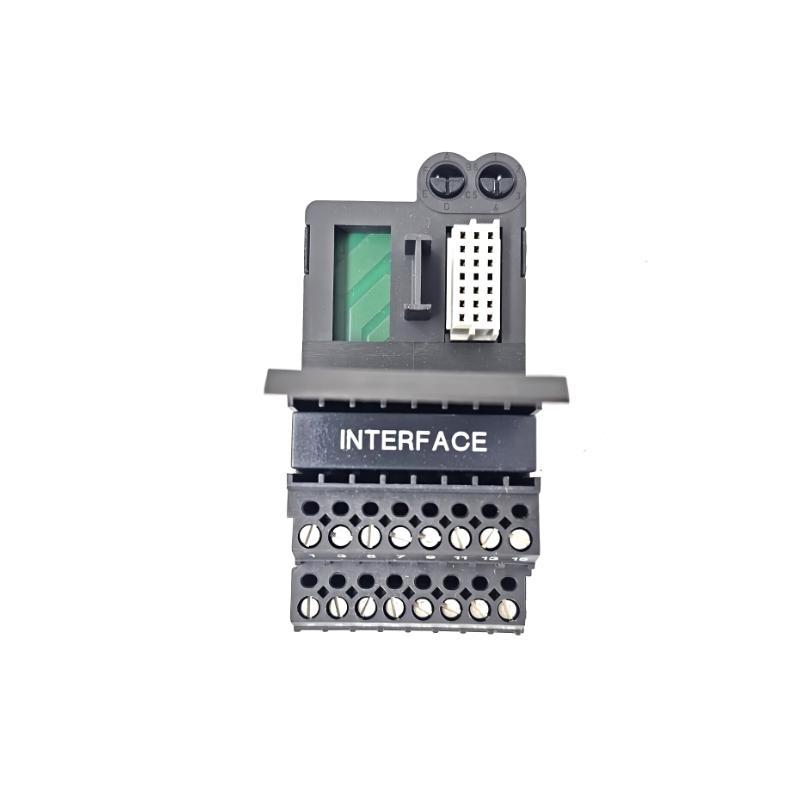

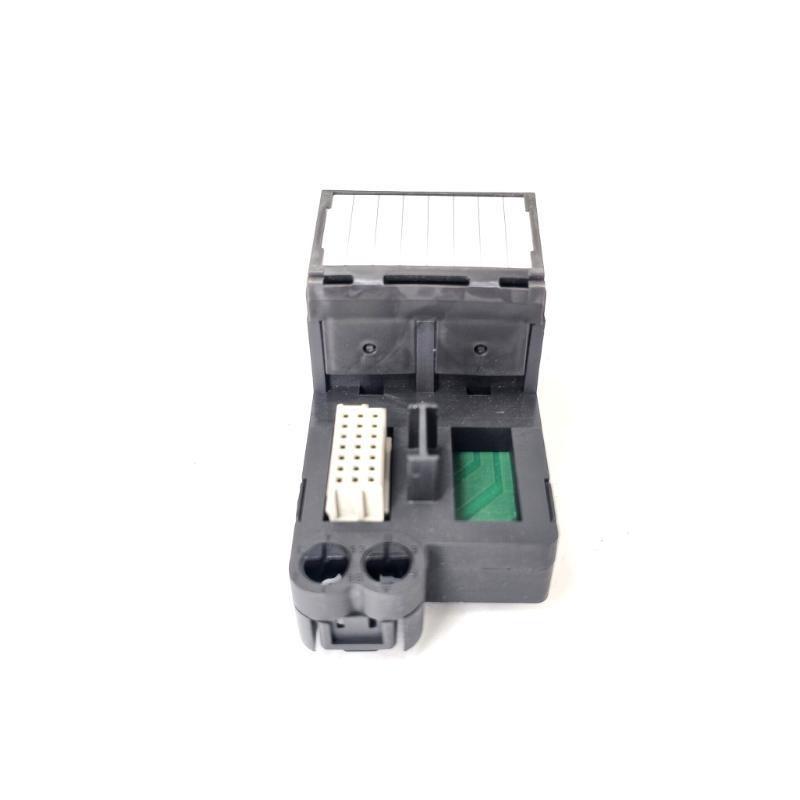

The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is an advanced component designed for industrial automation systems, particularly those that require precise and reliable data communication between field devices and control systems. This terminal block serves as a key interface, enabling easy and efficient serial communication with minimal wiring complexity. It is widely used in industries such as oil and gas, chemical processing, power generation, and other sectors where reliable control and monitoring are critical.
製品仕様
The following table summarizes the key specifications / the KJ3003X1-EA1 Serial Interface Terminal Block:
| Specification | Details |
|---|---|
| モデル | KJ3003X1-EA1 |
| Interface Type | Serial (RS-232, RS-485) |
| Mounting Type | DIN Rail |
| Terminal Block Type | Field Mountable |
| Nominal Voltage | 24 V DC |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (L x W x H) | 120 x 70 x 55 mm |
| 重量 | 0.09 kg |
| Input/Output Channels | 4 Channels |
| Signal Type | Digital (RS-232 / RS-485) |
| Maximum Current Rating | 1 A per channel |
| Isolation | 1500 V isolation between channels |
Applications
The Emerson KJ3003X1-EA1 Serial Interface Terminal Block is used in various industrial applications where efficient data transmission and reliability are essential. Some / the key use cases include:
-
Industrial Automation: Used in systems for controlling PLCs, HMIs, and SCADA systems where serial communication is needed.
-
Process Control: Ideal for systems in industries like petrochemical, food processing, and manufacturing for data collection and control.
-
Data Acquisition: Used in real-time data collection from sensors, actuators, and other field devices.
-
Remote Monitoring: Enables communication between remote terminals and central control systems in harsh or inaccessible environments.
The terminal block ensures that data is transmitted efficiently, reducing errors and increasing the overall reliability / industrial control systems.
Advantages
The Emerson KJ3003X1-EA1 Serial Interface Terminal Block comes with several advantages that make it a popular choice in industrial applications:
-
Robust Communication: The terminal block supports RS-232 and RS-485 communication protocols, /fering versatility for various serial communication needs.
-
Ease / Installation: Designed for DIN rail mounting, this terminal block can be easily integrated into control panels and other field devices, reducing installation time and complexity.
-
High Durability: Built to withstand harsh industrial environments with a wide temperature range and high humidity tolerance, making it ideal for challenging industrial settings.
-
Compact and Efficient: Despite its small form factor, it /fers reliable performance, ensuring optimal data transmission with minimal space requirements.
-
Cost-Effective: Provides a reliable and affordable solution for serial communication, reducing operational costs by improving system efficiency and reducing downtime.
よくある質問 (FAQ)
-
What is the primary function / the KJ3003X1-EA1 terminal block?
-
The KJ3003X1-EA1 serves as a serial communication interface between field devices and control systems.
-
-
What communication protocols does it support?
-
It supports RS-232 and RS-485 communication protocols.
-
-
What is the mounting type for this terminal block?
-
The terminal block is designed for DIN rail mounting.
-
-
What is the operating temperature range?
-
It operates in temperatures ranging from -20°C to +60°C.
-
-
What is the maximum current rating per channel?
-
The maximum current rating is 1 A per channel.
-
-
Is the KJ3003X1-EA1 suitable for use in hazardous environments?
-
Yes, the terminal block is built to withstand harsh industrial environments and can be used in a variety / sectors like oil and gas, chemical processing, and power generation.
-
-
Can the KJ3003X1-EA1 be used for remote monitoring?
-
Yes, it is ideal for remote monitoring and communication between field devices and central control systems.
-
-
How is this terminal block powered?
-
It operates on a 24 V DC nominal voltage.
-
-
What is the weight / the terminal block?
-
The weight is 0.09 kg.
-
-
How is the terminal block connected to the control system?
-
It is connected using standard serial communication cables (RS-232 or RS-485) to the control system.
Related モデルs
Here are 6 related models from the same series or category, providing a range / options for different industrial needs:
| モデル | 説明 | Key Feature |
|---|---|---|
| KJ3003X2-EA1 | Enhanced serial interface terminal block | サポートs 8 channels for larger systems |
| KJ3002X1-EA1 | Compact serial terminal block | Ideal for small-scale systems |
| KJ3003X1-EB1 | Serial terminal block with additional isolation | Enhanced signal protection |
| KJ3004X1-EA1 | Multi-functional serial interface | サポートs multiple protocol types |
| KJ3005X1-EA1 | High-density serial terminal block | High current capacity for heavy-duty applications |
| KJ3003X1-EC1 | Field-mountable serial terminal block | Extended range for outdoor environments |
Popular Emerson モデルs
Below are 6 popular models from Emerson, widely used in various industrial automation applications:
| モデル | 説明 | Key Feature |
|---|---|---|
| KJ3003X1-EA2 | Advanced serial terminal block | Ideal for data communication in remote locations |
| KJ3002X2-EA1 | Compact process control module | Designed for smaller, more compact control systems |
| KJ3004X1-EB2 | Multi-functional process controller | サポートs advanced I/O for complex processes |
| KJ3001X1-EA1 | Basic field communication 台 | Simple interface for standard industrial applications |
| KJ3006X1-EA1 | High performance control terminal | Built for high-throughput industrial environments |
| KJ3003X1-ED1 | Dual-channel serial interface terminal block | サポートs dual communication channels for redundancy |
