製品紹介

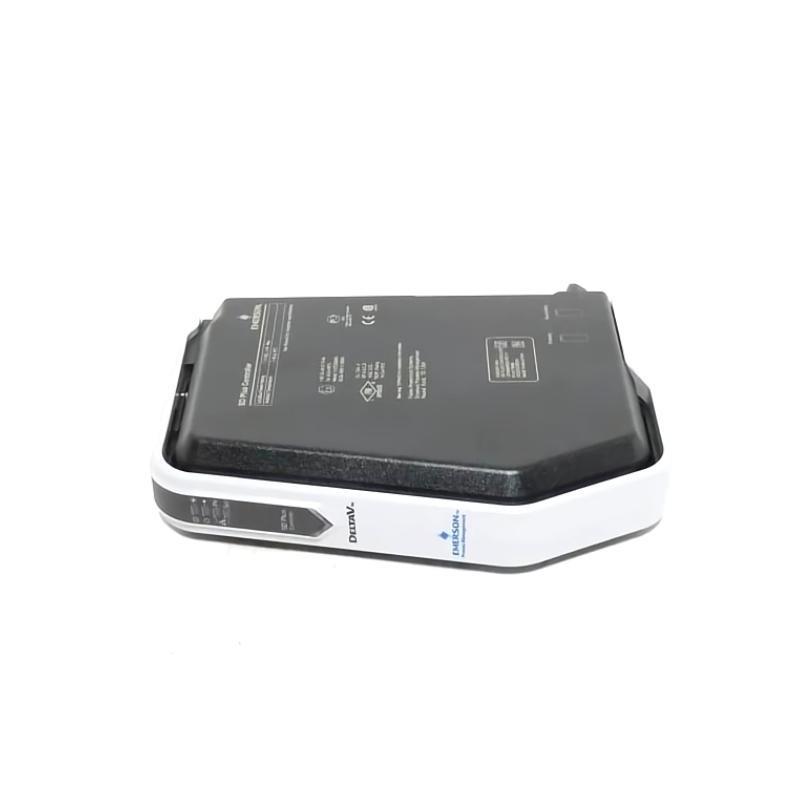

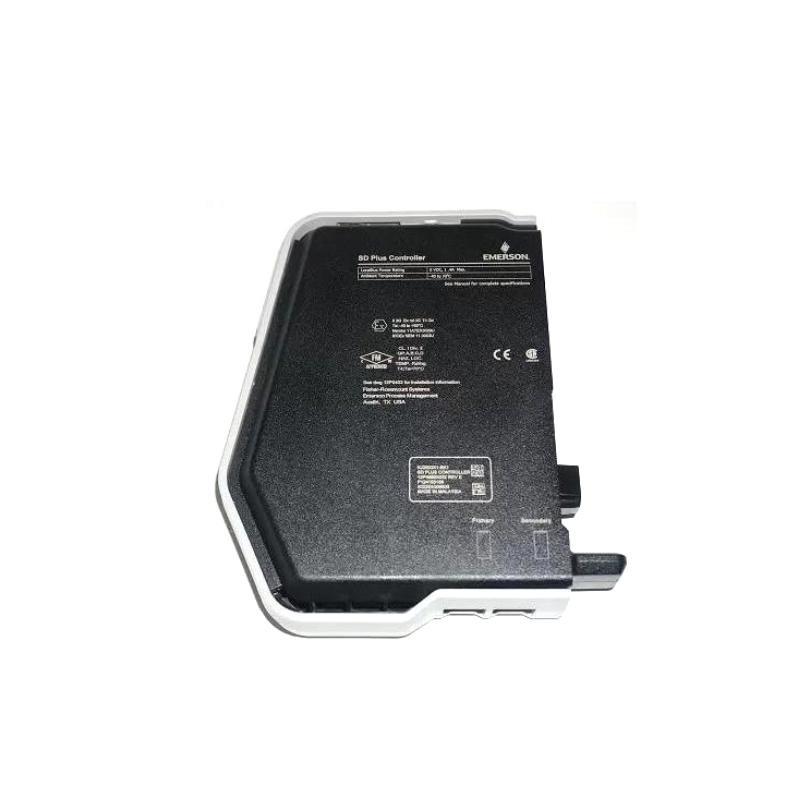

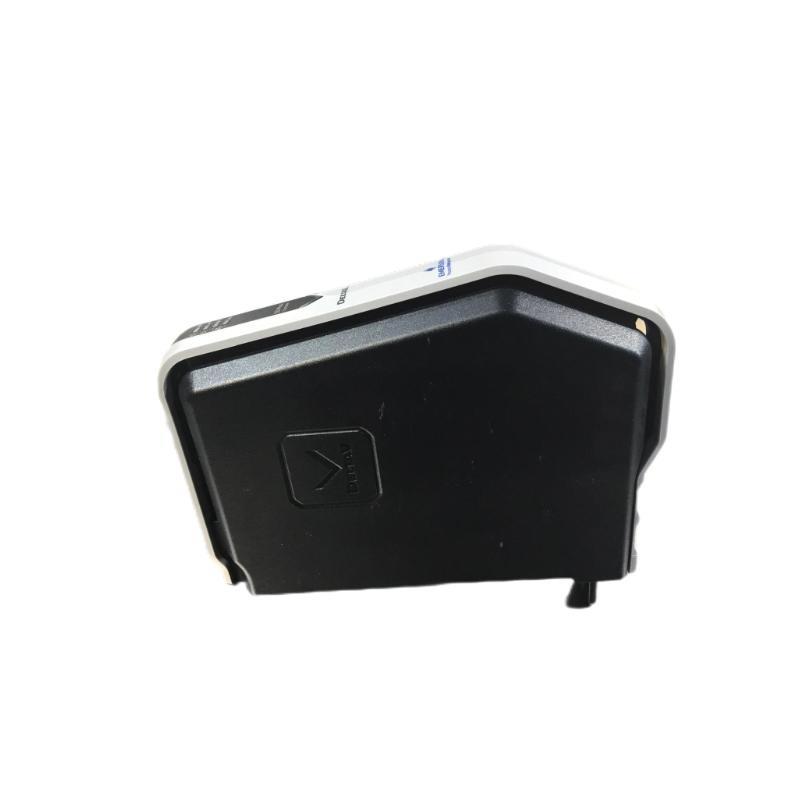

The Emerson KJ2003X1-BK1 is a robust and highly intelligent controller module designed specifically for use in Emerson’s DeltaV™ Distributed Control System (DCS). This controller plays a critical role in orchestrating process automation strategies across industrial environments, /fering advanced capabilities for real-time control, system communication, diagnostics, and redundancy.
The KJ2003X1-BK1 is built with high reliability in mind, making it suitable for continuous operation in mission-critical processes. It integrates seamlessly into the DeltaV system architecture and supports scalable applications across process industries such as oil & gas, chemical processing, and power generation.
Whether implemented as a standalone primary controller or configured with redundancy for high-availability operations, this model ensures smooth performance, efficient control execution, and ease / integration with both Emerson and third-party devices.
製品仕様
| Parameter | 説明 |
|---|---|
| Product Name | KJ2003X1-BK1 |
| メーカー | Emerson Electric Co. |
| Product Type | DeltaV Controller Module |
| System Compatibility | Emerson DeltaV™ DCS Architecture |
| Controller Function | Primary or Redundant Control Execution |
| Processor Type | High-speed embedded processor |
| Internal Memory (RAM) | 32 MB DRAM |
| Program Storage | Flash memory |
| Max I/O Capacity | Up to 750 I/O channels per controller |
| Communication Ports | Dual 10/100 Mbps Ethernet ports |
| Protocols サポートed | DeltaV, OPC, Modbus TCP/IP, FOUNDATION Fieldbus |
| Power Supply Voltage | 24 VDC (Operating Range: 18–30 VDC) |
| Power Consumption | Approx. 5.5 Watts |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, FM, CSA, ATEX Zone 2, GOST, RoHS |
| Redundancy サポート | Yes – サポートs hot standby controller redundancy |
| Diagnostics | Built-in self-diagnostics, watchdog timer, status LEDs |
| Shock and Vibration | IEC 60068 compliant |
| Mounting Type | DeltaV system carrier or DIN rail |
| Dimensions (H × W × D) | 162 x 41.8 x 199.3 mm |
| 重量 | 2.5 kg |
| S/tware サポート | DeltaV Control Studio, DeltaV Explorer |
Product Applications
The Emerson KJ2003X1-BK1 is engineered to handle critical control functions across a variety / industries where reliability, speed, and scalability are non-negotiable:
-
Oil & Gas: Upstream wellhead control, midstream pipeline management, downstream refining automation.
-
Power Generation: Turbine control systems, balance / plant operations, boiler sequencing.
-
Chemical Processing: Batch control, reactor temperature and pressure management, continuous process loops.
-
Pharmaceuticals: Cleanroom process control, compliant batch operations, CIP/SIP process control.
-
Water Treatment: Pumping station control, filtration management, chemical dosing automation.
-
Pulp & Paper: Pulp mill sequencing, paper machine automation, chemical control loops.
-
Food & Beverage: Batch recipes, temperature/humidity monitoring, clean-in-place cycles.
Product Advantages
-
High Availability: Offers support for redundant control to ensure zero process interruption.
-
Deterministic Performance: Real-time loop execution ensures tight control / critical processes.
-
Efficient Communication: Dual Ethernet ports and support for open protocols enable easy integration.
-
Scalable Architecture: サポートs small and large systems alike with flexible expansion options.
-
Environmentally Robust: Wide temperature operating range and industrial-grade design.
-
Reduced Engineering Time: Integration with DeltaV Control Studio simplifies logic configuration.
-
Enhanced System Diagnostics: Built-in watchdogs, health checks, and LED indicators for proactive maintenance.
-
Hot Swappable: Can be removed and replaced without shutting down the control system.
-
Secure and Compliant: Meets stringent industrial standards for hazardous areas and secure operations.
-
Long Lifecycle サポート: Backed by Emerson’s global service and long-term parts availability.
よくある質問 (FAQ)
-
What is the main function / the KJ2003X1-BK1 module?
→ It functions as a central controller within the Emerson DeltaV DCS, executing control strategies in real-time. -
Can this module be configured for redundant operation?
→ Yes, it supports hot standby redundancy for mission-critical applications. -
How many I/O channels can it support?
→ Up to 750 I/O channels per controller, depending on system design. -
Is the KJ2003X1-BK1 suitable for hazardous environments?
→ Yes, it is ATEX Zone 2 and FM Class 1 Div 2 certified for use in hazardous areas. -
What diagnostic features are available?
→ It includes built-in self-checks, a watchdog timer, and LED status indicators. -
How is the module mounted in the system?
→ It mounts on a DeltaV carrier base or standard DIN rail. -
Is the controller hot-swappable?
→ Yes, it can be swapped without shutting down the system, maintaining uptime. -
Which s/tware tools are used for programming this controller?
→ It is programmed using DeltaV Control Studio and managed via DeltaV Explorer. -
What kind / communication interfaces are provided?
→ It has dual 10/100 Mbps Ethernet ports supporting DeltaV and open protocols. -
What distinguishes the BK1 from the BA2 controller variant?
→ The BK1 version typically supports similar hardware functionality but may differ in firmware compatibility or region-specific certifications.
Related モデルs from the Same Series
| モデル Number | 説明 | Function | System Compatibility |
|---|---|---|---|
| KJ2003X1-BA2 | Standard DeltaV Controller Module | Controller | DeltaV |
| KJ4001X1-BA2 | Redundant Power Controller | Power Control | DeltaV |
| KJ4010X1-BG1 | Ethernet Interface Module (Redundant) | Network Communication | DeltaV |
| KJ3001X1-BA1 | I/O Carrier Module | I/O Integration | DeltaV |
| KJ3002X1-BB1 | Redundant Controller | High-Availability Control | DeltaV |
| KJ3221X1-BA1 | 8-Channel Analog Input Module | Process Input | DeltaV |
