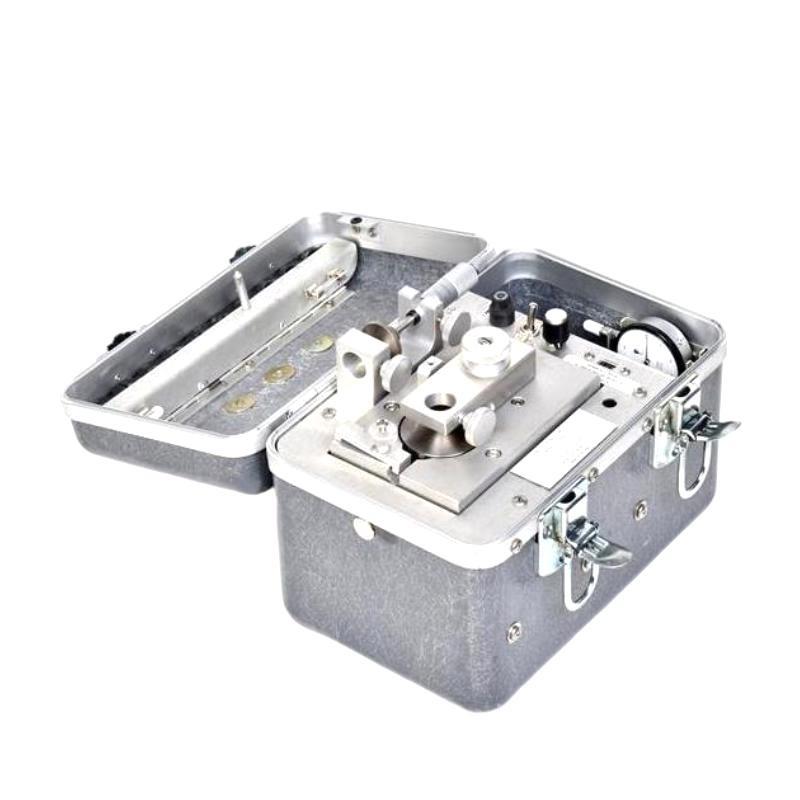

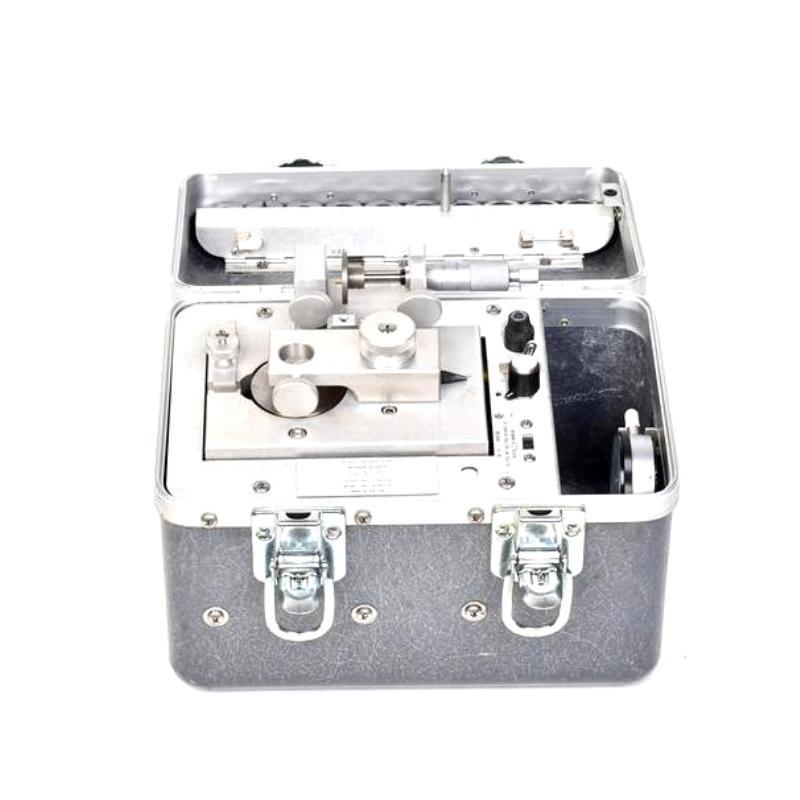

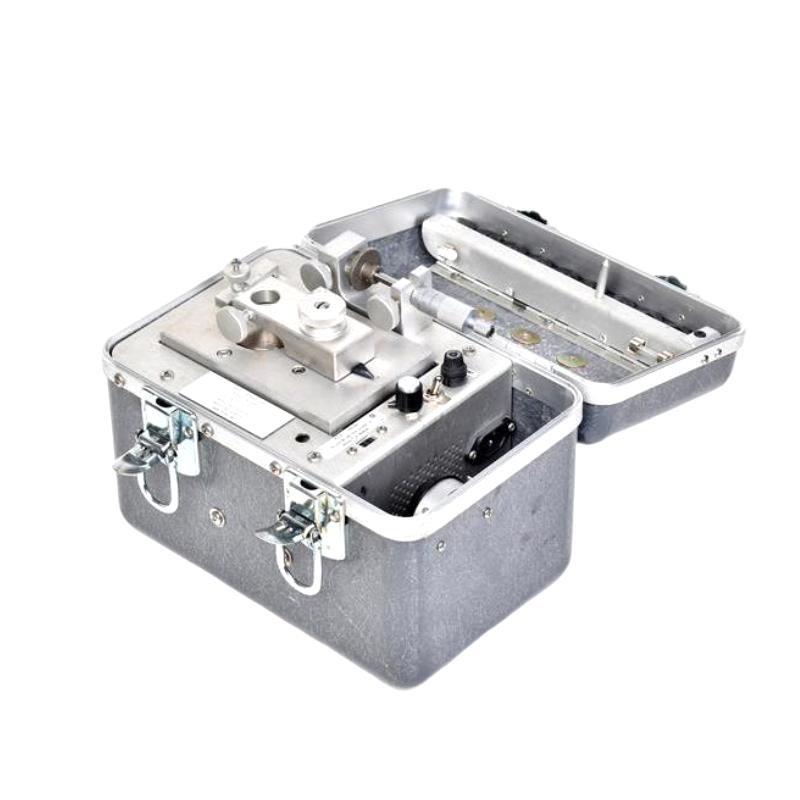

The Bently Nevada TK3-2E 177313-02-02 Calibration Instrument is a precision device designed to provide accurate calibration for vibration, proximity, and temperature sensors used in machinery protection and condition monitoring systems. This instrument ensures that sensors and monitoring modules operate within strict tolerance ranges, improving the reliability and safety / industrial equipment. Engineered for both field and laboratory use, the TK3-2E 177313-02-02 features robust construction, repeatable signal outputs, and intuitive controls, enabling technicians to verify and adjust sensor performance quickly and efficiently. Its design supports industrial environments such as power generation, petrochemical, and manufacturing facilities.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | TK3-2E 177313-02-02 |
| Type | Calibration Instrument |
| Input Power | 110–240 VAC, 50/60 Hz |
| Output Signal Types | Sine wave, square wave, pulse |
| Output Amplitude | 0–10 V peak-to-peak adjustable |
| Output Frequency Range | 0.1 Hz – 10 kHz |
| Accuracy | ±0.05 % full-scale |
| Load Capability | Minimum 600 Ω impedance |
| Display | Digital voltage and frequency readout |
| Control Interface | Front-panel rotary knobs and push-buttons |
| Calibration Functions | Sensor excitation, loop verification, signal testing |
| Indicators | LEDs for power, output status, and fault detection |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
| Protection | Over-voltage, short-circuit, and thermal protection |
| Mounting | Portable bench-top 台 |
| Dimensions | 195 × 299 × 248 mm |
| 重量 | 5.22 kg |
| Certifications | CE, UL, RoHS compliant |
Applications
The TK3-2E 177313-02-02 is applied in industries requiring precise sensor calibration:
-
Turbomachinery Maintenance: Verifies turbine and compressor vibration and proximity sensors.
-
Power Generation: Calibrates monitoring instruments for generators, turbines, and auxiliary systems.
-
Oil & Gas Facilities: サポートs calibration for pumps, compressors, and refining equipment sensors.
-
Petrochemical Plants: Ensures accurate readings for temperature and vibration monitoring in reactors and distillation 台s.
-
Automated Manufacturing: Facilitates calibration / sensors for predictive maintenance and process quality assurance.
-
Laboratory and Field Testing: Provides portable, reliable calibration in both controlled and industrial environments.
Advantages
-
High Precision: ±0.05 % full-scale accuracy ensures reliable calibration for critical monitoring systems.
-
Multiple Signal Types: サポートs sine, square, and pulse waveforms for versatile sensor testing.
-
Wide Frequency Range: From 0.1 Hz to 10 kHz, suitable for slow and fast-rotating machinery.
-
Portable and Rugged: Compact bench-top design allows field and laboratory use.
-
Digital Readout: Displays voltage and frequency for accurate monitoring and adjustment.
-
User-Friendly Controls: Front-panel knobs and buttons allow quick fine-tuning without additional s/tware.
-
Built-in Protection: Over-voltage, short-circuit, and thermal safeguards protect the instrument and connected sensors.
-
Reduced Maintenance Downtime: Streamlines calibration tasks, reducing equipment downtime and improving operational reliability.
FAQ
-
What types / calibration signals does the TK3-2E 177313-02-02 provide?
It generates sine wave, square wave, and pulse outputs suitable for vibration, proximity, and temperature sensor calibration. -
What is the frequency range / the outputs?
The instrument supports a frequency range from 0.1 Hz to 10 kHz, accommodating a wide variety / industrial machinery monitoring needs. -
How accurate are the calibration outputs?
Output signals have an accuracy / ±0.05 % full-scale, ensuring precise sensor verification. -
Can it drive multiple sensors simultaneously?
Yes, it can drive sensors with a minimum load impedance / 600 Ω, suitable for single or multi-sensor loops. -
What input power is required?
The instrument operates on 110–240 VAC, 50/60 Hz, making it suitable for global use. -
Is the instrument portable for field use?
Yes, its bench-top design and weight / 4.6 kg allow easy portability for field or lab calibration. -
Does it include protective features?
Yes, it has built-in over-voltage, short-circuit, and thermal protection to safeguard both the instrument and sensors. -
How are output signals adjusted?
Front-panel rotary knobs and push-buttons allow precise control / voltage and frequency outputs. -
Can it calibrate temperature sensors?
Yes, it provides excitation and verification for temperature sensors as part / a full system calibration. -
Does it provide a display for calibration monitoring?
Yes, digital readouts display voltage and frequency, allowing accurate calibration verification in real-time.
Related モデルs (Same Series or Similar)
| モデル | Function | Input Power | Output Type | 重量 |
|---|---|---|---|---|
| TK3-2E 14700-01 | Calibration Instrument | 110–240 VAC | Sine, Square, Pulse | 4.5 kg |
| TK3-2D 14701-01 | Vibration Calibrator | 110–240 VAC | Sine, Square, Pulse | 4.6 kg |
| TK3-2C 14702-01 | Multi-channel Calibration | 110–240 VAC | Sine & Pulse | 4.7 kg |
| TK3-2B 14703-01 | Proximity Sensor Calibrator | 110–240 VAC | Sine & Square | 4.4 kg |
| TK3-1F 14680-01 | Temperature & Vibration Calibrator | 110–240 VAC | Sine, Pulse | 4.5 kg |
| TK3-2G 14705-01 | Portable Calibration Kit | 110–240 VAC | Sine, Square, Pulse | 4.8 kg |
Popular Bently Nevada モデルs
| モデル | Type | Key Feature | 重量 | Typical Application |
|---|---|---|---|---|
| 3500/42M | Vibration Monitor | Multi-channel high-speed vibration detection | 0.85 kg | Turbomachinery protection |
| 3500/22M | Transient Data Interface | High-speed transient capture | 1.0 kg | Machinery diagnostics |
| 3500/32M | Relay Module | Alarm and shutdown relay control | 0.70 kg | Critical system safety |
| 330500 | Proximity Probe | High-resolution shaft vibration measurement | 0.25 kg | Turbine monitoring |
| 330400 | Proximity Probe | Wide temperature operating range | 0.28 kg | General industrial monitoring |
| 190501 | Accelerometer | Rugged design for harsh conditions | 0.15 kg | Pump and motor vibration analysis |
