製品紹介

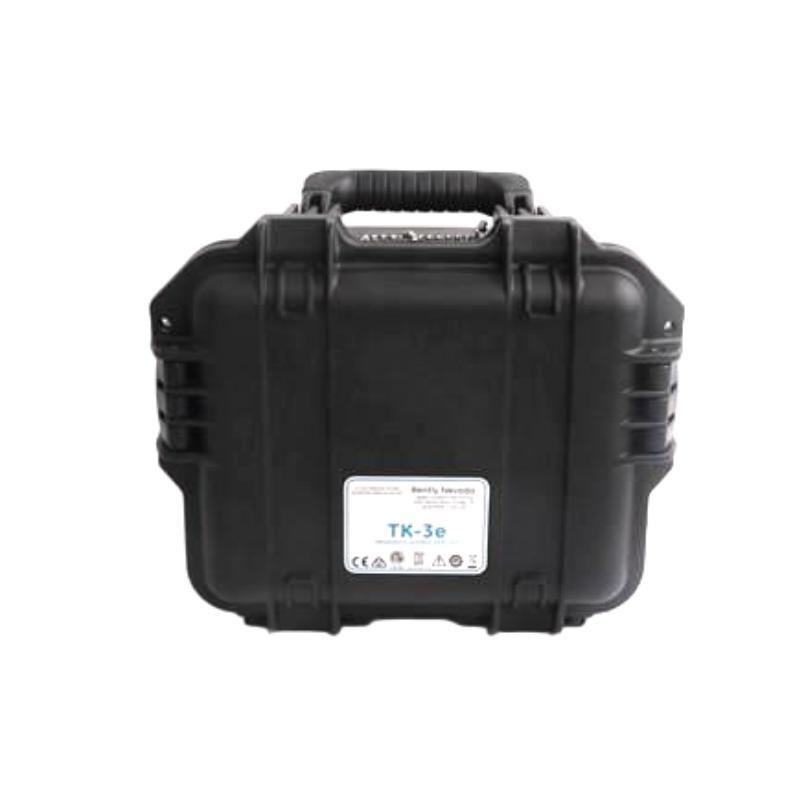

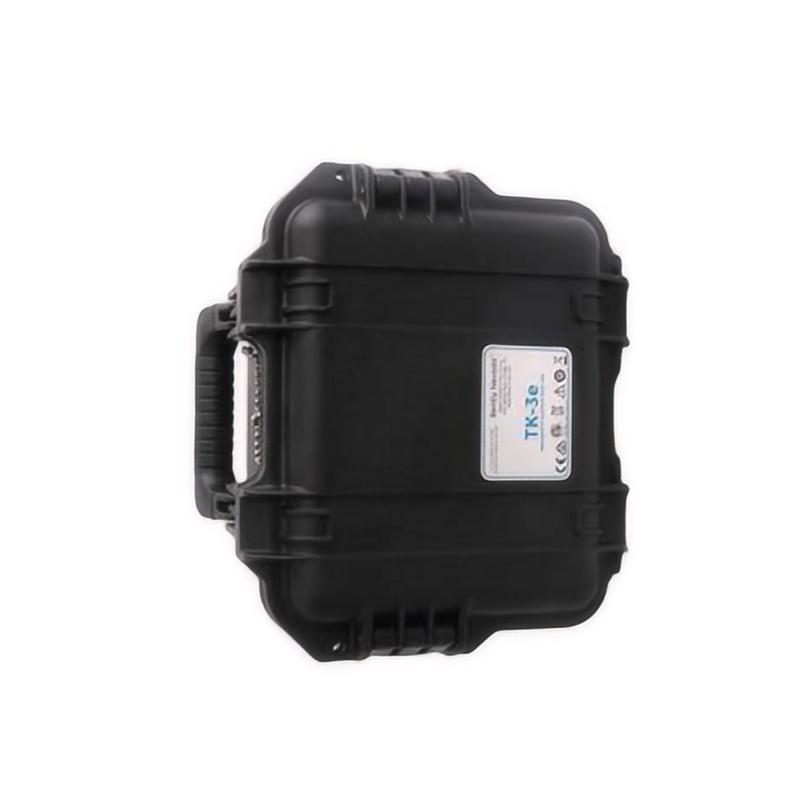

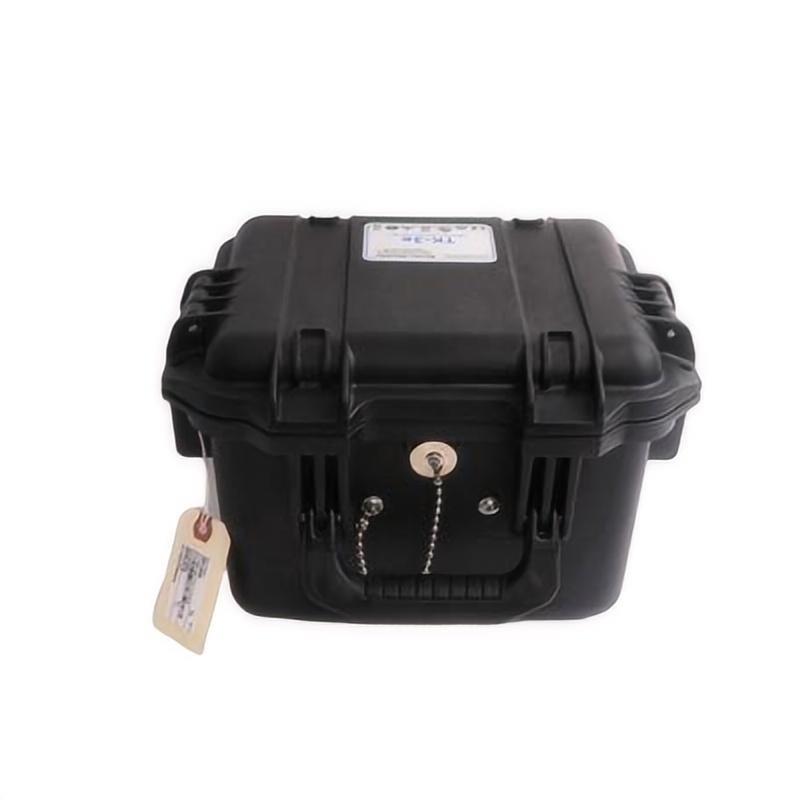

The Bently Nevada TK-3E 177313-02-01 Proximity System Test Kit is a high-precision instrument designed for testing, calibration, and verification / proximity probe systems in industrial machinery protection applications. This kit allows technicians to simulate, measure, and validate proximity sensor signals, ensuring accurate monitoring / turbines, compressors, pumps, and other rotating equipment. The TK-3E 177313-02-01 is engineered for both laboratory and field use, providing rugged construction, reliable performance, and easy operation. By using this test kit, maintenance personnel can prevent false alarms, verify system functionality, and maintain the reliability and safety / critical machinery.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | TK-3E 177313-02-01 |
| Type | Proximity System Test Kit |
| Input Power | 110–240 VAC, 50/60 Hz |
| Output Signal Types | AC and DC simulated proximity signals |
| Output Amplitude | 0–10 V peak-to-peak adjustable |
| Frequency Range | 0.1 Hz – 10 kHz |
| Accuracy | ±0.05 % full-scale |
| Load Capability | Minimum 600 Ω impedance |
| Control Interface | Front-panel rotary knobs and push-buttons |
| Display | Digital readout for amplitude and frequency |
| Calibration Functions | Proximity probe testing, system simulation, loop verification |
| Indicators | LEDs for power, signal output, and fault status |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | –20 °C to +60 °C |
| Protection | Over-voltage, short-circuit, and thermal protection |
| Mounting | Portable bench-top 台 with handle |
| Dimensions | 195 × 299 × 248 mm |
| 重量 | 5.22 kg |
| Certifications | CE, UL, RoHS compliant |
Applications
The TK-3E 177313-02-01 is designed for use in a variety / industrial environments where reliable proximity sensor performance is critical:
-
Turbomachinery Systems: Testing and calibration / turbine and compressor proximity probes.
-
Power Generation Facilities: Verifies generator, motor, and auxiliary equipment sensor outputs.
-
Oil & Gas Industry: Ensures accurate measurements in pumps, compressors, and drilling equipment.
-
Petrochemical and Chemical Plants: Validates proximity systems in reactors, distillation columns, and mixers.
-
Automated Manufacturing: サポートs predictive maintenance and quality control by confirming sensor signal accuracy.
-
Field and Laboratory Use: Portable design allows for convenient deployment in both controlled and industrial settings.
Advantages
-
High Accuracy: ±0.05 % full-scale ensures precise sensor and system verification.
-
Versatile Signal Simulation: Generates both AC and DC signals for comprehensive testing / proximity probes.
-
Wide Frequency Range: 0.1 Hz to 10 kHz accommodates slow and fast-rotating machinery applications.
-
Portable and Durable: Rugged bench-top design with handle for easy field use.
-
Digital Readout: Provides real-time display / signal amplitude and frequency for accurate monitoring.
-
User-Friendly Controls: Front-panel knobs and push-buttons allow easy adjustment without s/tware.
-
Integrated Protection: Over-voltage, short-circuit, and thermal protection safeguard the kit and connected systems.
-
Maintenance Efficiency: Streamlines verification processes, reduces false alarms, and improves operational reliability.
FAQ
-
What types / signals can the TK-3E 177313-02-01 generate?
The kit generates both AC and DC simulated proximity signals for accurate emulation / sensor behavior. -
What is the output frequency range / this test kit?
It supports 0.1 Hz to 10 kHz, suitable for both low-speed and high-speed machinery applications. -
How precise are the output signals?
The signals are accurate to ±0.05 % full-scale, providing reliable sensor and system verification. -
Can multiple proximity probes be tested simultaneously?
Yes, the instrument can drive sensors with a minimum load impedance / 600 Ω, supporting multi-channel testing. -
What input power does the kit require?
It operates on 110–240 VAC, 50/60 Hz, making it compatible with most industrial environments worldwide. -
Is this test kit portable for field use?
Yes, the bench-top design with handle and a weight / 5.4 kg allows easy transport and deployment in the field. -
Does the TK-3E 177313-02-01 include protection features?
Yes, it includes over-voltage, short-circuit, and thermal protection to safeguard both the kit and connected systems. -
How are the signal amplitude and frequency controlled?
Front-panel rotary knobs and push-buttons provide precise adjustment / output signals without external s/tware. -
Can it verify the integrity / a proximity sensor loop?
Yes, it supports loop verification, allowing technicians to confirm continuity and proper sensor response. -
Does it provide a display for monitoring output signals?
Yes, the digital readout displays both amplitude and frequency, enabling real-time verification during testing.
Related モデルs (Same Series or Similar)
| モデル | Function | Input Power | Output Type | 重量 |
|---|---|---|---|---|
| TK-3E 177313-01-01 | Proximity System Test Kit | 110–240 VAC | AC/DC Signals | 5.2 kg |
| TK-3E 177313-01-02 | Proximity System Test Kit | 110–240 VAC | AC/DC Signals | 5.3 kg |
| TK3-2E 177313-02-02 | Calibration Instrument | 110–240 VAC | Sine, Square, Pulse | 4.6 kg |
| TK3-2E 14700-01 | Calibration Instrument | 110–240 VAC | Sine, Square, Pulse | 4.5 kg |
| TK3-2D 14701-01 | Vibration Calibrator | 110–240 VAC | Sine, Square, Pulse | 4.6 kg |
| TK3-2C 14702-01 | Multi-channel Calibration | 110–240 VAC | Sine & Pulse | 4.7 kg |
Popular Bently Nevada モデルs
| モデル | Type | Key Feature | 重量 | Typical Application |
|---|---|---|---|---|
| 3500/42M | Vibration Monitor | Multi-channel high-speed vibration detection | 0.85 kg | Turbomachinery protection |
| 3500/22M | Transient Data Interface | High-speed transient capture | 1.0 kg | Machinery diagnostics |
| 3500/32M | Relay Module | Alarm and shutdown relay control | 0.70 kg | Critical system safety |
| 330500 | Proximity Probe | High-resolution shaft vibration measurement | 0.25 kg | Turbine monitoring |
| 330400 | Proximity Probe | Wide temperature operating range | 0.28 kg | General industrial monitoring |
| 190501 | Accelerometer | Rugged design for harsh conditions | 0.15 kg | Pump and motor vibration analysis |
