Product Overview

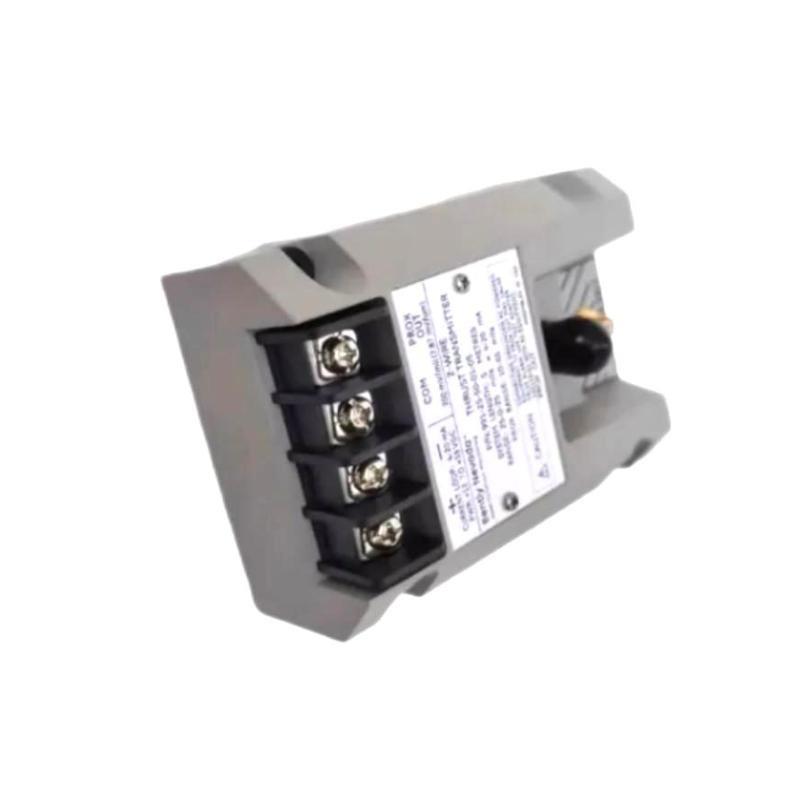

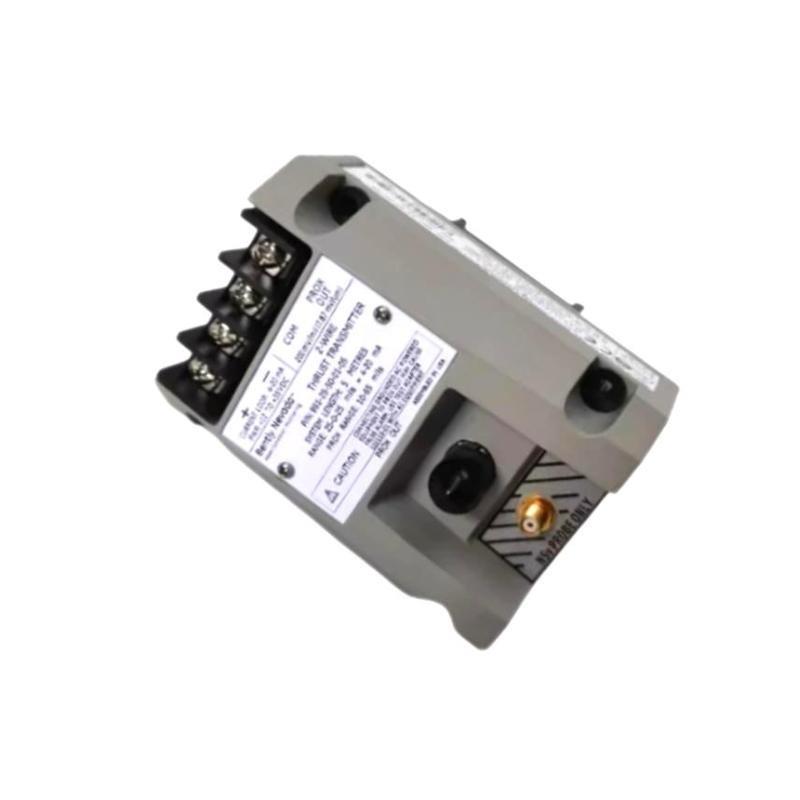

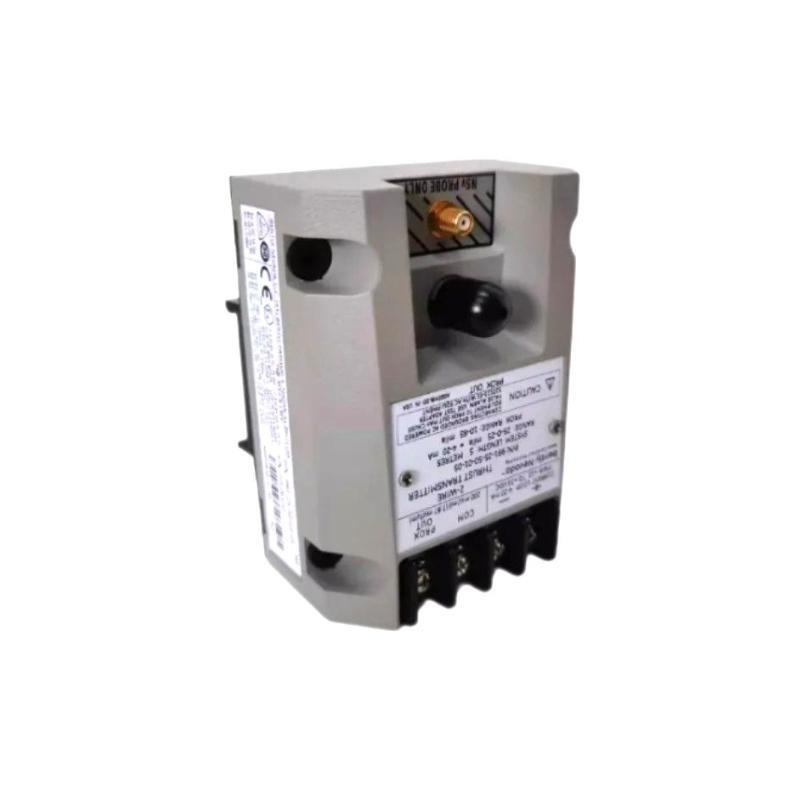

The Bently Nevada 991-06-70-03-RU 991 Thrust Sensor is a high-performance, loop-powered transmitter designed for thrust position monitoring in rotating machinery. Delivering a 4–20 mA output proportional to shaft thrust position, this sensor provides a reliable and cost-effective alternative to rack-based monitoring systems.
Key Features
-
2-wire, loop-powered thrust transmitter
-
4–20 mA output proportional to shaft thrust position
-
Compatible with Bently Nevada proximity probes and cables
-
PROX OUT terminal for vibration and gap signal access
-
Field calibration with zero and span adjustments
-
“Not OK” fault detection with diagnostics
-
DIN rail and bulkhead mounting options
-
Rugged construction for harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Bently Nevada |
| 型番 | 991-06-70-03-RU |
| Series | 991 Thrust Sensor |
| Product Type | Thrust Position Transmitter |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| 重量 | 0.43 kg |
| Power Supply | +12 to +35 V DC |
| Output | 4–20 mA proportional to thrust position |
| Measurement Range | 0–2 mm (depending on probe configuration) |
| Frequency Response | DC to 600 Hz |
| Loop Accuracy | ±1.5% / full scale |
| Max Loop Resistance | 1,000 Ω at 35 V DC |
| Probe Compatibility | Bently Nevada proximity probes and extension cables |
| Operating Temperature – Transmitter | –35 °C to +85 °C |
| Operating Temperature – Probe | –52 °C to +177 °C |
| Relative Humidity | 0–100%, condensing |
| Mounting Options | DIN rail or bulkhead mounting |
Industry Applications
-
Steam turbines and gas turbines
-
Compressors and centrifugal pumps
-
Electric motors and generators
-
Thrust position monitoring for rotating machinery
-
Oil & gas processing plants
-
Power generation and utilities
-
OEM machinery monitoring systems
よくある質問 (FAQ)
Q1: What does the 991-06-70-03-RU Thrust Sensor measure?
It measures shaft thrust position and provides a 4–20 mA proportional output.
Q2: Is it compatible with Bently Nevada probes?
Yes, it works with standard Bently Nevada proximity probes and extension cables.
Q3: How is this thrust sensor powered?
It is loop-powered, requiring a DC supply between +12 and +35 V.
Q4: Does it include fault detection?
Yes, it features diagnostics with “Not OK” fault detection.
Q5: Can I also access vibration signals?
Yes, the PROX OUT terminal allows access to vibration and gap signals.
Q6: What are the mounting options?
It can be mounted on DIN rail or bulkhead.
Q7: What environments can it operate in?
It is designed for harsh industrial environments, with wide operating temperature and humidity tolerance.
Q8: What industries typically use this device?
It is widely used in oil & gas, power generation, turbines, compressors, and OEM machinery protection.
