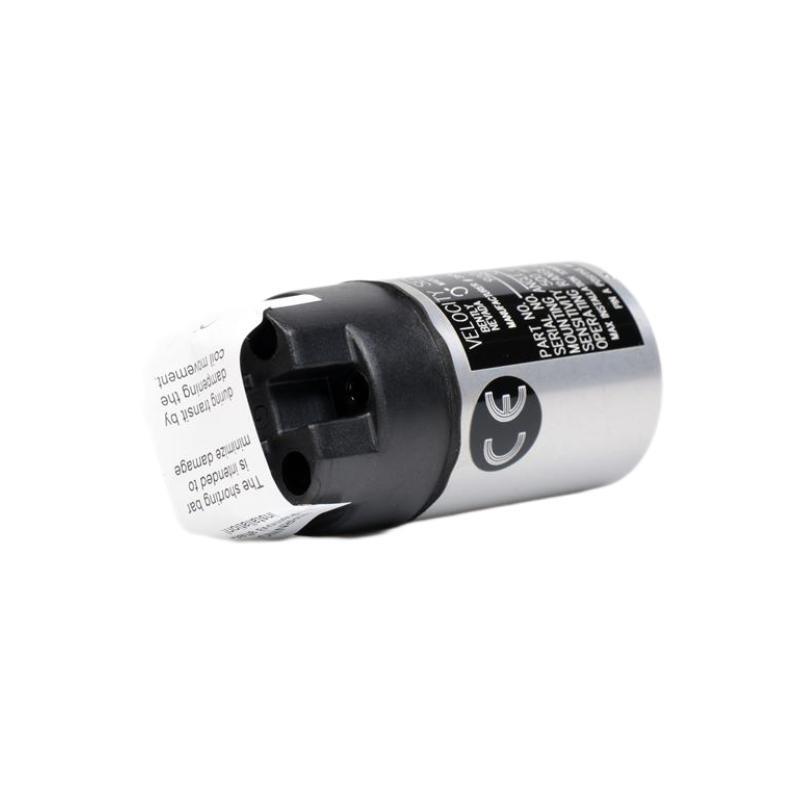

The Bently Nevada 9200-01-02-10-00 is a precision-engineered dual-line velocity seismic sensor designed for reliable vibration measurement in industrial machinery monitoring applications. It forms part / Bently Nevada’s trusted 9200 series, which is recognized for delivering stable and accurate velocity measurements in harsh industrial environments.
This model is specifically tailored to convert mechanical vibration into a proportional electrical signal for analysis by monitoring systems. It is suitable for applications such as turbine, compressor, and large motor monitoring, /fering high durability, excellent linearity, and resistance to environmental interference. With its rugged housing and sealed construction, the 9200-01-02-10-00 ensures dependable performance even in areas with high temperatures, humidity, or mechanical stress.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | 9200-01-02-10-00 |
| Series | 9200 Series Dual-line Velocity Seismic Sensor |
| Measurement Range | 0–50 mm/s (typical for velocity sensors, depending on configuration) |
| Sensitivity | 100 mV/in/sec ±5% |
| Frequency Range | 4.5 Hz to 5 kHz |
| Output Signal | Dual-line, self-generating voltage signal |
| Operating Temperature | –40°C to +100°C |
| Housing Material | Stainless steel, corrosion-resistant |
| Sealing | IP65 or better, dust and moisture protection |
| Mounting | Stud mount or magnetic base (optional) |
| Cable Connection | Two-wire shielded cable, industrial-grade |
| Power Supply | Self-powered (does not require external power) |
| Sensor diameter | 41.4mm |
| 重量 | 0.3 kg |
| Compliance | CE, RoHS compliant |
Product Applications
The Bently Nevada 9200-01-02-10-00 is used in a wide range / vibration monitoring applications, including:
-
Power Generation – Monitoring steam turbines, hydro turbines, and generators for imbalance or bearing issues.
-
Oil & Gas Industry – Continuous monitoring / compressors, pumps, and /fshore equipment.
-
Petrochemical Plants – Detecting vibration abnormalities in large rotating machinery to prevent process disruption.
-
Steel & Mining Industry – Supervising heavy-duty motors, crushers, and mill drives.
-
Marine & 配送 – Monitoring propulsion systems and auxiliary equipment to ensure operational safety.
-
Pulp & Paper Industry – Tracking vibration levels / high-speed rolls and rotating process equipment.
Product Advantages
-
High Accuracy – Delivers stable velocity measurements with minimal drift over time.
-
Rugged Design – Stainless steel housing and sealed enclosure for harsh industrial conditions.
-
Wide Frequency Range – Suitable for detecting both low-frequency imbalance and high-frequency bearing faults.
-
Low Maintenance – Self-generating design eliminates the need for external power sources.
-
Long Service Life – Built to last with high resistance to corrosion, shock, and vibration.
-
Easy Installation – Compatible with multiple mounting options and standard vibration monitoring systems.
-
Consistent Output – Dual-line signal ensures redundancy and improved reliability in critical monitoring.
-
Global Compatibility – Meets international compliance standards for industrial monitoring equipment.
よくある質問 (FAQ)
Q1: What type / signal does the 9200-01-02-10-00 produce?
A1: It produces a dual-line self-generating voltage signal proportional to the measured vibration velocity.
Q2: Does this sensor require external power?
A2: No, it is self-powered and does not require an external supply.
Q3: Can it be used in outdoor environments?
A3: Yes, its IP65-rated housing makes it suitable for outdoor and industrial use.
Q4: How is it typically mounted?
A4: It can be stud-mounted directly to machinery or attached with a magnetic base for temporary measurements.
Q5: What is the typical service life / this sensor?
A5: When properly installed, it can last over 5 years in normal industrial use.
Q6: Is it compatible with all Bently Nevada monitoring systems?
A6: Yes, it works with most Bently Nevada monitoring and analysis systems.
Q7: What is the benefit / a dual-line output?
A7: It provides redundancy and ensures reliable signal transmission in critical monitoring situations.
Q8: What machinery is it best suited for?
A8: Large rotating machinery such as turbines, compressors, pumps, and motors.
Q9: Can it withstand high temperatures?
A9: Yes, it can operate in temperatures up to +100°C.
Q10: Is it resistant to vibration from other nearby machinery?
A10: Yes, its design minimizes interference from non-target vibrations.
Recommended 6 Same-Series or Related モデルs
-
Bently Nevada 9200-01-01-02-00 – Dual-line seismic velocity sensor, alternate mounting configuration.
-
Bently Nevada 9200-01-20-10-00 – Extended temperature range version.
-
Bently Nevada 9200-03-01-05-00 – Compact version for limited-space installations.
-
Bently Nevada 9200-03-02-10-00 – High-frequency optimized version.
-
Bently Nevada 9200-03-02-02-00 – Balanced performance variant for general-purpose use.
-
Bently Nevada 9200-01-01-10-00 – High-sensitivity variant for low-level vibration detection.
6 その他 Popular モデルs from Bently Nevada (with Specs)
| モデル Number | Measurement Range | Frequency Range | Sensitivity | Dimensions (mm) | 重量 (g) |
|---|---|---|---|---|---|
| 330103-00-05-10-02-05 | 0–50 mm/s | 4 Hz – 5 kHz | 100 mV/in/sec | 71 × 25 | 210 |
| 330104-00-10-10-02-05 | 0–25 mm/s | 5 Hz – 3 kHz | 200 mV/in/sec | 75 × 30 | 220 |
| 330500 | 0–50 mm/s | 3 Hz – 10 kHz | 100 mV/in/sec | 80 × 28 | 240 |
| 330530 | 0–50 mm/s | 4 Hz – 5 kHz | 100 mV/in/sec | 76 × 27 | 230 |
| 3500/42M | Multi-channel | System-dependent | N/A | Rack module | N/A |
| 330780 | 0–50 mm/s | 4 Hz – 5 kHz | 100 mV/in/sec | 78 × 29 | 235 |
