製品紹介

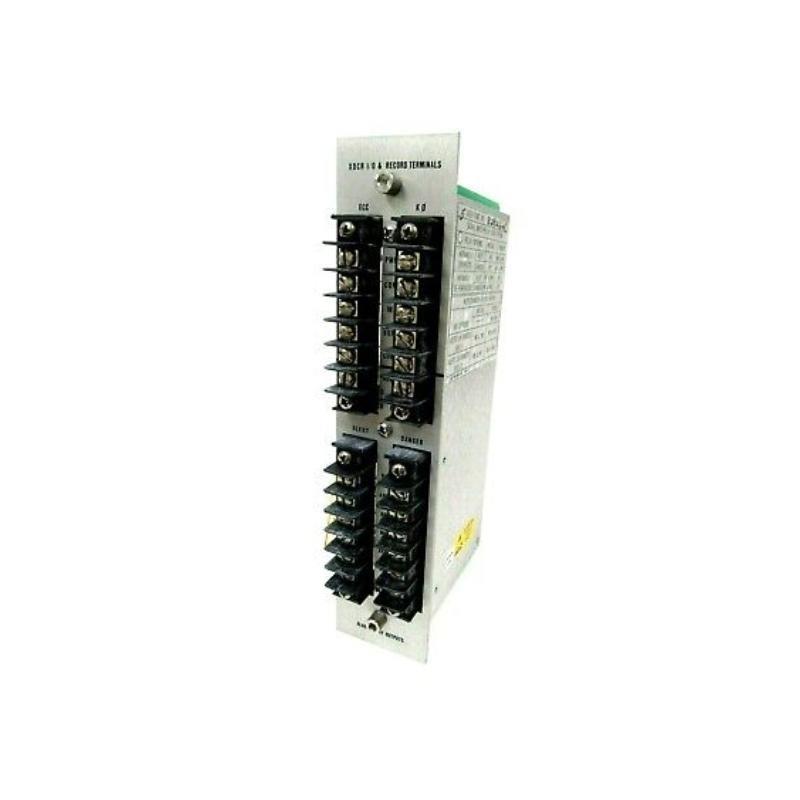

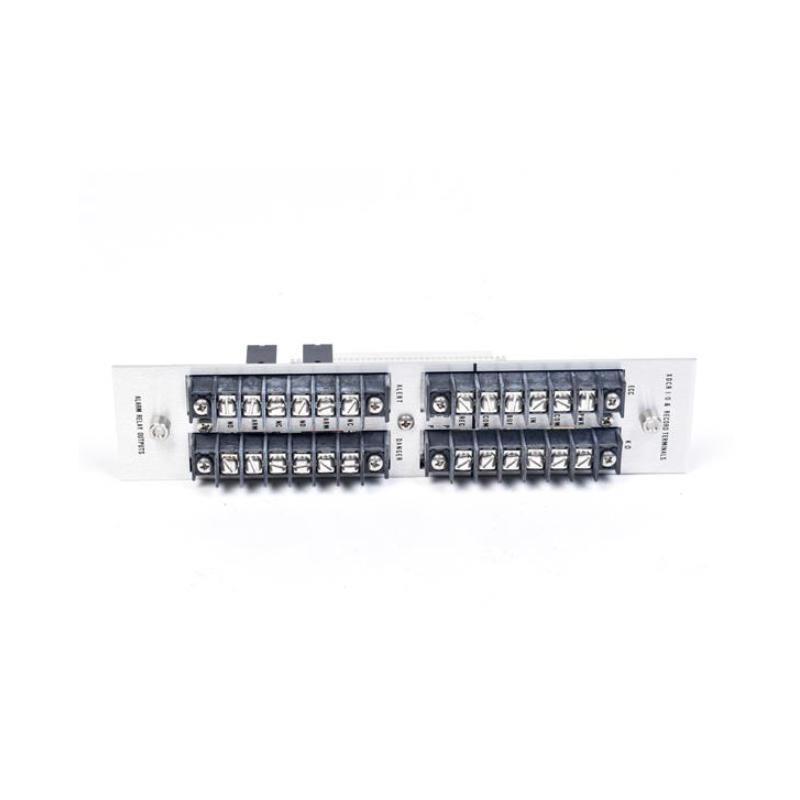

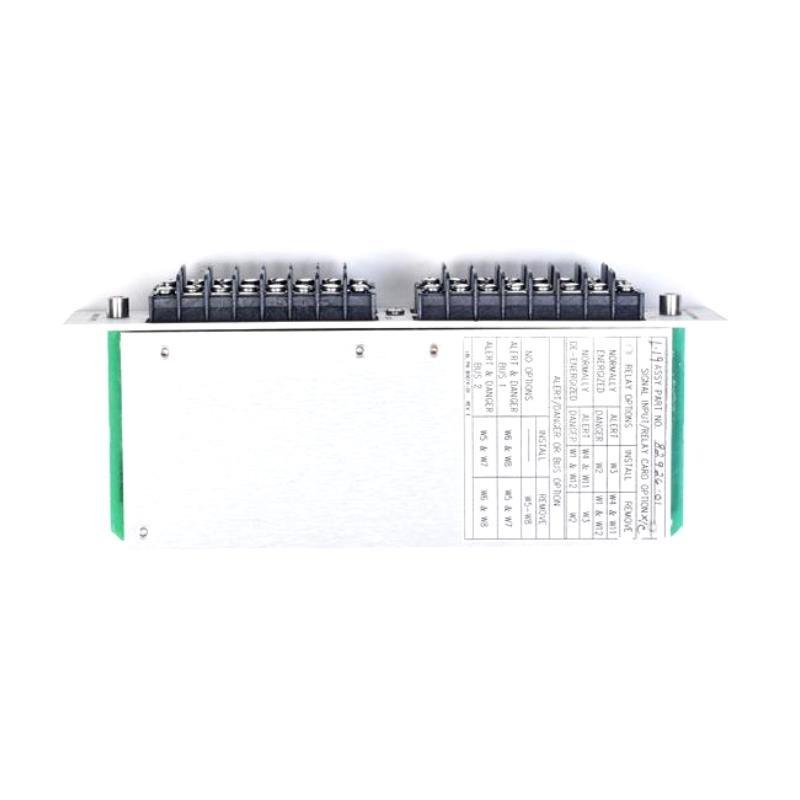

The Bently Nevada 82926-01 Relay Board is a precision-engineered module designed to provide reliable relay switching for monitoring and control systems in industrial applications. As part / Bently Nevada’s robust portfolio / machinery protection solutions, this relay board ensures accurate signal processing and alarm output to safeguard rotating equipment.
The 82926-01 integrates seamlessly with monitoring systems, allowing for flexible configuration / alarms, trip points, and logic operations. Its design prioritizes durability, signal integrity, and easy maintenance.
Product Advantages
-
High Reliability: Engineered for continuous operation in demanding industrial environments.
-
Fast Response: Provides rapid relay actuation for critical alarm signaling.
-
Compatibility: Fully compatible with Bently Nevada 3300 series and other monitoring modules.
-
Ease / Installation: Pre-configured relay terminals reduce wiring complexity.
-
Diagnostics: Built-in status indicators facilitate troubleshooting and maintenance.
-
Modular Design: Can be easily replaced or upgraded without system downtime.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 82926-01 |
| Function | Relay Board for alarm and signal output |
| Input Voltage | 24 VDC nominal |
| Output Type | SPDT Relays |
| Maximum Relay Current | 5 A |
| Response Time | < 10 ms |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Type | Panel mount |
| Dimensions | 160 x 160 x 120 mm |
| 重量 | 0.8 kg |
| Certifications | CE, UL recognized |
Product Applications
-
Machinery protection systems in turbines, compressors, and pumps.
-
Alarm and trip signaling in industrial process monitoring.
-
Integration with distributed control systems (DCS) for automated shutdown.
-
Remote monitoring stations for critical rotating equipment.
-
Oil, gas, and power generation industries requiring fast response relays.
FAQ
Q1: What is the maximum current the 82926-01 relay contacts can handle?
A1: The relay contacts are rated for a maximum / 5 A.
Q2: Can the relay board operate with AC input voltages?
A2: No, it is designed for 24 VDC nominal input only.
Q3: How fast does the relay board respond to a triggering signal?
A3: The typical response time is less than 10 milliseconds.
Q4: Is the relay output configurable for normally open and normally closed states?
A4: Yes, the SPDT relays support both NO and NC configurations.
Q5: Can the board be used in outdoor environments?
A5: It can operate within -20°C to +70°C but requires enclosure protection for direct outdoor exposure.
Q6: Does the board support integration with the 3300 XL series monitors?
A6: Yes, it is fully compatible with 3300 XL and standard 3300 series modules.
Q7: Are there indicators to show relay activation?
A7: Yes, the board has built-in LED indicators for each relay.
Q8: What is the maximum allowable ambient humidity for operation?
A8: The board operates reliably in 5% to 95% relative humidity, non-condensing.
Q9: Can multiple boards be cascaded for extended alarm outputs?
A9: Yes, multiple relay boards can be connected to expand the number / alarm channels.
Q10: Is the board compliant with industry safety standards?
A10: Yes, it is CE marked and UL recognized for industrial applications.
Recommended Same-Series or Related モデルs
| モデル Number | Function/Notes |
|---|---|
| 82925-01 | Auxiliary relay module |
| 82927-01 | Trip and alarm relay interface |
| 82928-01 | Signal conditioning relay board |
| 82930-01 | Redundant relay output module |
| 82931-01 | Logic relay integration board |
| 82932-01 | Expansion relay board for multiple outputs |
Popular Bently Nevada モデルs
| モデル Number | Function/Notes |
|---|---|
| 330103-17-22-10-12-05 | Proximity Probe System |
| 3300 XL | High-performance vibration monitor |
| 3300 XL Pro | Advanced condition monitoring |
| 3500/22M | Machinery protection monitor |
| 3500/45M | Trip and alarm module |
| 3500/72M | Expansion module for multiple inputs |
| 1700/88M | Wireless vibration sensor |
| 1455/01 | Signal conditioner for probes |
