Product 説明

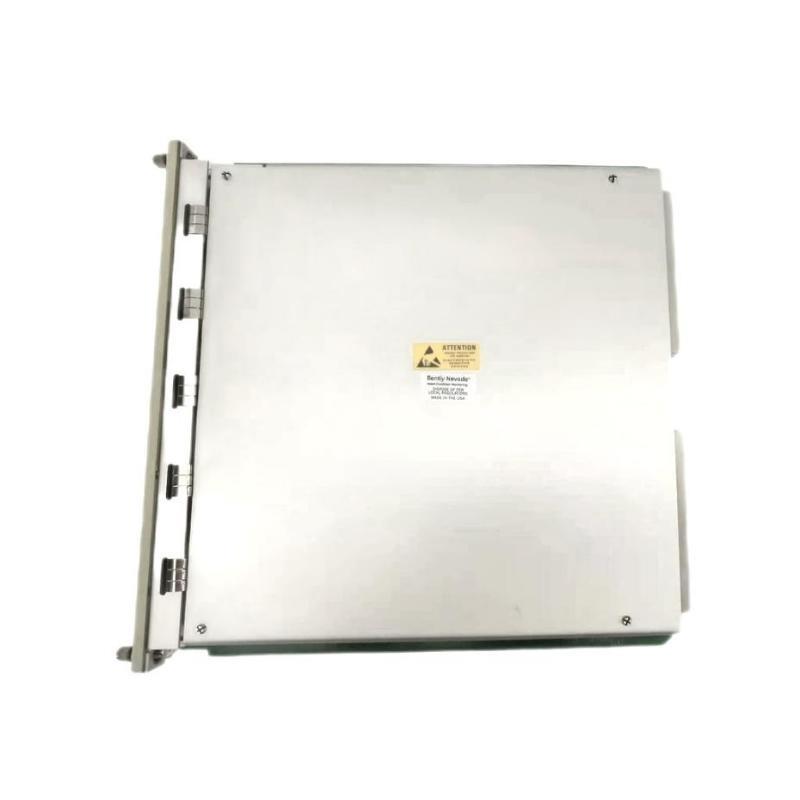

The Bently Nevada 3500/94M 184826-01 VGA Display Monitor is a high-performance display 台 designed for integration within the 3500 Machinery Protection System. It provides operators and engineers with a clear, real-time graphical interface for machinery health monitoring. Featuring VGA output, the 台 ensures easy visualization / system parameters, alarms, and vibration data, enabling quick analysis and decision-making in critical environments.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | 3500/94M 184826-01 VGA Display Monitor |
| Display Type | VGA Output Display (Graphical) |
| Resolution | Standard VGA Resolution (640×480) |
| Interface | Connects directly to 3500 Rack System |
| Input Power | Supplied via 3500 Rack |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.73 kg |
| Mounting | Rack-mounted |
| Compliance | CE, CSA, ATEX, IECEx (depending on configuration) |
Applications
-
Monitoring / vibration, temperature, and process parameters in turbomachinery
-
Real-time visualization / alarms and system status in critical process industries
-
Integration with 3500 Rack for machinery protection and diagnostics
-
Power generation, petrochemical, and refining plants
-
Offshore platforms and heavy-duty rotating machinery installations
Advantages
-
Clear Visualization: Provides real-time data display with graphical output.
-
Seamless Integration: Fully compatible with 3500 Rack modules for comprehensive monitoring.
-
Reliable Design: Built for continuous operation in demanding industrial environments.
-
User-Friendly: Simplifies interpretation / complex vibration and machinery data.
-
Compact Size: Lightweight and optimized for rack mounting.
-
Certified Compliance: Meets international standards for safety and reliability.
FAQ
Q1: What is the main function / the 3500/94M VGA Display Monitor?
A1: It provides real-time graphical visualization / machinery protection data from the 3500 System.
Q2: Can the display be used independently without the 3500 Rack?
A2: No, it is designed to operate exclusively with the 3500 Rack System.
Q3: What type / display output does it support?
A3: It supports VGA output, typically with a 640×480 resolution.
Q4: Is it suitable for hazardous area applications?
A4: Yes, it complies with ATEX, CSA, and IECEx certifications depending on configuration.
Q5: How is the 台 powered?
A5: The display monitor is powered directly from the 3500 Rack system.
Q6: What industries commonly use this display monitor?
A6: It is widely used in oil & gas, petrochemical, power generation, and heavy machinery sectors.
Q7: Can this monitor store historical data?
A7: No, it only displays real-time data; storage and logging are managed by the 3500 Rack.
Q8: How is the monitor installed?
A8: It is rack-mounted, making it easy to integrate into existing 3500 protection systems.
Q9: What environmental conditions can it withstand?
A9: It operates between 0 °C and +60 °C with up to 95% non-condensing humidity.
Q10: What are its key advantages over standard displays?
A10: Its reliability, certified compliance, compact size, and seamless integration with the 3500 Rack.
Related モデルs (Same Series / Similar)
| モデル Number | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 3500/93 135785-01 | System Display Module | 241.3 x 24.4 x 241.8 | 0.72 kg |
| 3500/92 136180-01 | Communication Gateway Module | 241.3 x 24.4 x 241.8 | 0.74 kg |
| 3500/22M 288055-01 | Transient Data Interface (TDI) | 241.3 x 24.4 x 241.8 | 0.75 kg |
| 3500/91 149369-01 | Power Supply Module | 241.3 x 24.4 x 241.8 | 0.76 kg |
| 3500/25 125792-01 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.71 kg |
| 3500/15 106M1079-01 | Power Supply Module (High Power) | 241.3 x 24.4 x 241.8 | 0.80 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 3300 XL 330103-00-07-10-02-00 | Proximity Probe | 81 x 8 x 8 | 0.12 kg |
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | 81 x 8 x 8 | 0.11 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | 76 x 25 x 25 | 0.15 kg |
| 3500/42M 140734-02 | Proximitor/Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.78 kg |
| 3500/50 133388-01 | Tachometer Module | 241.3 x 24.4 x 241.8 | 0.77 kg |
| 3500/60 145988-02 | Temperature Monitor | 241.3 x 24.4 x 241.8 | 0.79 kg |
