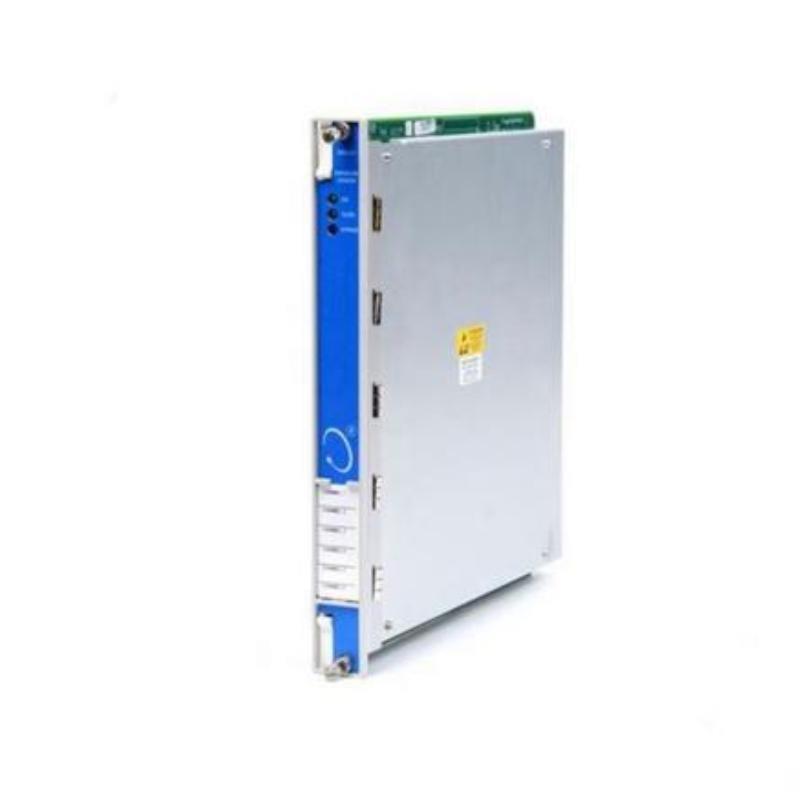

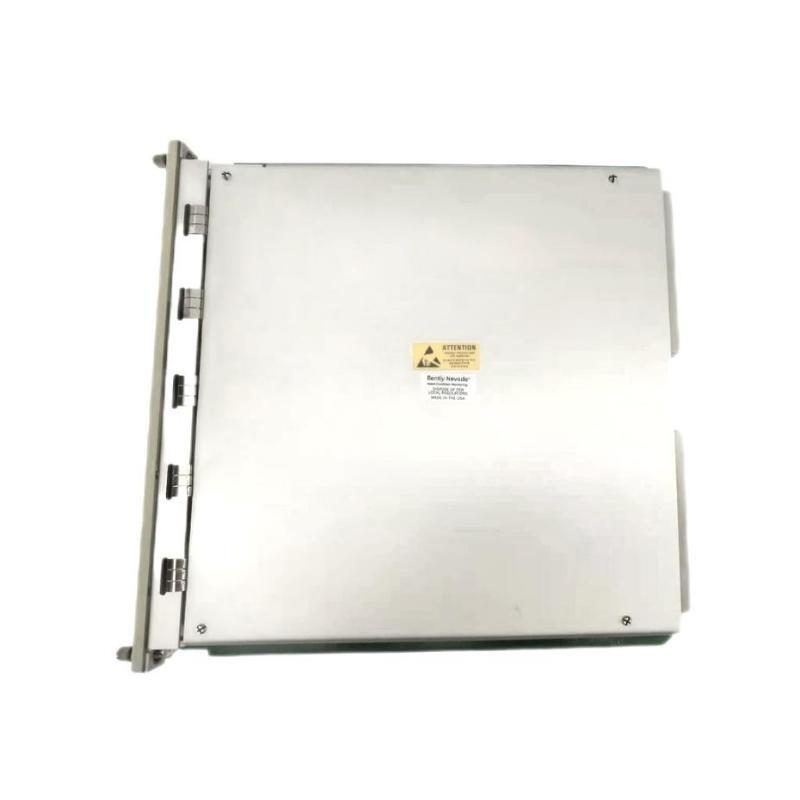

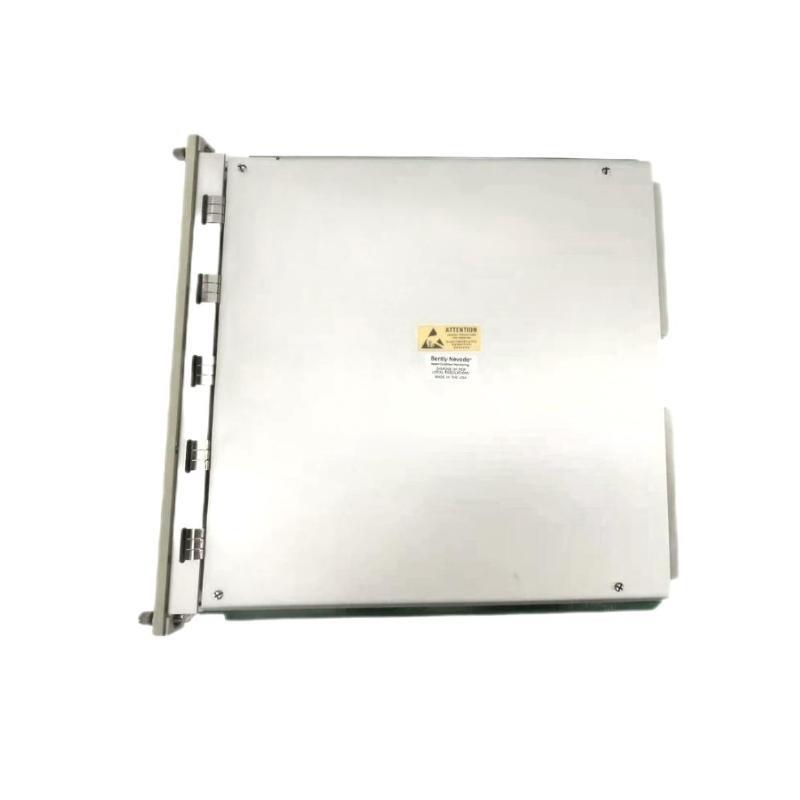

The Bently Nevada 3500/94M 145988-01 VGA Display Monitor is a high-performance visualization module designed for the 3500 Machinery Protection System. It provides operators with real-time machinery condition data and system status on a VGA monitor. The 台 is engineered for critical industrial environments, ensuring reliable monitoring and ease / integration with plant control systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product モデル | 3500/94M VGA Display Monitor |
| 型番 | 145988-01 |
| Display Interface | VGA (Video Graphics Array) |
| サポートed Resolution | 640×480 and higher (dependent on configuration) |
| Input Source | 3500 Rack Data via I/O modules |
| Communication | RS-232 / RS-485 |
| Power Supply | 24 VDC (typical) |
| Dimensions (W x D x H) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.73 kg |
| Operating Temperature | 0 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Mounting | Panel or rack mountable |
| Compliance | CE, CSA, ATEX |
Applications
-
Continuous monitoring / turbomachinery, compressors, and rotating equipment
-
Industrial plants requiring real-time machinery diagnostics
-
Integration with control rooms for operator awareness
-
Oil & gas, petrochemical, and power generation sectors
-
Machinery protection systems requiring VGA visualization
Advantages
-
Real-time graphical visualization / machinery health
-
High reliability in demanding industrial environments
-
Easy integration with Bently Nevada 3500 series racks
-
Compact design with lightweight build for flexible mounting
-
Certified for use in hazardous industrial applications
-
Reduces downtime through early fault detection
FAQ
Q1: What is the primary function / the 3500/94M VGA Display Monitor?
A1: It provides real-time graphical display / machine condition and system status from the 3500 monitoring system.
Q2: Can this monitor be integrated into existing DCS/SCADA systems?
A2: Yes, it communicates via standard interfaces and integrates with DCS/SCADA systems for enhanced monitoring.
Q3: What resolution does the 3500/94M support?
A3: It supports VGA resolutions beginning from 640×480, depending on system configuration.
Q4: What industries typically use this monitor?
A4: Oil & gas, petrochemical, power generation, and heavy industrial plants.
Q5: How is the 台 powered?
A5: It typically requires a 24 VDC power supply.
Q6: Is the 台 certified for hazardous environments?
A6: Yes, it complies with CE, CSA, and ATEX standards for industrial use.
Q7: What is the weight and size / the 3500/94M?
A7: Dimensions are 241.3 x 24.4 x 241.8 mm with a weight / 0.73 kg.
Q8: Can the 3500/94M operate in extreme temperatures?
A8: It supports operating temperatures from 0 °C to +65 °C and storage from -40 °C to +85 °C.
Q9: How is it mounted?
A9: It supports both panel and rack mounting configurations.
Q10: Does the 3500/94M store historical data?
A10: No, it displays live data from the 3500 rack; historical data storage is handled by external systems.
Related モデルs (Same Series or Similar)
| モデル Number | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 3500/93 | System Display Module | 241.3 x 24.4 x 241.8 | 0.75 kg |
| 3500/90 | Communication Gateway | 241.3 x 24.4 x 241.8 | 0.72 kg |
| 3500/92 | Communication Interface Module | 241.3 x 24.4 x 241.8 | 0.71 kg |
| 3500/91 | EGD Communication Module | 241.3 x 24.4 x 241.8 | 0.74 kg |
| 3500/40 | Proximitor Monitor | 241.3 x 24.4 x 241.8 | 0.70 kg |
| 3500/42 | Proximitor/Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.72 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 3300 XL 8mm Probe | Proximity Probe | 200 x 10 x 10 | 0.25 kg |
| 330104-00-05-10-02 | 3300 XL 8mm Proximity Probe | 200 x 8 x 8 | 0.22 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | 200 x 25 x 25 | 0.30 kg |
| 3500/22M | Transient Data Interface | 241.3 x 24.4 x 241.8 | 0.74 kg |
| 3500/15 | Power Supply Module | 241.3 x 24.4 x 241.8 | 0.76 kg |
| 3500/05 | System Rack | 482.6 x 266.7 x 304.8 | 4.50 kg |
