製品紹介

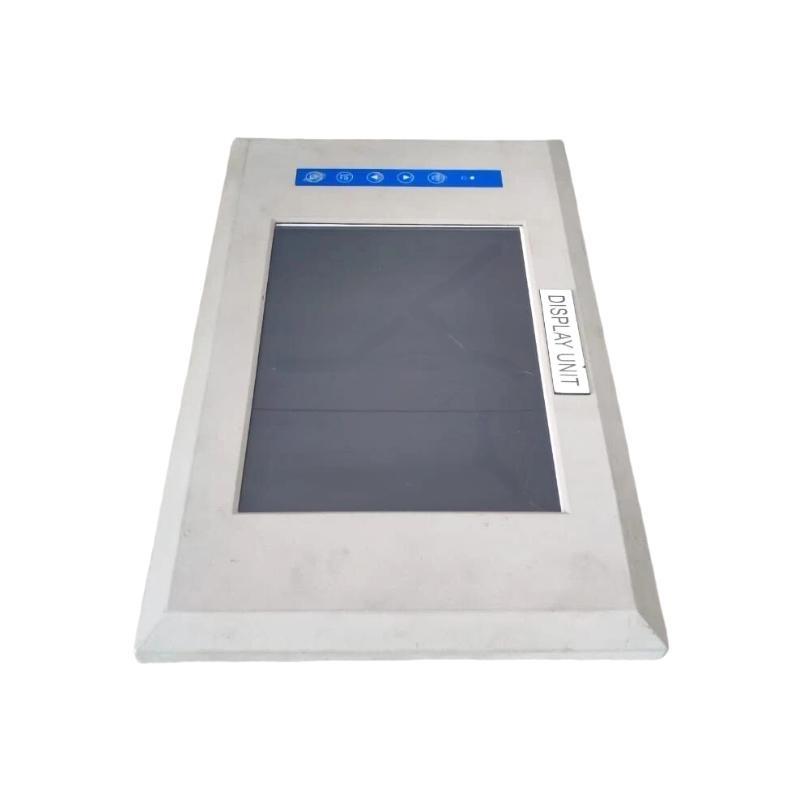

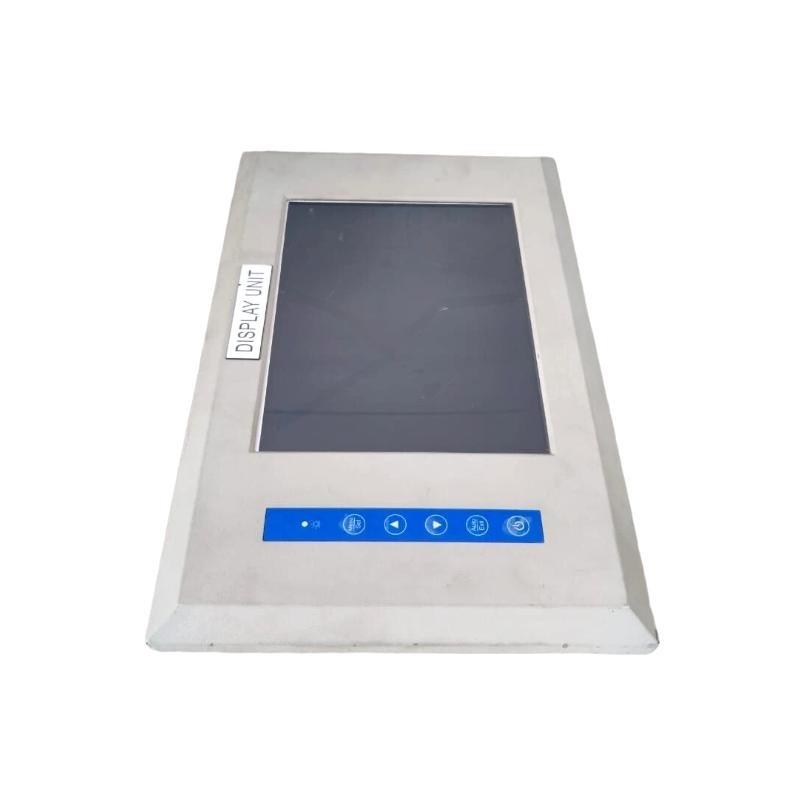

The Bently Nevada 3500/94M 120M8155-01 Touch Screen Display is a high-performance operator interface module designed for the Bently Nevada 3500 Machinery Protection System. Featuring a 10-inch industrial-grade touch screen, it provides operators with intuitive access to real-time machinery data, alarm conditions, and system configuration.
As part / the 3500 series, the 3500/94M acts as a centralized visualization point, ensuring operators can quickly monitor and diagnose machinery health. With its rugged design, high-resolution display, and user-friendly interface, the module enhances plant reliability and simplifies condition monitoring / rotating and reciprocating machinery.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | Bently Nevada 3500/94M 120M8155-01 |
| Product Type | 10-inch Touch Screen Display Module |
| Display Size | 10.4 inches diagonal |
| Display Resolution | 1024 × 768 pixels (XGA) |
| Display Type | TFT LCD with LED backlight |
| Touch Technology | Resistive touch screen (industrial grade) |
| Channels サポートed | Displays data from all 3500 modules in the rack |
| Communication | Via 3500 rack backplane and Ethernet |
| Data Access | Alarm status, trend plots, system configuration, and diagnostics |
| Alarm Indication | Visual alarm display for Alert and Danger conditions |
| Input Power | Supplied by 3500 rack power system |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 0–95% non-condensing |
| Certifications | CE, CSA, UL |
| Mounting | Rack-mounted front display |
| Dimensions | 249 x 389 x 48 mm |
| 重量 | 4 kg |
Product Applications
The 3500/94M Touch Screen Display is primarily deployed in industrial environments where machinery condition must be monitored in real time. Typical applications include:
-
Oil & Gas Industry – Monitoring compressors, turbines, and pumps in /fshore and onshore facilities.
-
Petrochemical Plants – Providing local visualization / machinery conditions to operators in critical process areas.
-
Power Generation – Used in thermal, hydro, and nuclear power plants for quick monitoring / rotating machinery.
-
Marine and Offshore – Installed in engine control rooms for machinery health visualization in vessels and rigs.
-
Heavy Industrial Operations – Providing operators with at-a-glance access to alarms and machinery diagnostics.
-
Pulp & Paper and Mining – Ensuring reliable operation / large rotating assets.
Product Advantages
-
Intuitive User Interface – Simplifies system monitoring with touch-based navigation and real-time data access.
-
Centralized Monitoring – Displays data from all modules in the 3500 rack for a complete view / machinery health.
-
Clear Alarm Visualization – Provides immediate visibility / Alert and Danger conditions, reducing operator response time.
-
High Reliability – Built for harsh industrial environments with rugged design and long operating life.
-
Flexible Data Display – サポートs trend plots, bar graphs, alarm lists, and system status information.
-
Seamless Integration – Connects directly to the 3500 rack via backplane and Ethernet.
-
Improved Operator Efficiency – Eliminates the need for separate external HMIs in many applications.
-
Reduced Downtime – Enables faster diagnosis / machinery issues, supporting predictive maintenance strategies.
FAQ
-
What is the display resolution / the 3500/94M?
It provides 1024 × 768 pixel XGA resolution. -
Which communication interfaces are supported by this display?
The display communicates via the 3500 rack backplane and Ethernet. -
Does the display support alarm visualization?
Yes, it provides visual indicators for both Alert and Danger alarms. -
Can operators access trend and historical data?
Yes, the display supports real-time trend plots and historical alarm review. -
Is the touch screen industrial grade?
Yes, it uses a rugged resistive touch screen suitable for industrial environments. -
How does the display receive its power?
Power is supplied directly from the 3500 rack power system. -
What types / data can the display present?
It shows machine vibration, temperature, rod position, process variables, and alarm status. -
Is the 3500/94M compatible with all 3500 modules?
Yes, it is designed to display data from any module within the 3500 rack system. -
Can it be configured for multilingual support?
Yes, the interface supports multiple languages for global deployment. -
Does the 3500/94M support remote monitoring?
While the 台 itself is a local display, remote access can be enabled via Ethernet connectivity with the 3500 System.
