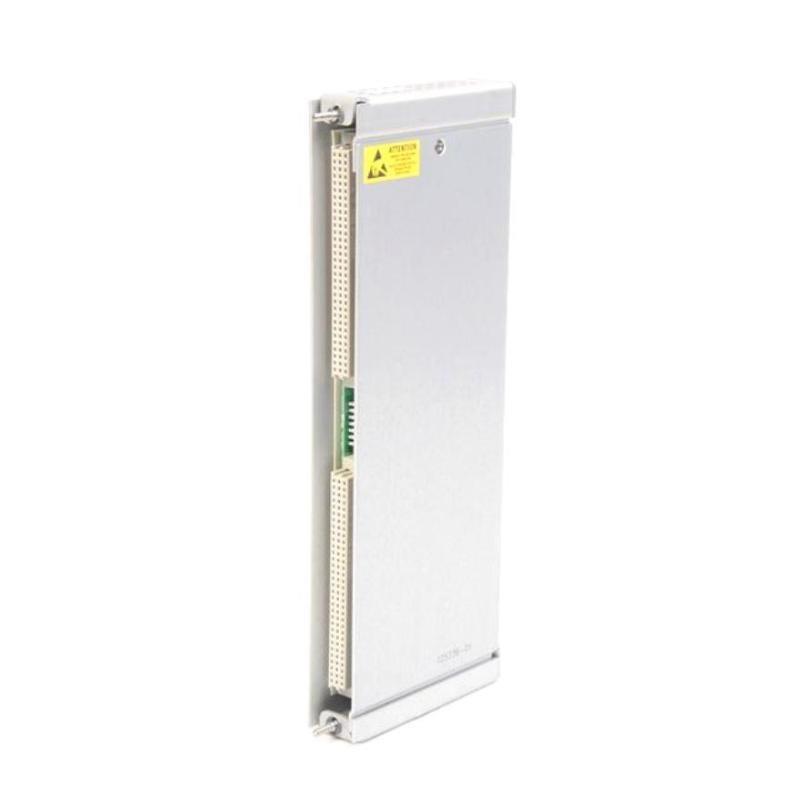

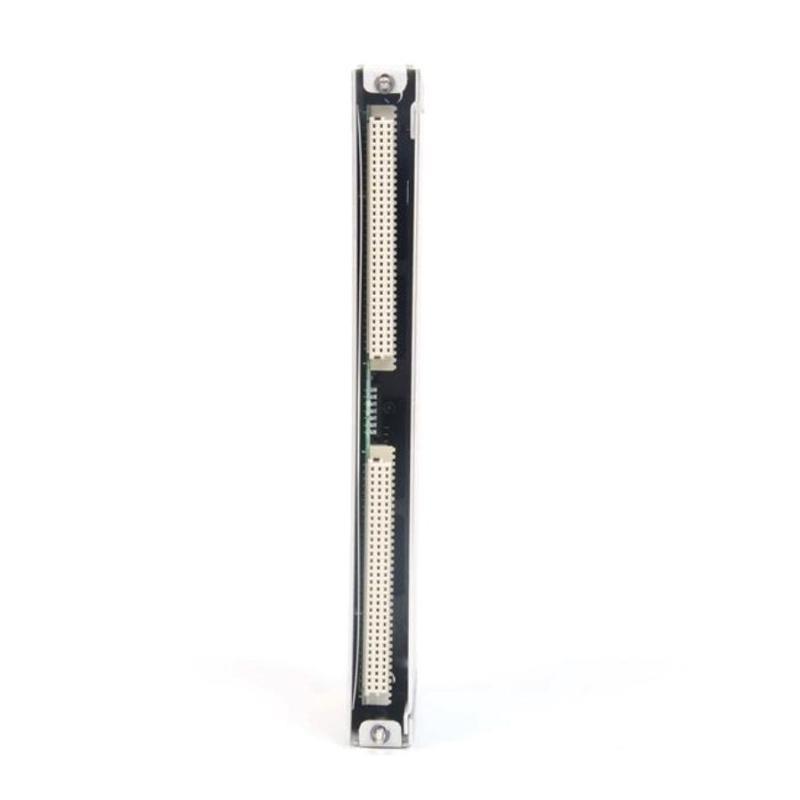

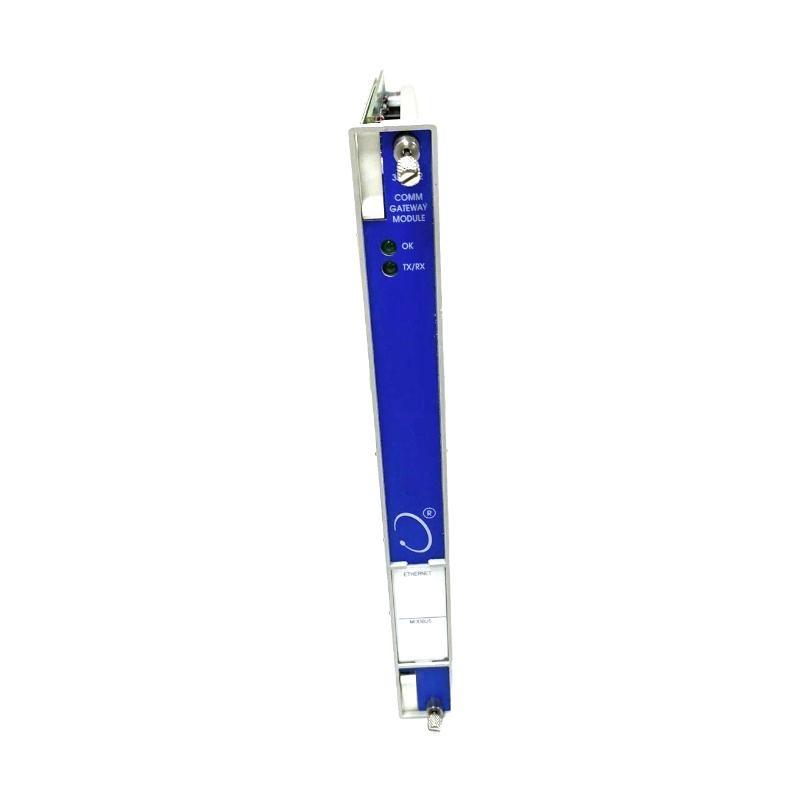

Bently Nevada 3500/92 Communication Gateway Module Overview
The Bently Nevada 3500/92 Communication Gateway Module (136180-01+125736-01) is designed to provide seamless communication between 3500 Series monitoring systems and plant control networks. It ensures reliable data transfer, integration with DCS/PLC systems, and supports advanced diagnostic functions for critical rotating machinery.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 3500/92 |
| 型番 | 136180-01 + 125736-01 |
| Function | Communication Gateway Module |
| サポートed Protocols | Modbus, OPC, Ethernet/IP |
| Power Supply | 24 VDC ±10% |
| Dimensions | 241 x 24.4 x 242 mm |
| 重量 | 0.82 kg |
| Operating Temperature | -20°C to 70°C |
| Mounting | 35 mm DIN Rail |
| LED Indicators | Status, Communication, Fault |
Applications
-
Integration / Bently Nevada 3500 monitoring systems with plant DCS/PLC networks
-
Remote monitoring / critical machinery data
-
Real-time vibration and process condition reporting
-
Data acquisition for predictive maintenance and diagnostics
-
Centralized alarm and event reporting in industrial plants
Advantages
-
High reliability for continuous industrial operation
-
Simplifies system integration with multiple communication protocols
-
Compact design with easy DIN rail installation
-
サポートs real-time monitoring and remote diagnostics
-
Reduces commissioning time and maintenance complexity
-
Enhances predictive maintenance strategies with accurate data reporting
FAQ
1. What is the primary function / the 3500/92 Communication Gateway Module?
It bridges Bently Nevada 3500 systems to plant networks, enabling data transfer and monitoring integration.
2. Which protocols are supported by this module?
Modbus, OPC, and Ethernet/IP are natively supported.
3. Can it be used in high-temperature environments?
Yes, it operates reliably from -20°C to 70°C.
4. How is the module powered?
It uses a 24 VDC power supply with ±10% tolerance.
5. How do I mount the module?
It is designed for 35 mm DIN rail mounting.
6. Does it provide diagnostic indicators?
Yes, it has LEDs for status, communication, and fault alerts.
7. Is it compatible with other 3500 series modules?
Yes, it is fully compatible with 3500 series monitoring hardware.
8. How does it contribute to predictive maintenance?
By providing real-time machine condition data to analytics systems.
9. Can it integrate with multiple DCS platforms?
Yes, it supports various DCS/PLC systems via standard protocols.
10. What is the physical size / the module?
241 x 24.4 x 242 mm, weighing 0.82 kg.
Recommended Related or Same-Series モデルs
| モデル Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/92A | Communication Gateway | 241 x 24.4 x 242 | 0.82 |
| 3500/95 | Transient Data Module | 241 x 24.4 x 242 | 0.85 |
| 3500/40 | Proximitor Vibration Monitor | 241 x 24.4 x 242 | 0.80 |
| 3500/22 | Rackmount 8-Channel Monitor | 241 x 48 x 242 | 1.2 |
| 3500/10 | Speed/Keyphasor Module | 241 x 24.4 x 242 | 0.78 |
| 3500/55 | Process Monitor Module | 241 x 24.4 x 242 | 0.83 |
Popular Bently Nevada モデルs
| モデル Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | 203 x 16 x 16 | 0.12 |
| 3300 XL 330180-91-CN | Proximitor Sensor | 150 x 25 x 25 | 0.15 |
| 3500/65 | Proximitor Housing | 241 x 24.4 x 242 | 0.90 |
| 3300 XL 3300/05-12-02-00 | Probe Extension Cable | 1000 mm | 0.25 |
| 3300 XL 3300/00-01-02-01 | Monitor Power Supply Module | 241 x 24.4 x 242 | 0.80 |
| 3500/60 | Machinery Protection Rack | 482 x 132 x 250 | 5.0 |
