Product 説明

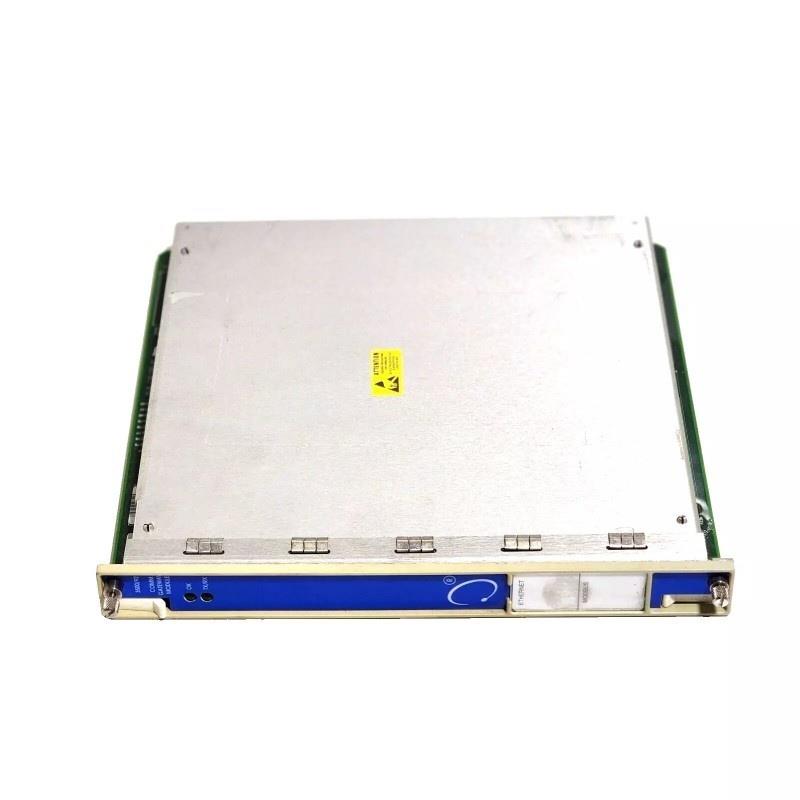

The Bently Nevada 3500/92-04-01-00 Communication Gateway Module is designed to provide high-performance communication capabilities for the 3500 Series machinery monitoring system. It enables full integration / rack-monitored values and status information into process control and automation systems through Ethernet TCP/IP and serial (RS232/RS422/RS485) connections.
It supports Modbus, Modbus/TCP, and proprietary Bently Nevada protocols, /fering flexible connectivity for diverse industrial applications.
The module also allows Ethernet communication with 3500 Rack Configuration S/tware and Data Acquisition S/tware, ensuring seamless data exchange and monitoring control.
Technical Specifications
| Parameter | 説明 |
|---|---|

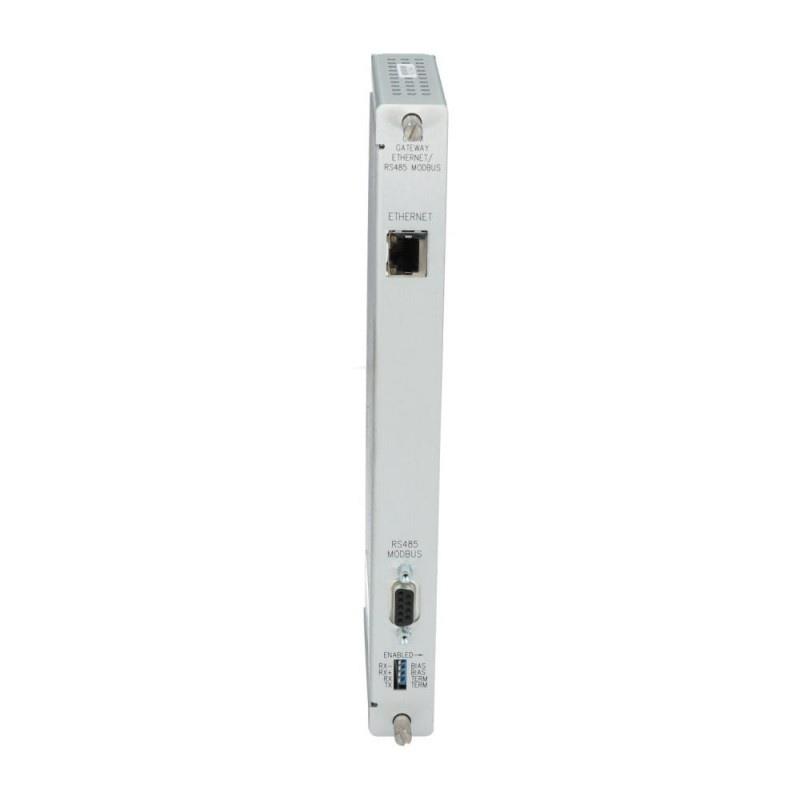

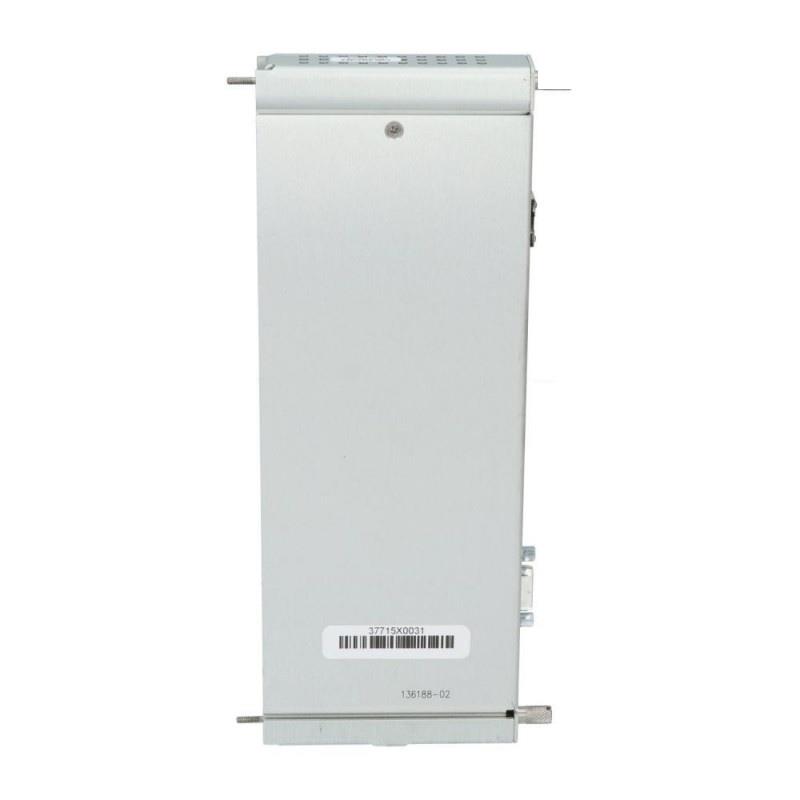

| モデル | 3500/92-04-01-00 (I/O Module: Ethernet/RS485 Modbus, 品番. 136188-02; Gateway Module: 品番. 136180-01) |
| サポートed Protocols | Modbus (Serial), Modbus/TCP (Ethernet), Proprietary Bently Nevada |
| Ethernet Interface | 10BASE-T, RJ-45 connector, IEEE 802.3 compliant |
| Serial Communication | RS232, RS422, RS485 |
| Power Consumption | 5.0 W (RS232/RS422 I/O), 5.6 W (RS485 I/O) |
| Data Collection Rate | ≤ 1 second for all modules in rack |
| Indicators | OK LED, TX/RX LED |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Main Module Dimensions | 241 × 24.4 × 242 mm |
| Main Module 重量 | 0.82 kg |
| I/O Module Dimensions | 241 × 24.4 × 99.1 mm |
| I/O Module 重量 | 0.44 kg |
| Rack Space Requirement | 1 full-height front slot (main), 1 full-height rear slot (I/O) |
Applications
-
Integration / 3500 Series machinery monitoring data with distributed control systems (DCS) and SCADA platforms
-
Real-time condition monitoring for turbines, compressors, and rotating equipment
-
Remote configuration and diagnostics / 3500 rack modules
-
Industrial automation systems requiring Modbus or Modbus/TCP connectivity
-
Offshore and maritime machinery monitoring under DNV GL and ABS compliance
Advantages
-
Multi-protocol support for broad compatibility with industrial systems
-
Fast data acquisition with ≤ 1-second rack-wide update rate
-
Rugged design suitable for harsh industrial environments
-
Certified compliance with EMC, hazardous area, and maritime standards
-
Flexible installation supporting multiple I/O types and network configurations
-
Enhanced Modbus configuration with configurable register mapping
FAQ
Q1: What is the main function / the 3500/92-04-01-00 module?
A1: It serves as a communication interface between the 3500 Series monitoring system and external control or monitoring systems.
Q2: Which communication protocols are supported?
A2: Modbus (Serial), Modbus/TCP (Ethernet), and proprietary Bently Nevada protocols.
Q3: Can it operate in hazardous environments?
A3: Yes, it has ATEX, IECEx, and CSA hazardous area approvals for Class I, Zone 2 environments.
Q4: How fast can it update data from the rack?
A4: The maximum update rate is one second for all modules in the rack.
Q5: What Ethernet speed does it support?
A5: It supports 10 Mbps Ethernet (10BASE-T).
Q6: What is the operating temperature range?
A6: It operates from -30°C to +65°C.
Q7: Can it connect to both Ethernet and serial systems simultaneously?
A7: Yes, it supports simultaneous communication via Ethernet and serial interfaces.
Q8: Does it require special s/tware?
A8: It works with Bently Nevada 3500 Rack Configuration and Data Acquisition S/tware.
Q9: What power supply is required?
A9: Power is supplied through the rack backplane, with consumption between 5.0 W and 5.6 W.
Q10: Is it backward compatible with the 3500/90 module?
A10: Yes, it maintains compatibility except for primary value Modbus registers, which are now handled by a configurable Modbus register utility.
Related モデルs (Same Series or Function)
| モデル | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 3500/92-01-01-00 | Modbus RS232/RS422 I/O | 241×24.4×242 | 0.82 kg |
| 3500/92-02-01-00 | Modbus RS485 I/O | 241×24.4×242 | 0.82 kg |
| 3500/92-03-01-00 | Ethernet/RS232 Modbus I/O | 241×24.4×242 | 0.82 kg |
| 3500/91 | EGD Communication Gateway | 241×24.4×242 | 0.82 kg |
| 3500/90 | Original Communication Gateway | 241×24.4×242 | 0.82 kg |
| 3500/93 | System Health Monitor | 241×24.4×242 | 0.82 kg |
Popular Bently Nevada モデルs
| モデル | 説明 | Dimensions (mm) | 重量 |
|---|---|---|---|
| 3500/42M | Proximitor/Seismic Monitor | 241×24.4×242 | 0.82 kg |
| 3500/94 | VGA Display Module | 241×24.4×242 | 0.82 kg |
| 3500/22M | Transient Data Interface | 241×24.4×242 | 0.82 kg |
| 3500/15 | Power Supply Module | 241×24.4×242 | 0.82 kg |
| 3300 XL | Proximity Transducer System | Various | Various |
| 3500/50 | Tachometer Module | 241×24.4×242 | 0.82 kg |
