Product Overview

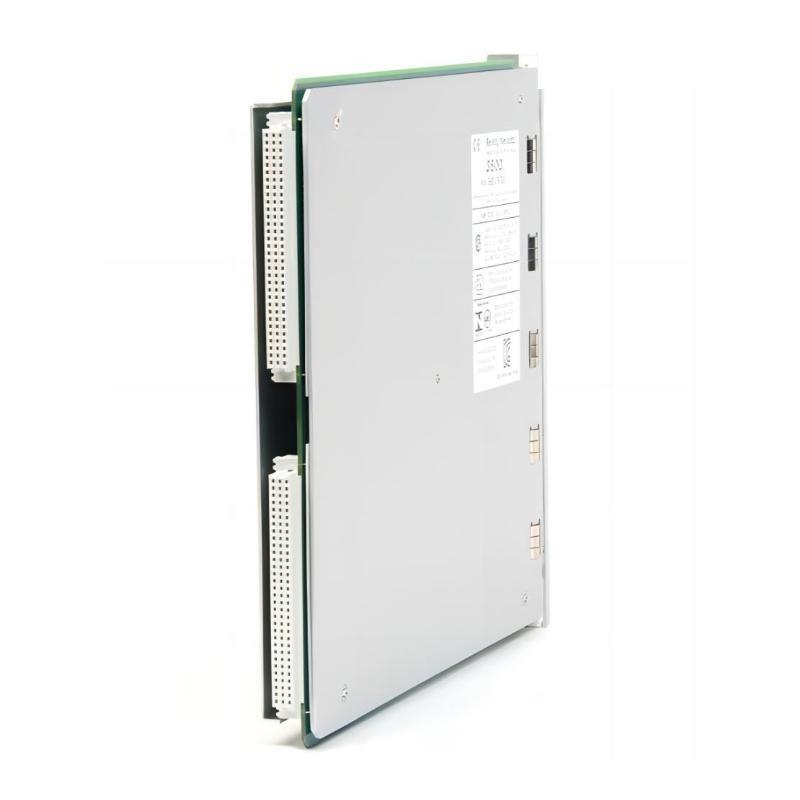

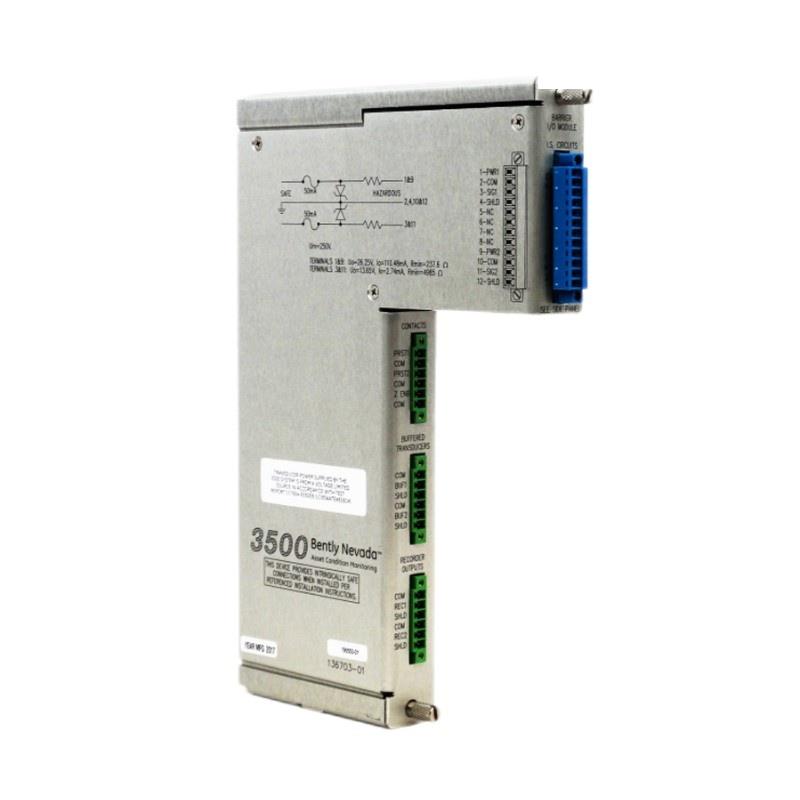

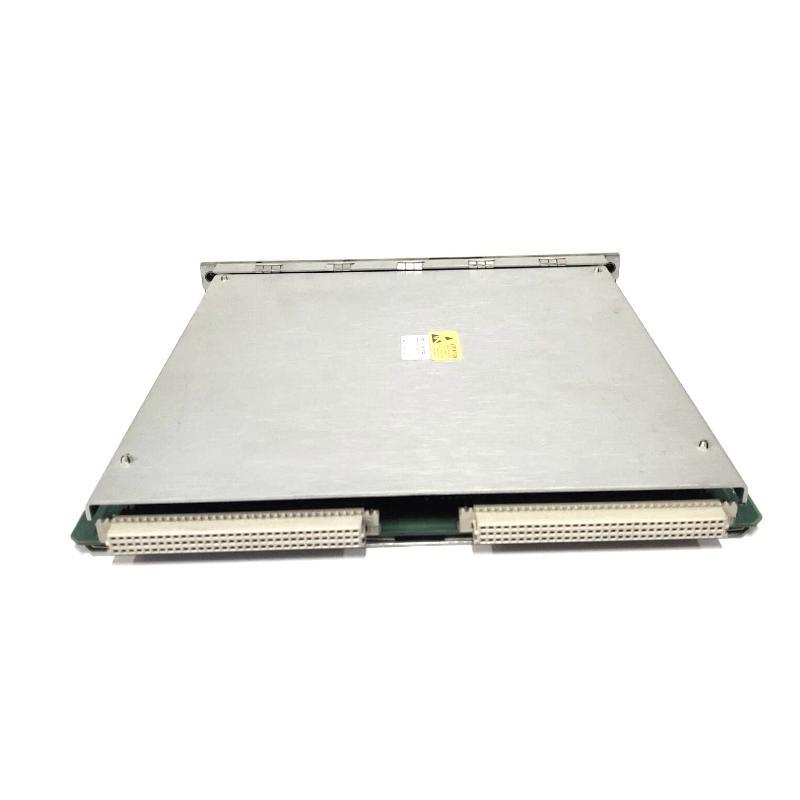

The Bently Nevada 3500/61 Temperature Module is a high-performance device designed for precise temperature monitoring in industrial machinery. It integrates seamlessly with the 3500 monitoring system, providing reliable temperature data critical for predictive maintenance and asset protection. Its modular design ensures ease / installation and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 3500/61 163179-02+136711-02 |
| Function | Temperature Monitoring Module |
| System Compatibility | 3500 Series Monitoring System |
| Input Channels | 8 Channels |
| Measurement Range | -50°C to 200°C |
| Accuracy | ±1°C |
| Response Time | < 1 second |
| Power Supply | 24 VDC |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Mounting Type | Rack-mounted |
| Communication Interface | Proprietary 3500 Bus |
Applications
-
Real-time temperature monitoring / rotating machinery
-
Turbine, generator, and compressor protection
-
Integration with predictive maintenance systems
-
Continuous process monitoring in industrial plants
Advantages
-
High accuracy and fast response for reliable data
-
Compact and modular design simplifies maintenance
-
Seamless integration with 3500 series monitoring systems
-
Reduces risk / equipment overheating and unscheduled downtime
-
サポートs predictive maintenance strategies to extend equipment life
FAQ
1. What types / temperature sensors are compatible with this module?
It supports standard thermocouples and RTDs compatible with the 3500 system.
2. Can this module operate independently?
No, it requires integration with the Bently Nevada 3500 monitoring system.
3. What is the maximum number / channels per module?
Up to 8 temperature input channels are supported.
4. How is the module powered?
It uses a 24 VDC power supply.
5. Can it handle high-vibration environments?
Yes, it is designed for industrial machinery with high-vibration conditions.
6. What is the typical response time for temperature changes?
The response time is under 1 second.
7. How is data communicated to the main system?
Through the proprietary 3500 system bus interface.
8. Is the module hot-swappable?
Yes, it supports hot-swapping without disrupting the monitoring system.
9. What maintenance is required for the module?
Minimal maintenance; regular system diagnostics and connection checks are recommended.
10. Can the module measure negative temperatures?
Yes, it can measure from -50°C to 200°C.
Related 3500 Series モデルs
| モデル Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3500/60 163170-02 | Vibration Monitor Module | 241.3 x 24.4 x 241.8 | 0.89 |
| 3500/62 163180-02 | Speed Monitor Module | 241.3 x 24.4 x 241.8 | 0.92 |
| 3500/64 163182-02 | Proximity Monitor Module | 241.3 x 24.4 x 241.8 | 0.90 |
| 3500/65 163183-02 | Tachometer Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/63 163181-02 | Analog Input Module | 241.3 x 24.4 x 241.8 | 0.88 |
| 3500/66 163184-02 | Relay Output Module | 241.3 x 24.4 x 241.8 | 0.93 |
Popular Bently Nevada モデルs
| モデル Number | Function | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| 3300 XL Proximitor Sensor | Shaft Position Measurement | 150 x 50 x 50 | 0.75 |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | 200 x 20 x 20 | 0.60 |
| 3300 XL Vibration Monitor | Vibration Measurement | 120 x 40 x 40 | 0.80 |
| 3300 XL Tachometer | Speed Monitoring | 100 x 35 x 35 | 0.65 |
| 3500/50 163160-02 | Rack Controller Module | 241 x 24 x 241 | 1.10 |
| 3500/85 163185-02 | Dual Channel Monitor Module | 241 x 24 x 241 | 0.95 |
