Product Overview

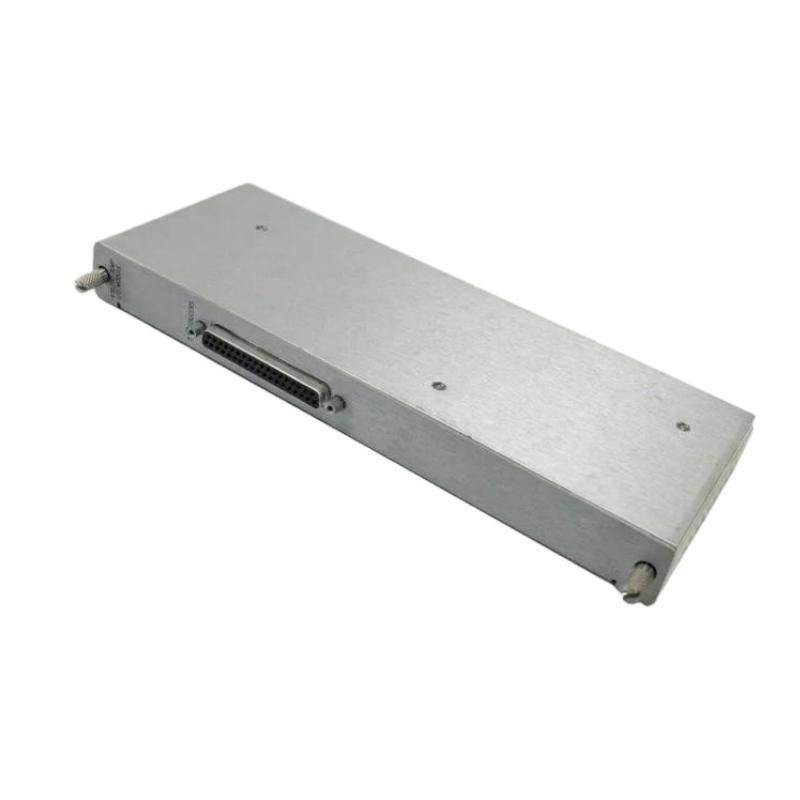

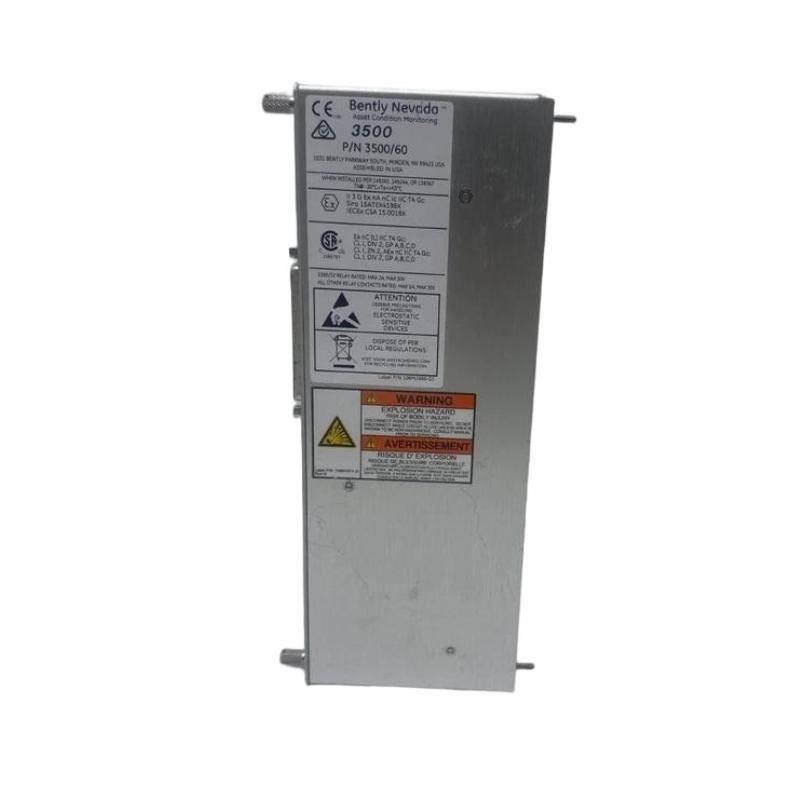

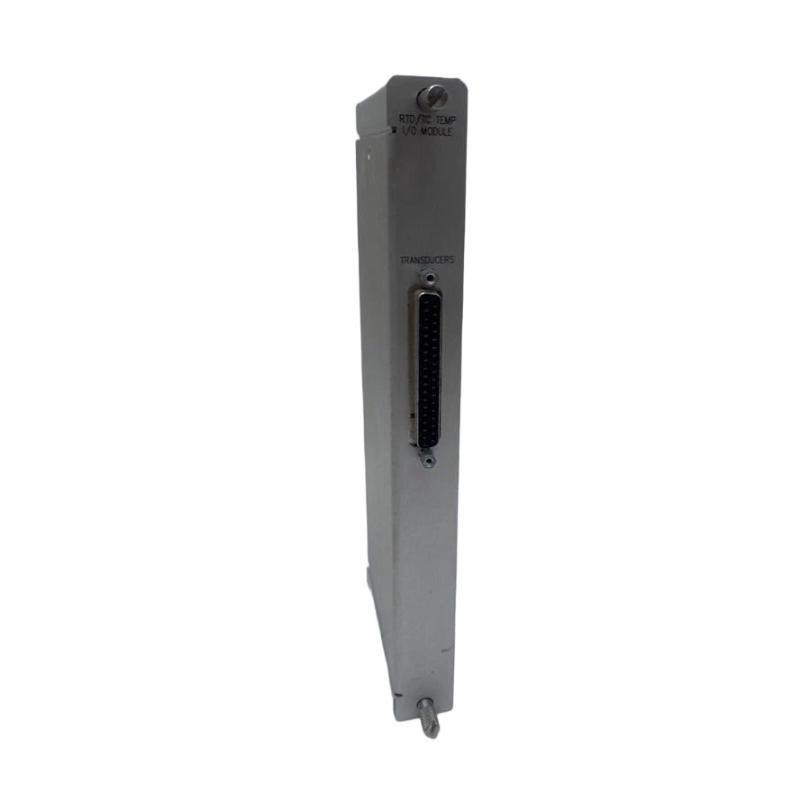

The Bently Nevada 3500/60 133827-01 RTD/TC Non-Isolated I/O Module is an advanced temperature monitoring module designed for machinery protection and condition monitoring. It supports both Resistance Temperature Detectors (RTDs) and Thermocouples (TCs) in non-isolated configurations, providing real-time temperature data for critical rotating equipment. Integrated into the 3500 Machinery Protection System, it ensures precise measurements, configurable alarms, and seamless compatibility with plant-wide monitoring and control systems.
Key Features
-
サポートs a variety / RTD and thermocouple sensor types
-
Non-isolated channel configuration for specific system designs
-
Six independent temperature input channels
-
High measurement accuracy for reliable monitoring
-
Configurable alarm setpoints per channel
-
Hot-swappable for maintenance without rack shutdown
-
Direct integration with Bently Nevada 3500 series racks
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 3500/60 133827-01 |
| Module Type | RTD/TC Non-Isolated I/O Module |
| メーカー | Bently Nevada (Baker Hughes) |
| サポートed Sensors | RTD (Pt100, Pt120, Pt200, Pt500, Pt1000), Thermocouples (Type E, J, K, T, B, R, S, N) |
| Channels | 6 temperature channels |
| Measurement Range | Dependent on sensor type |
| Accuracy | High-precision measurement, per sensor specs |
| Alarm Capabilities | Individually configurable per channel |
| Communication | Via 3500 rack backplane |
| Isolation Type | Non-isolated |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | From 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| 重量 | 0.45 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Turbine, compressor, and pump temperature monitoring
-
Oil and gas production and refining
-
Petrochemical plants and process industries
-
Power generation facilities
-
Heavy machinery temperature surveillance
よくある質問 (FAQ)
Q1: What is the main difference between this module and the isolated version?
This model has non-isolated channels, making it suitable for systems where isolation is not required.
Q2: How many temperature inputs does it support?
It supports six independent temperature channels.
Q3: Can it handle both RTD and thermocouple inputs?
Yes, it supports multiple RTD types and thermocouple types E, J, K, T, B, R, S, and N.
Q4: Can alarm thresholds be set for each channel individually?
Yes, each channel can be configured with independent alarm setpoints.
Q5: Is the module hot-swappable?
Yes, it can be replaced without powering down the rack.
Q6: Does it require an external power supply?
No, it receives power directly from the 3500 rack backplane.
Q7: Is it certified for hazardous environments?
Yes, it holds ATEX, IECEx, and other relevant certifications.
Q8: What is the module’s accuracy?
It delivers high-precision readings, subject to the accuracy / the sensor type used.
Q9: What are its dimensions and weight?
It measures 241.3mm x 24.4mm x 99.1 mm and weighs approximately 0.45 kg.
Q10: Is it compatible with other Bently Nevada 3500 modules?
Yes, it integrates seamlessly with the 3500 system architecture.
