Introduction

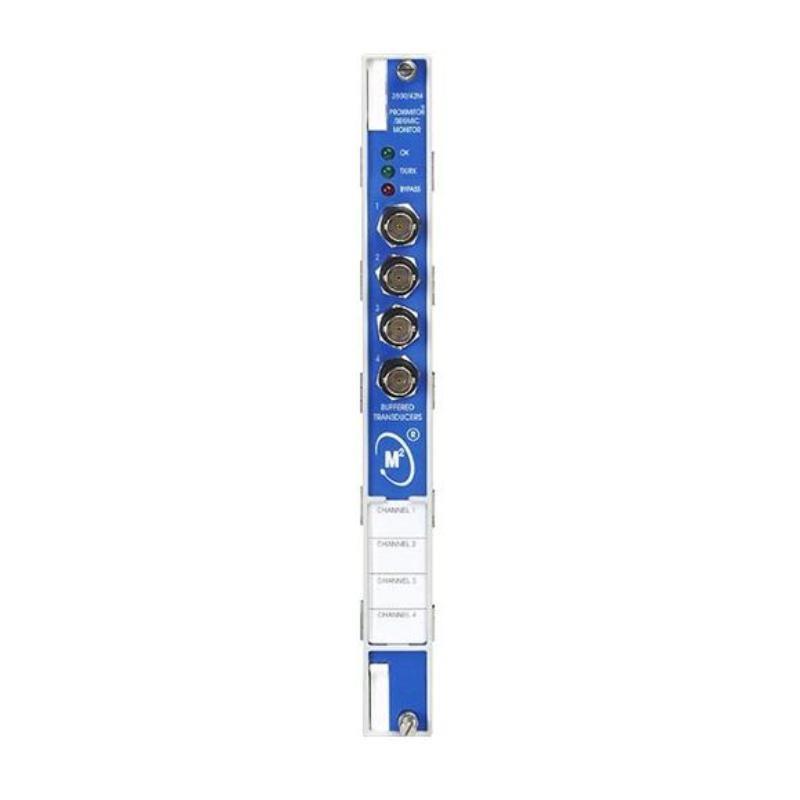

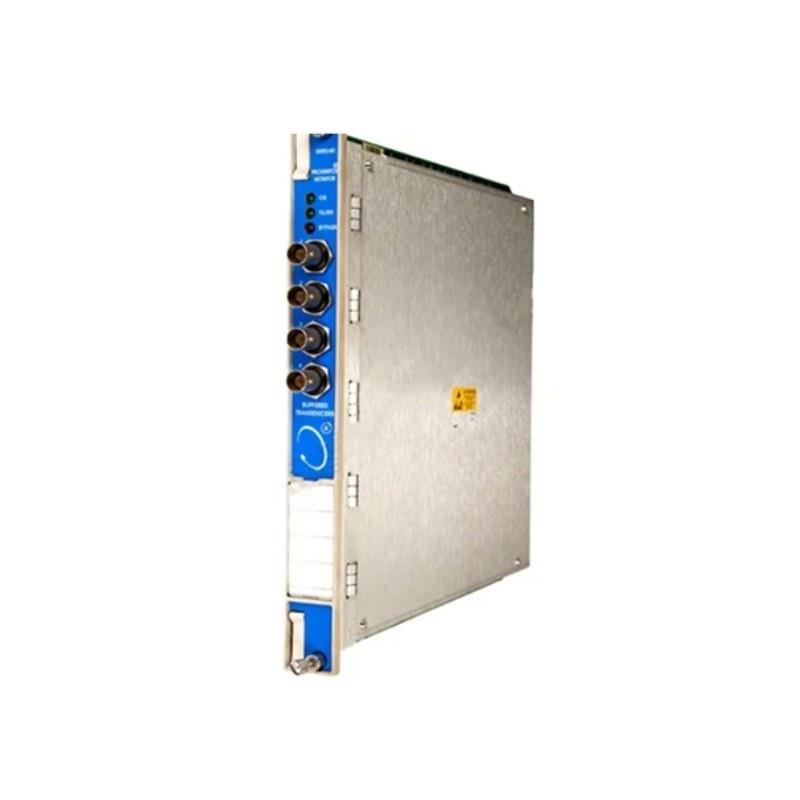

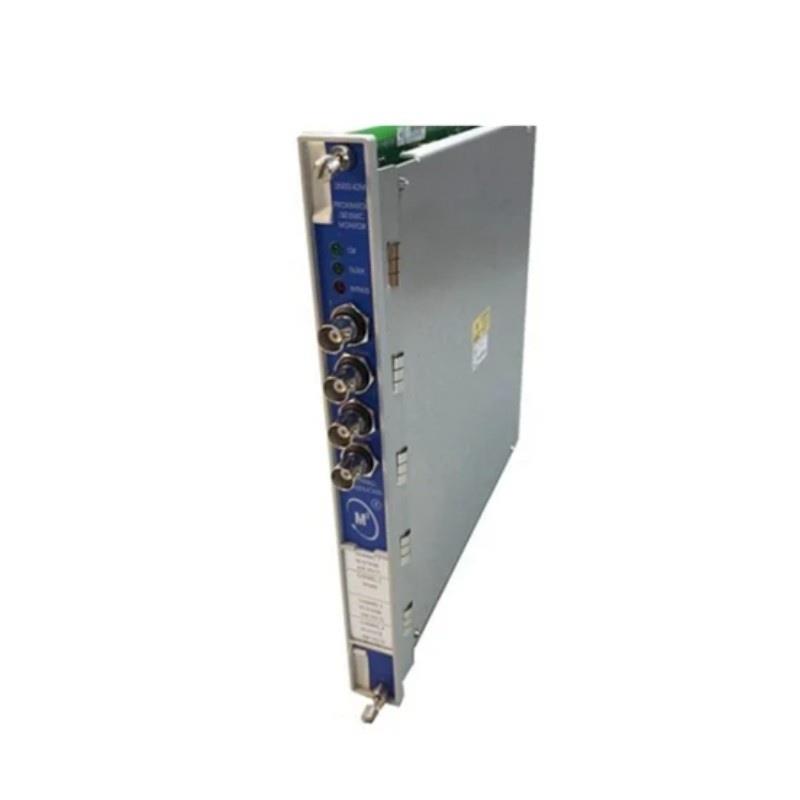

The Bently Nevada 3500/42M 135489-02 is a critical component / the Bently Nevada 3500 Series Machinery Protection System, designed specifically for monitoring seismic and proximity sensors on rotating machinery. This module is primarily used to detect vibration and seismic events to ensure the health and safety / industrial assets such as turbines, compressors, and generators. With its robust design, high reliability, and compatibility with various sensor types, the 3500/42M module /fers real-time protection against machinery faults and failures.
Engineered to meet stringent industrial standards, the 3500/42M module integrates seamlessly within the 3500 monitoring system, providing accurate data acquisition and signal conditioning. It supports fast and reliable signal processing, ensuring timely alarms and alerts to prevent costly unplanned downtime. This product is essential for industries that rely on continuous operation / critical rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 3500/42M 135489-02 |
| Function | Proximitor / Seismic Monitor Module |
| Input Types | Proximity Probes and Seismic Sensors |
| Number / Channels | 4 Channels |
| Power Supply | 24 VDC nominal (18-32 VDC operating range) |
| Signal Output | 4-20 mA, 0-20 mA, or voltage output (configurable) |
| Mounting Type | Rack-mounted in 3500 Series Chassis |
| Dimensions | 241.3 x 24.4 x 163.1 mm |
| 重量 | 0.46 kg |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -55°C to +100°C (-67°F to +212°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA |
| Communication Interface | Proprietary 3500 bus interface |
| Response Time | Typically less than 100 ms |
Applications
-
Continuous vibration and seismic monitoring / large rotating machinery such as gas turbines, steam turbines, compressors, and motors.
-
Protection / critical equipment in power generation plants to prevent catastrophic failures.
-
Monitoring / machinery in petrochemical, oil & gas, and refining industries.
-
Use in aerospace test facilities and industrial manufacturing plants requiring high reliability machinery protection.
-
Detection / seismic activities and shock events that could indicate structural or operational anomalies.
-
Integration in comprehensive machinery diagnostics systems for predictive maintenance programs.
Advantages
-
Reliable Fault Detection: Provides accurate, real-time monitoring / vibration and seismic events, enabling early fault detection.
-
Versatile Sensor サポート: Compatible with various proximity probes and seismic sensors for broad application flexibility.
-
Robust Build Quality: Designed to withstand harsh industrial environments with wide operating temperature and humidity tolerances.
-
Fast Response: Low latency signal processing ensures timely alarms and interventions to prevent machinery damage.
-
Modular Design: Easy integration into the Bently Nevada 3500 system chassis with straightforward installation and replacement.
-
Comprehensive Diagnostics: サポートs detailed data analysis for predictive maintenance, reducing unexpected downtime.
-
Wide Power Range: Operates reliably on a wide DC voltage range, ensuring system stability.
-
Industry Standards Compliance: Meets global safety and performance standards including CE, UL, and CSA certifications.
FAQ
-
Q1: What types / sensors does the 3500/42M module support?
The module supports proximity probes and seismic sensors, commonly used for machinery vibration and shock monitoring. -
Q2: Can the 3500/42M be installed in any rack?
It is designed specifically for the Bently Nevada 3500 Series rack system and must be installed accordingly. -
Q3: What is the typical response time / the module?
The module processes inputs with a response time typically less than 100 milliseconds. -
Q4: How is the module powered?
It requires a nominal 24 VDC power supply with an operational range / 18 to 32 VDC. -
Q5: Is the module suitable for harsh environments?
Yes, it operates reliably between -40°C and +85°C and can tolerate high humidity environments up to 95% non-condensing. -
Q6: How many channels does the 3500/42M support?
It supports 4 input channels, allowing monitoring / multiple sensors simultaneously. -
Q7: What kind / outputs does the module provide?
The module provides configurable analog outputs including 4-20 mA, 0-20 mA, or voltage outputs. -
Q8: Does the 3500/42M module /fer diagnostic feedback?
Yes, it integrates with the 3500 system to provide diagnostic data to aid in predictive maintenance. -
Q9: What certifications does this module have?
It complies with CE, UL, and CSA certifications for safety and quality. -
Q10: Can the 3500/42M monitor both vibration and seismic events?
Yes, it is designed to monitor both types / signals through its compatible sensor inputs.
Recommended Related モデルs (Same Series or Related)
| モデル Number | 説明 | Channels | Function |
|---|---|---|---|
| 3500/42M 135489-01 | Proximitor/Seismic Monitor I/O Module | 4 | Similar model, earlier revision |
| 3500/42M 140734-02 | Proximitor Seismic Monitor | 4 | High sensitivity seismic monitoring |
| 3500/42M 135489-03 | Proximitor/Seismic Monitor I/O Module | 4 | Enhanced diagnostics version |
| 3500/45 135489-04 | Accelerometer Vibration Monitor Module | 4 | Monitors accelerometer sensors |
| 3500/46 135472-02 | Keyphasor Module | 1 | Keyphasor signal processing |
| 3500/24 125077-02 | Proximitor Probe Module | 8 | サポートs multiple proximity probes |
Popular モデルs from Bently Nevada (Same ブランド)
| モデル Number | 説明 | Channels | Function | Dimensions (HxWxD) | 重量 (kg) |
|---|---|---|---|---|---|
| 3500/22 125425-02 | Proximitor/Velocity Monitor Module | 4 | Vibration velocity monitoring | 152 mm x 27 mm x 205 mm | 0.9 |
| 3500/92 141242-01 | Remote Annunciator Module | N/A | Alarm annunciation | 152 mm x 52 mm x 205 mm | 1.2 |
| 3500/55M 138703-01 | Shaft Absolute Position Module | 4 | Shaft position sensing | 152 mm x 27 mm x 205 mm | 0.9 |
| 3500/34 135489-01 | Proximitor Output Module | 8 | Signal conditioning | 152 mm x 27 mm x 205 mm | 0.8 |
| 3500/60M 138708-01 | Process Monitor Module | 4 | Process variable monitoring | 152 mm x 27 mm x 205 mm | 0.9 |
| 3500/44M 135489-02 | Vibration Monitor Module | 4 | Vibration amplitude detection | 152 mm x 27 mm x 205 mm | 0.9 |
