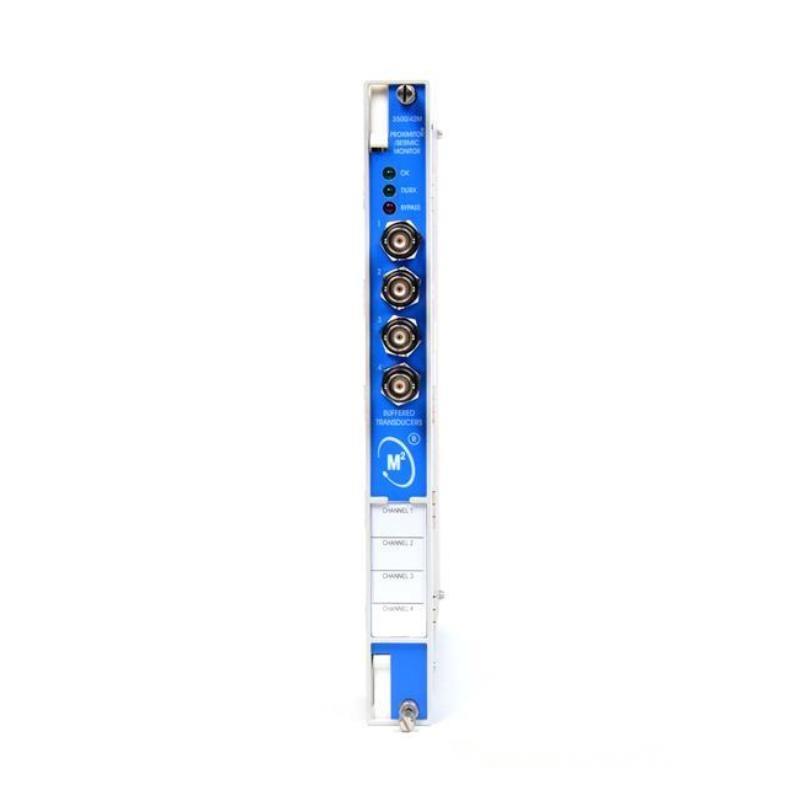

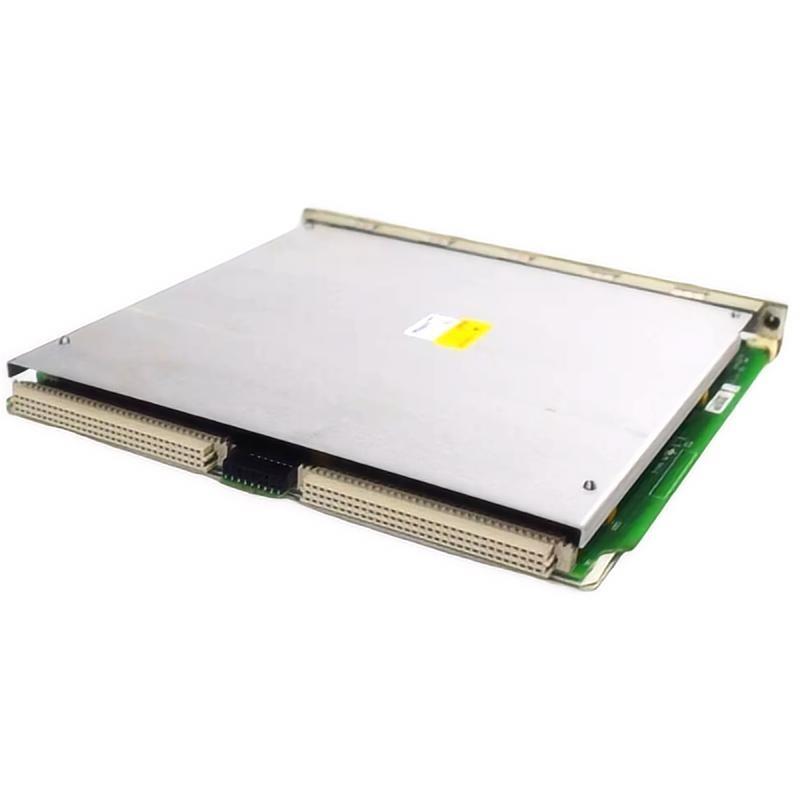

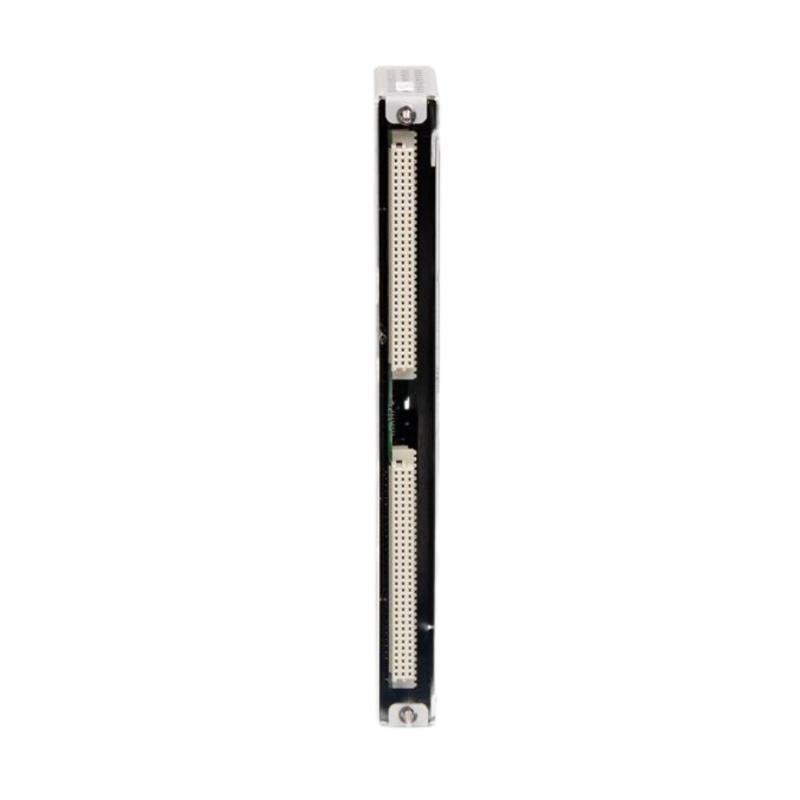

Bently Nevada 3500/42M-01 Proximitor Seismic Monitor

製品紹介

The Bently Nevada 3500/42M-01 Proximitor/Seismic Monitor is an integral component / the 3500 Series Machinery Protection System, specifically engineered to monitor critical dynamic and position parameters in rotating and reciprocating machinery. It /fers up to four independent channels that can be individually configured to process input from proximity transducers or seismic transducers.

The 3500/42M-01 is ideal for applications requiring advanced vibration analysis, axial thrust monitoring, rod position detection, and casing vibration tracking. With its modular design and seamless integration into the 3500 system rack, this monitor delivers real-time condition data and supports plant-wide reliability programs with the highest standards / industrial protection.

Its configuration flexibility, wide compatibility with Bently Nevada sensors, and industry-standard alarm capabilities make it one / the most deployed monitoring modules for turbomachinery and process-critical rotating equipment across oil & gas, power generation, and heavy industry.

製品仕様

Product Applications

The 3500/42M-01 is purpose-built for machinery protection in industries where vibration, thrust, and position measurements are vital to operational integrity. Key application areas include:

• Steam & Gas Turbines
  Monitors vibration and shaft position to prevent critical failure.

• Compressors (Centrifugal & Reciprocating)
  Detects mechanical imbalance, rotor instability, and piston rod drop.

• Industrial Pumps
  Tracks excessive vibration or shaft movement caused by wear or cavitation.

• Electric Motors & Generators
  Ensures bearing health and balanced rotor operation through dynamic signal analysis.

• Petrochemical Plants
  Used for machinery interlock logic and predictive maintenance.

• Nuclear & Fossil Power Plants
  Provides early fault detection for mission-critical rotating equipment.

Product Advantages

• Dual Function Monitoring
  Capable / simultaneously monitoring both proximity and seismic sensors across four channels.

• Flexible Channel Configuration
  Each channel can be independently configured for a wide variety / measurements.

• Wide Sensor Compatibility
  Fully compatible with Bently Nevada’s trusted 3300 XL and 7200 series probes, as well as velocity and acceleration transducers.

• Dynamic Buffered Outputs
  Includes buffered BNC outputs for dynamic signal analysis with portable equipment.

• Field Proven Performance
  Used globally in critical applications for over two decades with proven reliability.

• Redundant Safety and Voting Logic
  サポートs redundancy and advanced alarm logic when integrated with relay and keyphasor modules.

• Hot-Swappable Architecture
  Allows removal and replacement without system shutdown, improving uptime and maintainability.

• Intelligent Diagnostics
  Reports sensor integrity, connection faults, and configuration status through the TDI and s/tware interface.

よくある質問 (FAQ)

1. What types / sensors are supported by the 3500/42M-01?
It supports proximity probes (e.g., 3300 XL), accelerometers, and velocity transducers.

2. How many measurements can the module handle at once?
Up to four measurements on four independent channels, all simultaneously.

3. Can each channel be used for different measurement types?
Yes, each channel can be configured independently for vibration, position, or thrust monitoring.

4. How are alarms configured?
Each channel has two setpoints (Alert and Danger) configurable through 3500 s/tware.

5. Does it support buffered output?
Yes, each channel provides a buffered dynamic signal via BNC connectors for analysis.

6. Can this module be used in hazardous locations?
Yes, it is certified for use in ATEX and IECEx classified hazardous areas.

7. Is it compatible with all proximity probes?
It is compatible with Bently Nevada 3300 XL and 7200 series probes and others with similar signal characteristics.

8. What happens if a sensor fails?
The module reports sensor “Not OK” status and can trigger an alarm or trip if configured.

9. How is the module configured?
Through Bently Nevada 3500 Configuration S/tware interfaced via the TDI module.

10. Is the module field-replaceable?
Yes, it is hot-swappable and can be replaced without powering down the rack.
