Product Overview

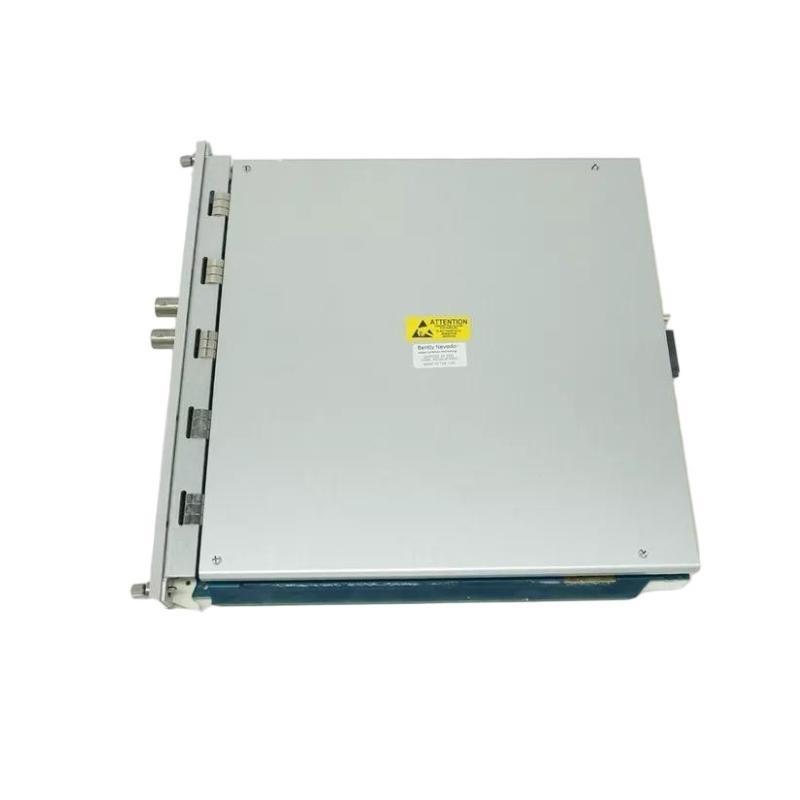

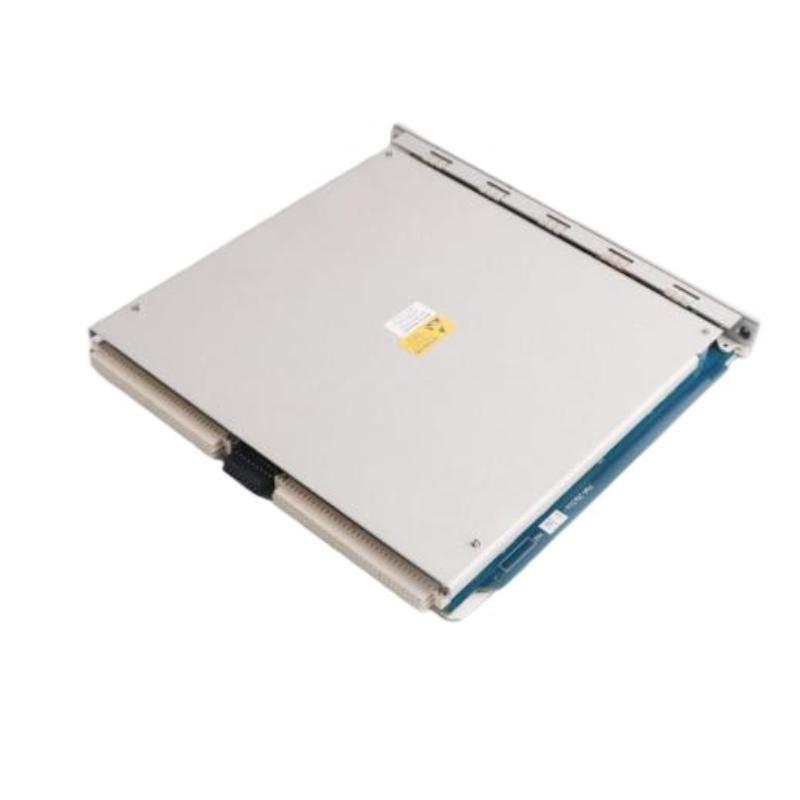

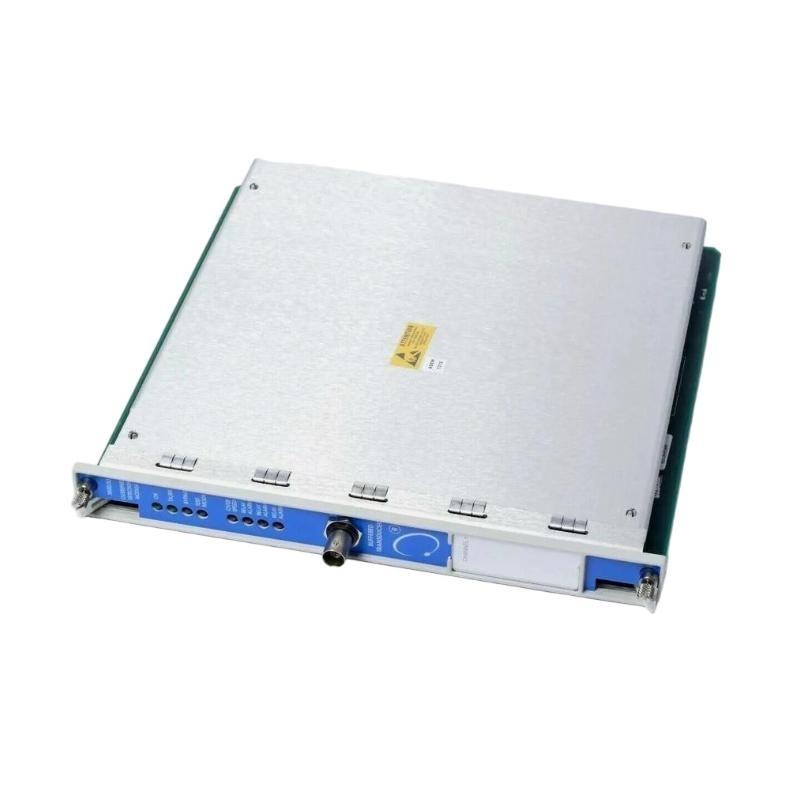

The Bently Nevada 3500/40-01-01 is a 3500/40M Proximitor Monitor designed for high-precision monitoring / shaft vibration and position in critical rotating machinery. It serves as a core component / the 3500 Series Monitoring System, providing reliable vibration monitoring and protection for turbines, compressors, and generators.
Key Features
-
High-precision monitoring / shaft vibration and position
-
Compatible with 3500 Series Monitoring Systems
-
Accepts signals from 3300 XL and NSv proximity probes
-
Advanced signal processing for accurate vibration detection
-
Robust construction suitable for harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| モデル | 3500/40-01-01 |
| Type | 3500/40M Proximitor Monitor |
| Input Signal Type | Proximity probe (eddy-current) |
| Output Signal Type | Analog and digital vibration signals; Keyphasor output |
| Power Requirements | 24 VDC ±10% |
| Operating Temperature | 0 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Mounting | 19-inch rack mount compatible |
| Signal Processing | High-speed digital processing for accurate monitoring |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
よくある質問 (FAQ)
1. What is the primary function / the 3500/40-01-01 monitor?
It monitors shaft vibration and position, providing protection for critical rotating machinery.
2. Is this monitor compatible with 3500 Series Monitoring Systems?
Yes, it integrates fully with all 3500 Series modules.
3. What type / input signals does it accept?
It accepts signals from eddy-current proximity probes such as 3300 XL and NSv series.
4. What output signals does it provide?
It outputs analog and digital vibration signals as well as keyphasor signals for phase-referenced monitoring.
5. What is the operating temperature range?
It operates from 0 °C to +70 °C.
6. Can this monitor be stored at extreme temperatures?
Yes, storage range is –40 °C to +85 °C.
7. How is the monitor mounted?
It is designed for 19-inch rack mounting.
8. What power supply does the monitor require?
The monitor requires 24 VDC ±10%.
