Product Overview

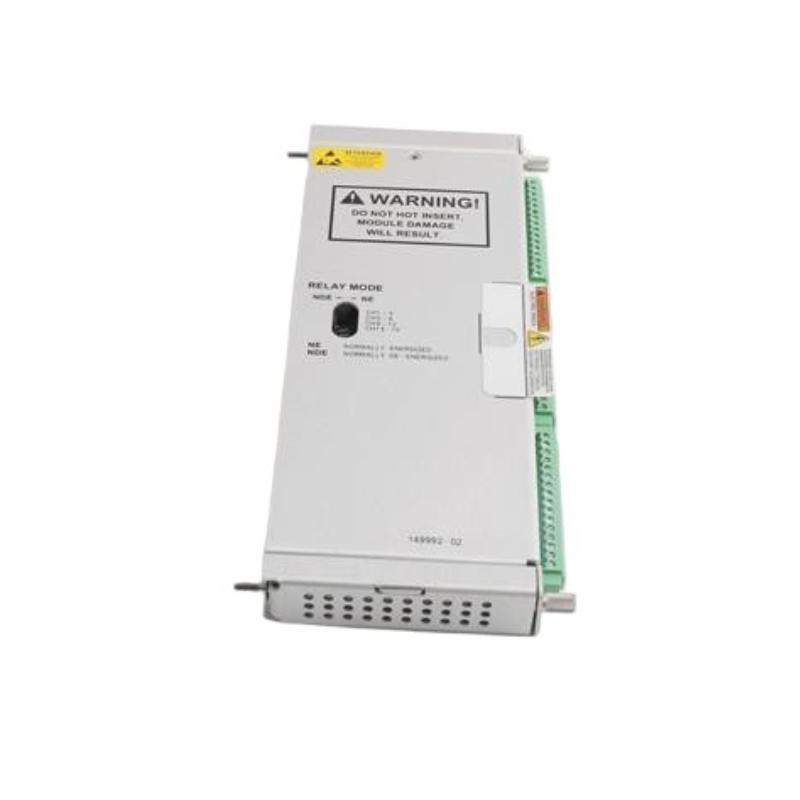

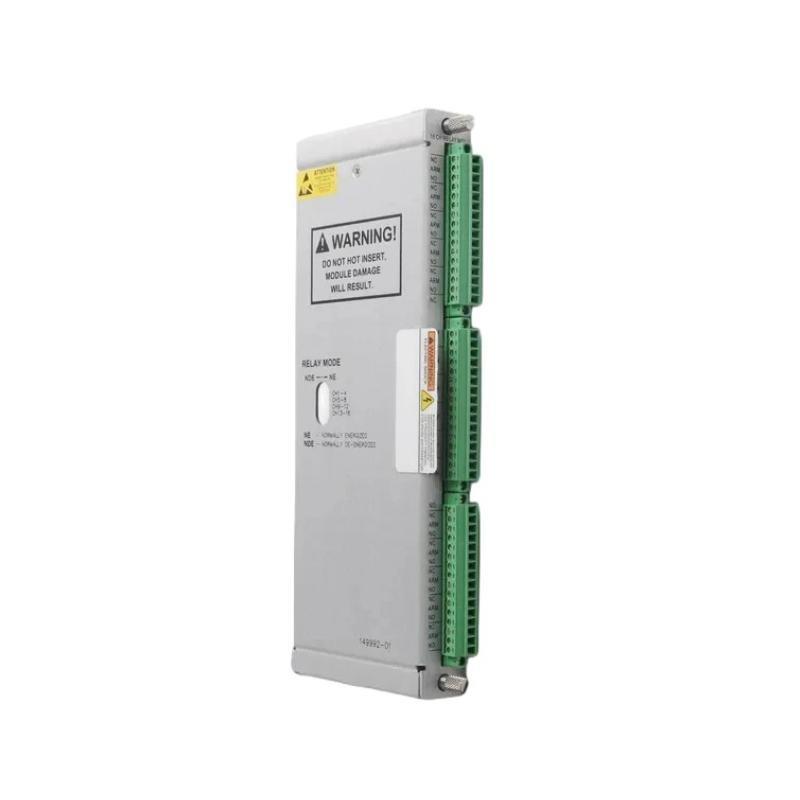

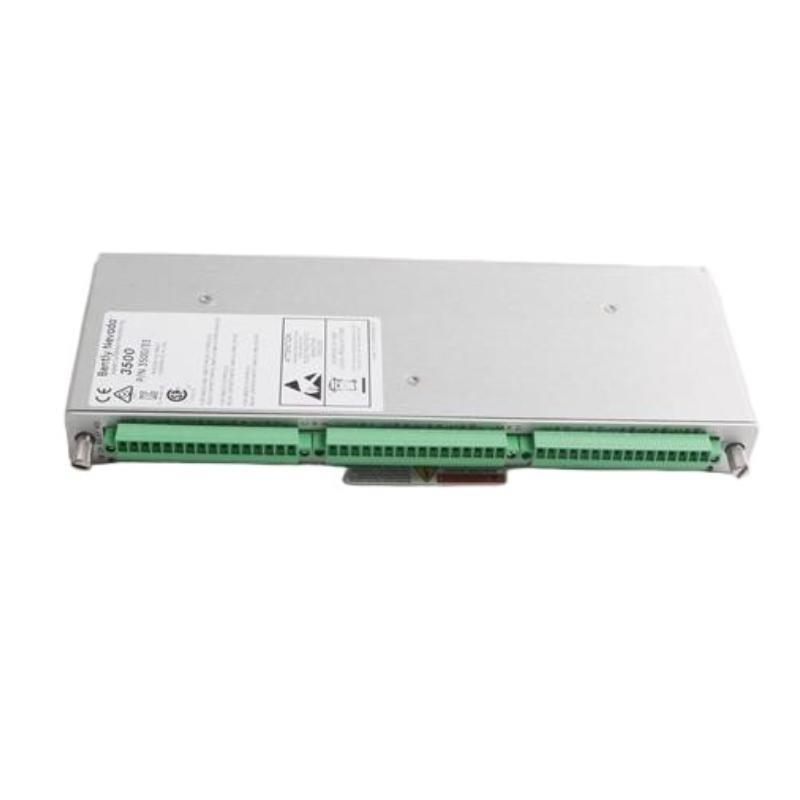

The Bently Nevada 3500/33 149992-02 16-Channel Relay Module is an essential component / the 3500 Machinery Protection System designed to provide multiple relay outputs for alarm and trip functions. This module supports up to 16 individual relay channels, enabling flexible and reliable control and notification / machinery protection events. Built to withstand industrial environments, it ensures consistent operation and protection / critical rotating machinery.
Key Features
-
Provides 16 independent relay outputs for alarms and trips
-
サポートs flexible configuration / relay functions
-
High reliability in harsh industrial environments
-
Compatible with the 3500 system racks and modules
-
Compact design for easy integration
-
Complies with industrial safety and EMC standards
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 3500/33 149992-02 |
| Module Type | 16-Channel Relay Module |
| Number / Channels | 16 |
| Relay お問い合わせ Type | Form C (SPDT) |
| お問い合わせ Ratings | 5 A at 250 VAC / 30 VDC |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | Up to 95% non-condensing |
| Dimensions | 241 x 24.4 x 242 mm |
| 重量 | 0.7 kg |
| Safety Certifications | UL, CE, cUL |
Industry Applications
-
Machinery protection alarm and trip output
-
Power generation plants
-
Oil and gas facilities
-
Petrochemical and chemical plants
-
Manufacturing and heavy industry
-
Water and wastewater treatment
よくある質問 (FAQ)
Q1: How many relay channels does this module provide?
It provides 16 independent relay channels.
Q2: What type / relay contacts are used?
Form C (SPDT) contacts.
Q3: What is the relay contact rating?
5 A at 250 VAC or 30 VDC.
Q4: Is the module compatible with the 3500 system racks?
Yes, fully compatible with Bently Nevada 3500 system racks.
Q5: Can the relay outputs be configured?
Yes, relay functions can be flexibly configured to meet system requirements.
Q6: What operating temperature range does the module support?
From -30°C to +65°C (-22°F to +149°F).
Q7: Is the module suitable for harsh industrial environments?
Yes, it is designed for reliable operation under demanding conditions.
Q8: Does it have safety certifications?
Yes, it holds UL, CE, and cUL certifications.
Q9: What are the module’s dimensions and weight?
Standard 3500 module size; weighs approximately 0.7 kg .
Q10: What industries typically use this relay module?
Used in power generation, oil and gas, petrochemical, manufacturing, and other heavy industries.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 3500/33 149992-01 | 16-Channel Relay Module (前の Version) |
| 3500/32M 149986-02 | 4-Channel Relay Module |
| 3500/42M 176449-02 | Proximitor/Seismic Monitor Module |
| 3500/22M 288055-01 | Transient Data Interface (TDI) Module |
| 3500/40M 176449-01 | Proximitor Monitor Module |
| 330104-00-10-10-02-05 | 3300 XL 8 mm Proximity Probe |
