製品紹介

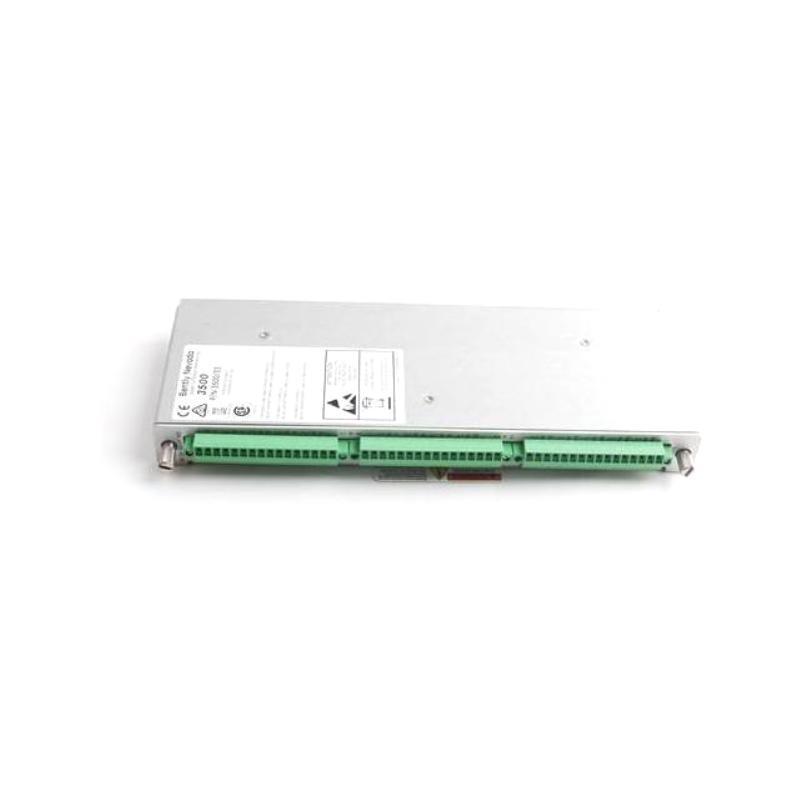

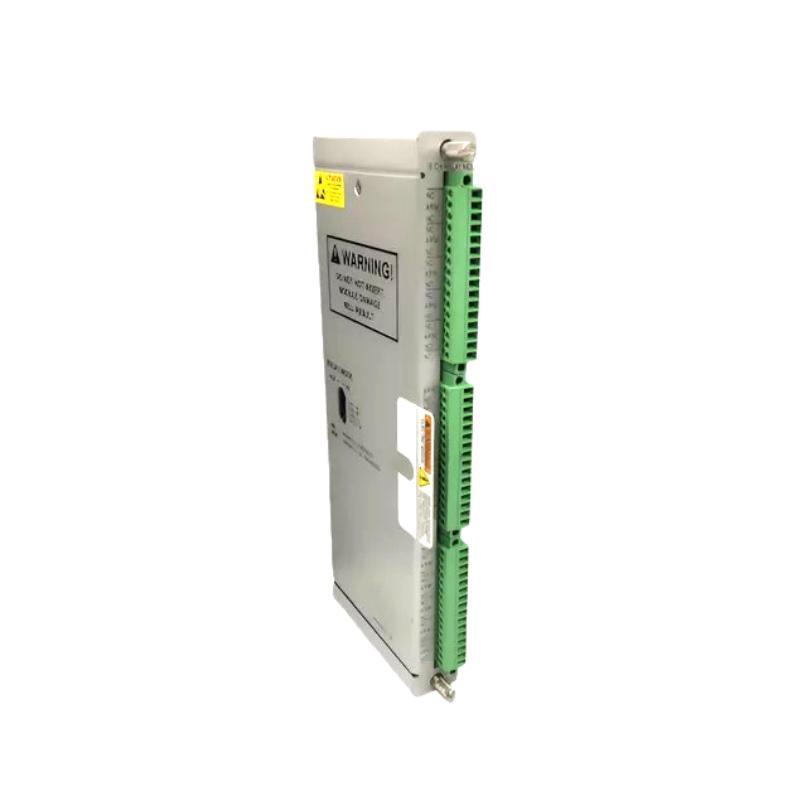

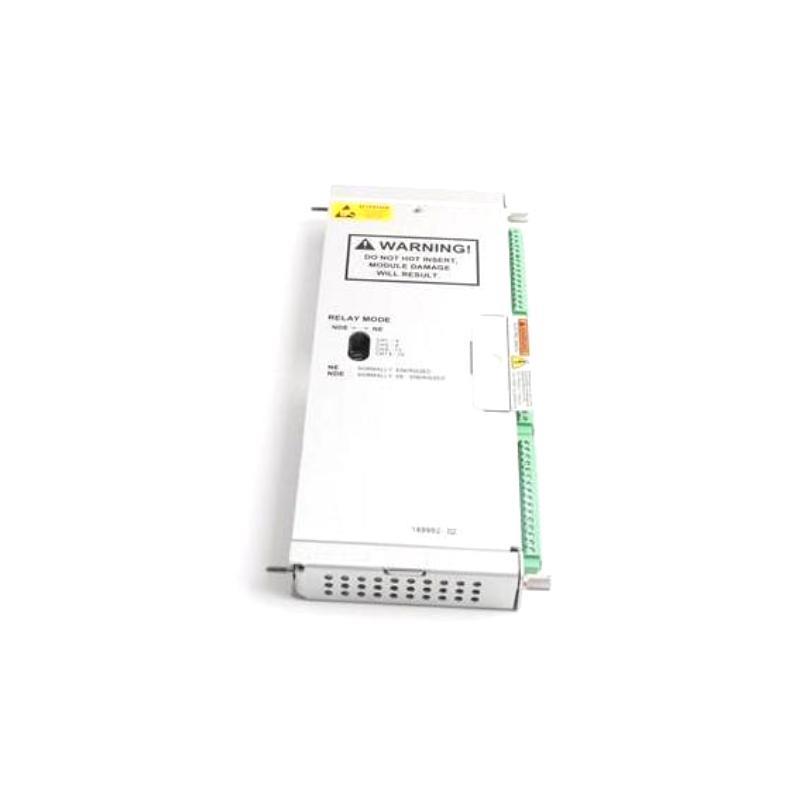

The Bently Nevada 3500/33-03-00 is a full-height, 16-channel relay output module designed for the 3500 Machinery Protection System. Each / its 16 relay outputs can be independently programmed to perform voting logic and includes Alarm Drive Logic, allowing for complex control strategies and ensuring reliable operation. This module enhances machinery protection by enabling precise control over alarm and shutdown functions.
製品仕様
| Parameter | Details |
| モデル Number | 3500/33-03-00 |
| 型番 | 149992-03 |
| 説明 | 16-Channel Low Current Relay Output Module |
| Relay Channels | 16 independent SPDT relays |
| Relay お問い合わせ Rating | 5 A @ 24 VDC / 250 VAC resistive load |
| Relay Life | ≥10,000 operations (resistive load) |
| Alarm Drive Logic | Configurable using AND/OR logic |
| Voting Logic | サポートed for each relay output |
| Mounting Position | Any slot to the right / the TDI Module in the 3500 rack |
| Power Consumption | 5.8 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Range | 0% to 95% non-condensing |
| Certifications | CE, CSA, ATEX, IECEx, GOST |
| Dimensions | 241 x 24.4 x 99.1 mm |
| 重量 | 0.4 kg |
Product Applications
-
Machinery Protection Systems: Provides relay outputs for alarms and shutdowns in turbines, compressors, and pumps.
-
Process Control Integration: Interfaces with DCS and PLC systems for comprehensive process monitoring.
-
Safety Systems: Implements voting logic for critical safety applications requiring high reliability.
-
Industrial Automation: Used in various industries including oil and gas, power generation, and manufacturing for equipment protection.
Product Advantages
-
Flexible Configuration: Each relay can be independently programmed for specific alarm conditions.
-
Voting Logic サポート: Enhances system reliability by requiring multiple conditions before triggering actions.
-
High Reliability: Designed for long operational life with over 10,000 relay operations.
-
Seamless Integration: Easily integrates into existing 3500 rack systems without additional hardware.
-
Global Certifications: Meets international standards for use in hazardous environments.
よくある質問 (FAQ)
-
What is the function / the 3500/33-03-00 module?
-
It provides 16 programmable relay outputs for alarms and shutdowns in machinery protection systems.
-
-
Can each relay be configured independently?
-
Yes, each relay can be programmed separately for specific alarm conditions and logic.
-
-
Does the module support voting logic?
-
Yes, it supports voting logic to enhance decision-making reliability.
-
-
What are the contact ratings for the relays?
-
Each relay is rated at 5 A for 24 VDC or 250 VAC resistive loads.
-
-
Is the module compatible with hazardous environments?
-
Yes, it has certifications including ATEX, CSA, IECEx, and GOST for use in hazardous areas.
-
-
Where is the module installed in the 3500 rack?
-
It can be placed in any slot to the right / the Transient Data Interface (TDI) Module.
-
-
What is the power consumption / the module?
-
It consumes 5.8 Watts / power.
-
-
What is the operational temperature range?
-
The module operates between -30°C and +65°C (-22°F to +150°F).
-
-
Can the module be used in redundant configurations?
-
Yes, multiple modules can be used to provide redundancy in critical applications.
-
-
Is the module compatible with all 3500 series systems?
-
Yes, it is designed to integrate seamlessly with the entire 3500 series.
-
Related モデルs from the Same Series (Bently Nevada 3500 Series)
| モデル Number | 説明 | Function |
| 3500/32M | 4-Channel Relay Module | Provides 4 independently configurable relay outputs |
| 3500/34 | TMR Relay Module | Triple Modular Redundant relay output module |
| 3500/40M | Proximitor Monitor | Measures vibration, position, and phase |
| 3500/42M | Dynamic Vibration Monitor | Captures dynamic signals such as acceleration or velocity |
| 3500/20 | Rack Interface Module (RIM) | Interfaces the rack with external systems |
| 3500/22M | Transient Data Interface (TDI) Module | Provides communication, configuration, and diagnostics |
Popular モデルs from the Same ブランド (Bently Nevada)
| モデル Number | 説明 | Function |
| 3300 XL 8 mm | Proximity Probe | Measures shaft vibration and displacement |
| 1900/65A | General Purpose Monitor | Entry-level vibration monitoring for rotating machinery |
| 2300/20 | Vibration Monitor for Balance-/-Plant Equipment | Cost-effective 2-channel monitoring solution |
| 3701/40 | Machinery Protection System | Compact, high-performance condition monitoring |
| ADAPT 3701/46E | Advanced Vibration Monitor | Dynamic signal processing and protection logic |
| 330730-040-00-00 | Extension Cable for Proximity Transducer | Connects probe and driver in vibration systems |
