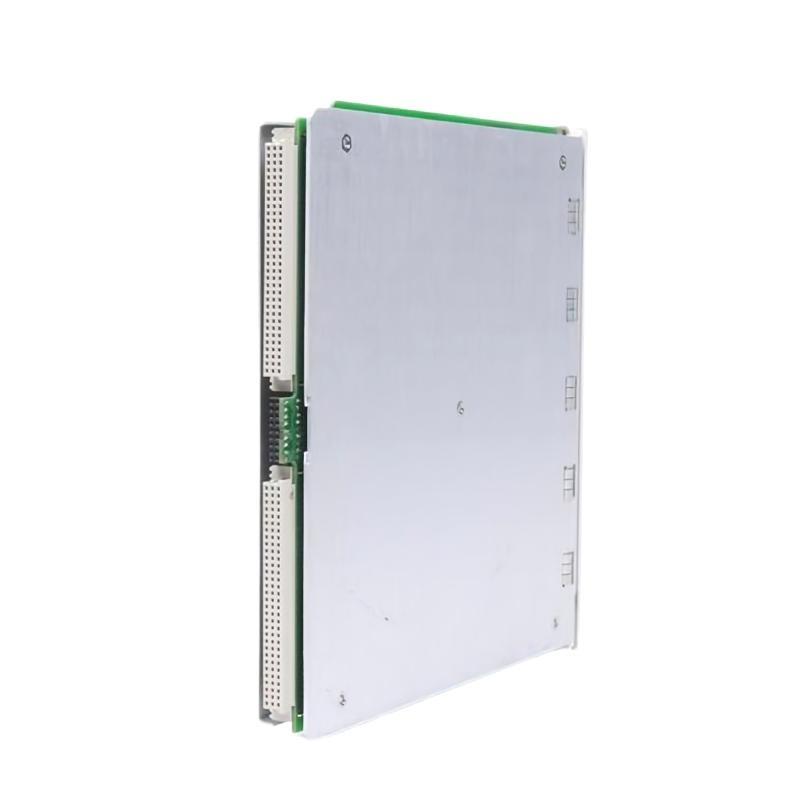

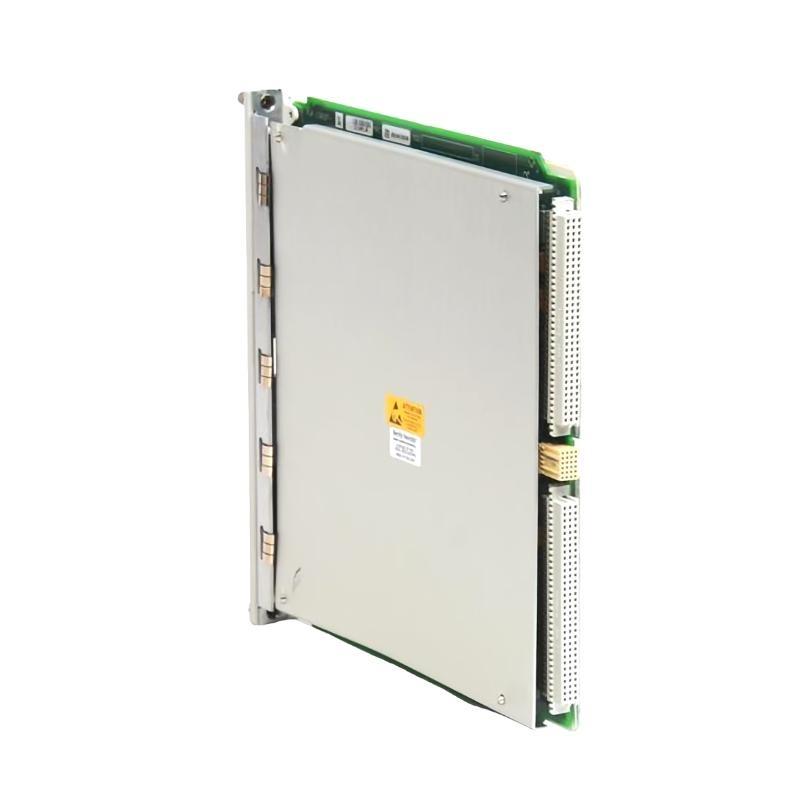

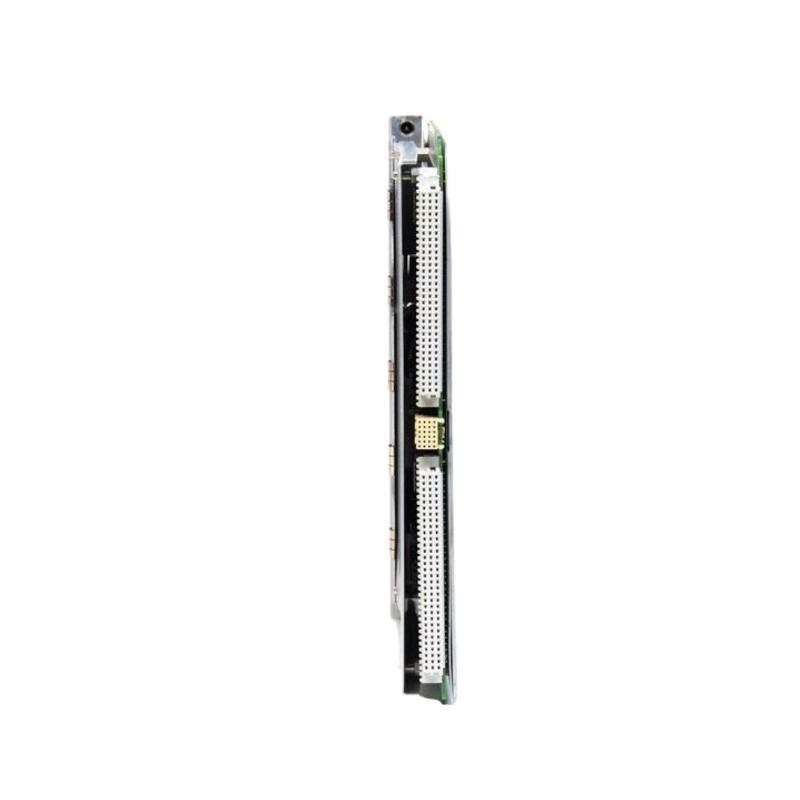

The Bently Nevada 3500/22M 138607‑01 Transient Data Interface Module serves as the communication backbone between the 3500-Series monitoring rack and host systems like System 1. Slotting adjacent to the power supply, this module combines steady-state and transient waveform capture with Ethernet output, enabling detailed machinery diagnostics. It’s not part / the critical trip path, meaning it can be removed or serviced without disrupting machine protection—ideal for environments demanding both reliability and accessibility.
製品仕様
| Specification | Details |
|---|---|
| モデル Number | 3500/22M 138607‑01 |
| Function | Transient Data Interface (TDI) Module |
| Compatible System | Bently Nevada 3500-Series |
| Input Signal | Steady-state + transient vibration waveforms |
| Output Interface | Ethernet (10/100Base-TX autosensing) |
| Configuration Port | RS‑232, 115 kbps max |
| Power Supply | 24 V DC |
| Power Consumption | ~10.5 W |
| Dimensions (W×H×D) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Operating Temp. | –20 °C to +70 °C |
| Storage Temp. | –40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Relay | “OK” relay, 5 A @ 24 Vdc/120 Vac with arc suppression |
| Indicators | LEDs for OK, TX/RX, Trip Multiply, Config OK |
| Controls | Rack Reset button, Address switch, RUN/PROGRAM keylock |
| Certifications | CE, UL, optional ATEX for hazardous locations |
Product Applications
This module is ideal for:
-
Power Plants: Monitoring turbines/generators with transient response tracking.
-
Oil & Gas: Capturing vibration across compressors, pumps, and rotors.
-
Petrochemicals & Refineries: Providing diagnostics on rotating equipment.
-
Heavy Industry & Mining: Tracking force events in conveyor or crusher systems.
-
Offshore & Marine: Managing vibration in shipboard propulsion 台s.
-
Critical Manufacturing Lines: Spotting impacts, rubbing, or bearing issues early.
By capturing transient events, it enables predictive maintenance and helps prevent unplanned shutdowns.
Product Advantages
-
Dual Data Capture: Handles both steady-state and transient vibration waveforms for complete monitoring.
-
Rack Slot Flexibility: Honors hot-swap capability without interrupting protection systems.
-
High-Speed Diagnostic Communication: Ethernet & serial ports streamline data upload to System 1.
-
Onboard Diagnostics: LEDs and relays /fer immediate system status visibility.
-
Environmental Durability: Withstands wide temperature ranges, humidity, and industrial stress.
-
Secure Configuration: Address switch and keylock prevent unauthorized changes.
-
Extensive Compatibility: Works with all Bently Nevada 3500-Series modules, especially M-series sensors.
-
Relay Feedback: Alarm relay supports remote fault indication.
-
Extended 環境コンプライアンス: Optional ATEX rating for explosion-prone areas.
-
Accessibility: Convenient module access assists troubleshooting without full rack removals.
よくある質問 (FAQ)
-
What is the primary role / the 3500/22M TDI?
It gathers steady-state and transient vibration data and sends it to host s/tware via Ethernet. -
Can I remove it without shutting down the system?
Yes—it’s hot‑swappable and not in the protection trip path. -
What network options does it support?
サポートs both 10Base‑T and 100Base‑TX Ethernet (auto-negotiation). -
How are data events triggered?
Events are captured automatically or via optional channel enable configurations. -
Does it support firmware upgrades?
Yes, compatible with System 1 and configuration tools. -
What diagnostics are visible when it operates?
LEDs indicate rack status and communication health; alarm relay signals faults. -
What is the relay’s purpose?
It provides a normally-energized contact that trips on rack faults. -
How do I secure configurations?
Use the keylock to switch between RUN and PROGRAM modes. -
Can it detect transient pattern deviations?
It records waveform data, which sophisticated analysis tools in System 1 can evaluate. -
Is it suitable for harsh or explosion-prone areas?
Yes, it can be ATEX certified when mounted appropriately.
Related or Similar モデルs
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 3500/22M 138607‑02 | TMR TDI Module | Triple-modular redundancy + voting logic |
| 3500/22M 288055‑02 | TMR TDI with USB | Includes USB diagnostics port |
| 3500/22M 288055‑01L | TDI with USB cable | Field-level transient data download |
| 3500/22‑01‑02‑00 | TDI w/o USB | Standard transients capture |
| 3500/20‑01‑01‑00 | Rack Interface Module (RIM) | Basic system management backbone |
| 3500/22‑01‑01‑00 | TDI (copper Ethernet) | Non-M-Series compatible variant |
その他 Popular Bently Nevada モデルs
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 3500/05‑01‑05‑00 | System Rack | Houses all 3500 modules and power |
| 3500/15‑01‑00‑00 | Power Supply Module | Provides redundant 24 V DC to rack |
| 3500/42M | Proximitor Monitor | For shaft displacement sensing |
| 3500/62‑01‑00‑00 | Process Variable Interface | Integrates process signals (T/P/F) |
| 3300 XL Proximitor | Rugged displacement probe | Harsh environment proximity sensing |
| 7200 Series | Legacy 状態 Monitoring System | Predecessor to 3500 for smaller sites |
