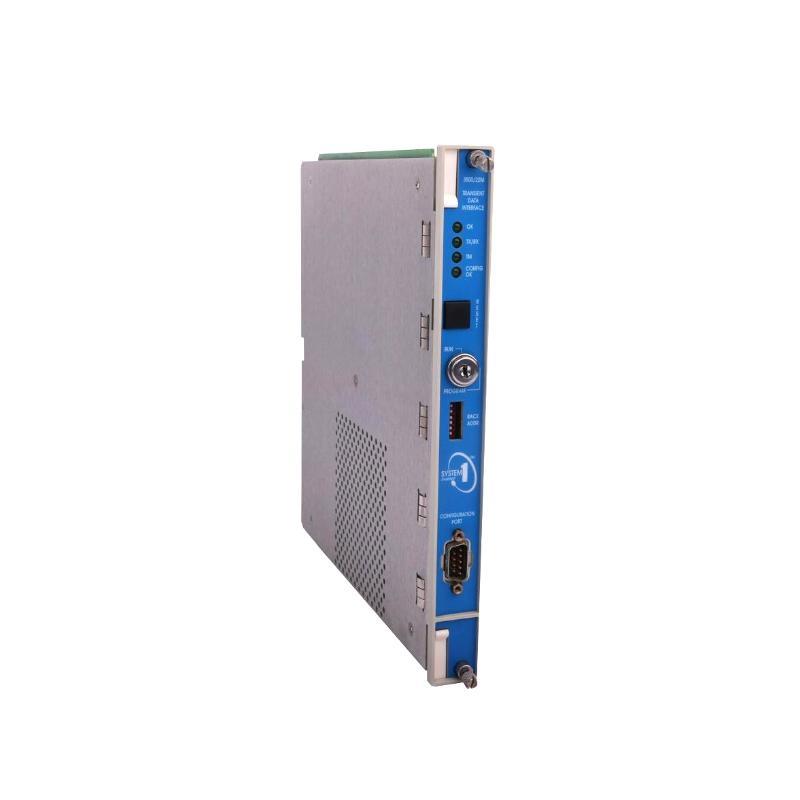

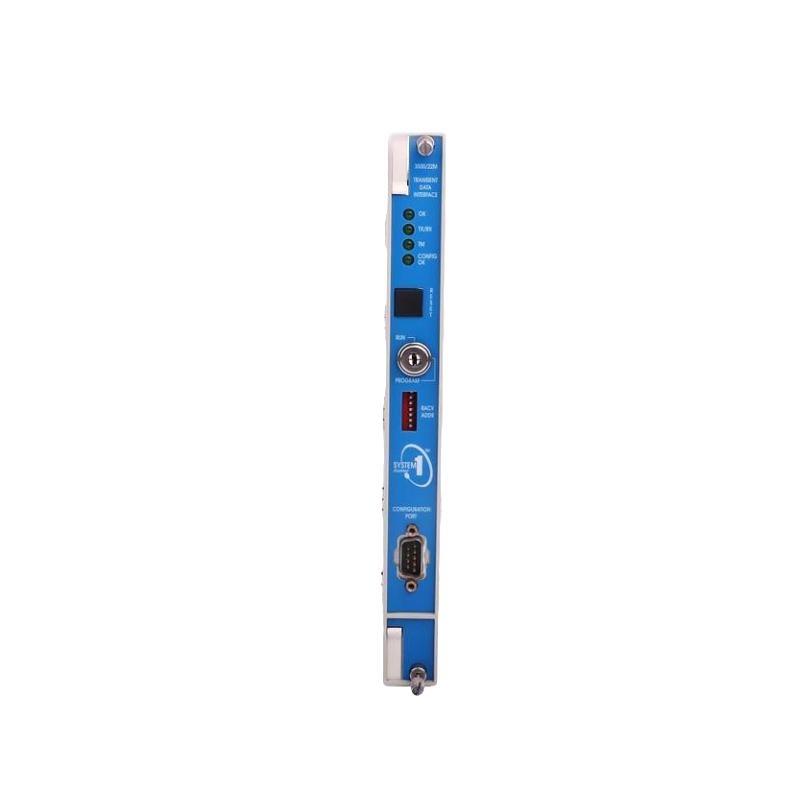

Bently Nevada 3500/22M-01-01-01 Transient Data Interface Module

製品紹介

The Bently Nevada 3500/22M-01-01-01 Transient Data Interface (TDI) Module serves as the primary communication interface between the 3500 monitoring system and Bently Nevada’s System 1® 状態 Monitoring and Diagnostic s/tware. Combining the functionalities / the 3500/20 Rack Interface Module (RIM) and a communication processor like TDXnet, the TDI module facilitates the collection and transmission / both steady-state and transient dynamic data. It resides in the slot adjacent to the power supplies in a 3500 rack and interfaces with M series monitors (e.g., 3500/40M, 3500/42M) to continuously collect data and transmit it via Ethernet to host s/tware.

製品仕様

Applications

• Machinery 状態 Monitoring: Suitable for gas turbines, steam turbines, compressors, pumps, fans, and motors.

• Transient Data Acquisition: Captures and stores transient vibration events such as startups, shutdowns, trips, and other anomalies.

• Integration with System 1®: Seamless data streaming into Bently Nevada’s predictive analytics platform.

• Plantwide Monitoring Infrastructure: Acts as a centralized data gateway across multiple machinery systems.

• Diagnostics & Root Cause Analysis: Ideal for engineers seeking detailed, timestamped event data.

• Critical Asset Protection: Used across oil & gas, petrochemical, power generation, marine, and mining industries.

Advantages

• Combined Functionality: Reduces hardware requirements by combining rack interface and communication into a single module.

• High-Speed Data Capture: Enables advanced monitoring with real-time dynamic and transient data.

• Redundancy Ready: サポートs dual TDI installation for fault-tolerant operation.

• Seamless Integration: Plug-and-play compatibility with Bently Nevada’s System 1® s/tware.

• Improved Diagnostic Capability: Enables pre- and post-fault waveform analysis, helping avoid unplanned downtime.

• Firmware Upgrade サポート: Ensures long-term support and scalability for future features.

• Rugged and Reliable: Engineered for harsh industrial environments with high shock and vibration tolerance.

• Modular Maintenance: Easy to replace or upgrade without rack downtime or re-cabling.

Latest News Headlines

1. “Bently Nevada Expands TDI Module Capabilities with Enhanced Transient Data Capture”

2. “GE Digital’s System 1® Optimized for 3500/22M Real-Time Diagnostics”

3. “New Reliability Upgrades Drive Global Adoption / the 3500 Series”

4. “Modular Transient Interfaces Lead the Future / Predictive Maintenance”

5. “Oil & Gas Sector Sees Downtime Reduction with 3500/22M Integration”

よくある質問 (FAQ)

1. What is the primary function / the Bently Nevada 3500/22M-01-01-01 module in a vibration monitoring system?
The 3500/22M TDI serves as the communication gateway between the 3500 machinery protection system and the System 1® condition monitoring s/tware. It collects both static and dynamic (transient) data from compatible monitoring modules (such as 3500/40M, 42M, etc.), then transmits this information via Ethernet to external systems. It consolidates the functionality / the older 3500/20 RIM and provides a high-speed link to diagnostic s/tware tools, making it essential for both protection and predictive maintenance strategies.

2. Can the 3500/22M module be used in redundant configurations, and how does it manage failover?
Yes, the TDI supports redundancy. Two TDI modules can be installed side by side in a rack (in designated TDI slots), where one serves as the primary and the other as a backup. If the primary TDI fails, the backup automatically takes over, ensuring continuous data transmission and monitoring. This capability is vital for critical assets where system reliability is non-negotiable.

3. What type / data can the 3500/22M transmit to System 1®, and how is it useful in diagnostics?
The TDI transmits static parameters like vibration amplitudes and alarm statuses, as well as waveform data and peak-to-peak values. It also captures transient event data—such as during machine startups, shutdowns, or trips—enabling engineers to perform root cause analysis, assess machine health trends, and make informed maintenance decisions. The time-synchronized data is particularly useful in evaluating machinery behavior during process disturbances.

4. Does the TDI module require special s/tware for configuration or data access?
Yes, the 3500/22M is configured using the 3500/01 Rack Configuration S/tware, which provides a graphical interface to define channel configurations, module identities, alarms, and communication settings. For data access and advanced analytics, it integrates seamlessly with System 1® s/tware, developed specifically by Bently Nevada for condition monitoring and diagnostics.

5. Is the 3500/22M compatible with all modules in the 3500 Series rack?
The 3500/22M is compatible with most / the “M” series monitoring modules—such as 3500/40M (Proximitor), 3500/42M (Acceleration/Velocity), 3500/44M (Tachometer), etc. It is not used with older or legacy modules outside / the M series. Compatibility must always be verified during system design to ensure proper communication and data acquisition.

6. How is data physically transmitted from the TDI to a remote diagnostic workstation or server?
Data is transmitted through two Ethernet ports located on the TDI module’s backplane connector. These ports support 10/100Base-TX connections and provide redundant paths for data transmission. Network cabling must conform to standard industrial practices to maintain integrity and security / transmitted signals, especially in environments with electrical noise or EMI.

7. What steps are required when replacing a failed 3500/22M module in a live rack system?
The TDI is hot-swappable, meaning it can be replaced while the rack is still powered. Upon removal / the old module, the new 台 is simply inserted into the same slot. Configuration and firmware may need to be downloaded if not preloaded. However, for redundancy systems, ensure that switchover to the backup TDI is confirmed before removal to avoid any temporary loss / data acquisition.

8. Is the firmware / the 3500/22M field-upgradable, and why is this important?
Yes, the firmware is upgradable via the configuration s/tware. This is particularly important because it allows for future compatibility with updated System 1® releases, new monitoring features, improved cybersecurity protocols, and bug fixes—all without having to physically replace the module. Always use validated firmware provided directly by Bently Nevada.

9. In what industrial environments has the 3500/22M been most successfully deployed?
The module is widely deployed in industries such as oil & gas, power generation (thermal, hydro, and nuclear), petrochemicals, mining, marine, and large-scale water utilities. It is especially useful in any environment where real-time condition monitoring / rotating machinery is mission-critical to operational safety and reliability.

10. What are common causes / communication errors in the 3500/22M and how can they be resolved?
Typical issues include IP conflicts, mismatched firmware versions, outdated drivers on System 1®, incorrect rack configuration, or faulty Ethernet cabling. Resolution involves systematically checking configuration settings, re-seating the module, ensuring compatibility with all connected modules, and verifying proper grounding to eliminate electrical interference.
