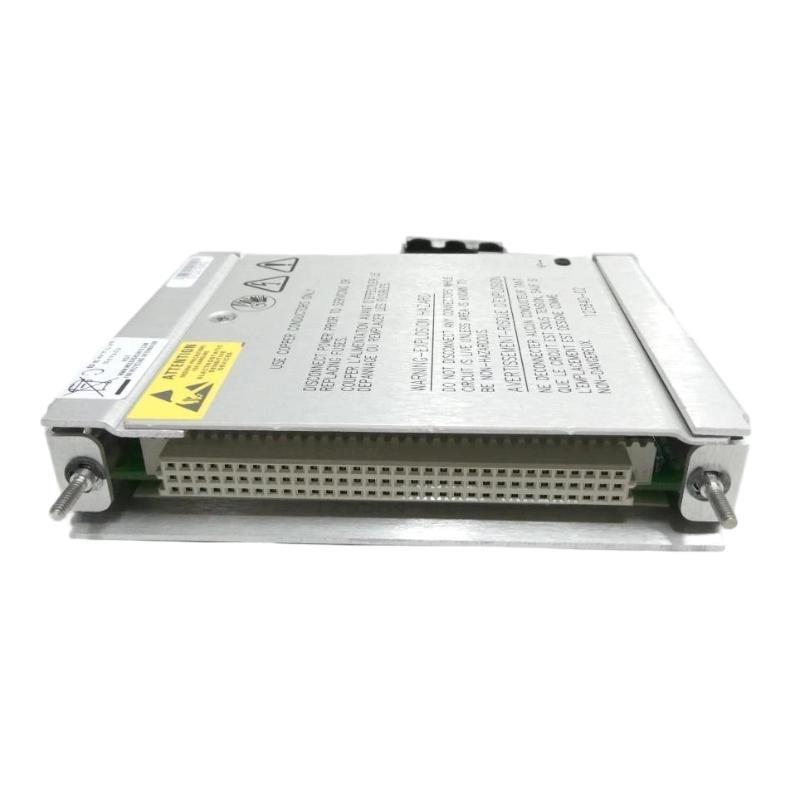

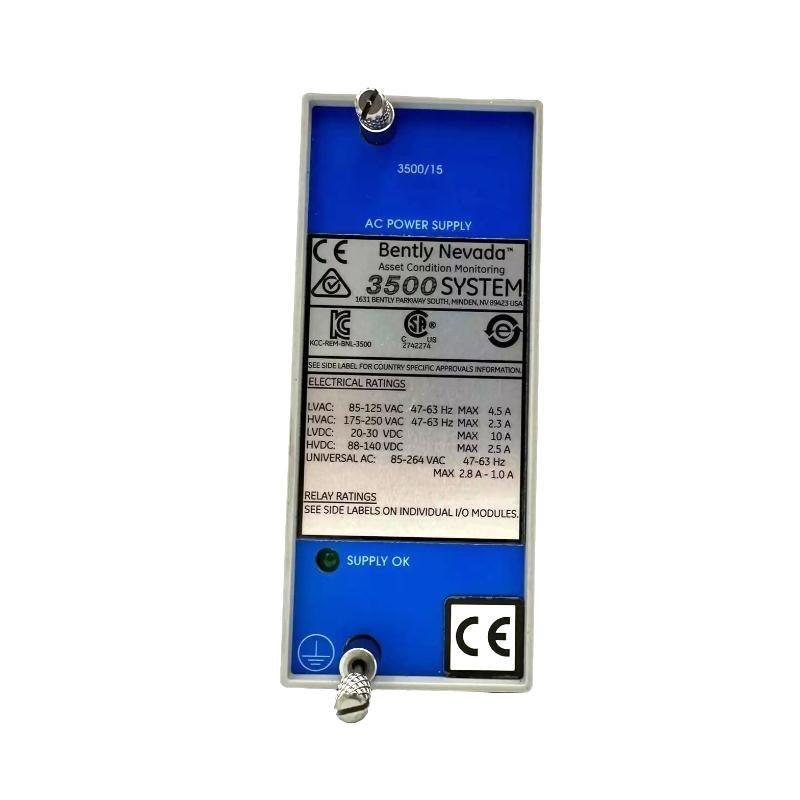

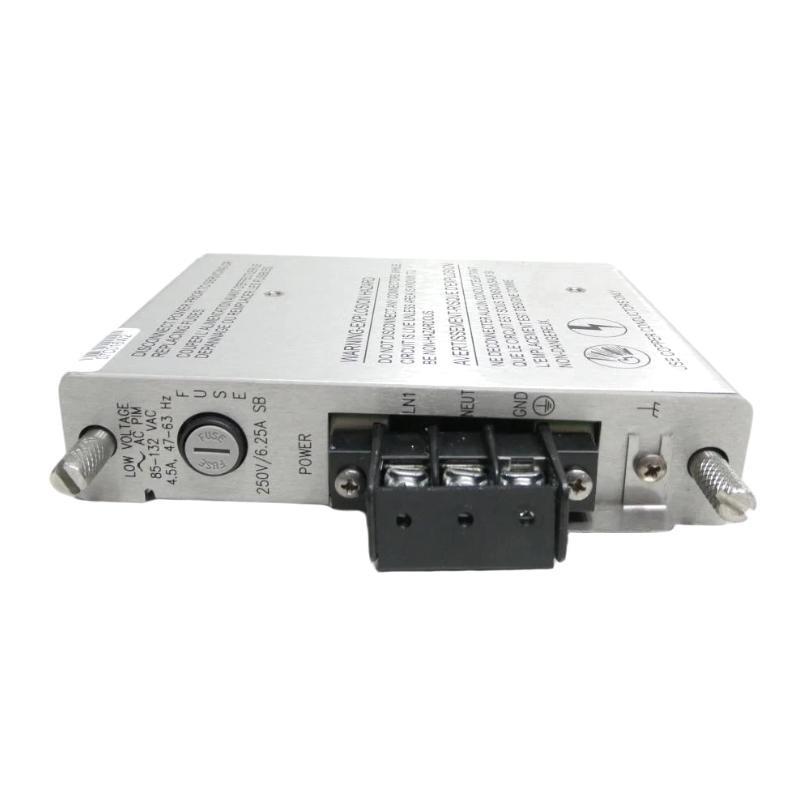

The Bently Nevada 3500/15 Universal AC Power Supply Module (model numbers 106M1079-01 and 125840-02) is an essential element / the Bently Nevada 3500 Series Machinery Protection System. It delivers dependable and regulated AC power to the system’s modules, ensuring the continuous monitoring and protection / critical rotating machinery. This module’s universal AC input capability allows it to adapt to a broad range / supply voltages worldwide, providing enhanced flexibility in various industrial environments. Designed with reliability and safety in mind, the 3500/15 module incorporates advanced protection mechanisms against electrical faults, thus guaranteeing stable performance in demanding conditions such as power plants, oil and gas facilities, and heavy industry.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Numbers | 106M1079-01, 125840-02 |
| Product Type | Universal AC Power Supply Module |
| Input Voltage Range | 85 VAC to 264 VAC |
| Frequency | 47 Hz to 63 Hz |
| Output Voltage | +5 VDC (regulated) |
| Output Current | Up to 5 A |
| Power Rating | Approximately 25 Watts |
| Efficiency | >85% |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -55°C to 85°C |
| Dimensions (W × H × D) | 120.7 x 50.8 x 251.5 mm |
| 重量 | 1.39 kg |
| Mounting | Compatible with 3500 Series Rack Modules |
Applications
The Bently Nevada 3500/15 Universal AC Power Supply Module is widely employed to provide a stable power source for machinery protection systems in various industries:
-
Supplying power to vibration and proximity probe monitoring modules in turbines, compressors, and pumps
-
Powering generator protection systems in power generation plants
-
サポートing condition monitoring in petrochemical and chemical plants
-
Providing consistent power for machinery health diagnostics in manufacturing facilities
-
Integration into safety instrumented systems within refineries and processing plants
-
Reliable power source for rotating equipment protection in water and wastewater treatment plants
Advantages
-
Universal AC Input: Operates efficiently over a wide voltage range (85 VAC to 264 VAC), suitable for global applications.
-
Stable Power Output: Provides a regulated +5 VDC output with up to 5 A current capacity, ensuring steady operation / connected modules.
-
High Efficiency: Achieves efficiency greater than 85%, minimizing energy consumption and heat production.
-
Robust Industrial Design: Built to endure harsh environmental conditions with a wide operating temperature range.
-
Compact and Rack Compatible: Designed to fit into the 3500 Series rack module slots, enabling seamless system integration.
-
Enhanced Protection Features: Incorporates safeguards against over-voltage, short circuits, and thermal overloads, improving system reliability.
-
Proven Dependability: Globally trusted in critical machinery protection systems for continuous operation.
-
Simplifies System Maintenance: Modular design allows easy replacement or upgrade without major system downtime.
よくある質問 (FAQ)
-
What input voltage range does the 3500/15 module support?
It supports an input range from 85 VAC to 264 VAC. -
What is the output voltage and current specification?
It outputs a regulated +5 VDC voltage at up to 5 A current. -
Can the power supply handle different power grid frequencies?
Yes, it operates between 47 Hz and 63 Hz input frequency. -
Is this module compatible with all 3500 Series rack systems?
Yes, it is designed to fit all standard 3500 Series rack modules. -
What protection mechanisms are integrated into this module?
The module has over-voltage, short circuit, and thermal overload protections. -
How efficient is the power supply?
The efficiency exceeds 85%, minimizing power losses. -
Can this power supply operate in extreme industrial temperatures?
Yes, it supports an operating range from -40°C to 70°C. -
Does the module support hot-swapping?
Yes, it is designed for hot-swappable operation following proper procedures. -
Can it be used in redundant power configurations?
Yes, while the module itself is single, it supports integration in redundant power systems. -
How stable is the output under fluctuating input voltage conditions?
The module provides stable output voltage thanks to built-in voltage regulation.
