製品紹介

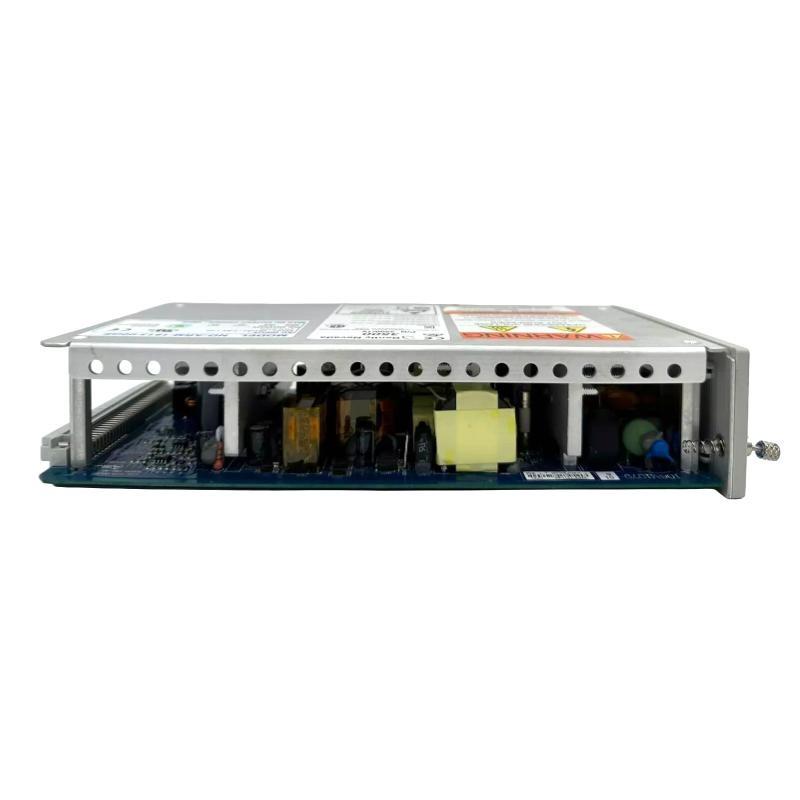

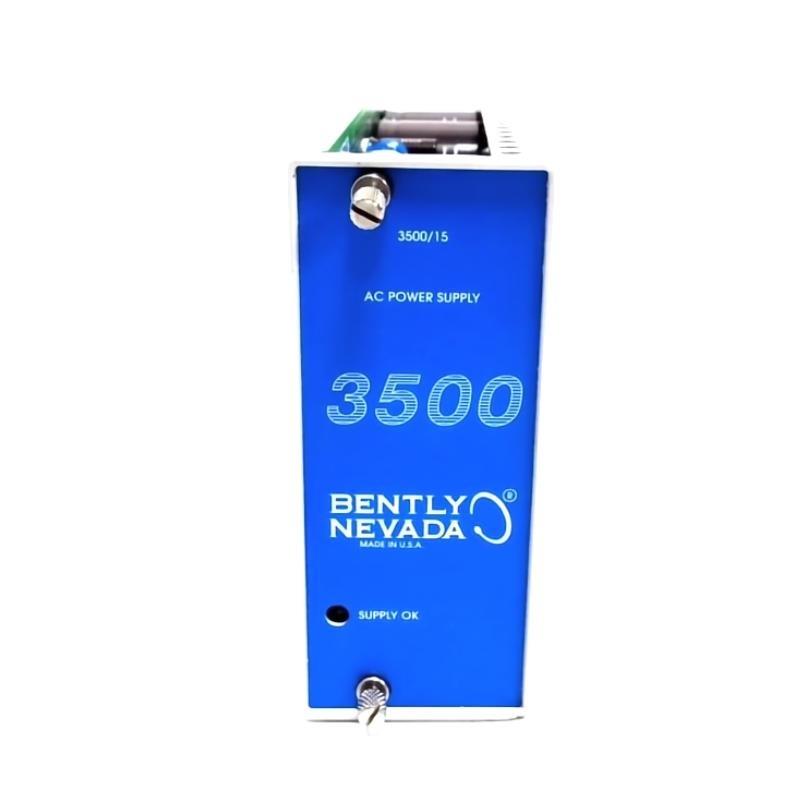

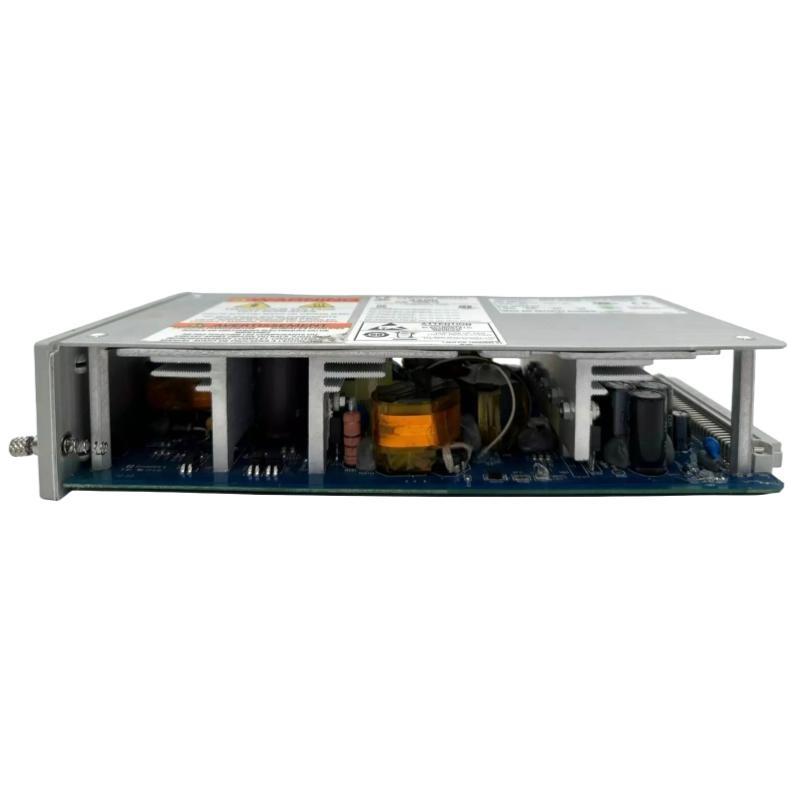

The Bently Nevada 3500/15-07-07-RU Power Supply Module is a vital component engineered to provide reliable and steady power to the Bently Nevada 3500 Series machinery protection and vibration monitoring systems. This power supply module is designed to convert incoming AC power to stable DC outputs necessary for the operation / sensitive instrumentation and monitoring devices. Built with rugged industrial-grade components, the 3500/15-07-07-RU module ensures consistent performance in demanding environments such as power plants, petrochemical facilities, and manufacturing operations. Its compatibility with the 3500 Series rack systems allows for seamless integration and dependable support for machinery health monitoring.
製品仕様
| Specification | Details |
|---|---|
| モデル Number | 3500/15-07-07-RU |
| Power Input | 85 to 265 VAC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | +5 V DC, +24 V DC (regulated) |
| Output Current | Up to 5 A |
| Efficiency | >85% |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (HxWxD) | 120.7 x 50.8 x 251.5 mm |
| 重量 | 1.39 kg |
| Certifications | CE, UL, CSA |
Applications
The 3500/15-07-07-RU Power Supply Module is widely used in industrial settings requiring high reliability and precision for machinery condition monitoring and protection. Common applications include:
-
Power generation plants for turbine and generator monitoring
-
Oil and gas facilities monitoring compressors, pumps, and rotating equipment
-
Chemical and petrochemical plants for critical equipment protection
-
Manufacturing plants ensuring continuous operation / critical machinery
-
Any industrial environment utilizing the Bently Nevada 3500 Series monitoring system
By supplying stable and clean power, the module ensures uninterrupted monitoring, which is essential for early fault detection and preventive maintenance.
Product Advantages
-
Reliable Power Delivery: Provides stable +5 V and +24 V DC outputs, ensuring consistent operation / sensitive equipment.
-
Wide Input Voltage Range: Accepts a broad AC input voltage range (85 to 265 VAC), suitable for diverse power systems globally.
-
High Efficiency: Efficient power conversion minimizes heat dissipation and reduces energy consumption.
-
Robust Industrial Design: Designed to withstand wide temperature and humidity ranges, making it suitable for harsh industrial environments.
-
Compact Form Factor: Fits standard 3500 Series racks, facilitating straightforward installation and maintenance.
-
Protection Features: Integrated protection against overcurrent, overvoltage, and short circuits, ensuring module and system safety.
-
Compliance with Safety Standards: Certified under CE, UL, and CSA standards, meeting international safety and EMC requirements.
FAQ
-
What is the accepted input voltage range for this power supply module?
It supports an AC input voltage range / 85 to 265 VAC. -
What output voltages does the module provide?
The module provides regulated +5 V DC and +24 V DC outputs. -
How much current can the power supply deliver continuously?
It can supply up to 5 A continuously at the rated voltages. -
Does the module have built-in protection features?
Yes, it includes overcurrent, overvoltage, and short circuit protection. -
What environmental conditions can this power supply operate under?
It operates reliably between -40°C and +70°C with relative humidity from 5% to 95% non-condensing. -
Is the output voltage isolated from the input?
Yes, the power supply provides galvanic isolation between input and output to reduce noise and improve safety. -
What cooling mechanism does this module use?
It utilizes convection cooling via its metal enclosure, requiring no additional fans. -
Are there any recommended installation guidelines?
Proper grounding and adherence to Bently Nevada’s wiring specifications are essential for safe and optimal operation. -
Does the power supply module support remote status monitoring?
The module itself does not provide remote diagnostics but is compatible with 3500 Series systems capable / monitoring power supply status. -
What certifications does the power supply module hold?
It is certified by CE, UL, and CSA, ensuring compliance with international safety and electromagnetic compatibility standards.
Related モデルs from the Same Series
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 3500/15 133292-01 | AC/DC Power Supply Module | Dual AC/DC input compatibility |
| 3500/15 133945-01 | Low Voltage DC Power Supply | Regulated +24 V DC output |
| 3500/16 133295-01 | DC Power Supply Module | DC input only |
| 3500/10 133263-01 | Interface Module | Signal conditioning |
| 3500/25 133377-01 | Expansion Module | Additional channel support |
| 3500/20 133352-01 | Monitor Module | Core vibration sensing |
Popular モデルs from Bently Nevada ブランド
| モデル Number | 説明 | Application |
|---|---|---|
| 3500/22 133340-01 | Speed and Phase Monitor Module | Rotational speed monitoring |
| 3500/45 133450-01 | Proximitor Sensor | Proximity sensing |
| 2300 125863-01 | Portable Vibration Monitor | Field diagnostics |
| 7300 128047-01 | Machinery Protection System | Continuous machinery protection |
| 1490 132201-01 | Wireless Vibration Sensor | Remote condition monitoring |
| 3300 XL | High Precision Vibration Monitor | Advanced vibration analysis |
