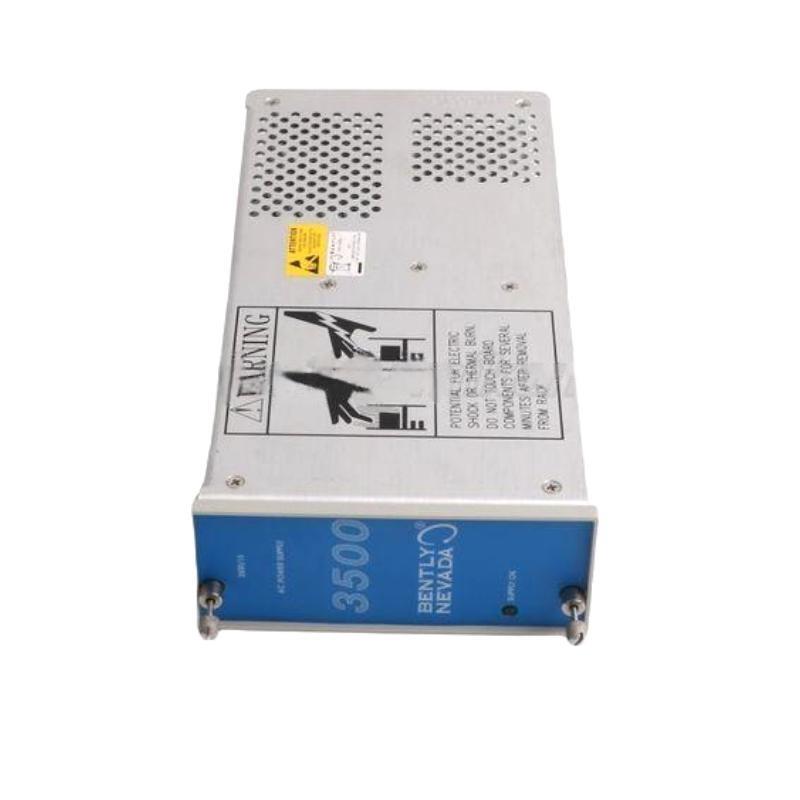

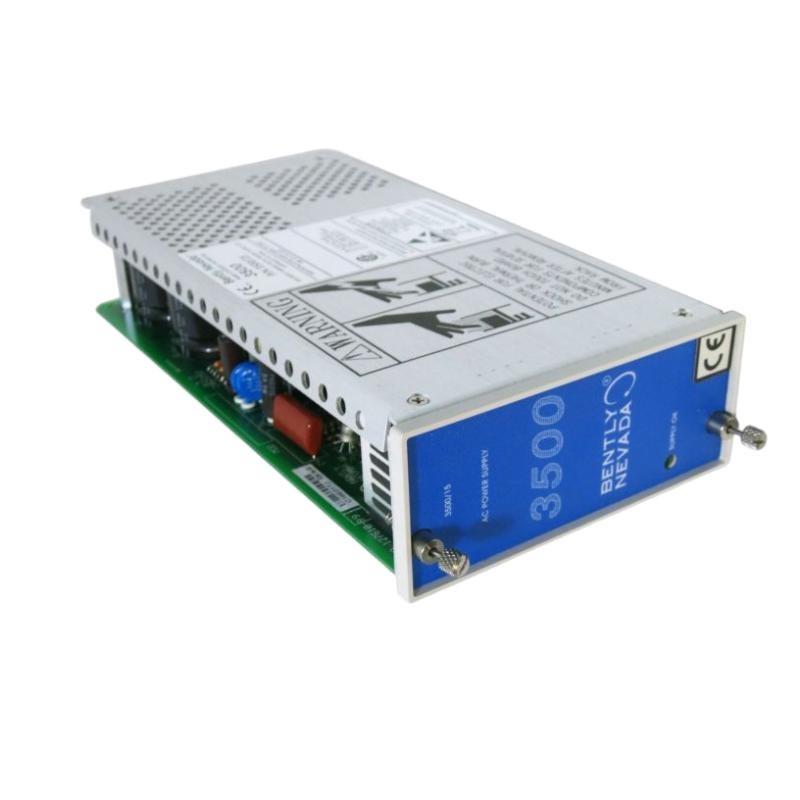

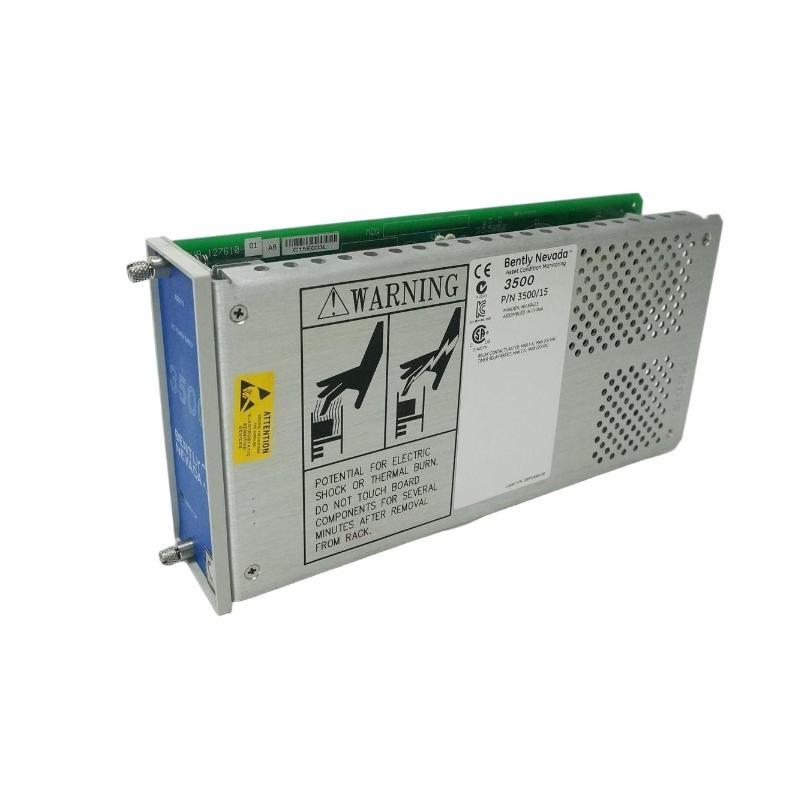

The Bently Nevada 3500/15-02-05-00 is a high-reliability power supply module designed specifically for use within the Bently Nevada 3500 Series monitoring system. This module ensures stable and continuous power delivery to critical system components, thereby maintaining optimal operational performance. Built to withstand demanding industrial environments, it integrates seamlessly with the 3500 rack system, supporting machinery protection and condition monitoring in industries such as power generation, oil & gas, and manufacturing.
The power supply is engineered for durability, reliability, and ease / maintenance, minimizing downtime and enabling long-term system stability. With its robust design and precise power regulation, the 3500/15-02-05-00 ensures that connected monitoring modules function accurately, enhancing overall system integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 3500/15-02-05-00 |
| Input Voltage | 120/240 VAC, 50/60 Hz |
| Output Voltage | +5 VDC and +24 VDC |
| Output Current | 5 A (typical) |
| Dimensions | 120.7 x 50.8 x 251.5mm |
| 重量 | 1.39 kg |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -55°C to +100°C (-67°F to +212°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Cooling | Convection cooled |
| Certifications | UL, CE, CSA |
| Mounting | 3500 Rack Slot |
Product Applications
-
Continuous machinery condition monitoring in turbines, compressors, and pumps.
-
Industrial process plants requiring reliable vibration and position monitoring.
-
Power plants for generator and turbine protection systems.
-
Oil and gas facilities to safeguard rotating equipment.
-
Petrochemical plants for critical machinery surveillance.
-
Heavy manufacturing industries where machinery health is vital.
Product Advantages
-
High Reliability: Designed for industrial environments, providing consistent power under harsh conditions.
-
Seamless Integration: Compatible with all Bently Nevada 3500 system modules and racks.
-
Compact Design: Space-efficient size allows high-density rack installations.
-
Robust Build: Withstands wide temperature ranges and humidity levels.
-
Easy Maintenance: Hot-swappable design reduces downtime during replacement.
-
Industry Compliance: Certified for safety and electromagnetic compatibility.
-
Stable Output: Maintains consistent voltage to ensure proper module operation.
-
Reduced Downtime: Reliable power supply minimizes system failures and interruptions.
FAQ
Q1: What input voltage range does the 3500/15-02-05-00 support?
A1: It supports 120 or 240 VAC input at 50 or 60 Hz frequency.
Q2: Can this power supply module be replaced without shutting down the entire 3500 system?
A2: Yes, the module is hot-swappable, allowing replacement without system shutdown.
Q3: What are the output voltages provided by this power supply?
A3: The power supply provides +5 VDC and +24 VDC outputs to the system modules.
Q4: What is the typical output current rating?
A4: The typical output current is 5 Amps.
Q5: What is the operating temperature range for this power supply?
A5: It operates reliably between -40°C and +85°C (-40°F to +185°F).
Q6: Is the power supply compatible with all 3500 series racks?
A6: Yes, it is designed specifically for the 3500 rack series and fits standard slots.
Q7: How heavy is the module?
A7: The module weighs 1.39 kg.
Q8: Does the power supply have any certifications?
A8: Yes, it carries UL, CE, and CSA certifications.
Q9: What kind / cooling does this power supply use?
A9: It uses convection cooling, requiring no additional fans.
Q10: Can this module handle power fluctuations in industrial environments?
A10: Yes, it has built-in protection and regulation to handle typical industrial power variations.
Recommended Similar or Related モデルs
| モデル Number | 説明 |
|---|---|
| 3500/15-02-02-00 | Power Supply Module, Basic Version |
| 3500/15-03-05-00 | Enhanced Power Supply with Redundancy |
| 3500/15-02-03-00 | Power Supply for 3500 Rack Slot 3 |
| 3500/15-02-07-00 | High Capacity Power Supply Module |
| 3500/15-02-09-00 | Power Supply Module with Diagnostic Features |
| 3500/15-02-01-00 | Standard Power Supply Replacement Module |
Popular モデルs from Bently Nevada ブランド
| モデル Number | 説明 | Dimensions (HxWxD) | 重量 |
|---|---|---|---|
| 3300 XL Proximitor Sensor | Vibration sensor for machinery | 60 mm x 25 mm x 50 mm | 0.2 kg |
| 3500/05-02-05-00 | Vibration Monitor Module | 144 mm x 41 mm x 254 mm | 0.8 kg |
| 3300 XL 12 mm Proximitor | Extended range vibration sensor | 75 mm x 30 mm x 60 mm | 0.25 kg |
| 3500/15-02-03-00 | Power Supply Module | 144 mm x 41 mm x 254 mm | 0.7 kg |
| 3500/22-01-05-00 | 3500 Rack System Interface | 200 mm x 60 mm x 300 mm | 1.2 kg |
| 7200 Series Proximitor | Wireless vibration sensor | 120 mm x 80 mm x 40 mm | 0.3 kg |
| 3300 XL 8 mm Proximitor | Standard vibration sensor | 60 mm x 25 mm x 50 mm | 0.2 kg |
| 3500/30-01-01-00 | Data Acquisition Module | 144 mm x 41 mm x 254 mm | 0.9 kg |
