Product Overview

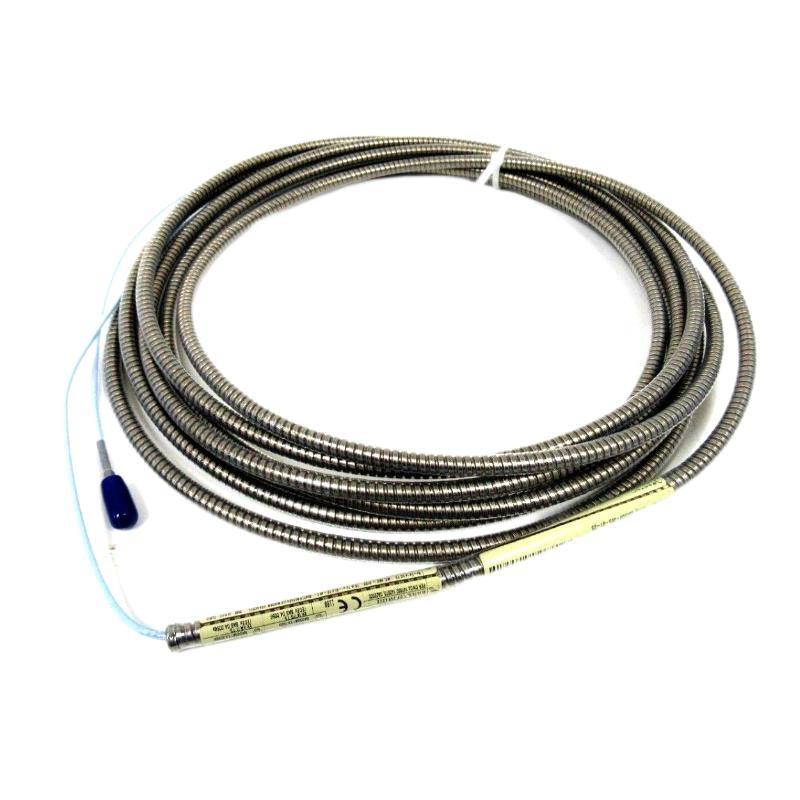

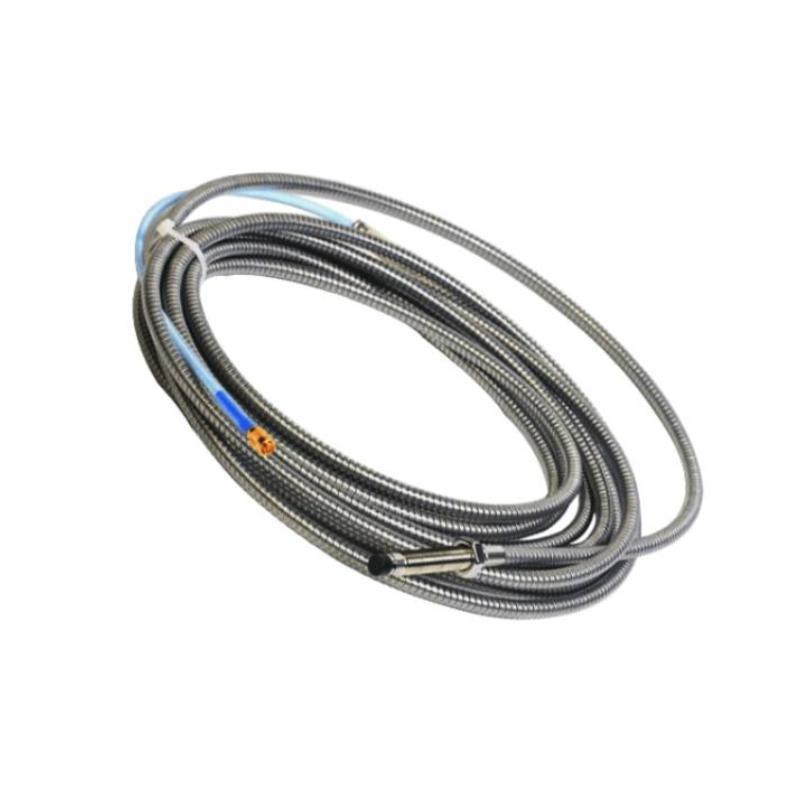

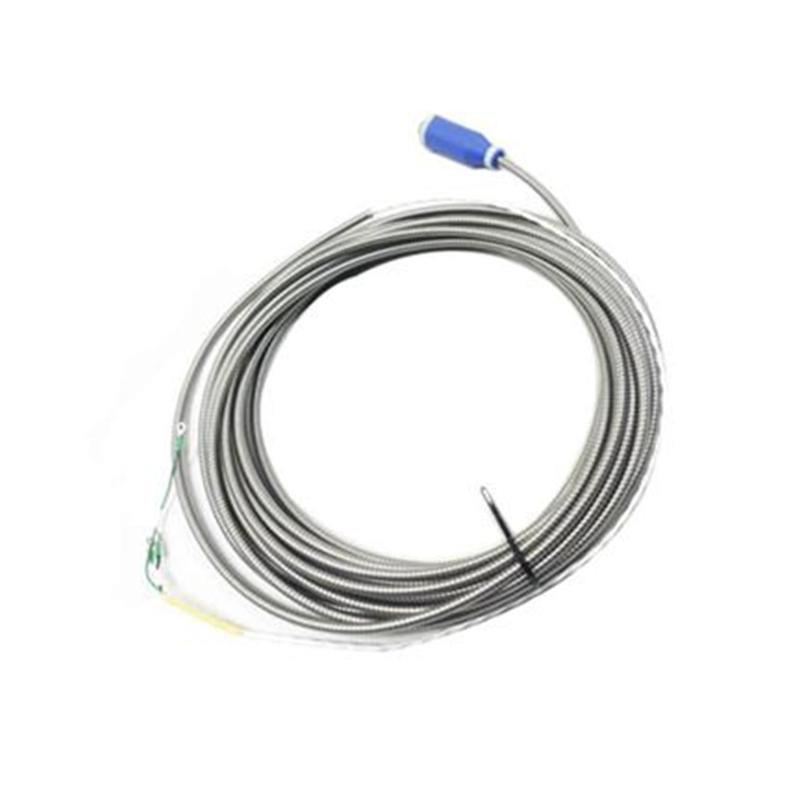

The Bently Nevada 330930-060-04-05 is a 6.0-meter extension cable used in the 3300 XL NSv Proximity Transducer System. This cable connects the proximity probe to the Proximitor Sensor, maintaining signal integrity and mechanical robustness. It features durable construction and reliable ClickLoc connectors for stable installation in harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product モデル | 330930-060-04-05 |
| Product Type | Extension Cable |
| Cable Length | 6.0 meters |
| 重量 | 0.384 kg |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc |
| Armor Type | Stainless steel with FEP jacket |
| Connector Protector | Included |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Typical Capacitance | 69.9 pF/m |
| DC Resistance (Center) | 0.220 Ω/m |
| DC Resistance (Shield) | 0.066 Ω/m |
Applications
-
Centrifugal compressors
-
Refrigeration compressors
-
Process gas compressors
-
Small-shaft radial and axial position monitoring
-
Keyphasor phase reference systems
-
Compact machinery installations with limited space
Advantages
-
High Compatibility: Fully compatible with 3300 XL NSv and legacy RAM systems.
-
Robust Construction: FEP insulation, stainless steel armor, and connector protectors ensure durability.
-
Reliable Connections: ClickLoc connectors prevent unintentional disconnection.
-
優良 Electrical Performance: Low capacitance and resistance ensure signal fidelity.
-
Wide Operating Range: Withstands extreme temperature environments.
-
Ease / Use: Flexible routing with 25.4 mm bend radius and finger-tight installation.
よくある質問 (FAQ)
Q1: What is the primary function / the 330930-060-04-05 cable?
A1: It connects the NSv proximity probe to the Proximitor Sensor in Bently Nevada systems.
Q2: Is this cable compatible with older 3300 RAM systems?
A2: Yes, it is backward compatible with 3300 RAM extension cables and probes.
Q3: What type / insulation does the cable have?
A3: It uses FEP (fluoroethylene propylene) insulation for high chemical and thermal resistance.
Q4: Does the cable include protection against environmental ingress?
A4: Yes, it includes a connector protector and optional silicone tape for sealing.
Q5: What is the typical weight / the cable?
A5: The 6-meter version weighs approximately 0.384 kg.
Q6: Can this cable be used in high-vibration environments?
A6: Yes, the armored construction ensures durability in harsh mechanical conditions.
Q7: What approvals does this cable have?
A7: It carries multiple international approvals for hazardous area installations.
Q8: What is the recommended bend radius during installation?
A8: The minimum bend radius is 25.4 mm, suitable for tight installations.
Q9: What happens if the probe and extension cable lengths don’t match the Proximitor Sensor length?
A9: Mismatched lengths can cause improper calibration and signal inaccuracies.
Q10: What kind / connectors are used on both ends?
A10: ClickLoc gold-plated brass connectors with locking mechanisms.
Related or Compatible モデルs
| モデル Number | 説明 | Cable Length | 重量 |
|---|---|---|---|
| 330930-040-04-05 | Standard Extension Cable, 4.0 m | 4.0 m | 0.256 kg |
| 330930-045-04-05 | Standard Extension Cable, 4.5 m | 4.5 m | 0.288 kg |
| 330930-065-04-05 | Standard Extension Cable, 6.5 m | 6.5 m | 0.416 kg |
| 330980-70-05 | Proximitor Sensor, 7.0 m system length | – | 0.255 kg |
| 330901-00-24-05-02-00 | NSv Probe, 1/4-28 UNF, 2.4 in, armored | – | 0.150 kg |
| 330902-00-50-05-02-00 | NSv Probe, 1/4-28 UNF, 5.0 in, armored | – | 0.180 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Type | 重量 |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | Monitoring Module | ~0.5 kg |
| 3500/22M | Transient Data Interface | Communication Module | ~0.4 kg |
| 330104-00-06-10 | 3300 XL 8 mm Proximity Probe | Probe | ~0.150 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | Sensor | ~0.250 kg |
| 3500/25 | Keyphasor Module | Monitoring Module | ~0.3 kg |
| 3500/32M | 4-Channel Relay Module | Relay Output Module | ~0.4 kg |
