Product Overview

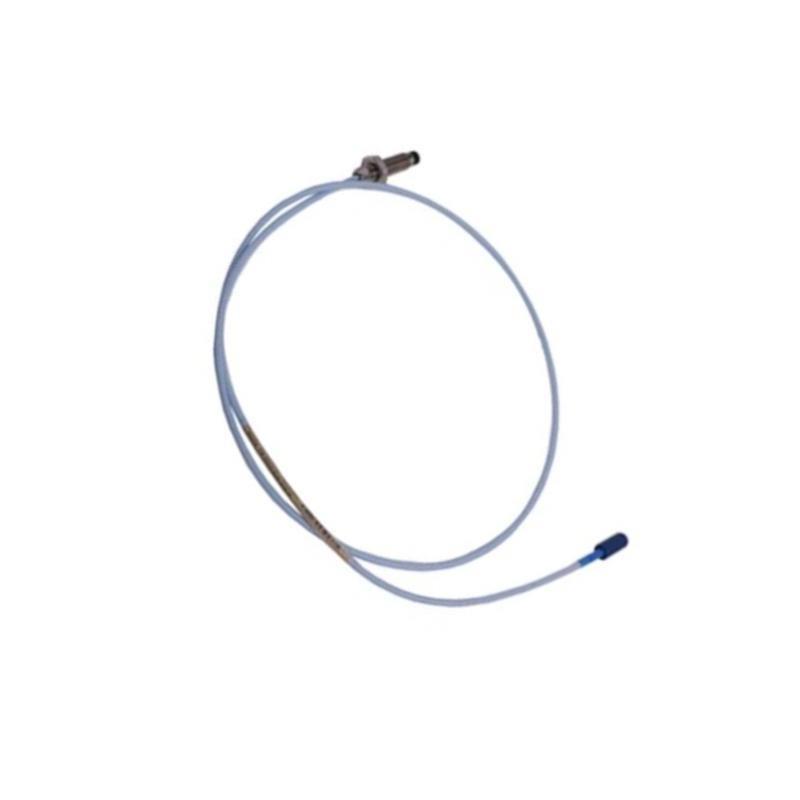

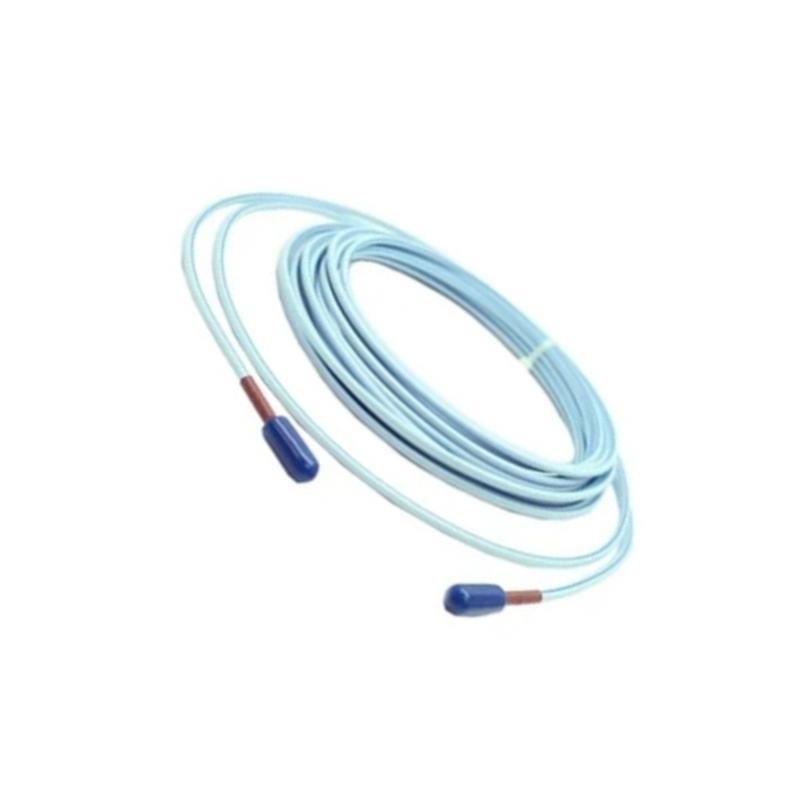

The Bently Nevada 330930-040-01-00 is a 4.0-meter extension cable used as part / the 3300 XL NSv Proximity Transducer System. Designed for tight installations, this cable connects the NSv proximity probe to the Proximitor Sensor, ensuring signal integrity in demanding environments such as centrifugal compressors and small shaft machinery.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Length | 4.0 meters |
| 重量 | 0.256 kg |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Armor Option | 対応可能 (AISI 302 SST) |
| Connector Type | Miniature coaxial ClickLoc |
| Connector Material | Gold-plated brass |
| Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Center) | 0.220 Ω/m |
| DC Resistance (Shield) | 0.066 Ω/m |
| Min. Bend Radius | 25.4 mm (with or without armor) |
| Temperature Range | -52°C to +177°C (operation & storage) |
| Tensile Strength | 220 N (probe to cable, cable to sensor) |
| Compliance | CE, RoHS, FCC, ATEX, IECEx |
Applications
-
Radial and axial vibration measurement in compact machines
-
Position monitoring in compressors and turbines
-
Tachometer and phase reference (Keyphasor) systems
-
Retr/itting or upgrading from 3300 RAM and 190 series systems
Product Advantages
-
Compact Design: Ideal for space-constrained installations
-
High Reliability: Withstands harsh conditions and temperatures up to 177°C
-
Strong Signal Integrity: Low capacitance and impedance design
-
Rugged Construction: Fluoroethylene insulation and optional armor enhance durability
-
Plug-and-Play Compatibility: Interchangeable with legacy Bently Nevada RAM systems
-
Superior EMI/RFI Imm台y: Ensures performance in industrial environments
よくある質問 (FAQ)
Q1: What systems is the 330930-040-01-00 compatible with?
A1: It is designed for the Bently Nevada 3300 XL NSv Proximity Transducer System.
Q2: Can it be used with high-temperature machinery?
A2: Yes, it operates reliably from -52°C to +177°C.
Q3: What is the connector type used on this cable?
A3: Miniature coaxial ClickLoc connectors with gold-plated brass contacts.
Q4: Is the cable armored?
A4: Armor is optional; this specific model (040-01-00) includes stainless steel armor.
Q5: What is the minimum bend radius?
A5: 25.4 mm (1.0 inch), with or without armor.
Q6: Is the cable resistant to oils and chemicals?
A6: Yes, due to FEP insulation and optional armor for added protection.
Q7: How should the cable be routed to minimize EMI effects?
A7: Use shielded triad wiring and maintain separation from high-frequency sources.
Q8: Can it be used in hazardous locations?
A8: Yes, with proper certifications (ATEX, IECEx, etc.).
Q9: What maintenance is needed?
A9: Periodic visual inspection and ensuring connectors remain sealed and undamaged.
Q10: How is the cable protected from moisture ingress?
A10: Use connector protectors or silicone tape included with the cable.
Related モデルs in the Same Series
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330930-045-01-00 | NSv Extension Cable, Armored | 4.5 m | ~0.288 kg |
| 330930-060-01-00 | NSv Extension Cable, Armored | 6.0 m | ~0.345 kg |
| 330930-065-01-00 | NSv Extension Cable, Armored | 6.5 m | ~0.373 kg |
| 330930-040-06-00 | NSv Extension Cable, FluidLoc, Non-armored | 4.0 m | ~0.240 kg |
| 330930-040-02-00 | NSv Extension Cable, Unarmored | 4.0 m | ~0.210 kg |
| 330930-070-01-00 | NSv Extension Cable, Armored | 7.0 m | ~0.402 kg |
Popular モデルs from Bently Nevada
| モデル Number | 説明 | Application |
|---|---|---|
| 330104-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe | Standard vibration monitoring |
| 330180-91-CN | 3300 XL Proximitor Sensor | General-purpose condition monitoring |
| 330105-02-12-10-02-00 | Reverse Mount Probe | Axial position in tight spaces |
| 3500/42M | Proximitor Seismic Monitor Module | Machinery protection |
| 3500/22M | Transient Data Interface Module | Data acquisition and diagnostics |
| 330130-040-00-00 | Extension Cable for 5 mm Probe | Vibration monitoring systems |
