製品紹介

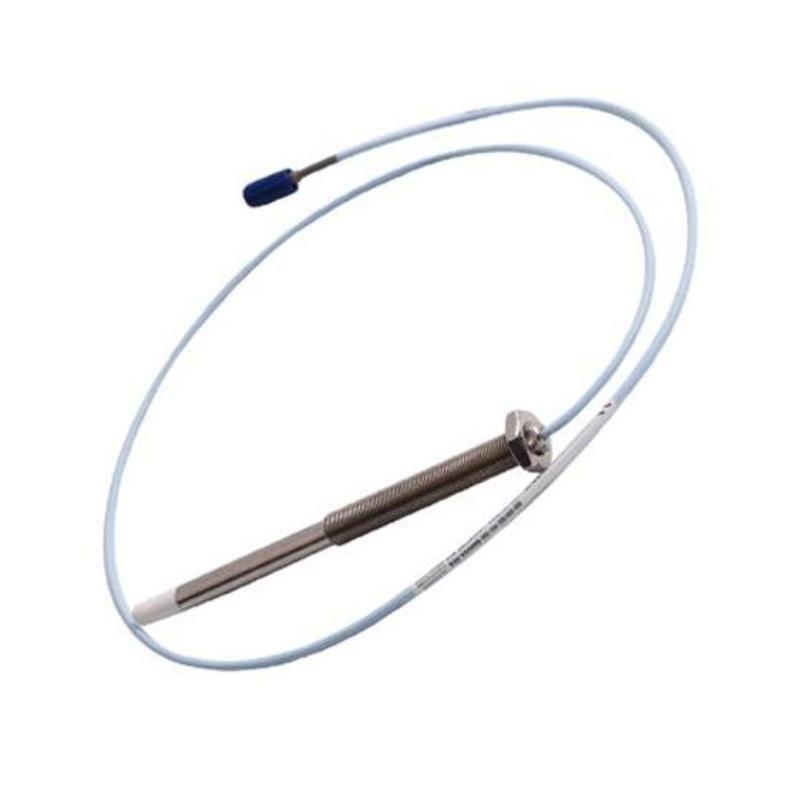

The Bently Nevada 330909-00-99-10-02-00 is a high-precision 3300 NSv (Narrow Side View) proximity probe designed for monitoring shaft vibration and displacement in critical rotating machinery. Engineered for environments where space is limited, this probe /fers a compact and reliable solution with a total length / 1 meter and a lightweight design weighing only 0.3 kg.
Built with advanced eddy current sensing technology, it provides accurate, non-contact measurement / shaft movement, essential for predictive maintenance and machinery protection. The probe’s narrow side view (NSv) configuration makes it ideal for installations in tight spaces where traditional probes cannot fit.
Constructed with a rugged stainless steel housing and hermetically sealed to withstand harsh industrial conditions, this model meets rigorous industry standards for durability and performance, making it a trusted choice in power plants, petrochemical facilities, oil and gas operations, and heavy manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | 330909-00-99-10-02-00 |
| Product Series | 3300 NSv Proximity Probe |
| Sensor Type | Eddy Current (Non-contact) |
| Probe Configuration | Narrow Side View (NSv) |
| Total Length | 1.0 meter |
| Probe Tip Diameter | 10 mm (metric) |
| Thread Size | M10 x 1.5 |
| Measurement Range | ±0.127 mm linear range |
| Sensitivity | Approximately 7.87 mV/μm |
| Housing Material | Stainless Steel |
| Operating Temperature | –35°C to +175°C |
| Environmental Protection | Hermetically sealed |
| Vibration Rating | Meets API 670 and IEC standards |
| Cable Connection | Integral cable with connector or extension options |
| 重量 | 0.3 kg |
| Compatibility | Compatible with Bently Nevada 3300 NSv drivers and extension cables |
Product Applications
The 330909-00-99-10-02-00 NSv probe is specifically designed for monitoring shaft vibration and displacement where traditional probes cannot be installed due to space constraints. It finds applications across multiple industries, including:
-
Gas and Steam Turbines: Effective monitoring / shaft position and vibration in confined spaces.
-
Compressors: Suitable for centrifugal and axial compressors with limited probe access.
-
Gearboxes: Ideal for compact gear trains requiring precise vibration measurement.
-
Turboexpanders: High-speed machinery monitoring with restricted installation areas.
-
Pumps and Motors: Enables reliable condition monitoring in tight or complex machine layouts.
-
OEM Machinery: サポートs custom equipment designs needing flexible probe configurations.
Product Advantages
-
Compact and Lightweight: At only 0.3 kg and 1 meter length, it’s easy to handle and install in limited spaces.
-
Narrow Side View Design: Allows installation where conventional probes cannot fit, increasing application flexibility.
-
High Accuracy: Measures shaft displacement within a ±0.127 mm linear range with high sensitivity.
-
Non-お問い合わせ Eddy Current Sensing: Prevents wear and reduces maintenance by avoiding shaft contact.
-
Rugged Construction: Stainless steel housing and hermetic sealing ensure durability in harsh environments.
-
Wide Temperature Range: Operates reliably between –35°C and +175°C.
-
Industry Compliance: Meets API 670 and IEC standards for machine protection and vibration monitoring.
-
Flexible Installation: Multiple cable and connector options support various field wiring requirements.
-
Long Service Life: Designed to withstand industrial vibration, shock, and contaminants.
-
Trusted ブランド: Backed by Bently Nevada’s proven expertise and global support network.
よくある質問 (FAQ)
Q1: What is the main feature / the 330909-00-99-10-02-00 probe?
A1: It features a narrow side view design for installation in tight spaces, with a 10 mm tip diameter.
Q2: What are the dimensions and weight / this probe?
A2: The total length is 1 meter, and the weight is 0.3 kg.
Q3: What measurement range does the probe /fer?
A3: It provides a ±0.127 mm linear range with high sensitivity.
Q4: What temperature range is this probe rated for?
A4: It operates reliably between –35°C and +175°C.
Q5: Is the probe compatible with standard 3300 NSv systems?
A5: Yes, it is compatible with Bently Nevada 3300 NSv drivers and extension cables.
Q6: What kind / sensing technology is used?
A6: It uses eddy current, a non-contact sensing method.
Q7: Can this probe be used in harsh industrial environments?
A7: Yes, it is hermetically sealed and built with stainless steel housing for durability.
Q8: Does the narrow side view affect measurement accuracy?
A8: No, the NSv design maintains accurate measurements despite the compact form factor.
Q9: How is the probe connected in the field?
A9: It has an integral cable and supports various connectors and extension options.
Q10: What standards does the probe meet?
A10: It meets API 670 and IEC standards for machinery protection and vibration monitoring.
Recommended モデルs – Same Series / Related
| モデル | 説明 | Key Feature |
|---|---|---|

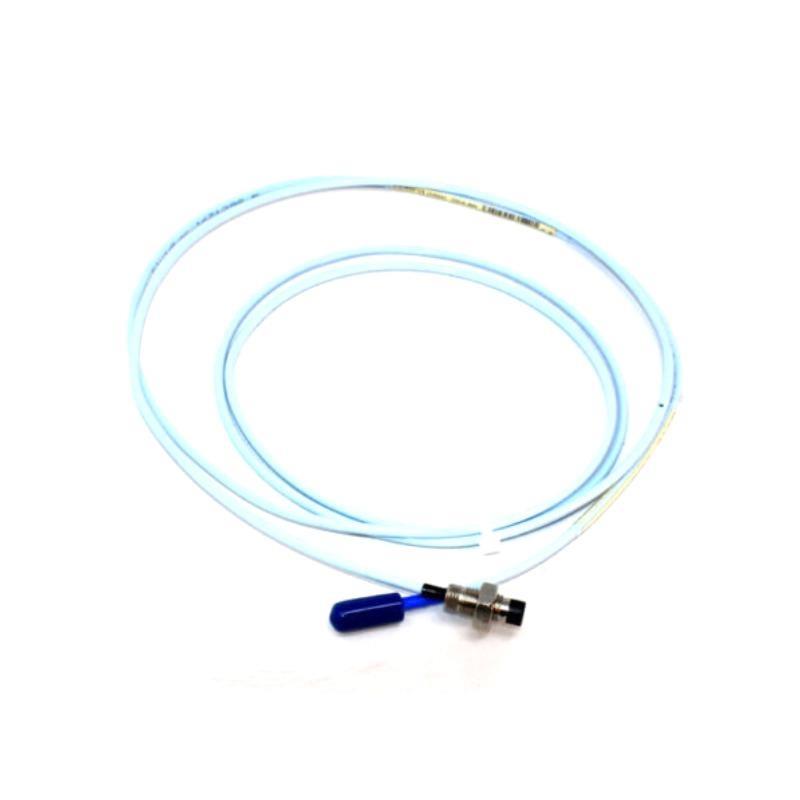

| 330909-00-60-10-02-05 | 3300 NSv Proximity Probe, 10 mm tip, 1 m length | Heavier, higher weight version |
