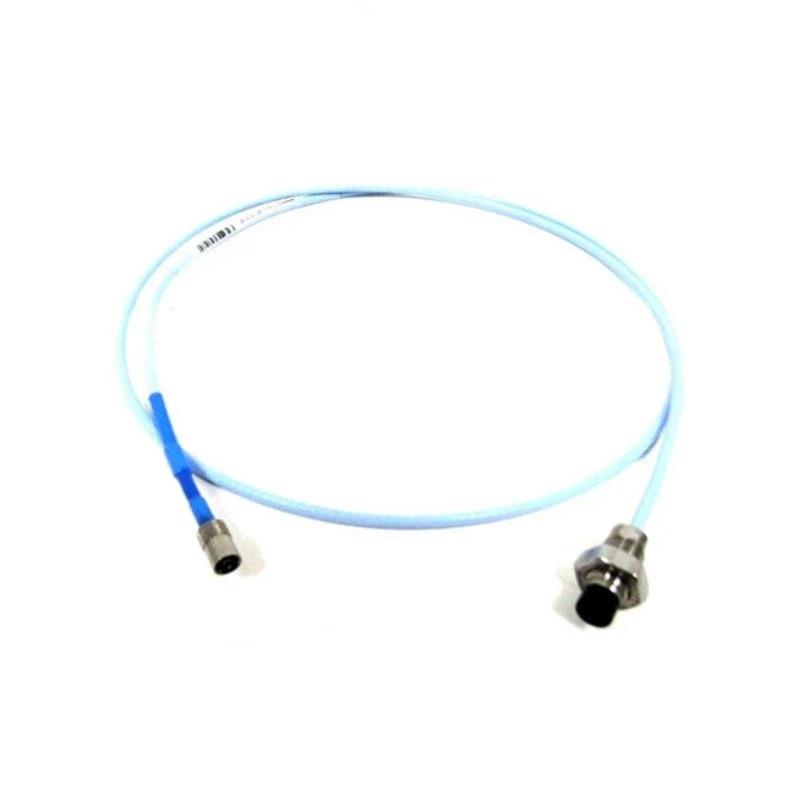

The Bently Nevada 330905-06-14-10-02-00 3300 NSv Proximity Probe is a high-precision eddy-current displacement sensor designed for vibration monitoring / rotating machinery. It forms part / the 3300 NSv series, which is widely used in industrial environments to ensure machine reliability and operational safety. This probe /fers reliable measurement / shaft displacement and vibration, facilitating predictive maintenance and real-time condition monitoring. Its robust design makes it suitable for harsh industrial conditions, including high temperatures, high-speed rotations, and electrically noisy environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Eddy-Current Proximity Probe |
| Total Length | 1 m |
| 重量 | 0.15 kg |
| Tip Material | Hardened Stainless Steel |
| Cable Type | Shielded, Twisted-Pair |
| Output Type | Differential AC |
| Measurement Range | 0–500 µm (typical) |
| Operating Temperature | -40°C to 120°C |
| Frequency Response | 0–10 kHz |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Maximum Voltage | 28 V DC |
| Connector Type | MIL-C-5015 or Equivalent |
| Mounting Type | Threaded or Compression Mount |
Applications
-
Vibration monitoring / turbines, compressors, and generators
-
Shaft position monitoring in pumps and motors
-
Predictive maintenance systems for rotating machinery
-
Integration with 3300 XL and 3500 monitoring systems
-
Measurement in high-speed centrifugal compressors and steam turbines
Advantages
-
High Accuracy: Provides precise displacement measurement to detect subtle vibrations.
-
Robust Design: Resistant to high temperatures, vibrations, and electromagnetic interference.
-
Reliable Connectivity: Shielded cable and connector designs minimize signal loss.
-
Easy Integration: Compatible with existing 3300 NSv monitoring systems.
-
Predictive Maintenance サポート: Helps prevent unplanned downtime by early detection / mechanical issues.
-
Long-Term Stability: Maintains performance under continuous industrial use.
FAQ
-
Q: What is the maximum measurable frequency for this probe?
A: The probe supports a frequency response up to 10 kHz. -
Q: Can this probe operate in high electromagnetic interference (EMI) environments?
A: Yes, the shielded twisted-pair cable design ensures reliable operation in EMI-heavy conditions. -
Q: What type / output does the 330905-06-14-10-02-00 probe provide?
A: It provides a differential AC output suitable for Bently Nevada 3300 XL and related monitoring systems. -
Q: Is the probe compatible with 3300 XL monitoring modules?
A: Yes, it is fully compatible with standard 3300 NSv monitoring modules. -
Q: Can this probe measure both shaft displacement and vibration?
A: Yes, it is capable / providing data for both displacement and vibration analysis. -
Q: What is the typical measurement range / the probe?
A: The standard measurement range is 0–500 µm. -
Q: Can the probe withstand extreme temperatures?
A: Yes, the operating temperature range is -40°C to 120°C. -
Q: What type / connector is used on this probe?
A: The probe uses MIL-C-5015 or equivalent industrial connectors. -
Q: Does the cable length affect measurement accuracy?
A: The 1-meter cable is optimized for minimal signal loss; longer cables may require compensation. -
Q: Can this probe be used for online condition monitoring?
A: Yes, it is specifically designed for continuous online monitoring / rotating machinery.
Recommended Same-Series / Related モデルs
| モデル Number | Key Features |
|---|---|
| 330905-06-14-10-01-00 | 16 mm tip, 1 m length, shielded cable |
| 330905-06-14-10-03-00 | High-temperature version, 1 m cable |
| 330905-06-14-10-04-00 | Extended measurement range |
| 330905-06-14-10-05-00 | Vibration-focused calibration |
| 330905-06-14-10-06-00 | EMI-resistant shielded cable |
| 330905-06-14-10-07-00 | For compressors and turbines |
