Product Overview

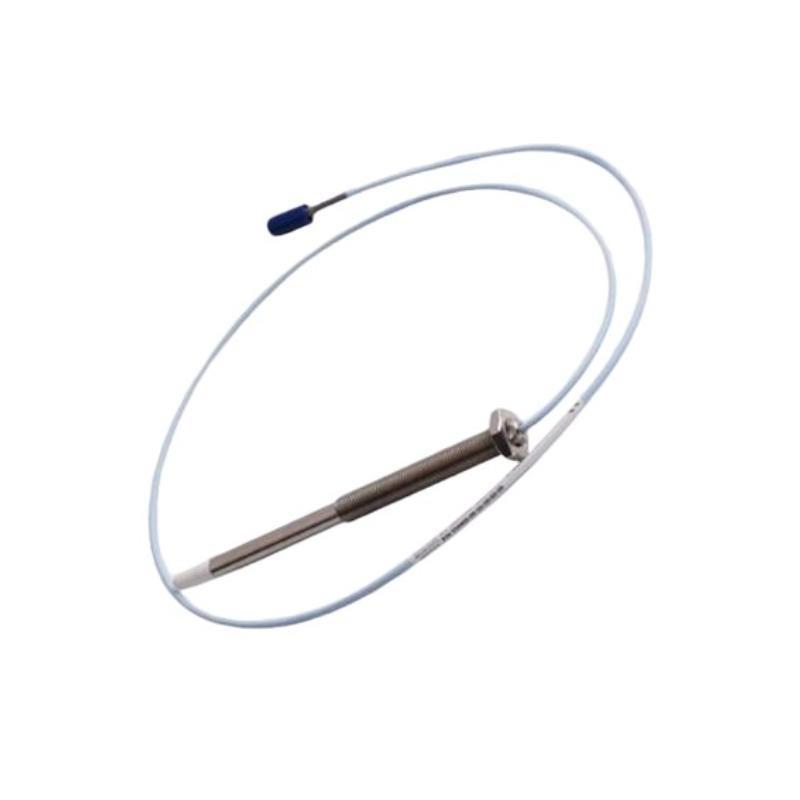

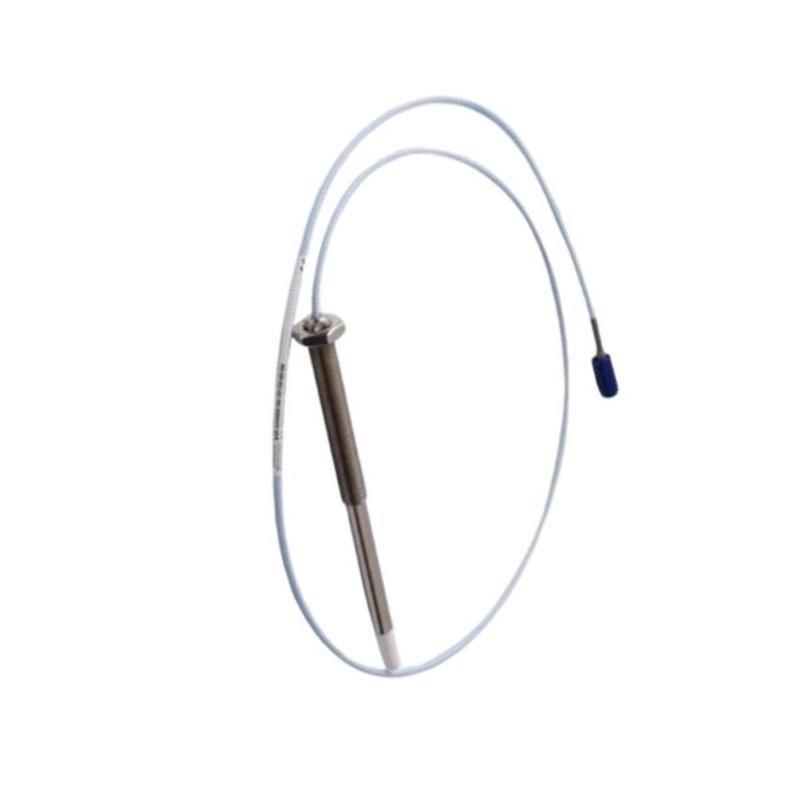

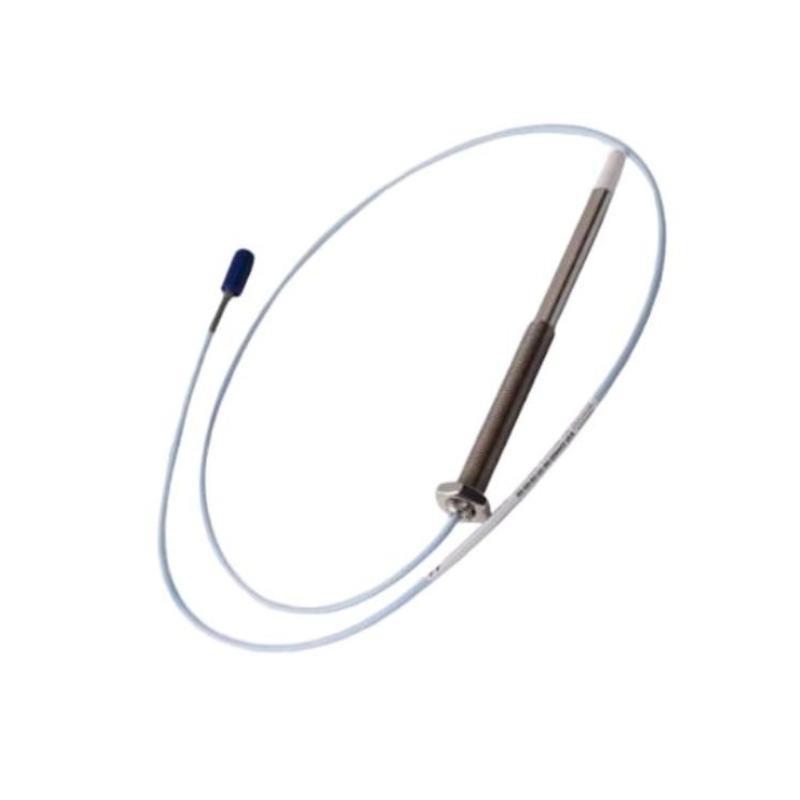

The Bently Nevada 330904-00-03-70-01-CN is an 8 mm eddy current proximity probe from the 3300 NSv series, engineered for precise vibration and shaft displacement monitoring in industrial machinery. It provides high sensitivity and reliability in critical applications, ensuring accurate condition monitoring and machinery protection. Its design allows for tight side-view installations and full compatibility with prior 3300 NSv and RAM probe models.
Key Features
-
High Accuracy: Measures displacement with a linear range / 1.5 mm
-
Side-View Capability: Optimized for constrained installation spaces
-
Interchangeability: Fully compatible with previous 3300 NSv and RAM probes
-
Eddy Current Sensing: High-resolution eddy-current sensor for precise vibration detection
-
ClickLoc Connector: Miniature coaxial connector for secure and reliable connections
Technical Specifications
| Specification | Details |
|---|---|
| モデル | 330904-00-03-70-01-CN |
| Series | 3300 NSv |
| Thread Size | M8x1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Cable Length | 3.0 meters |
| Connector Type | ClickLoc miniature coaxial |
| Linear Range | 1.5 mm |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Temperature Range | -52°C to +177°C (-62°F to +351°F) |
| Frequency Response | 0–10 kHz |
| Resistance | 4.0Ω ±0.5Ω |
| Dimensions | Total Length : 7.0 meters |
| 重量 | 0.15 kg |
よくある質問 (FAQ)
1. What is the primary purpose / the 330904-00-03-70-01-CN probe?
It is designed for precise vibration and displacement monitoring to support condition-based machinery maintenance.
2. What is the linear range / the probe?
The probe provides a linear range / 1.5 mm for accurate measurements.
3. What is the scale factor?
The scale factor is 7.87 V/mm (200 mV/mil).
4. What is the operating temperature range?
The probe operates between -52°C and +177°C (-62°F to +351°F).
5. What type / connector does the probe use?
It uses a ClickLoc miniature coaxial connector for reliable connectivity.
6. Is the probe compatible with previous 3300 NSv or RAM models?
Yes, it is mechanically and electrically interchangeable with previous 3300 NSv and RAM probes.
7. What are the dimensions / the probe?
Total Length : 7.0 meters.
8. What is the weight / the probe?
The probe weighs approximately 0.15 kg.
