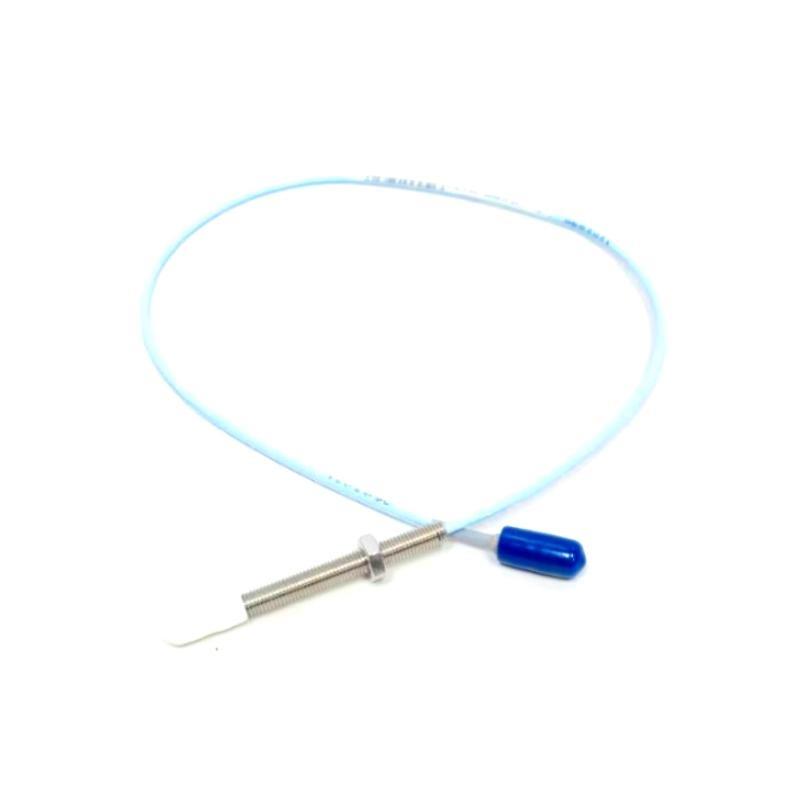

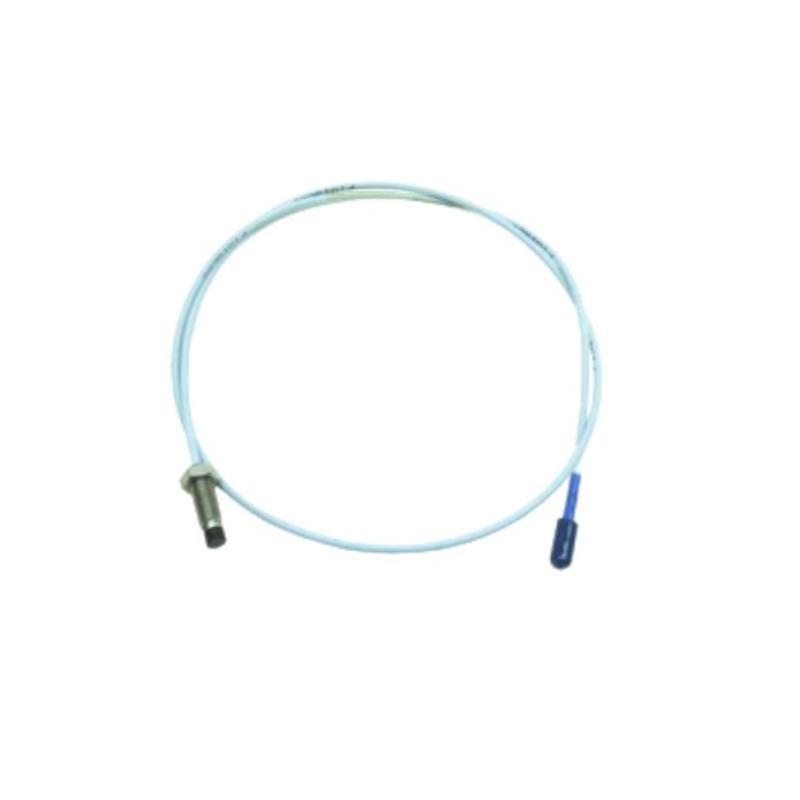

The Bently Nevada 330901-00-90-10-02-05 3300 NSv Proximity Probe is a specialized sensor designed for accurate shaft vibration and position measurements in industrial machinery where space is limited. As part / the 3300 NSv (Narrow Side-view) series, this probe is particularly well-suited for small machines such as gearboxes, compressors, pumps, and turbines where conventional proximity probes cannot be installed due to dimensional constraints. It delivers reliable data acquisition that integrates seamlessly with Bently Nevada monitoring systems, enabling continuous condition monitoring and machinery protection.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル Number | 330901-00-90-10-02-05 |
| Series | 3300 NSv Proximity Probe |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Linear Range | 0.25 – 1.9 mm (10 – 75 mils) |
| Frequency Range | 0 – 10 kHz |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Body Material | Stainless Steel |
| Mounting Thread | M8 × 1 |
| Power Requirement | Supplied via Proximitor Sensor |
| Operating Temperature | –35 °C to +180 °C |
| Total Length | 1 m |
| 重量 | 3 kg |
Product Applications
The 330901-00-90-10-02-05 proximity probe is widely applied in industrial machinery monitoring. Typical applications include:
-
Turbomachinery: Detecting shaft displacement and vibration for predictive maintenance.
-
Compressors and Pumps: Monitoring radial and axial shaft movements in small-frame machines.
-
Gearboxes: Measuring vibration in compact housings where standard probes cannot fit.
-
Motors and Generators: Protecting rotating assets from damage due to shaft misalignment or unbalance.
-
Industrial Fans and Blowers: Ensuring balanced operation to reduce downtime.
Product Advantages
-
Compact Size: Narrow-body design enables installation in small spaces.
-
High Accuracy: Provides precise vibration and displacement readings with consistent linear response.
-
Reliability: Engineered for continuous operation in harsh industrial environments.
-
Compatibility: Seamlessly integrates with Bently Nevada 3300 series Proximitor sensors and monitoring systems.
-
Durability: Constructed with corrosion-resistant materials for long service in demanding applications.
-
Extended Monitoring Capability: Long cable length (9 m) provides installation flexibility without signal degradation.
FAQ
Q1: What is the sensitivity calibration / the 330901-00-90-10-02-05 probe?
A1: It is factory-calibrated at 7.87 mV/µm (200 mV/mil).
Q2: How does this probe connect to the Proximitor sensor?
A2: It uses a 2 mm coaxial connector designed for compatibility with the matching 3300 NSv Proximitor.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, it supports operation from –35 °C to +180 °C.
Q4: What is the primary frequency response range?
A4: It covers 0 to 10 kHz for accurate vibration detection.
Q5: How is linearity maintained over the measurement range?
A5: The probe ensures linear response from 0.25 to 1.9 mm (10–75 mils).
Q6: Is the probe shielded against electromagnetic interference?
A6: Yes, it is designed with shielding to minimize noise and ensure stable readings.
Q7: Which Proximitor modules are compatible with this probe?
A7: It is specifically matched with 3300 NSv Proximitor modules for optimum performance.
Q8: What type / thread is used for mounting?
A8: It uses M8 × 1 threads for secure installation.
Q9: How does the probe handle long cable runs?
A9: The factory-matched 9 m cable is calibrated to avoid signal loss or phase errors.
Q10: Is it suitable for axial position measurement as well as radial vibration?
A10: Yes, it can be used for both radial and axial shaft position monitoring depending on installation.
Recommended Same-Series or Related モデルs
| モデル Number | 説明 | Cable Length | Application |
|---|---|---|---|
| 330901-00-90-05-02-05 | 3300 NSv Probe | 5 m | Compact machinery vibration monitoring |
| 330901-05-32-05-02-00 | 3300 NSv Probe | 5 m | Gearbox and pump applications |
| 330901-10-40-10-02-00 | 3300 NSv Probe | 10 m | Extended installation range |
| 330901-11-43-05-02-00 | 3300 NSv Probe | 5 m | Short cable, tight-space installations |
| 330901-20-32-10-02-05 | 3300 NSv Probe | 10 m | High-frequency applications |
| 330901-00-41-05-02-00 | 3300 NSv Probe | 5 m | General-purpose small machine monitoring |
Popular モデルs from the Same ブランド
| モデル Number | 説明 | Key Feature | Application |
|---|---|---|---|
| 330103-00-12-10-02-05 | Standard Proximity Probe | General purpose | Turbomachinery monitoring |
| 330104-00-09-10-02-05 | Proximity Probe | Short probe tip | Pumps and fans |
| 330106-05-30-10-02-05 | Proximity Probe | Long cable length | Remote installations |
| 330130-045-00-00 | Extension Cable | High durability | Cable extension for probes |
| 330500-02-00 | Proximitor Sensor | NSv series compatible | Signal conditioning |
| 330780-91-05 | Accelerometer | High-frequency vibration | Gearbox monitoring |
| 330180-51-05 | Velomitor Sensor | Velocity monitoring | Low-frequency machinery |
| 3500/42M | Proximitor Monitor | 4-channel | Machinery protection system |
