製品紹介

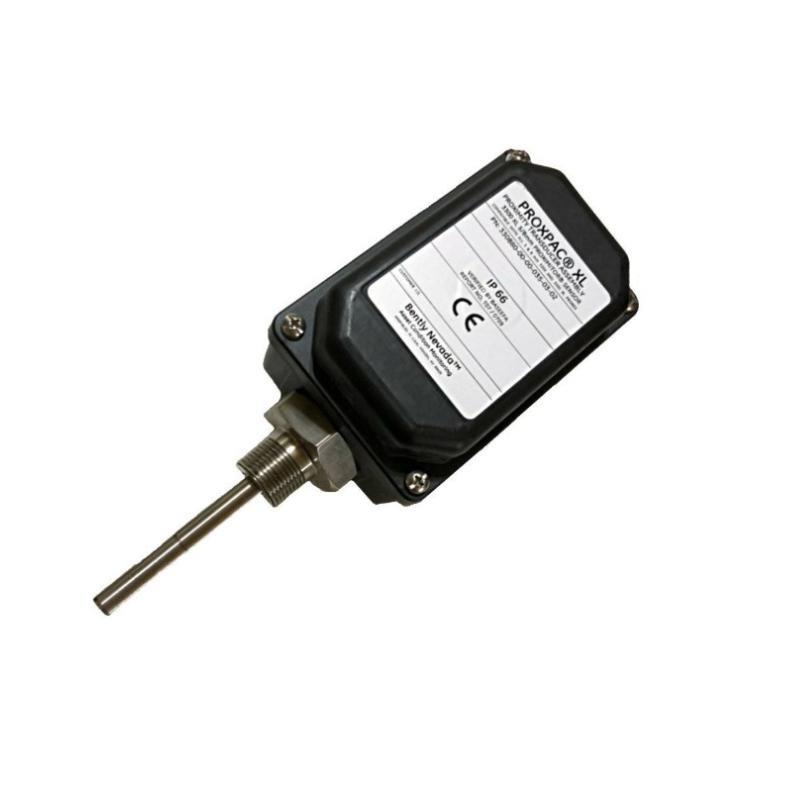

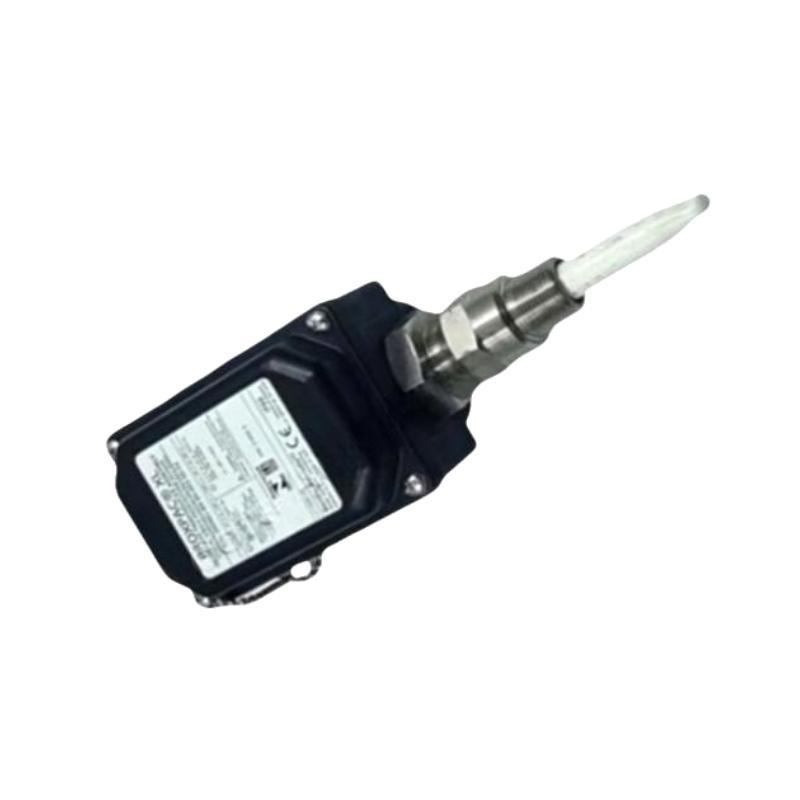

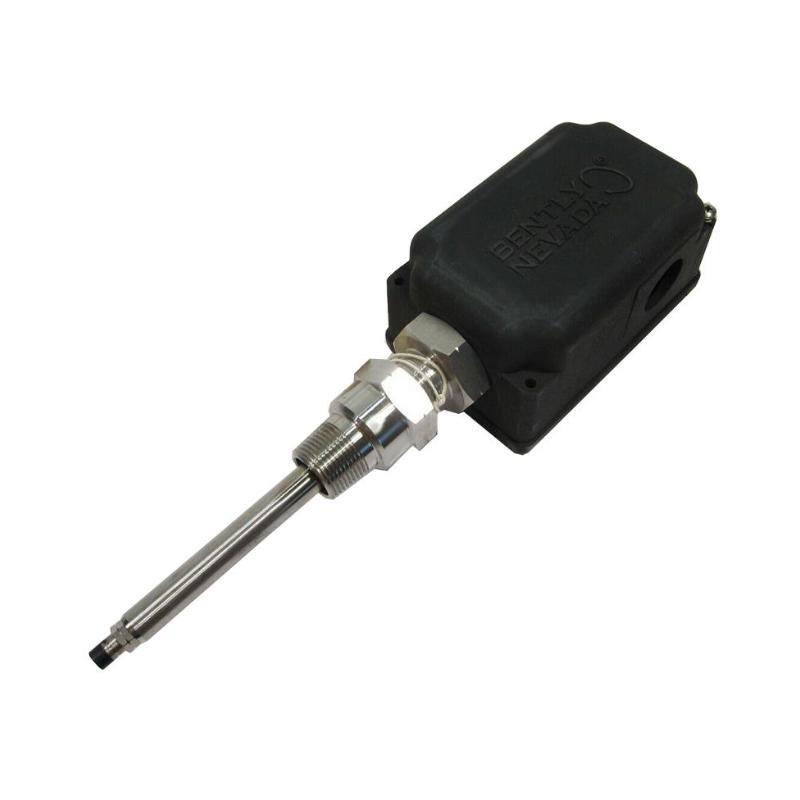

The Bently Nevada 330881-28-05-114-03-02 PROXPAC XL Proximity Sensor is a high-performance vibration and displacement monitoring device designed for industrial machinery protection and condition monitoring. Built for critical rotating equipment such as turbines, compressors, pumps, and motors, it ensures precise non-contact measurement / shaft vibration and position.
This model is part / the PROXPAC XL family, known for its robust design, high accuracy, and compatibility with Bently Nevada monitoring systems. With enhanced noise imm台y and a rugged enclosure, it is suitable for challenging environments where reliability and precision are paramount.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル Number | 330881-28-05-114-03-02 |
| Series | PROXPAC XL |
| Sensor Type | Proximity Probe |
| Measurement Range | 200 μm (typical) |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Probe Tip Diameter | 8 mm |
| Power Supply | -24 V DC (via driver) |
| Operating Temperature | -35 °C to +180 °C |
| Dimensions | 91.4 x 144.8 mm |
| 重量 | 1.44 kg |
| Mounting Type | Panel / Rack Mount |
| Compatible Systems | Bently Nevada 3500 and other monitoring platforms |
Product Applications
-
Turbomachinery monitoring: Gas turbines, steam turbines, hydro turbines.
-
Compressors and pumps: Monitoring shaft vibration and displacement.
-
Generators and motors: Detecting shaft position changes and imbalance.
-
Industrial condition monitoring systems: Integration with Bently Nevada 3500 series.
-
Critical asset protection: Preventing catastrophic failures through early detection.
Product Advantages
-
High Accuracy: Ensures reliable shaft vibration and position measurements.
-
Wide Compatibility: Works seamlessly with Bently Nevada 3500 systems and other monitoring solutions.
-
Rugged Design: Withstands harsh industrial conditions with extended temperature range.
-
Noise Imm台y: Designed to minimize electrical interference in high-noise environments.
-
Easy Integration: Modular configuration allows quick installation and replacement.
-
Long-Term Reliability: Proven durability in continuous operation for rotating machinery.
FAQ
Q1: What is the output sensitivity / the 330881-28-05-114-03-02 sensor?
A1: The sensor provides an output sensitivity / approximately 200 mV/mil (7.87 mV/μm).
Q2: Can this sensor be used with the Bently Nevada 3500 monitoring system?
A2: Yes, it is fully compatible with Bently Nevada 3500 machinery protection systems.
Q3: What is the frequency response range / this sensor?
A3: The sensor supports a frequency response from DC up to 10 kHz.
Q4: How does the sensor handle electrical noise?
A4: The PROXPAC XL design incorporates shielding and filtering for strong noise imm台y.
Q5: Is the probe suitable for high-temperature environments?
A5: Yes, it can operate reliably within a temperature range / -35 °C to +180 °C.
Q6: How is the sensor powered?
A6: The probe receives its -24 V DC power through the associated driver module.
Q7: Can this sensor detect both vibration and shaft position?
A7: Yes, it is capable / detecting both relative shaft vibration and axial/ radial position.
Q8: What is the probe tip diameter / this model?
A8: The probe tip diameter is 8 mm, suitable for a variety / shaft monitoring applications.
Q9: Does this sensor require calibration?
A9: Yes, calibration is required during installation to ensure accurate measurements.
Q10: What monitoring alarms can be configured with this sensor?
A10: Alarms such as vibration amplitude, shaft displacement, and axial position can be configured via the monitoring system.
Recommended Same-Series or Related モデルs
| モデル Number | 説明 |
|---|---|
| 330881-28-04-090-03-02 | PROXPAC XL Proximity Sensor, alternative configuration |
| 330881-28-00-55-03-00 | PROXPAC XL Proximity Sensor, standard range |
| 330881-28-10-087-03-02 | PROXPAC XL Proximity Sensor, extended range |
| 330881-28-00-164-07-02 | PROXPAC XL Proximity Sensor, high-sensitivity variant |
| 330880-28-20-038-00-02 | PROXPAC XL Proximity Sensor, general-purpose |
| 330103-17-22-10-12-05 | Bently Nevada Proximity Probe, related series |
Popular モデルs from the Same ブランド
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 3500/42M | Proximitor/Seismic Monitor | Advanced vibration monitoring |
| 3500/22M | Transient Data Interface | High-speed machinery data capture |
| 3500/94 | VGA Display Module | Rack display for monitoring systems |
| 330130-080-00 | Proximity Probe | General-purpose probe, 8 mm tip |
| 330180-51-05 | Proximitor Sensor | Standard proximitor driver |
| 330850-50-05 | Proximity Transducer | Extended temperature range |
| 3500/92 | Communication Gateway | Data integration with control systems |
| 330103-00-05-10-02-05 | Proximity Probe | Compatible with 3500 monitoring systems |
