Product Overview

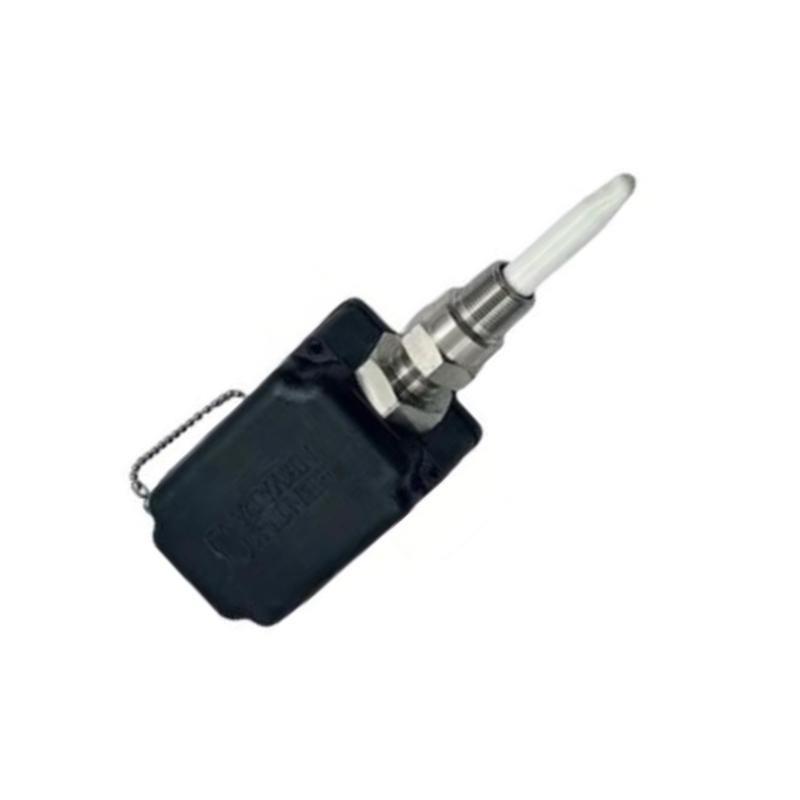

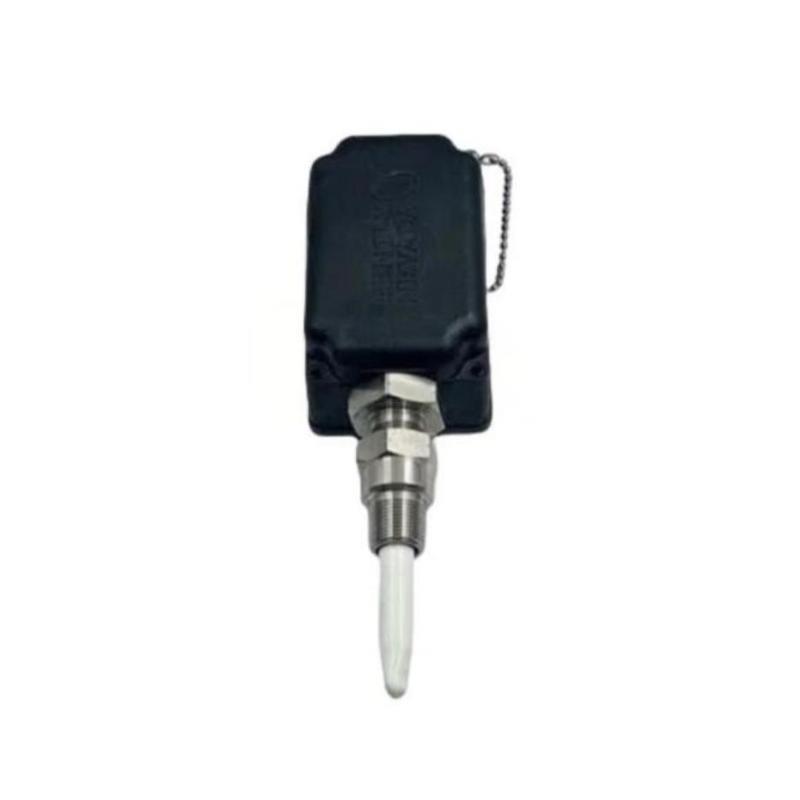

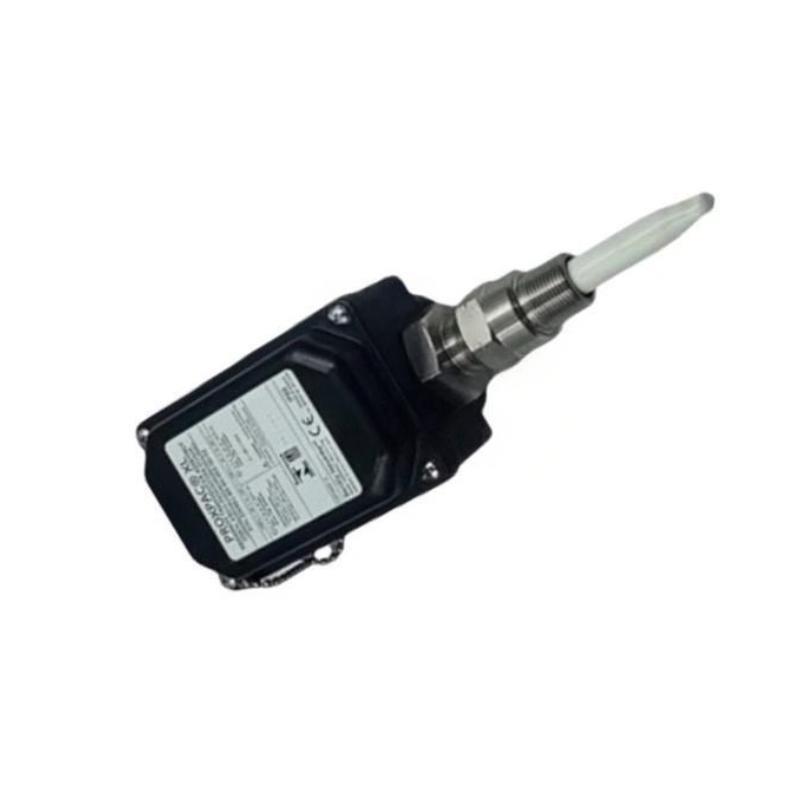

The Bently Nevada 330881-28-00-165-07-02 PROXPAC XL Proximity Sensor is an integrated transducer assembly that combines a 3300 XL 8 mm probe with a Proximitor sensor into a single sealed housing. This design eliminates the need for an extension cable or separate Proximitor housing, simplifying installation and reducing potential points / failure.
Key Features
-
Integrated 3300 XL 8 mm probe and Proximitor sensor in one assembly
-
Eliminates the need for extension cables or separate housings
-
Durable PPS housing reinforced with glass and conductive fibers
-
Environmental protection rated to Type 4X and IP66
-
M10×1 threaded mounting for easy installation
-
Direct field wiring to the monitoring system
-
Designed for continuous monitoring in harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| モデル | 330881-28-00-165-07-02 |
| Probe Type | 3300 XL 8 mm |
| Probe Penetration | 165 mm |
| Mounting Thread | M10×1 |
| Housing Material | PPS reinforced with glass and conductive fibers |
| Environmental Rating | IP66 / Type 4X |
| Operating Voltage | −17.5 VDC to −26 VDC |
| Current Consumption | ≤12 mA |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.3 mm |
| Recommended Gap | 2.0 mm |
| 重量 | 1.44 kg |
| Dimensions | 91.4 x 144.8 mm |
よくある質問 (FAQ)
1. What is the purpose / the PROXPAC XL assembly?
It integrates a 3300 XL 8 mm probe with a Proximitor sensor into a single sealed housing, simplifying installation and reducing potential points / failure.
2. What materials are used in the housing?
The housing is constructed from Polyphenylene Sulfide (PPS), reinforced with glass and conductive fibers, providing enhanced strength and electrostatic dissipation.
3. What environmental ratings does the assembly have?
It is rated for Type 4X and IP66 environments, /fering extra protection in severe conditions.
4. How is the assembly mounted?
It features an M10×1 threaded mounting for easy installation on machine casings.
5. Is an extension cable required?
No, the field wiring connects directly to the monitoring system, eliminating the need for an extension cable.
6. What is the probe penetration length?
The probe penetration is 165 mm.
7. What is the linear range / the sensor?
The sensor has a linear range / 0.25 mm to 2.3 mm.
8. What is the typical sensitivity / the sensor?
The sensitivity is 7.87 mV/μm (200 mV/mil).
