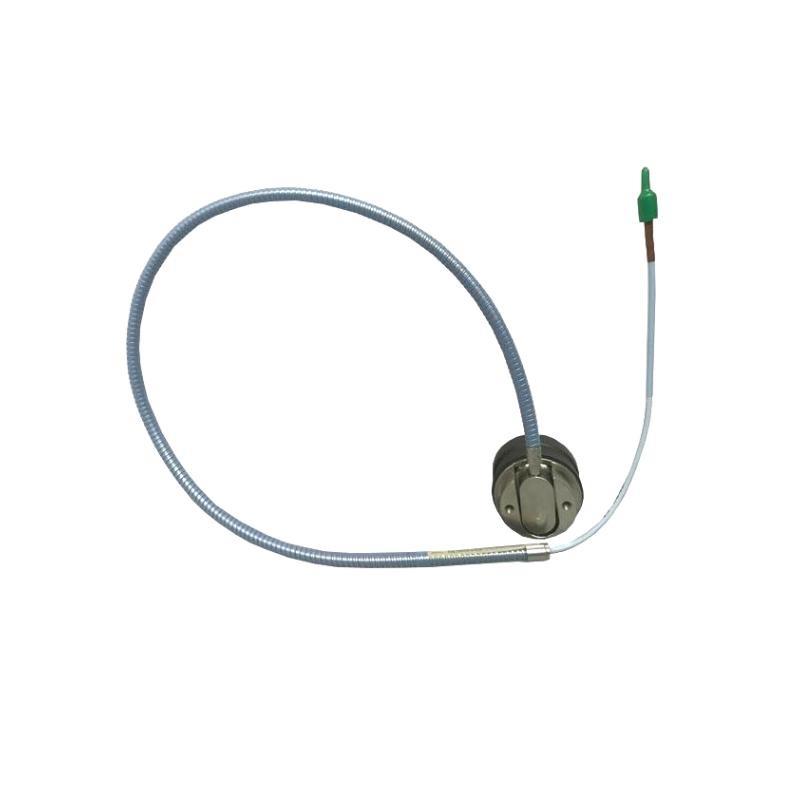

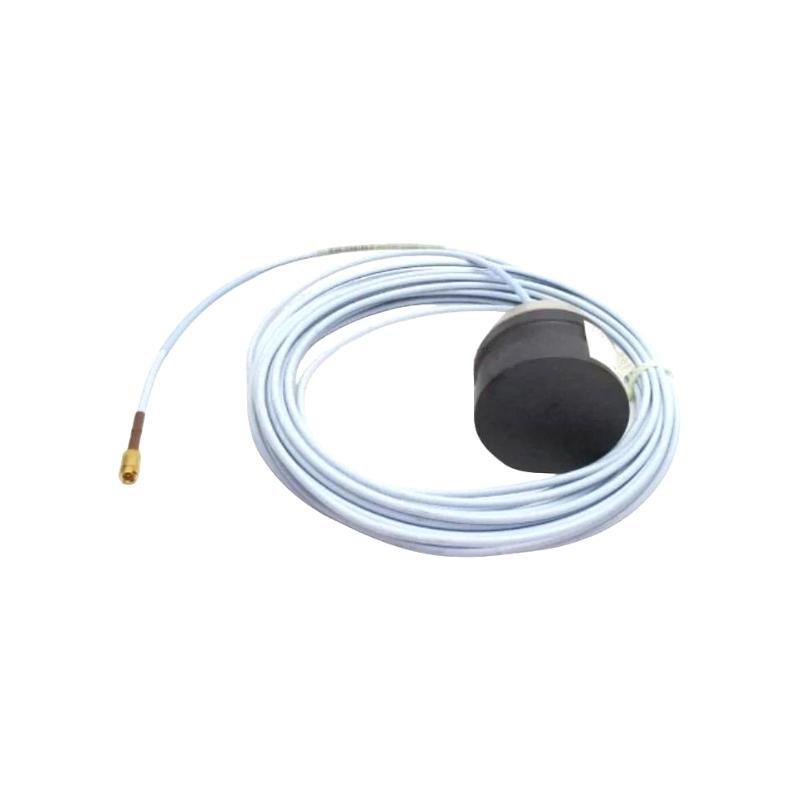

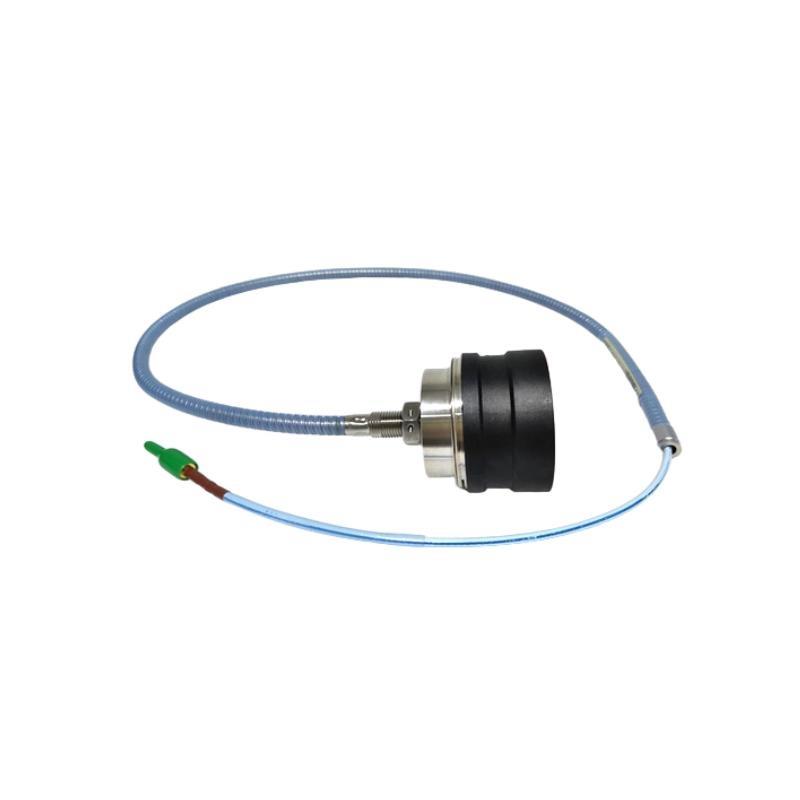

The Bently Nevada 330876-01-90-00-05 is a 50mm Eddy Current Probe from the 3300 XL series, designed for high-precision displacement and vibration measurements. This probe is used in machinery condition monitoring to detect the displacement / rotating shafts or other equipment components. The eddy current technology utilized by this probe provides accurate, non-contact measurement, making it ideal for critical applications where contact sensors cannot be used due to operational constraints or environmental factors.
The 3300 XL 50mm Eddy Current Probe is part / the Bently Nevada series known for its reliability and precision. It is used in industries such as power generation, oil & gas, mining, and manufacturing, where large rotating machinery needs constant monitoring. This probe is designed to provide real-time data that enables early detection / potential issues like misalignment, imbalance, or bearing wear, preventing unplanned downtime and reducing maintenance costs.
製品仕様
| Specification | Value |
|---|---|
| モデル | Bently Nevada 330876-01-90-00-05 |
| Probe Type | Eddy Current Probe (50 mm) |
| Probe Size | 50 mm diameter |
| Total Length | 9.0 meters |
| 重量 | 3 kg |
| Material | Stainless Steel |
| Temperature Range | -40°C to +120°C |
| Mounting Type | Surface Mount |
| Signal Type | 4-20mA Output |
| Operating Voltage | 10-30 VDC |
| Measurement Range | 0-50 mm |
| Accuracy | ±0.05 mm |
Applications
The 3300 XL 50mm Eddy Current Probe is highly versatile and can be used in a wide range / applications that require precise, non-contact measurement / displacement or vibration. These include:
-
Vibration Monitoring: This probe is used for monitoring vibration levels in rotating machinery, including motors, turbines, pumps, and compressors. It helps detect early signs / imbalance or misalignment that could lead to failure.
-
状態 Monitoring: It is a key component in condition monitoring systems, where it continuously measures displacement and provides early warnings about equipment health.
-
Predictive Maintenance: By providing real-time data on the health / machinery, this probe allows for predictive maintenance, enabling scheduled repairs and preventing costly unscheduled downtime.
-
Machinery Protection: Integrated into a machinery protection system, the probe detects any deviation from normal operating conditions, helping protect equipment from potential damage.
-
Large Rotating Equipment: Ideal for large-scale equipment such as turbines, generators, and motors that require precise displacement measurement.
-
Oil & Gas, Power Generation, and Manufacturing: Commonly used in these industries where equipment failure can result in costly downtime, ensuring optimal performance / critical assets.
Advantages
-
Non-お問い合わせ Measurement: Unlike traditional proximity probes, the Eddy Current Probe operates without making physical contact with the machinery, ensuring that the probe does not wear out or damage the equipment.
-
High Precision: The 3300 XL 50mm Eddy Current Probe /fers ±0.05 mm accuracy, making it ideal for high-precision applications that require very fine measurements / displacement.
-
Wide Temperature Range: With an operational range from -40°C to +120°C, this probe is suitable for use in extreme environments where temperature variations are significant.
-
Durability: Constructed from stainless steel, the probe is highly resistant to corrosion and physical wear, ensuring long-lasting performance in industrial environments.
-
Real-Time Data: Provides continuous, real-time displacement data, allowing for immediate detection / faults or performance anomalies, which leads to better decision-making in maintenance planning.
-
Flexible Integration: With its 4-20mA output, the probe can be easily integrated into existing monitoring systems, /fering a flexible solution for data collection and analysis.
-
Cost Savings: By detecting issues early, the probe can help extend equipment life, reduce the need for costly emergency repairs, and minimize unplanned downtime, leading to significant savings in the long term.
FAQ
1. How does the 3300 XL Eddy Current Probe measure displacement?
The Eddy Current Probe uses the principle / eddy currents to detect the displacement between the probe and the surface / the rotating equipment. The probe induces a magnetic field, and any movement / the surface changes the magnetic field, which is then measured and converted into a displacement value.
2. What types / faults can the Eddy Current Probe detect?
The 3300 XL Eddy Current Probe is designed to detect faults like misalignment, imbalance, bearing wear, and other types / displacement-related issues in rotating machinery.
3. How is the probe mounted on machinery?
The 3300 XL Eddy Current Probe is mounted on the surface / the rotating equipment. It is designed for surface mounting, ensuring it can accurately measure displacement without the need for contact with the rotating shaft.
4. What is the output signal / the probe?
The probe provides a 4-20 mA output signal, which is standard in industrial monitoring systems, making it easy to integrate with other equipment and s/tware for real-time monitoring.
5. How does the probe handle high temperatures?
The 3300 XL Eddy Current Probe operates effectively in temperatures ranging from -40°C to +120°C, making it suitable for environments that experience extreme temperature fluctuations.
6. Is the probe suitable for use in harsh environments?
Yes, the probe is built with a stainless steel construction, making it highly resistant to corrosion, wear, and chemical exposure, ensuring it performs reliably in challenging industrial environments.
7. Can this probe be used for both vibration and displacement monitoring?
Yes, the 3300 XL Eddy Current Probe is ideal for both vibration and displacement monitoring, providing data that can be used to assess the condition / machinery and detect issues before they lead to failure.
8. What is the maximum measurement range / the probe?
The 3300 XL Eddy Current Probe has a measurement range / 0-50 mm, making it suitable for a variety / machinery sizes and applications.
9. How does the probe contribute to predictive maintenance?
By providing real-time data on the displacement and vibration / rotating machinery, the probe allows operators to detect anomalies early, enabling predictive maintenance strategies that prevent unexpected breakdowns.
10. Can the probe be used with existing Bently Nevada systems?
Yes, the 3300 XL Eddy Current Probe is fully compatible with Bently Nevada’s monitoring systems, including those that utilize a 4-20 mA output signal, enabling seamless integration into existing machinery monitoring setups.
