製品紹介

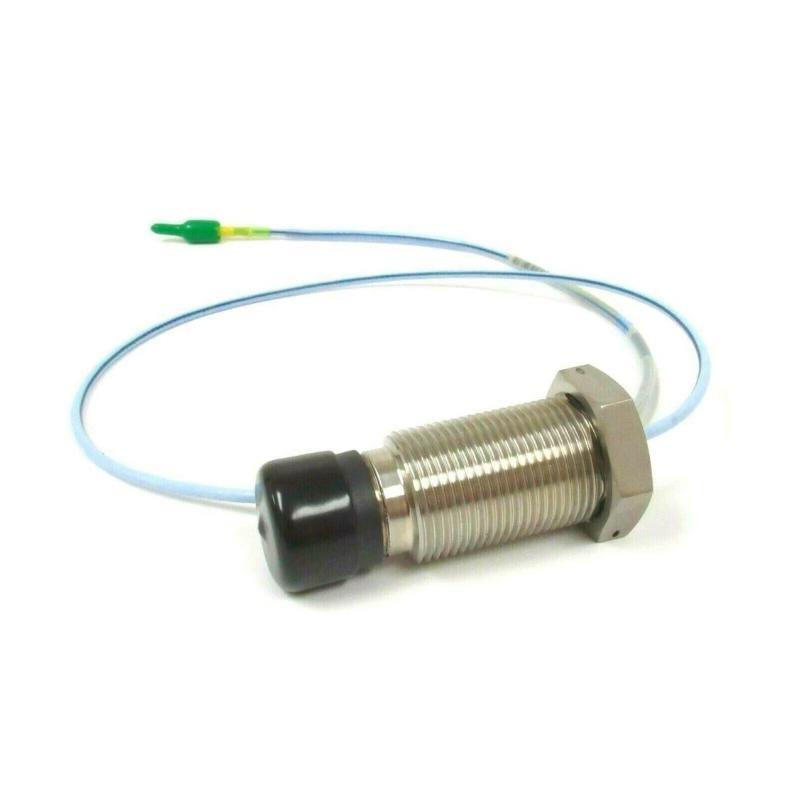

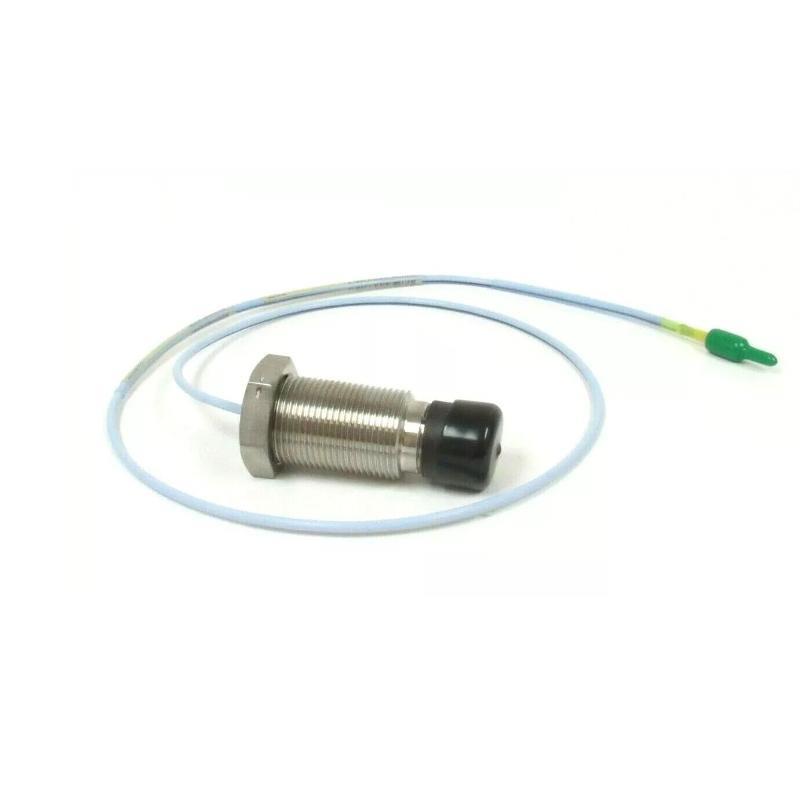

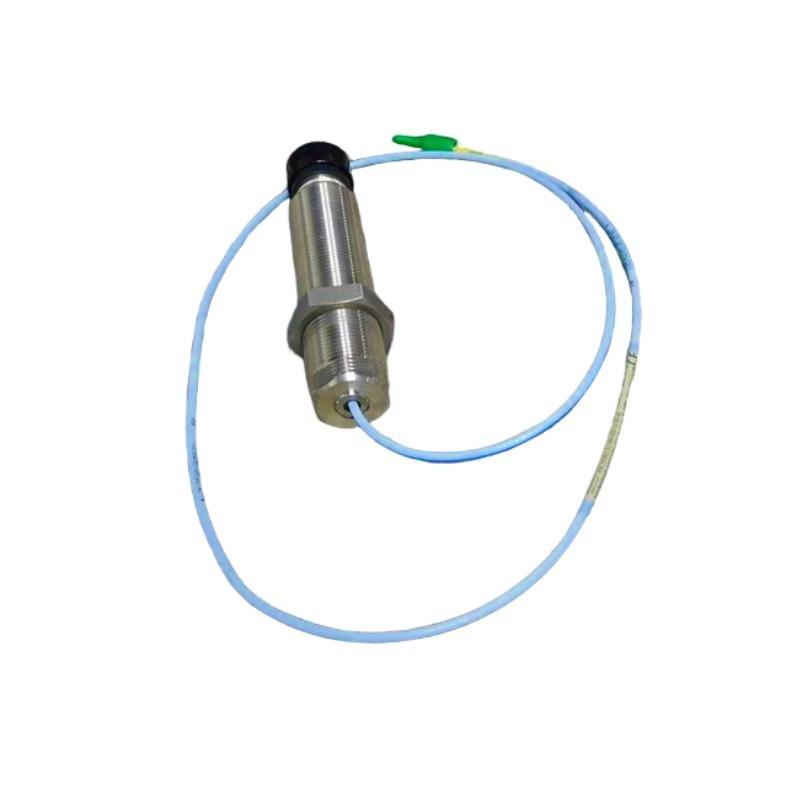

The Bently Nevada 330851-03-000-010-10-00-05 3300 XL 25 mm Proximity Probe is a high-precision vibration and position monitoring sensor specifically designed for heavy-duty industrial rotating machinery. This probe is part / the trusted 3300 XL series, known for delivering consistent and reliable measurements in harsh environments. It works in combination with extension cables and proximity sensor drivers to provide accurate shaft displacement and vibration readings.
Product Parameters
| Parameter | Value |
|---|---|
| モデル Number | 330851-03-000-010-10-00-05 |
| Series | 3300 XL |
| Probe Type | 25 mm Proximity Probe |
| Linear Range | 25 mm (1000 mils) |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 200 mV/mil (±5%) |
| Typical System Accuracy | ±0.25 mils or better |
| Operating Temperature | -35 °C to +180 °C |
| Total Length | 1 m |
| 重量 | 0.23 kg |
| Connector Type | Standard 3300 XL connector |
| Compliance | API 670, CE certified |
Product Applications
-
Turbomachinery: Gas turbines, steam turbines, hydro turbines.
-
Compressors: Centrifugal and reciprocating compressors.
-
Pumps & Motors: Large industrial pumps and electric drive motors.
-
Gearboxes: High-speed gearbox condition monitoring.
-
Generators: Shaft vibration and rotor dynamics monitoring.
-
Critical process equipment: Machinery requiring API 670 compliance.
Product Advantages
-
Extended Linear Range: Offers a full 25 mm range, suitable for larger shaft movements compared to standard probes.
-
High Reliability: Built for long-term operation in extreme conditions, including vibration, high temperatures, and electromagnetic interference.
-
API 670 Compliance: Meets the stringent requirements for machinery protection systems.
-
Interchangeable System Components: Fully compatible with 3300 XL extension cables and drivers, simplifying replacement and upgrades.
-
Stable Output: Consistent sensitivity and accuracy over the entire linear range.
-
Durability: Resistant to contamination, oil, and industrial environments.
FAQ
Q1: What is the main difference between the 25 mm probe and smaller range probes in the 3300 XL series?
A1: The 25 mm probe provides a larger linear measurement range, making it more suitable for machines with larger shaft movements compared to 8 mm or 11 mm probes.
Q2: Can this probe be directly connected to a monitor without an extension cable?
A2: No, it requires use with the appropriate extension cable and proximity sensor driver to function correctly.
Q3: Is the probe affected by temperature variations during operation?
A3: The probe is designed with compensation to minimize errors, ensuring accurate measurements across its specified temperature range.
Q4: What type / targets can the probe measure effectively?
A4: The probe is optimized for metallic targets, typically high-quality steel shafts as per API 670 standards.
Q5: Does the probe require calibration in the field?
A5: Factory calibration is provided, but system verification during installation is recommended to ensure accuracy.
Q6: Can multiple probes be installed on the same machine shaft?
A6: Yes, multiple probes are commonly used at 90° orientations for vibration and position monitoring.
Q7: What is the output signal format / the probe system?
A7: The probe outputs a voltage proportional to the gap distance, typically 200 mV per mil / shaft displacement.
Q8: How does the probe handle electrical noise in industrial environments?
A8: The 3300 XL series incorporates advanced shielding and grounding to minimize susceptibility to EMI/RFI interference.
Q9: Can the probe be used in hazardous area environments?
A9: Yes, with appropriate system certifications and installation practices, it can be applied in hazardous environments.
Q10: What is the maximum cable length supported in this system?
A10: Depending on configuration, up to 9 meters total length (probe + extension cable) can be used without loss / accuracy.
Recommended Same-Series or Related モデルs
| モデル Number | 説明 |
|---|---|
| 330851-02-000-010-10-00-05 | 3300 XL 25 mm Proximity Probe, 2 m length |
| 330851-05-000-010-10-00-05 | 3300 XL 25 mm Proximity Probe, 5 m length |
| 330850-90-05 | 3300 XL Extension Cable, 5 m |
| 330850-90-09 | 3300 XL Extension Cable, 9 m |
| 3300XL 8 mm Probe (330103) | Standard 8 mm Proximity Probe |
| 3300XL 11 mm Probe (330712) | Extended range 11 mm Proximity Probe |
Popular モデルs from the Same ブランド
| モデル Number | 説明 |
|---|---|
| 330103-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe |
| 330130-080-00-05 | 3300 XL Extension Cable, 8 m |
| 330180-91-05 | 3300 XL Proximitor Sensor |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/32M | Relay Module |
| 3500/25 | Keyphasor Module |
| 3500/15 | Power Supply Module |
