製品紹介

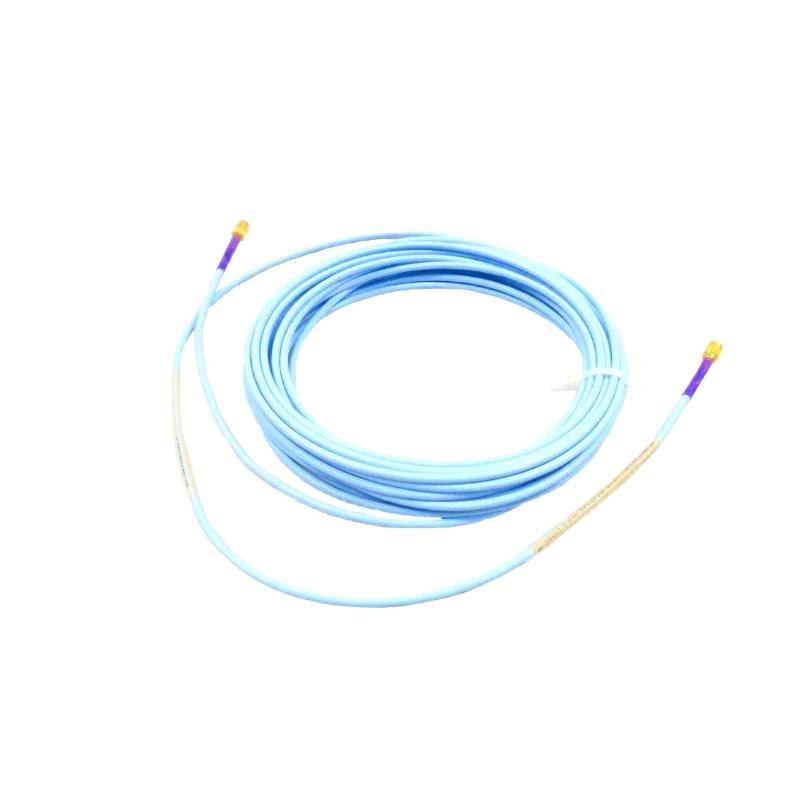

The Bently Nevada 330730-080-03-CN is a premium 8.0-meter (26.2 feet) armored extension cable, designed as a critical component / the 3300 XL 11mm Proximity Transducer System. Engineered for durability and precision, this cable ensures reliable signal transmission between proximity probes and Proximitor sensors in challenging industrial environments.
Key features include:
-
Armored construction with flexible AISI 302 stainless steel and FEP jacket for enhanced protection.
-
ClickLoc™ connectors with gold-plated brass contacts, /fering secure connections and 75 lb pull strength.
-
ATEX/IECEx and Chinese NEPSI certifications, making it suitable for use in hazardous and explosive atmospheres.
This extension cable is ideal for applications requiring robust performance, such as in oil and gas, petrochemical, and power generation industries.
製品仕様
| Parameter | Details |
| モデル Number | 330730-080-03-CN |
| Product Type | Armored Extension Cable |
| Series | 3300 XL 11mm Proximity Transducer System |
| Cable Length | 8.0 meters (26.2 feet) |
| Armor Type | Flexible AISI 302 SST with FEP jacket |
| Connector Type | ClickLoc™ gold-plated brass connectors |
| DC Resistance (8m) | Core: 2.0Ω ±0.5; Jacket: 0.6Ω ±0.2 |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Certifications | ATEX/IECEx, Chinese NEPSI |
| Environmental Sealing | Yes, fully sealed connectors |
| 重量 | 0.36 kg |
Applications
The 330730-080-03-CN extension cable is designed for use in various industrial applications, including:
-
Turbomachinery Monitoring: Ensures accurate signal transmission in systems monitoring critical rotating machinery such as turbines and compressors.
-
状態 Monitoring Systems: Provides reliable connections in vibration monitoring setups used for predictive maintenance.
-
Hazardous Environments: Suitable for use in explosive atmospheres, such as refineries and chemical plants, due to its ATEX/IECEx and NEPSI certifications.
-
OEM Equipment Integration: Commonly integrated into OEM monitoring and protection systems by major equipment manufacturers.
-
Retr/itting Legacy Systems: Used when upgrading or extending legacy proximity probe systems with modern monitoring capabilities.
Advantages
-
Robust Construction: Armored design with stainless steel and FEP jacket /fers superior protection against mechanical damage and environmental factors.
-
Secure Connections: ClickLoc™ connectors ensure reliable and vibration-resistant connections, reducing the risk / signal loss.
-
High-Temperature Tolerance: Operates effectively in a wide temperature range, making it suitable for extreme industrial environments.
-
Hazardous Area Certifications: ATEX/IECEx and NEPSI certifications allow for safe use in explosive atmospheres.
-
Ease / Installation: Flexible design and standardized connectors simplify installation and maintenance processes.
-
Long-Term Reliability: Engineered for durability, ensuring consistent performance over extended periods.
よくある質問 (FAQs)
-
What is the purpose / the 330730-080-03-CN extension cable?
-
It connects the 3300 XL 11mm proximity probe to the Proximitor sensor, transmitting signals accurately over a distance / 8.0 meters.
-
-
Is this cable suitable for hazardous environments?
-
Yes, it has ATEX/IECEx and Chinese NEPSI certifications, making it suitable for use in explosive atmospheres.
-
-
What are ClickLoc™ connectors?
-
ClickLoc™ connectors are gold-plated brass connectors designed for secure, vibration-resistant connections with a 75 lb pull strength.
-
-
Can this cable be used with other probe sizes?
-
It is specifically designed for use with the 3300 XL 11mm Proximity Transducer System and may not be compatible with other probe sizes.
-
-
What is the operating temperature range / this cable?
-
The cable operates effectively between -51°C and +177°C (-60°F to +350°F).
-
-
Is the cable resistant to environmental factors?
-
Yes, the armored construction and sealed connectors provide resistance to oil, chemicals, and mechanical stress.
-
-
Can the cable length be customized?
-
This model is 8.0 meters long. For different lengths, other models in the 3300 XL series are available.
-
-
What is the weight / the cable?
-
The cable weighs 0.36 kg.
-
-
Does the cable require special maintenance?
-
Regular inspections for physical damage are recommended, but the cable is designed for long-term, maintenance-free operation.
-
-
What distinguishes the “-03-CN” version from the standard version?
-
The “-03-CN” version includes a Chinese market-specific configuration, with NEPSI certifications and ruggedization tailored for installations in mainland China or regions requiring CN-certified parts.
-
Related or Same-Series モデルs (3300 XL 11mm Extension Cable)
| モデル Number | Cable Length | Connector Type | Armor Type | Certifications | Remarks |
|---|---|---|---|---|---|
| 330730-080-00-00 | 8.0 m | Standard connectors | Unarmored | None | Basic version without armor or approvals |
| 330730-080-01-00 | 8.0 m | Standard connectors | Armored | None | Armored version, no hazardous approval |
| 330730-080-02-00 | 8.0 m | ClickLoc™ connectors | Armored | ATEX / IECEx | Certified for use in explosive environments |
| 330730-080-03-00 | 8.0 m | ClickLoc™ connectors | Armored | ATEX / IECEx | Similar to CN version, for global use |
| 330730-080-04-00 | 8.0 m | ClickLoc™ connectors | Armored | NEPSI (China) | Specially certified for Chinese markets |
| 330730-080-05-00 | 8.0 m | ClickLoc™ connectors | Armored | ATEX / IECEx & NEPSI | Dual-certified for hazardous use globally |
Popular Bently Nevada モデルs (Across 製品カテゴリー)
| モデル Number | Product Type | Series | Function | Key Feature |
|---|---|---|---|---|
| 330105-02-12-10-02-00 | Proximity Probe | 3300 XL 8mm | Shaft vibration and position monitoring | Industry standard for 8mm proximity sensing |
| 330180-91-05 | Proximitor Sensor | 3300 XL | Works with 8mm probes | 3-pin terminal style |
| 3500/22M | Communication Gateway | 3500 Series | Ethernet communication module | Modbus TCP/IP and System 1 compatibility |
| 3500/42M | Vibration Monitor Module | 3500 Series | Monitors X-Y radial vibration | High channel density and diagnostic options |
| 3701/55 | Dynamic Pressure Monitor | 3701 Series | Gas turbine combustion dynamics | TEDS support for intelligent sensors |
| 144181-01 | Extension Cable | 3300 XL 8mm | Connects 8mm probes to sensors | Shorter length, field-installable ends |
