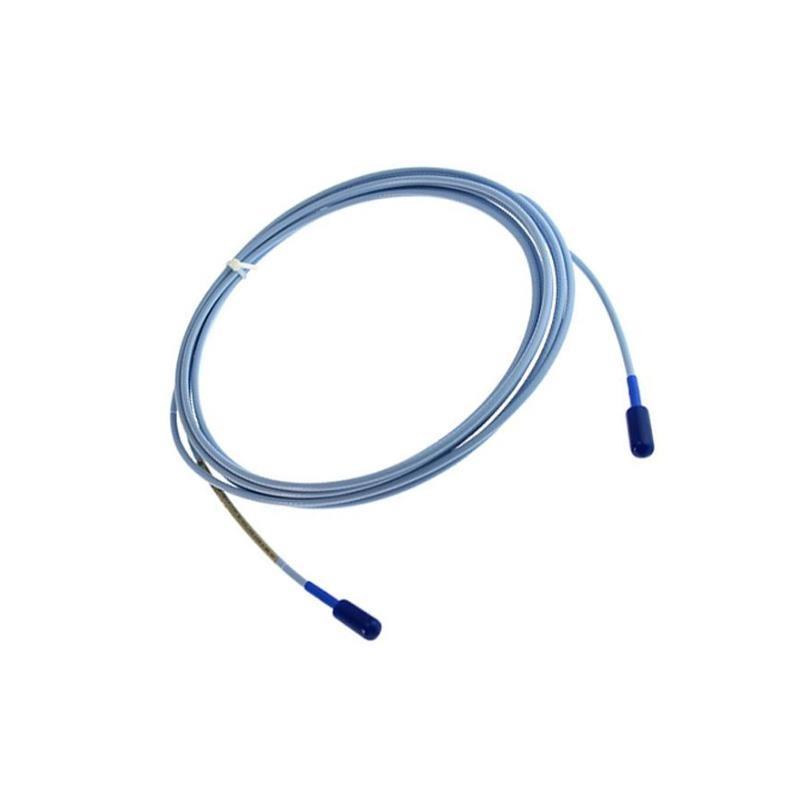

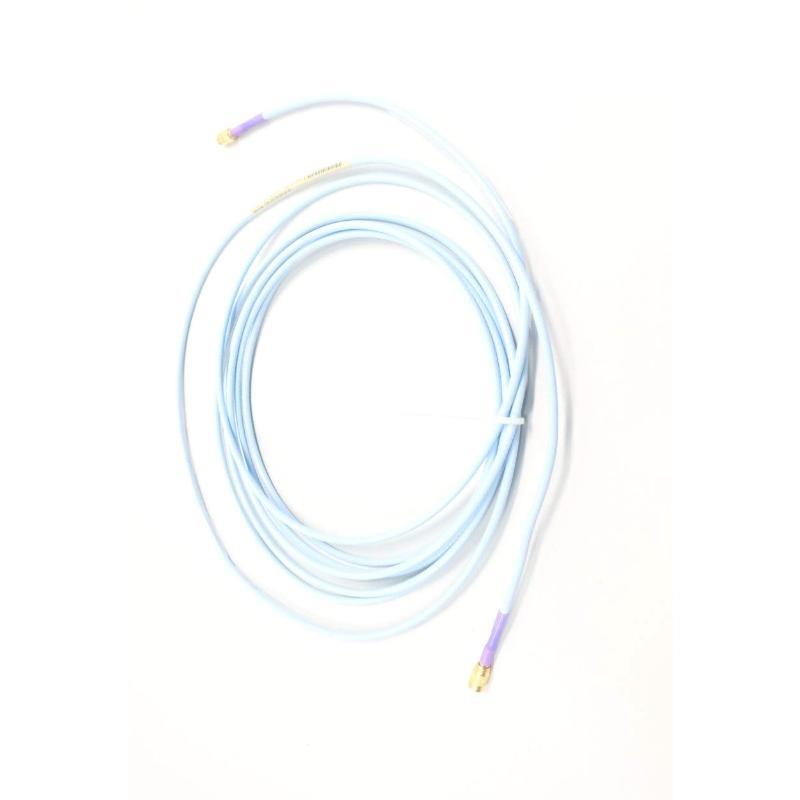

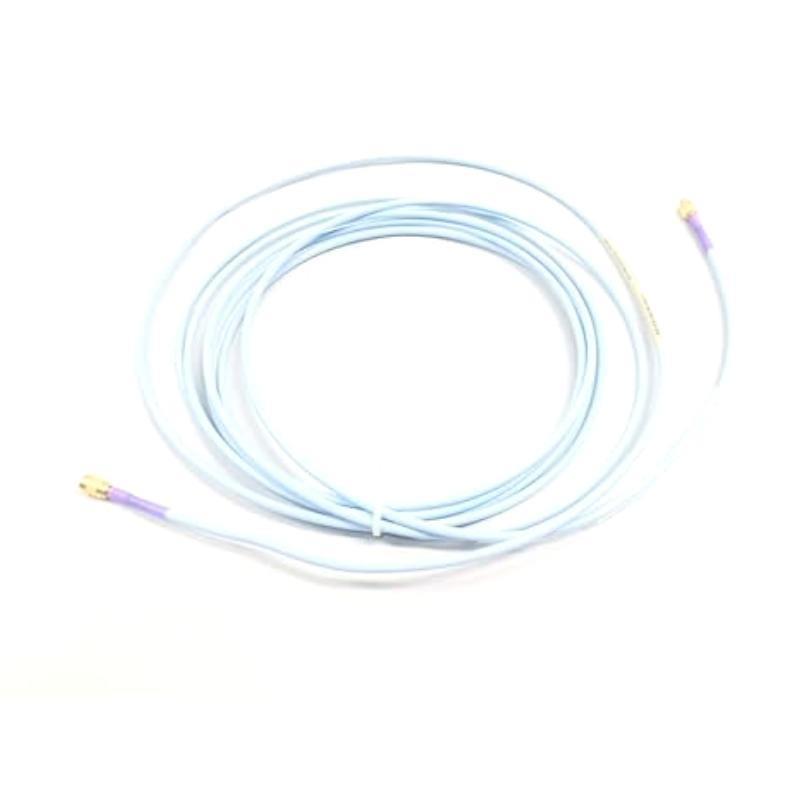

The Bently Nevada 330730-040-02-00 is a 3300 XL 11 mm Extension Cable designed for use with the Bently Nevada 3300 XL series / proximity transducer systems. This specific model features a total length / 4.0 meters, and plays a crucial role in connecting the proximity probe to the Proximitor® sensor, ensuring signal integrity, mechanical robustness, and system reliability over long distances.
Constructed with high-quality materials and built to endure the challenges / industrial environments, this extension cable guarantees a secure electrical pathway while /fering exceptional resistance to mechanical stress, temperature fluctuations, and chemical exposure. Its MIL-style connectors and double-shielded design reduce electrical noise and signal loss, which is vital in high-precision vibration monitoring applications.
Engineered to complement 11 mm proximity probes, the 330730-040-02-00 extension cable ensures full compatibility with Bently Nevada’s machinery protection and condition monitoring systems. It is widely used in industries like power generation, petrochemical, oil & gas, and manufacturing where machine health monitoring is mission-critical.
Product Parameters
| Parameter | Specification |
|---|---|
| Product Name | 3300 XL 11 mm Extension Cable |
| モデル Number | 330730-040-02-00 |
| Series | 3300 XL Series |
| Cable Type | Extension Cable |
| Connector Type | MIL-C-5015 style, 3-pin male/female |
| Total Length | 4.0 meters |
| 重量 | 0.18 kg |
| Temperature Range | -51°C to +177°C |
| Cable Jacket Material | Teflon (FEP), abrasion and oil resistant |
| Insulation Resistance | >10⁹ Ohms |
| Capacitance | 76 pF/m typical |
| Shielding | Double shielded, braided + foil |
| Compatibility | 3300 XL 11 mm probes & Proximitor® sensors |
| Certifications | CE, RoHS, ISO 9001 |
Product Applications
The 330730-040-02-00 Extension Cable is vital for environments where the proximity probe cannot be placed near the signal conditioning electronics. It supports a wide range / industrial monitoring systems:
-
Gas & Steam Turbines: Used to connect large 11 mm proximity probes on rotating shafts to Proximitor® sensors mounted in cooler, accessible locations.
-
Compressors & Pumps: Ensures accurate data transmission in environments where sensors must be remotely mounted due to temperature or vibration.
-
Power Generation Plants: Integral for long-distance vibration monitoring / generators and turbine shafts in both fossil and renewable power plants.
-
Refineries & Chemical Plants: サポートs remote monitoring / high-risk, explosion-prone areas while keeping electronics safe.
-
Heavy Manufacturing Equipment: Ideal for connecting probes in harsh machinery environments where vibration and heat are common.
-
Offshore and Marine Applications: Suitable for use in corrosion-prone or space-restricted installations such as FPSOs, platforms, and engine rooms.
Product Advantages
-
Reliable Signal Transmission: Maintains signal integrity over 4 meters, minimizing interference and voltage drop through double shielding.
-
Industrial-Grade Durability: Withstands mechanical abrasion, oil exposure, and temperature extremes from -51°C to +177°C, ensuring performance longevity.
-
Electromagnetic Interference (EMI) Protection: The dual-layer shielding provides superior resistance to noise in electrically noisy environments like motor control rooms.
-
Flexible Routing: The cable is pliable enough for tight routing within cabinets or cable trays, while maintaining its mechanical integrity.
-
High Compatibility: Specifically designed for 11 mm proximity probe systems, ensuring plug-and-play compatibility with Bently Nevada 3300 XL Proximitor® systems.
-
Reduced Downtime: Easy to install and replace, minimizing machine unavailability during maintenance or upgrade cycles.
-
Certified for Safety and Quality: Fully compliant with CE and RoHS, manufactured under ISO 9001 quality standards.
-
Compact and Lightweight: With a weight / just 0.18 kg, it’s easy to manage during installation even in elevated or hard-to-reach areas.
よくある質問 (FAQ)
Q1: What is the purpose / the 330730-040-02-00 cable?
A1: It extends the connection between a Bently Nevada 11 mm proximity probe and a Proximitor® sensor, ensuring accurate vibration and position signal transmission.
Q2: How long is the cable?
A2: The total length / this extension cable is 4.0 meters.
Q3: What type / connector is used on this cable?
A3: It features MIL-C-5015 style 3-pin male and female connectors.
Q4: Is this cable compatible with all Bently Nevada proximity probes?
A4: It is specifically designed for use with 3300 XL 11 mm proximity probe systems and associated Proximitor® sensors.
Q5: What is the operating temperature range / the cable?
A5: The cable can operate reliably from -51°C to +177°C.
Q6: Does this cable have EMI shielding?
A6: Yes, it has double shielding (foil and braided shield) to protect against electromagnetic interference.
Q7: What material is used for the cable jacket?
A7: The outer jacket is made from Teflon (FEP), which is resistant to abrasion, chemicals, and oils.
Q8: Can this cable be used in marine or /fshore environments?
A8: Yes, the cable is corrosion-resistant and suitable for harsh environments like /fshore platforms and marine engines.
Q9: What is the cable’s weight?
A9: The 4-meter cable weighs 0.18 kg, making it easy to handle and install.
Q10: What certifications does this extension cable have?
A10: It is CE, RoHS, and ISO 9001 certified, meeting global standards for safety and quality.
Related モデルs (Same Series or Compatible)
| モデル | 説明 | Length | 重量 |
|---|---|---|---|
| 330730-040-00-00 | 3300 XL 11 mm Extension Cable – 1.0 m | 1.0 meter | 0.10 kg |
| 330730-040-01-00 | 3300 XL 11 mm Extension Cable – 2.0 m | 2.0 meters | 0.12 kg |
| 330730-040-03-00 | 3300 XL 11 mm Extension Cable – 5.0 m | 5.0 meters | 0.22 kg |
| 330730-040-05-00 | 3300 XL 11 mm Extension Cable – 7.5 m | 7.5 meters | 0.27 kg |
| 330730-040-06-00 | 3300 XL 11 mm Extension Cable – 9.0 m | 9.0 meters | 0.30 kg |
| 330730-040-07-00 | 3300 XL 11 mm Extension Cable – 10.0 m | 10.0 meters | 0.35 kg |
Popular Bently Nevada モデルs (Same ブランド)
| モデル | 説明 | Type | 重量 |
|---|---|---|---|
| 330101-00-40-10-02-05 | 3300 XL 8 mm Proximity Probe – 1.0 m cable | Proximity Probe | 0.32 kg |
| 330106-05-30-10-02-00 | 3300 XL 5 mm Proximity Probe – 5.0 m cable | Proximity Probe | 0.28 kg |
| 330180-91-05 | 3300 XL NSv Proximitor Sensor | Proximitor® Sensor | 0.45 kg |
| 3500/22M-01-01-00 | 3500 Series System Interface Module | Rack Module | 0.65 kg |
| 330130-045-00-05 | 3300 XL Extension Cable – 5.0 m | Extension Cable | 0.24 kg |
| 3500/42M-01-00 | 3500 Machinery Protection Vibration Monitor | Monitor Module | 0.80 kg |
