Product Overview

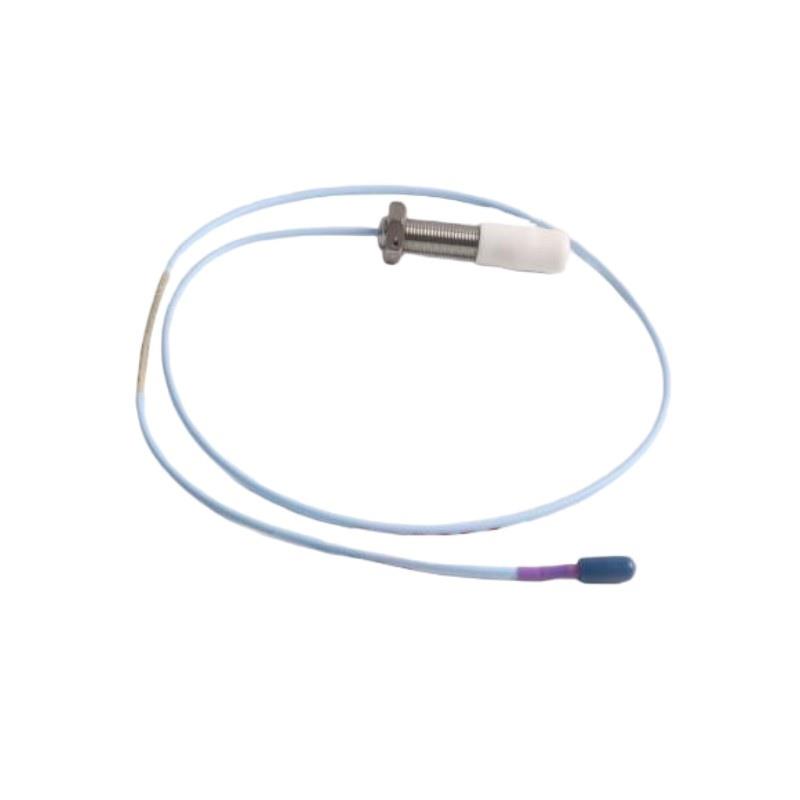

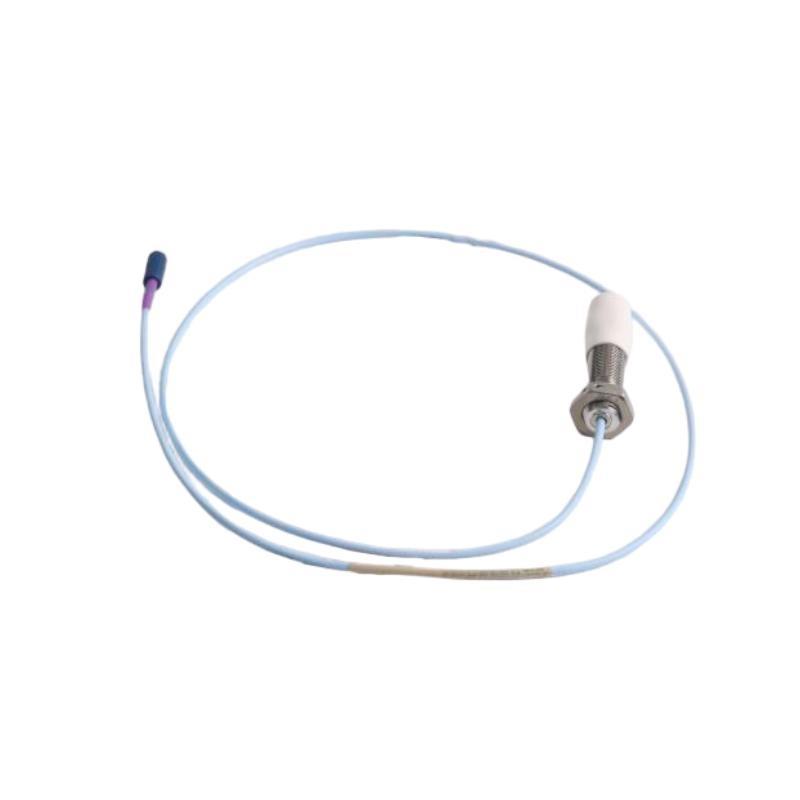

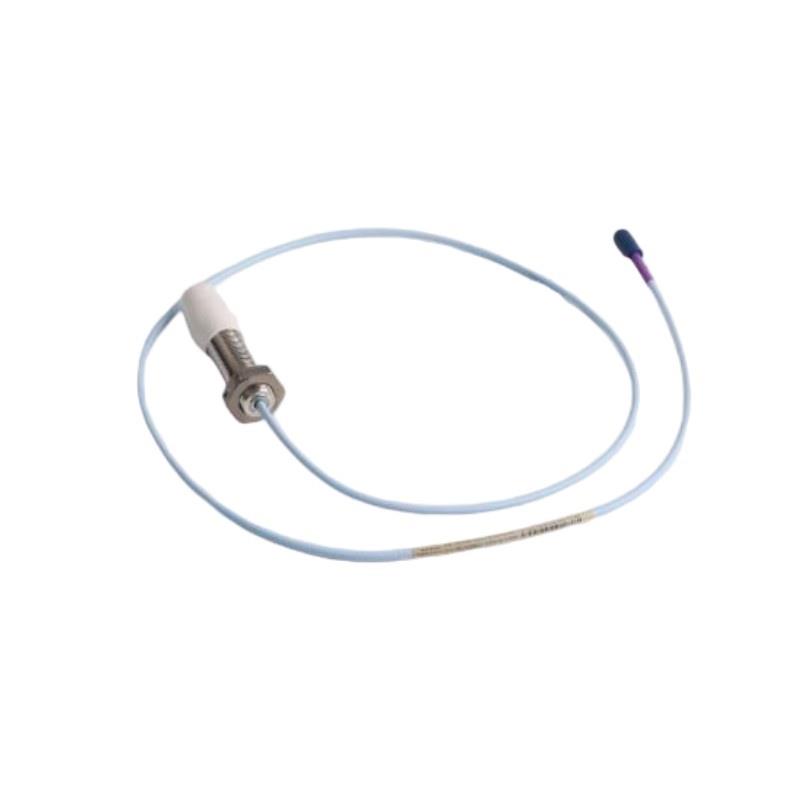

The Bently Nevada 330709-000-120-10-02-00 3300 XL 11 mm Proximity Probe is a high-accuracy proximity transducer engineered for shaft vibration and position measurements in large rotating machinery. Featuring an 11 mm probe tip and a 120 mm probe length, it is designed for applications that require longer reach and superior sensitivity. This probe integrates seamlessly with the Bently Nevada 3300 XL system, providing stable, repeatable measurements even in harsh environments and critical process conditions.
Key Features
-
High-precision shaft vibration and displacement monitoring
-
Fully compatible with Bently Nevada 3300 XL transducer systems
-
Extended probe length (120 mm) ideal for deep installation requirements
-
Resistant to oil, dust, and harsh industrial contaminants
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Bently Nevada |
| 型番 | 330709-000-120-10-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Dimensions | Total Length : 1.0 meter |
| 重量 | 0.17 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, axial position, and machinery protection |
Industry Applications
-
Large steam and gas turbines
-
Compressors and pumps
-
Industrial generators and electric motors
-
Gearboxes and heavy rotating machinery
-
Oil, gas, and petrochemical industries
-
状態 and vibration monitoring systems
よくある質問 (FAQ)
Q1: What is the main function / the 330709-000-120-10-02-00 probe?
It measures shaft vibration and position in large industrial machinery.
Q2: Which system does it work with?
It is compatible with the Bently Nevada 3300 XL proximity transducer system.
Q3: What is the probe size?
It has an 11 mm diameter and 120 mm probe length.
Q4: What is the operating temperature range?
–35 °C to +177 °C.
Q5: Can it operate in harsh environments?
Yes, it is resistant to oil, dust, and other industrial contaminants.
Q6: What is the linear measurement range?
0–1.0 mm (0–40 mils).
Q7: What signal does it output?
It provides an analog voltage signal proportional to shaft vibration and position.
Q8: Where is it commonly used?
In turbines, compressors, and gearboxes where extended probe length is required.
