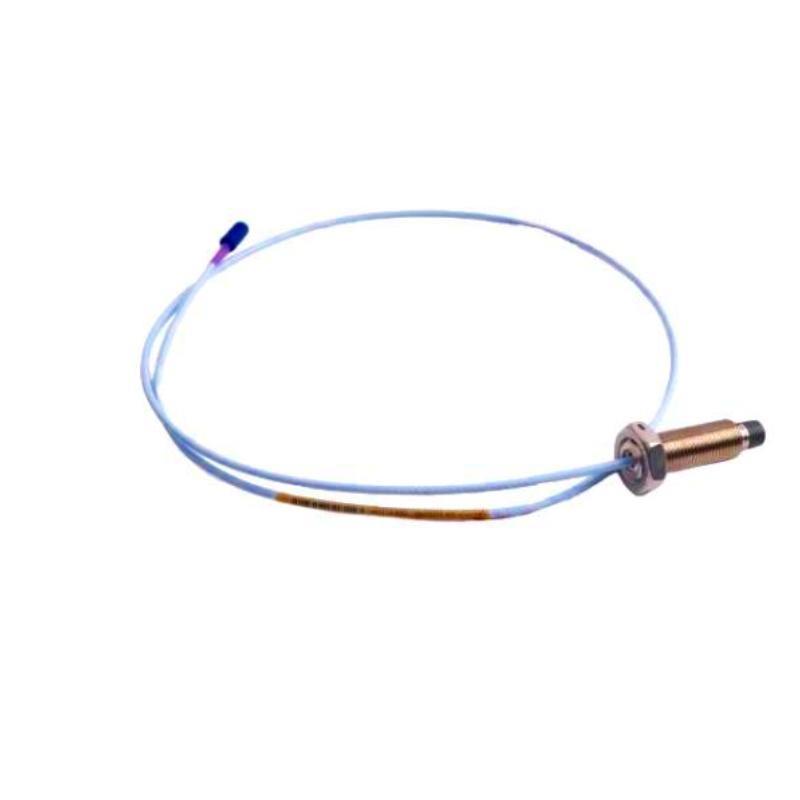

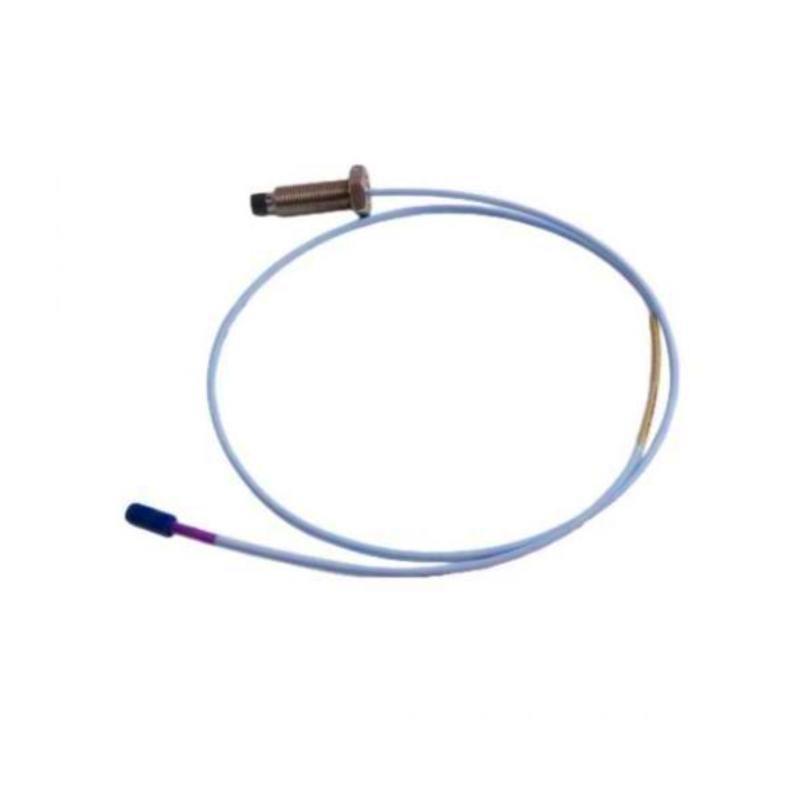

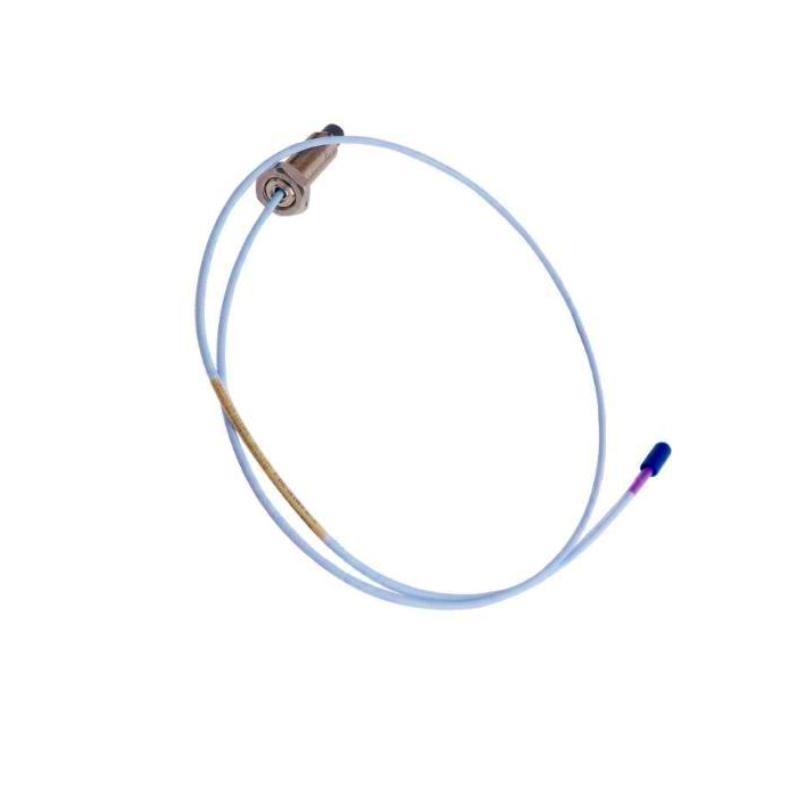

The 330709-000-040-10-02-05 3300 XL 11 mm Proximity Probe is a high-performance eddy-current displacement sensor designed for precise measurement / vibration and position in rotating machinery. This sensor is widely used in industrial monitoring systems for turbines, generators, pumps, and compressors, /fering reliable and accurate detection in demanding environments. Its compact 11 mm diameter makes it suitable for applications where space is limited while still providing robust sensing capabilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Proximity Probe |
| Diameter | 11 mm |
| Tip Material | Hardened Stainless Steel |
| Output Type | Voltage/Current (depending on system) |
| Measuring Range | 0–1 mm (standard, other ranges available) |
| Linearity | ≤ 1% / full scale |
| Operating Temperature | -40°C to +120°C |
| Cable Length | 1 m (Total Length) |
| 重量 | 0.07 kg |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Electrical Connector | LEMO / Custom options |
| Vibration Resistance | Up to 20 g |
| Shock Resistance | Up to 50 g |
| Response Time | ≤ 1 ms |
Product Applications
-
Rotating machinery monitoring (turbines, compressors, pumps)
-
Vibration and position detection in generators and motors
-
状態 monitoring systems in power plants
-
Industrial automation requiring precise displacement measurements
-
Research and development labs for mechanical dynamics testing
-
Aerospace and defense applications with high-speed rotating equipment
Product Advantages
-
High precision measurement with low linearity error
-
Robust construction suitable for harsh industrial environments
-
Compact 11 mm design for installation in tight spaces
-
Quick response time ideal for high-speed monitoring
-
Versatile compatibility with standard 3300 XL systems
-
Reliable signal output over long cable distances
FAQ
Q1: What is the recommended operating temperature range for this probe?
A1: The probe can reliably operate between -40°C and +120°C.
Q2: Can this probe be used in a high-vibration environment?
A2: Yes, it is designed to withstand vibrations up to 20 g.
Q3: What type / electrical output does this probe provide?
A3: It provides voltage or current output compatible with standard 3300 XL systems.
Q4: Is the probe compatible with standard 3300 XL proximity probe systems?
A4: Yes, it is fully compatible with 3300 XL monitoring systems.
Q5: What is the sensor’s linearity accuracy?
A5: The sensor maintains a linearity error / ≤ 1% / full scale.
Q6: Can this probe be installed in confined spaces?
A6: Yes, its 11 mm diameter allows installation in tight locations.
Q7: What is the insulation resistance / this probe?
A7: The insulation resistance is ≥ 100 MΩ at 500 VDC.
Q8: How long is the standard cable supplied with the probe?
A8: The standard cable length is 1 meter.
Q9: Is the probe resistant to mechanical shocks?
A9: Yes, it can tolerate shocks up to 50 g.
Q10: How fast can this probe respond to changes in displacement?
A10: The response time is ≤ 1 millisecond, suitable for high-speed applications.
Recommended Same-Series or Related モデルs
| モデル | Diameter | Measuring Range | Notes |
|---|---|---|---|
| 330709-000-040-10-02-01 | 11 mm | 0–0.5 mm | Standard XL model |
| 330709-000-040-10-02-03 | 11 mm | 0–2 mm | Extended range |
| 330709-000-040-10-02-04 | 11 mm | 0–1.5 mm | High temperature version |
| 330709-000-040-10-02-06 | 11 mm | 0–1 mm | Enhanced cable shielding |
| 330709-000-040-10-02-07 | 11 mm | 0–0.75 mm | Precision grade |
| 330709-000-040-10-02-08 | 11 mm | 0–1 mm | For high-vibration applications |
Popular モデルs from the Same ブランド
| モデル | Diameter | Measuring Range | Notes |
|---|---|---|---|
| 3300 XL 12 mm | 12 mm | 0–1 mm | Larger diameter option |
| 3300 XL 8 mm | 8 mm | 0–0.5 mm | Compact design |
| 3300 XL 11 mm HP | 11 mm | 0–2 mm | High performance |
| 3300 XL 11 mm HT | 11 mm | 0–1 mm | High temperature |
| 3300 XL 11 mm LV | 11 mm | 0–1 mm | Low voltage version |
| 3300 XL 10 mm | 10 mm | 0–1 mm | Mid-range option |
| 3300 XL 11 mm Shielded | 11 mm | 0–1 mm | Shielded cable version |
| 3300 XL 11 mm Precision | 11 mm | 0–0.75 mm | Precision measurement |
